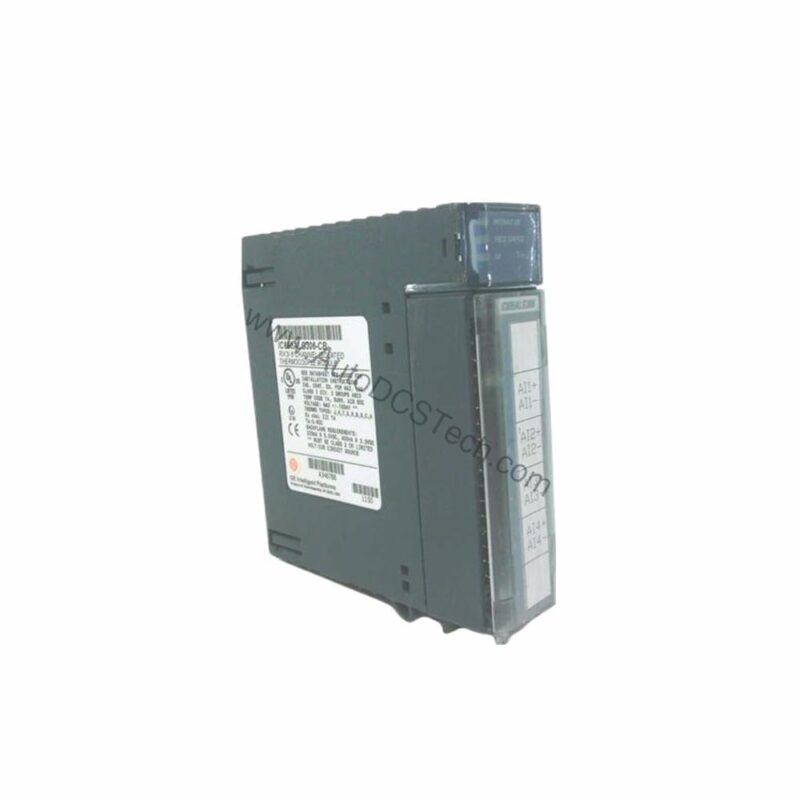

IC695ALG306: Isolated Thermocouple Input
The IC695ALG306 is the Isolated Thermocouple Input covered on this page. The attribute that decides whether it fits the existing installation without modification is +/-150 millivolts or +/-50.
The reason to specify this exact variant is isolated thermocouple input. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. isolated thermocouple input is the attribute that decides fit and function, and verifying +/-150 millivolts or +/-50 against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG306 |
| Series | RX3i PacSystem |
| Part Number | IC695ALG306 |
| Module Type | Isolated Thermocouple Input |
| Input Voltage | +/-150 millivolts or +/-50 |
| Number of Inputs | 6 |
| Internal Power | 3.3V: 400mA |
| 5V | 150 mA |
| Thermocouple Types | B, C, E, J, K, N, R, S, or T |
| Firmware Version | 5.5 or newer |
| Resolution | 11.5 to 16 bits |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695alg312-isolated-thermocouple-input-module-for-pacsystem-rx3i | confirm the configuration against your installation |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG306 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
