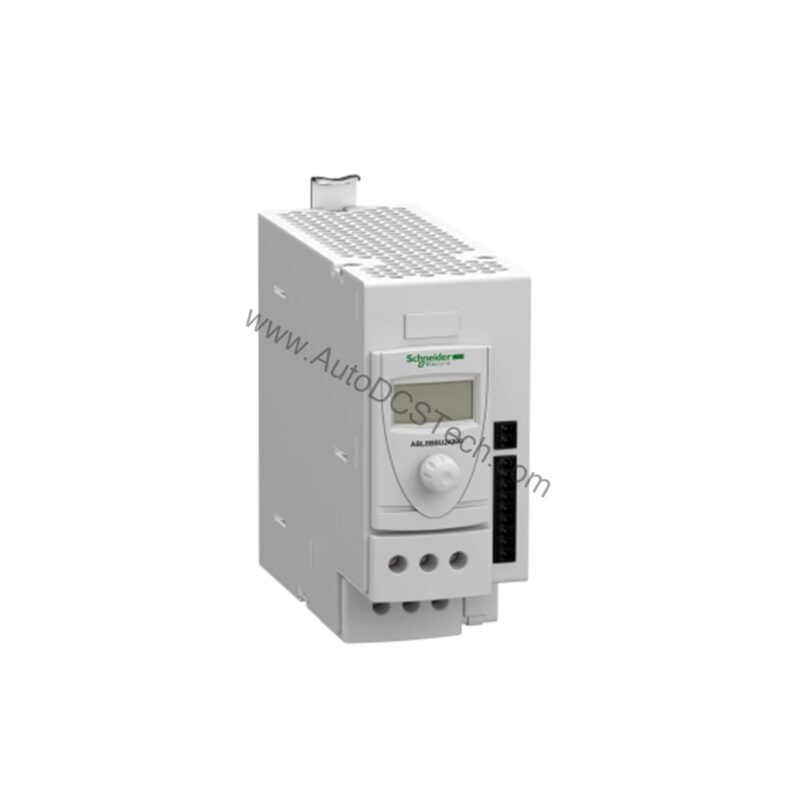

ABL8BBU24200: Battery Control Module for Reliable Power Management
The ABL8BBU24200 is the Battery Control Module for Reliable Power Management covered on this page. The attribute that decides whether it fits the existing installation without modification is 24 to 28.8V DC.
On this unit battery control module for reliable power management is the figure that decides fit and function. A power supply or battery in a controller rack is sized against the backplane budget, not in isolation. battery control module for reliable power management is whether the unit delivers the voltage and current the rack draws at full load, and whether the battery holds programme and configuration through a power loss. Checking 24 to 28.8V DC against the rack's requirement prevents a supply that fits the slot but cannot hold the load.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | ABL8BBU24200 |
| Input Voltage | 24 to 28.8V DC |
| Output Voltage | (Ubattery-0.5)V battery mode, (Uin-0.25)V nominal mode |
| Max Output Current | 20A |
| Input Voltage Limits | 22 to 30V |
| Max Power Dissipation | 7W |
| Activation Threshold | Adjustable 22 to 36V |
| Number of Outputs | 1 |
| Current Consumption | 0.6A load, 0.1mA no load |
| Operating Temp | -25 to 60°C |
| Storage Temp | -40 to 85°C |
| Max Altitude | 2000m |
| Weight | 1.13 lbs (0.51 kg) |
| MTBF | 718,708 hours at 24V DC. |
Datasheet & Downloads
Specification sheet for ABL8BBU24200. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-electric-abl8rps24100-universal-power-supply-240w-24vdc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | ABL8BBU24200 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
