Introduction to the 6ES7972-0BA12-0XA0

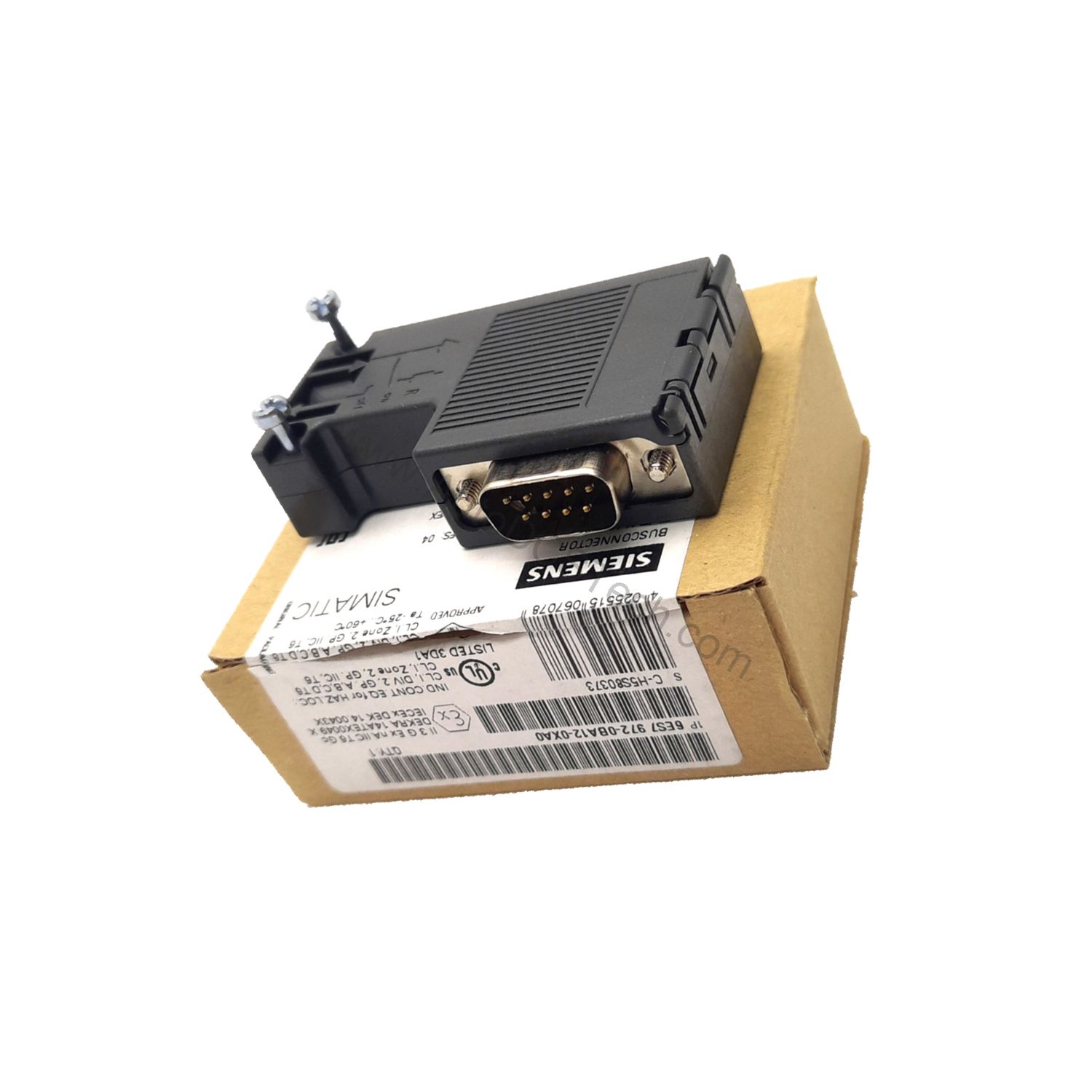

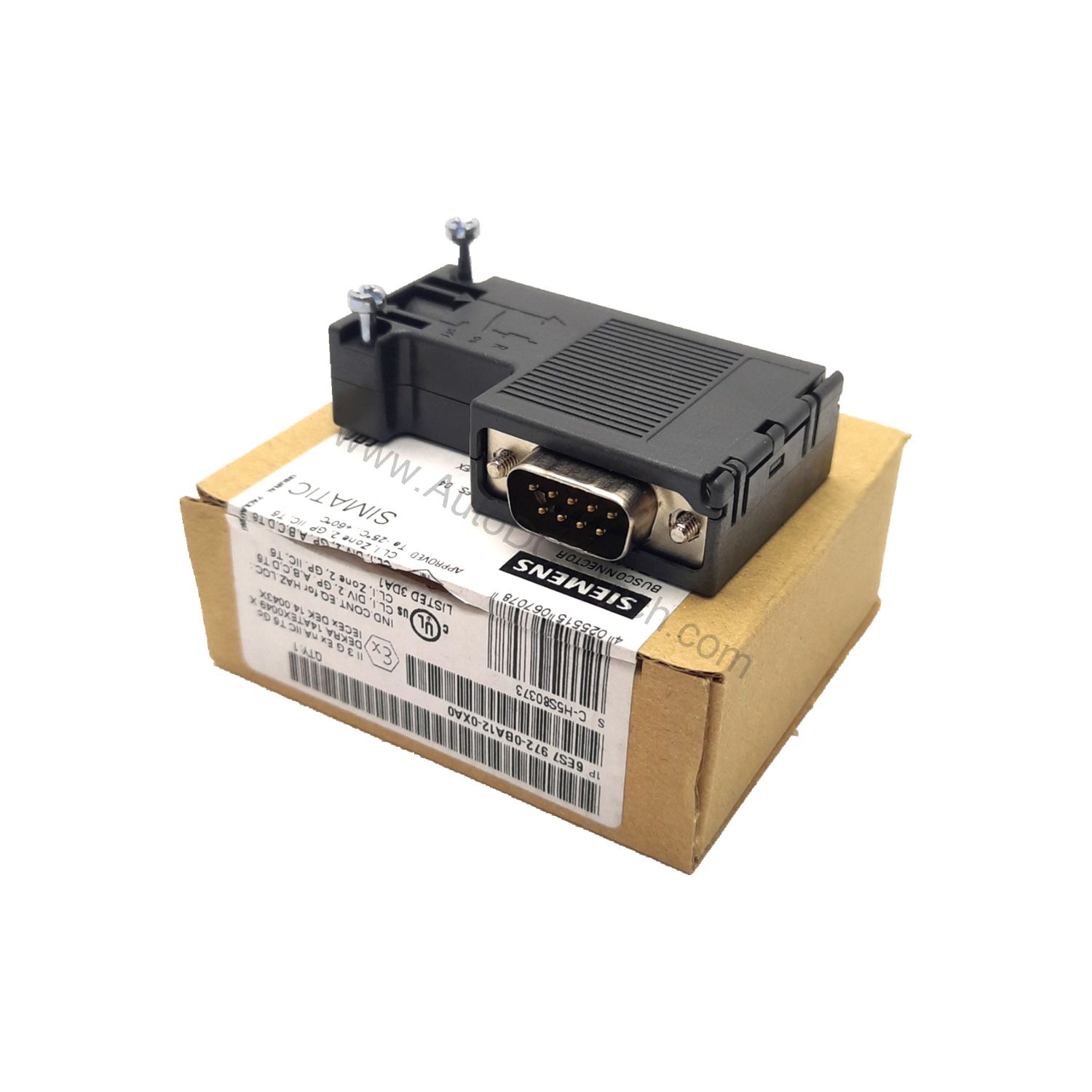

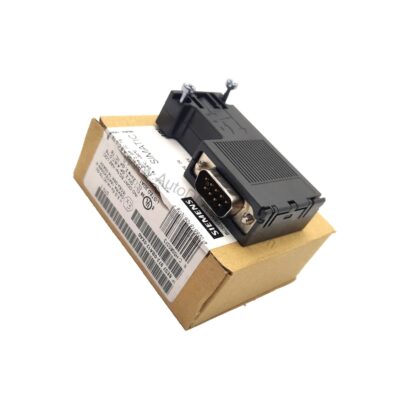

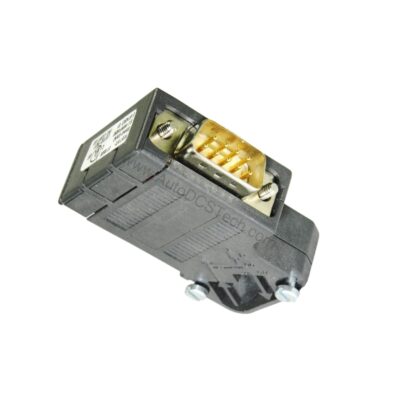

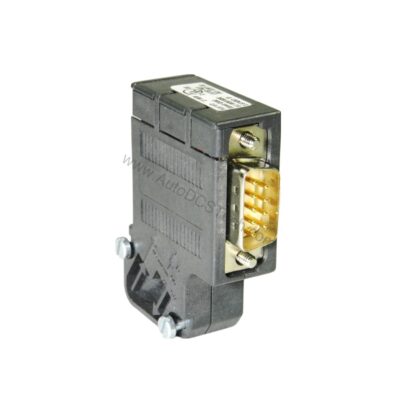

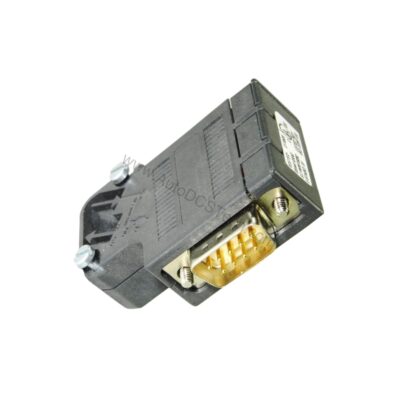

When PROFIBUS network reliability is critical, the 6ES7972-0BA12-0XA0 from Siemens delivers a robust connection solution. This SIMATIC DP connection plug is engineered for PROFIBUS networks operating up to 12 Mbit/s, featuring a 90° cable outlet to simplify installation in tight spaces.
Key Features and Technical Specifications
The 6ES7972-0BA12-0XA0 offers a range of technical parameters that ensure dependable performance:
- Transfer rate: 9.6 kbit/s to 12 Mbit/s for PROFIBUS DP
- Two electrical connections for PROFIBUS cables, one for network components or terminal equipment
- Screw-type connection for PROFIBUS cables; 9-pin sub D connector for network components
- Integrated terminating resistor with isolating function, connectable via slide switch
- Plastic enclosure, silicon-free, with strain relief
- IP20 protection class, operating temperature -25 to +60 °C
- Net weight: 36 g (0.046 kg)
These specs make the connector suitable for demanding industrial environments where signal integrity is paramount.
Applications and Use Cases
This PROFIBUS connector is designed for connecting PROFIBUS stations to the bus cable. It is commonly used in manufacturing automation, process control, and building automation systems. The 90° cable outlet allows for flexible routing, especially in panels with limited depth. Its terminating resistor with isolating function helps prevent signal reflections, ensuring stable communication across the network.
Installation and Setup
Installing the 6ES7972-0BA12-0XA0 is straightforward. The screw-type connection for PROFIBUS cables ensures a secure and reliable termination. The 9-pin sub D connector plugs directly into the station's PROFIBUS port. The integrated terminating resistor can be activated via the slide switch, which is essential for end nodes on the bus. Always verify the resistor setting matches the network topology to avoid communication errors.
Maintenance and Reliability
Regular inspection of the connector is recommended to ensure the screw terminals remain tight and the cable insulation is intact. The plastic enclosure is durable and resistant to typical industrial contaminants. The silicon-free construction makes it suitable for applications where silicone outgassing could be problematic. With proper installation, this connector offers long-term reliability, reducing downtime and maintenance costs.
Compatibility and Integration
The 6ES7972-0BA12-0XA0 is part of the Siemens SIMATIC DP family, ensuring seamless integration with Siemens PROFIBUS networks. It supports transfer rates from 9.6 kbit/s to 12 Mbit/s, making it compatible with a wide range of PROFIBUS DP devices. The connector is suitable for use with standard PROFIBUS cables and does not require FastConnect technology, simplifying field wiring.
Troubleshooting and Common Issues
Common issues with PROFIBUS connectors include loose connections, incorrect terminating resistor settings, and cable damage. To avoid these, ensure the screw terminals are tightened to the manufacturer's specification and that the terminating resistor is set correctly for the node's position. If communication errors occur, check the cable continuity and the connector's physical integrity. The isolating function of the terminating resistor helps reduce ground loop issues, but proper grounding of the network is still essential.
Product Support and Availability
The 6ES7972-0BA12-0XA0 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can provide technical support and documentation to assist with your application.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7972-0BA12-0XA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
