6ES7972-0BB52-0XA0 12 Mbit/s PROFIBUS Connector

Introduction to the Siemens 6ES7972-0BB52-0XA0

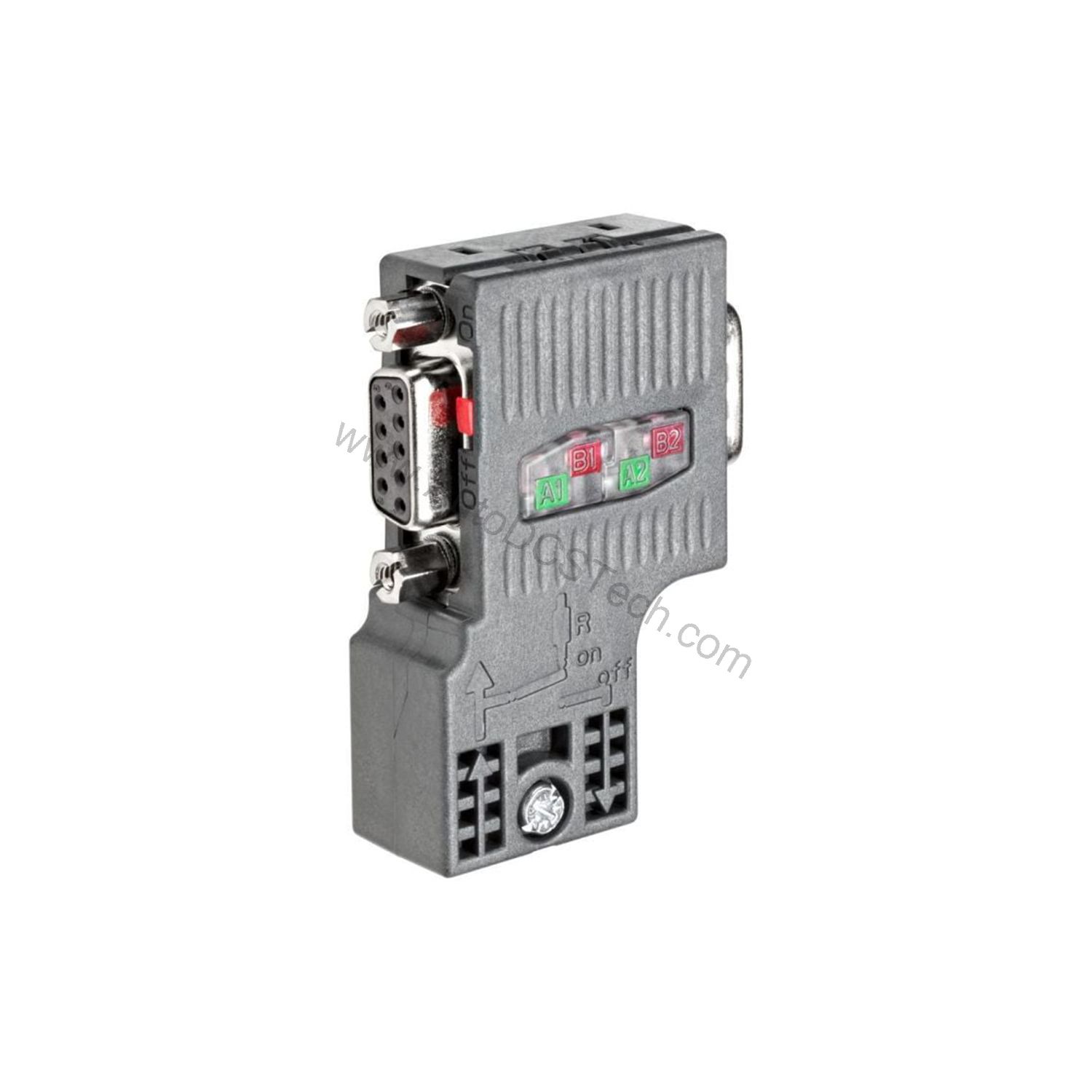

When fieldbus connections fail, production lines stop. The 6ES7972-0BB52-0XA0 from Siemens provides a dependable PROFIBUS connection with a 90° cable outlet and integrated PG socket. This connector is engineered for industrial environments where space is tight and reliability is non-negotiable.

Part of the SIMATIC DP family, this PROFIBUS connector uses insulation displacement technology (FastConnect) for quick, tool-free wiring. With support for data rates up to 12 Mbit/s, it meets the demands of modern automation systems.

Key Features and Technical Specifications

The 6ES7972-0BB52-0XA0 offers several features that simplify installation and improve signal integrity:

• Data rate: 9.6 kbit/s to 12 Mbit/s for PROFIBUS DP.
• Connections: Two for PROFIBUS cables, one for network components or terminal equipment.
• Termination: Integrated terminating resistor, connectable via slide switch.
• Enclosure: Plastic housing, silicon-free, with IP20 protection.
• Dimensions: 15.8 mm width, 59 mm height, 35.6 mm depth.
• Weight: 45 g net.

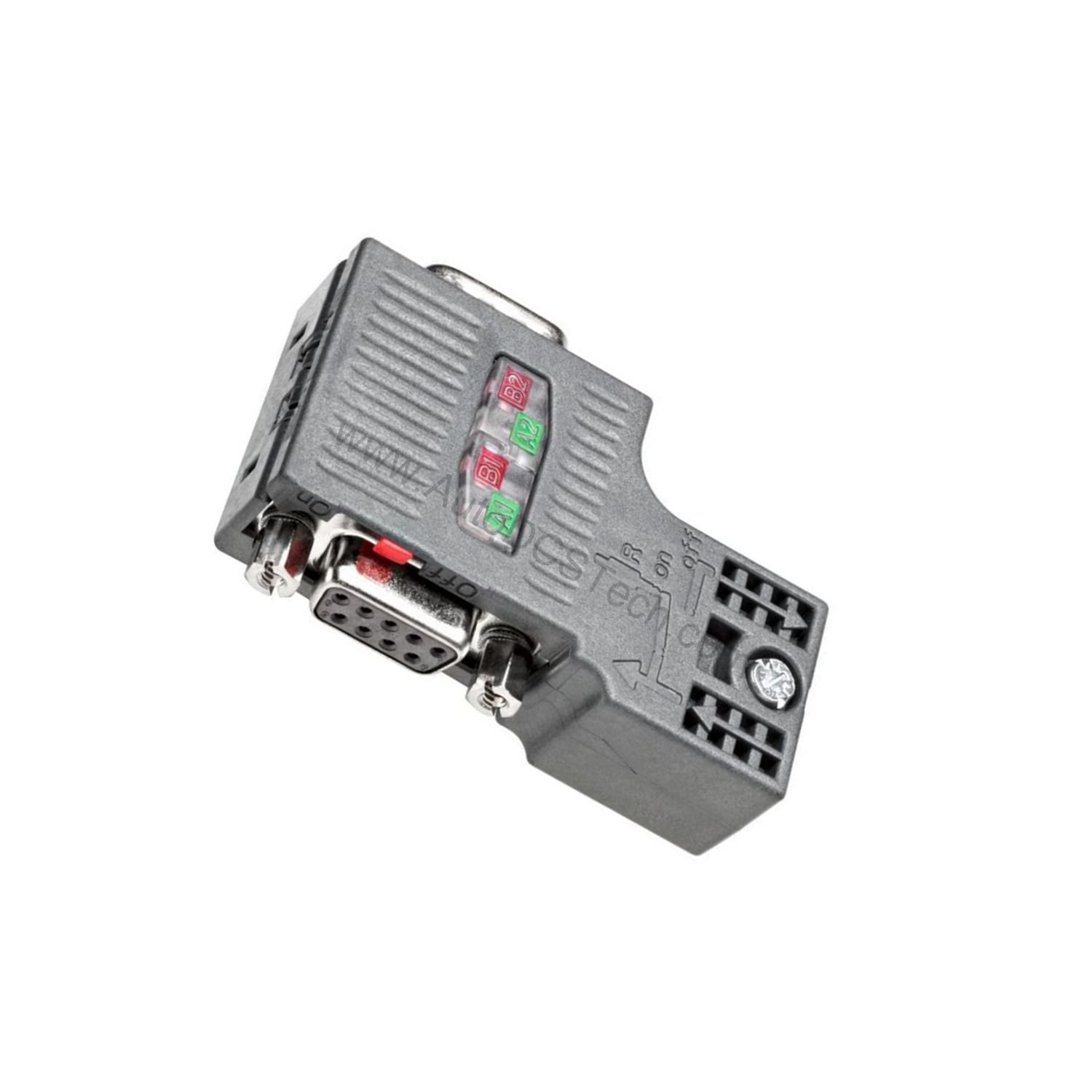

The 90° cable outlet allows the connector to fit into confined spaces, reducing strain on the cable. The integrated PG socket (programming port) enables quick diagnostics without disconnecting the bus.

Applications and Use Cases

This connector is suitable for connecting PROFIBUS stations to the PROFIBUS bus cable in a variety of industrial settings. Use it in manufacturing lines, process control systems, and material handling equipment where PROFIBUS DP is the backbone of communication.

For example, in a bottling plant, the 6ES7972-0BB52-0XA0 can link PLCs to remote I/O panels, ensuring real-time data exchange. Its FastConnect technology reduces wiring time, which is critical during retrofits or expansions.

Installation and Setup

Installing the 6ES7972-0BB52-0XA0 is straightforward. The insulation displacement terminals accept 2-core PROFIBUS FC installation cables without stripping. Simply insert the cable and close the cover to make contact.

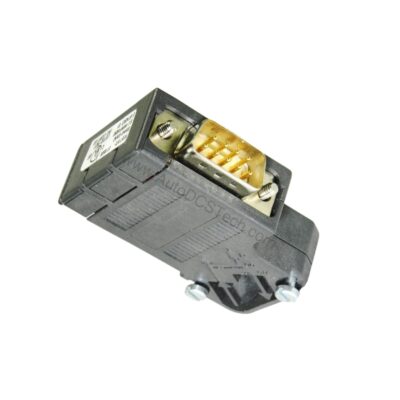

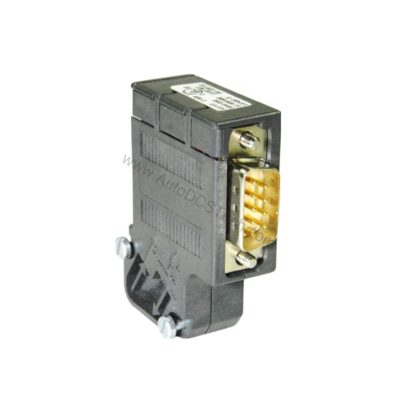

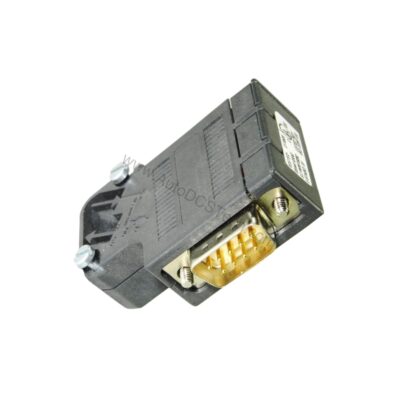

For the network connection, use the 9-pin sub-D connector to attach to the station. Ensure the terminating resistor is set correctly via the slide switch, especially at the ends of the bus segment. The screw locking mechanism secures the connector firmly, preventing accidental disconnection.

Maintenance and Reliability

Routine inspection of the connector and cable is recommended to maintain signal quality. Check for signs of wear or damage periodically, especially in high-vibration environments. The IP20 rating means the connector is protected against solid objects larger than 12 mm, but it is not dust-tight or waterproof, so keep it in a clean, dry enclosure.

The silicon-free construction makes it suitable for applications where silicone contamination must be avoided, such as in painting or coating processes.

Compatibility and Integration

The 6ES7972-0BB52-0XA0 is designed for PROFIBUS DP networks. It works with any PROFIBUS DP master or slave that uses standard 9-pin sub-D connectors. The FastConnect system is compatible with Siemens PROFIBUS FC cables, ensuring optimal signal integrity.

This connector is a drop-in replacement for many existing PROFIBUS connectors, making it easy to upgrade your network without changing cabling infrastructure.

Troubleshooting and Common Issues

If you experience communication errors, first verify that the terminating resistors are set correctly. Incorrect termination is a common cause of signal reflections. Also, check that the cable is fully inserted into the insulation displacement terminals; a loose connection can cause intermittent faults.

If the PG socket is not working, ensure the programming device is properly connected and that the connector is not damaged. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The Siemens 6ES7972-0BB52-0XA0 is available from AutoDCSTech. For technical assistance or to verify compatibility with your system, contact our team. We are ready to help you keep your PROFIBUS network running smoothly.
