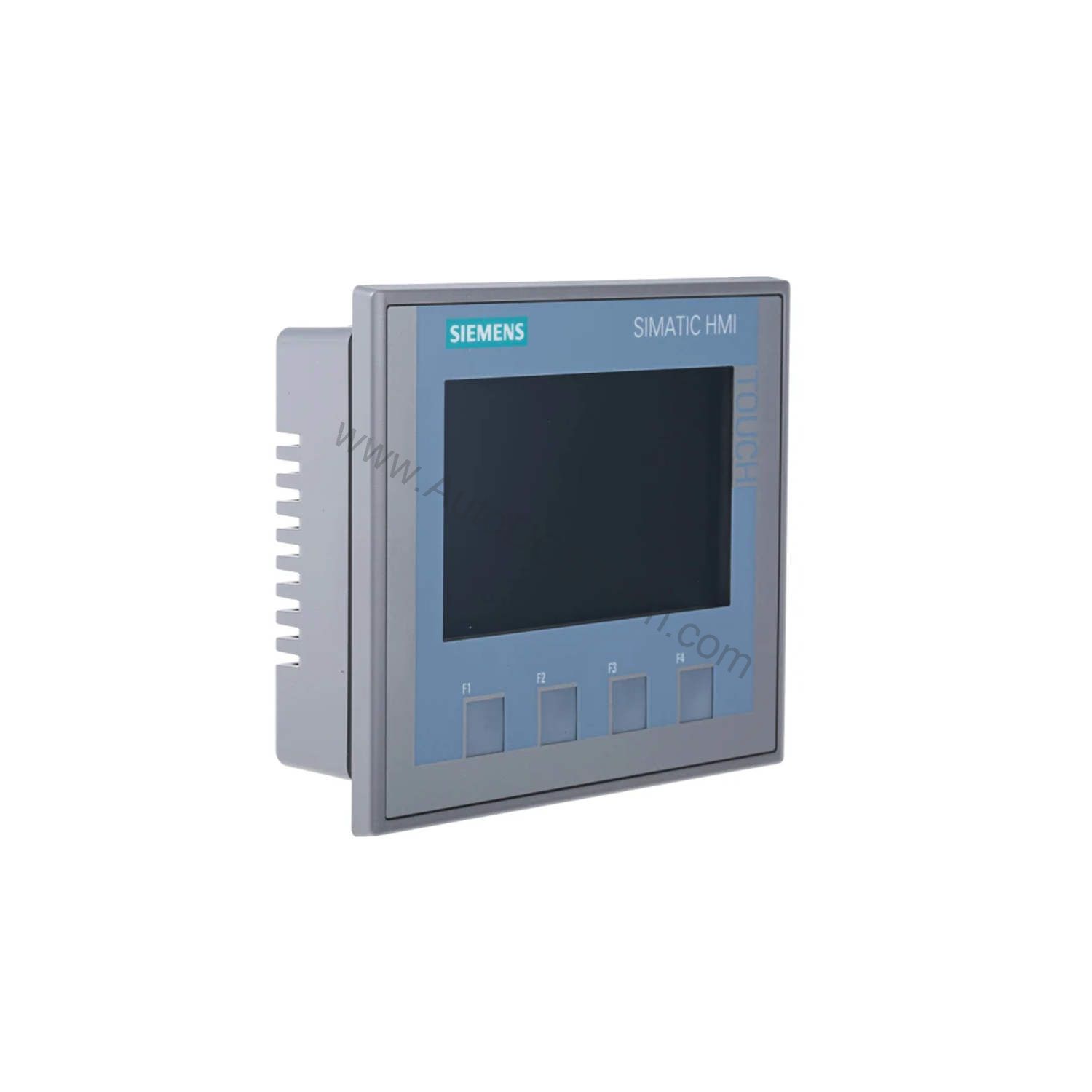

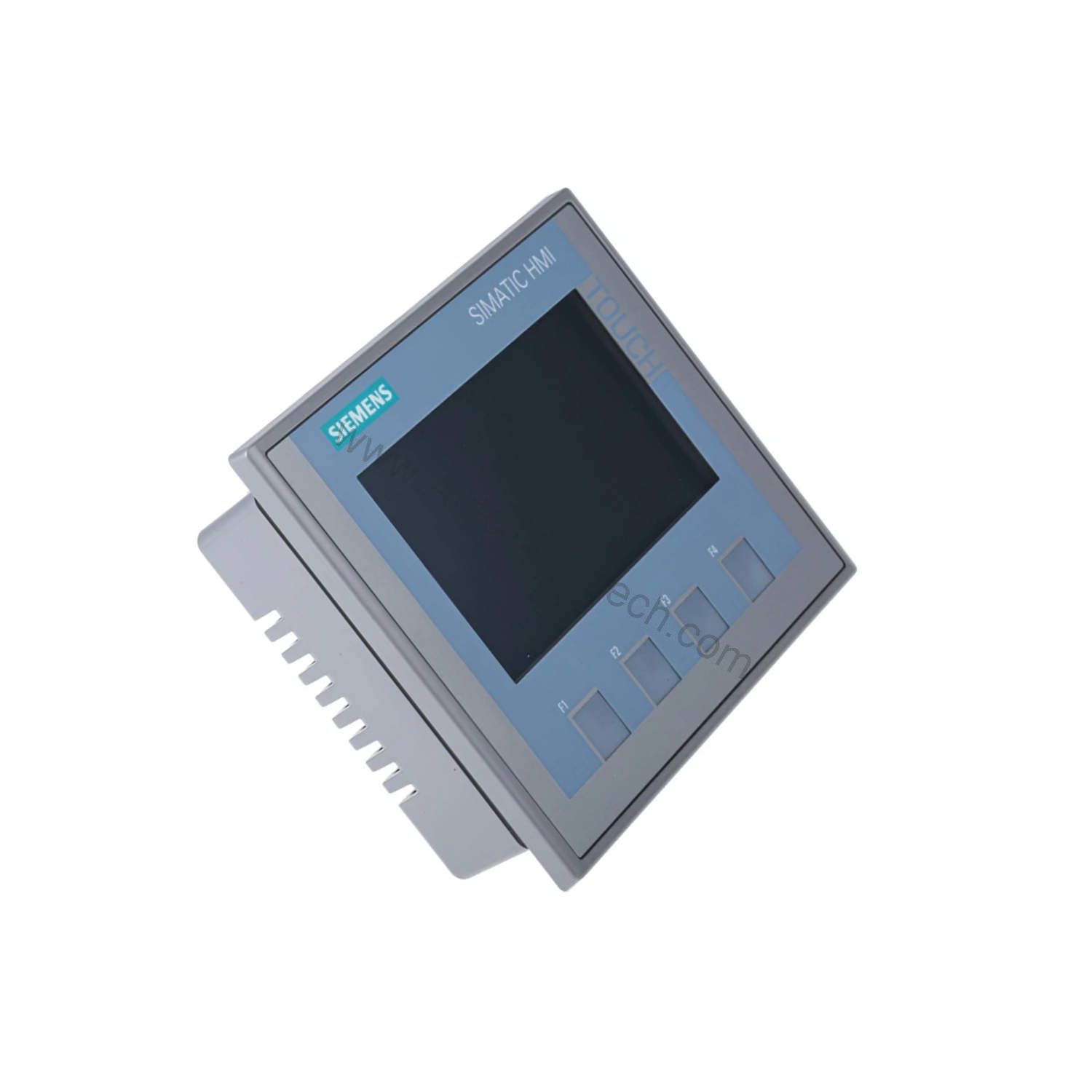

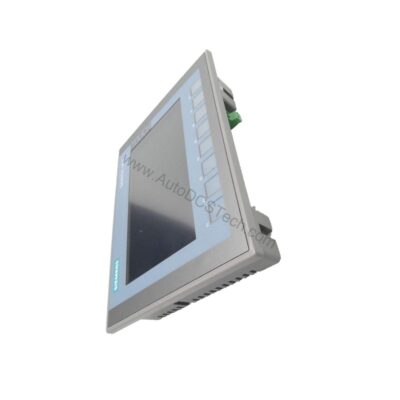

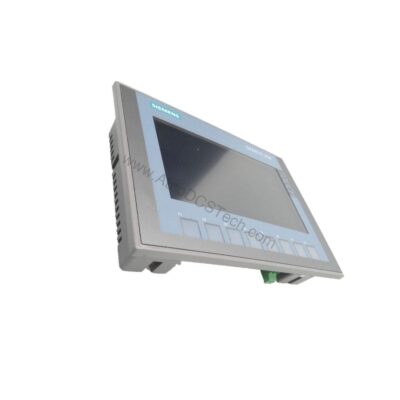

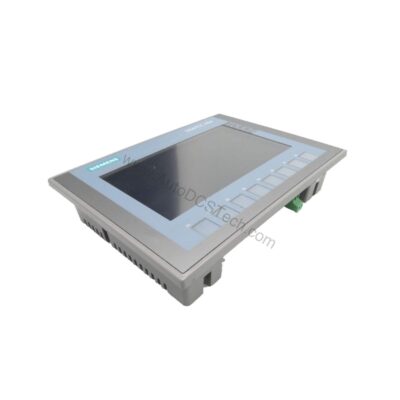

6AV2123-2DB03-0AX0 4.3" HMI Panel | Siemens KTP400 Basic

Introduction: The Evolution of Compact HMI Control

Industrial automation has moved from bulky push-button panels to sleek, intelligent interfaces. The 6AV2123-2DB03-0AX0 from Siemens represents this shift, packing powerful visualization into a compact 4.3-inch form. This HMI bridges the gap between operator and machine, enabling real-time data access and control. As production lines grow more complex, the need for reliable, user-friendly panels becomes critical. The KTP400 Basic series answers that call with a balanced mix of performance and simplicity.

For engineers and integrators, choosing the right HMI affects uptime and efficiency. The 6AV2123-2DB03-0AX0 is designed to meet these demands, offering a robust feature set in a small footprint. Its key/touch operation provides flexibility, while the PROFINET interface ensures seamless integration into modern networks. This article explores the technical specifications, applications, and practical considerations for this Siemens Basic Panel.

Key Features & Technical Specifications of the 6AV2123-2DB03-0AX0

The 6AV2123-2DB03-0AX0 is engineered for clarity and responsiveness. Its 4.3-inch TFT widescreen display delivers 65,536 colors, ensuring crisp visuals for process data and alarms. The LED backlight offers a 20,000-hour MTBF at 25 °C, reducing maintenance intervals. With a resolution of 480 x 272 pixels, operators can view detailed screens without eye strain.

• Display: 4.3-inch TFT widescreen, LED backlight, 65,536 colors
• Resolution: 480 x 272 pixels
• Control: Key/touch operation, analog-resistive touch screen
• Function Keys: 4 function keys, no LED indicators
• Supply Voltage: 24 V DC (19.2–28.8 V range)
• Current Consumption: 125 mA rated, 0.2 A²·s inrush
• Power Input: 3 W typical
• Processor: ARM-based
• Memory: 10 MB user data, Flash and RAM
• Interfaces: 1 Industrial Ethernet (PROFINET), 1 USB (up to 16 GB)
• Protocols: PROFINET, EtherNet/IP, MODBUS TCP/IP, TCP/IP, DHCP, SNMP, DCP, LLDP
• Protection: IP65 front, IP20 rear
• Certifications: CE, cULus, RCM, KC, marine approvals

One distinctive spec is the 20,000-hour backlight MTBF. This translates to years of reliable operation, minimizing downtime and replacement costs. Additionally, the panel supports 10 runtime languages and 32 project languages, making it suitable for global deployments.

Real-World Applications and Use Cases

The 6AV2123-2DB03-0AX0 excels in small to medium-sized machines, packaging equipment, and material handling systems. Its compact size fits tight control cabinets, while the PROFINET interface connects directly to Siemens S7-1200 or S7-1500 controllers. For example, a packaging line can use this HMI to display production counts, adjust parameters, and acknowledge alarms—all from a single panel.

Moreover, the panel supports Allen Bradley (EtherNet/IP) and Mitsubishi (MC TCP/IP) controllers, offering cross-platform flexibility. This makes it a valuable asset in plants with mixed automation brands. The key/touch interface allows operators to navigate quickly, even with gloves, reducing training time.

Installation & Setup: Getting Started

Mounting the 6AV2123-2DB03-0AX0 is straightforward. It supports both portrait and landscape orientations, with a maximum tilt angle of 35° without external ventilation. The mounting cutout measures 124 mm x 100 mm, and the overall depth is 34.9 mm. Ensure the panel is installed vertically for optimal cooling and touch accuracy.

Wiring is simplified with a 24 V DC supply (19.2–28.8 V range). Connect the PROFINET cable to the Industrial Ethernet interface for communication. For programming, use WinCC Basic (TIA Portal) V13 or higher, or STEP 7 Basic V13. The panel includes open-source software on a CD, which is provided free of charge.

Maintenance & Reliability: Maximizing Uptime

Routine care of the 6AV2123-2DB03-0AX0 ensures long service life. The LED backlight, rated for 20,000 hours, reduces the need for frequent replacements. Periodically inspect the front seal to maintain IP65 protection. Clean the touch screen with a soft, dry cloth—avoid solvents that may damage the coating.

The panel's retentive clock backup lasts typically 6 weeks, preserving time stamps during power outages. Its maintenance-free message buffer (256 entries) stores alarms without battery backup. These features contribute to lower total cost of ownership, as downtime is minimized.

Compatibility & Integration

This HMI is designed for seamless integration into Siemens ecosystems. It works with S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, WinAC, SINUMERIK, and SIMOTION. Additionally, it supports Allen Bradley (EtherNet/IP) and Mitsubishi (MC TCP/IP) controllers, broadening its application scope.

For configuration, WinCC Basic (TIA Portal) is the primary software, but it also works with WinCC Comfort, Advanced, and Professional versions. The panel supports up to 800 variables per device and 100 variables per screen, providing ample capacity for typical applications. The USB interface allows data logging to a USB drive (up to 16 GB), with TXT format archiving.

Common Issues & Troubleshooting

Like any electronic device, the 6AV2123-2DB03-0AX0 may encounter issues. Common problems include communication errors, display flicker, or unresponsive touch. First, verify the 24 V DC supply is within the 19.2–28.8 V range. Check PROFINET cable connections and ensure the IP address is correctly configured.

If the touch screen becomes unresponsive, recalibrate it via the control panel settings. For persistent issues, consult the Siemens manual or contact AutoDCSTech for technical support. Regular firmware updates can also resolve known bugs and improve performance.

Support & Availability

The 6AV2123-2DB03-0AX0 is available from AutoDCSTech, a trusted industrial automation parts supplier. We stock genuine Siemens components to ensure quality and reliability. Contact our team for current pricing and lead times. Please verify lifecycle status and availability before ordering.
