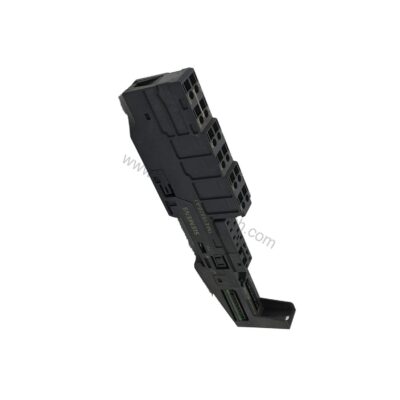

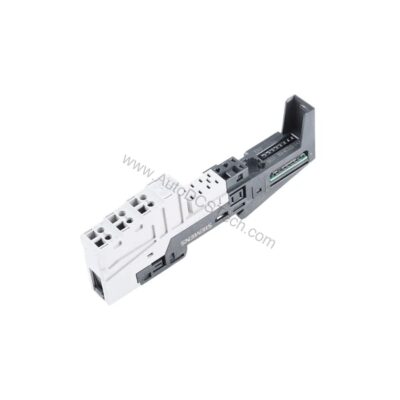

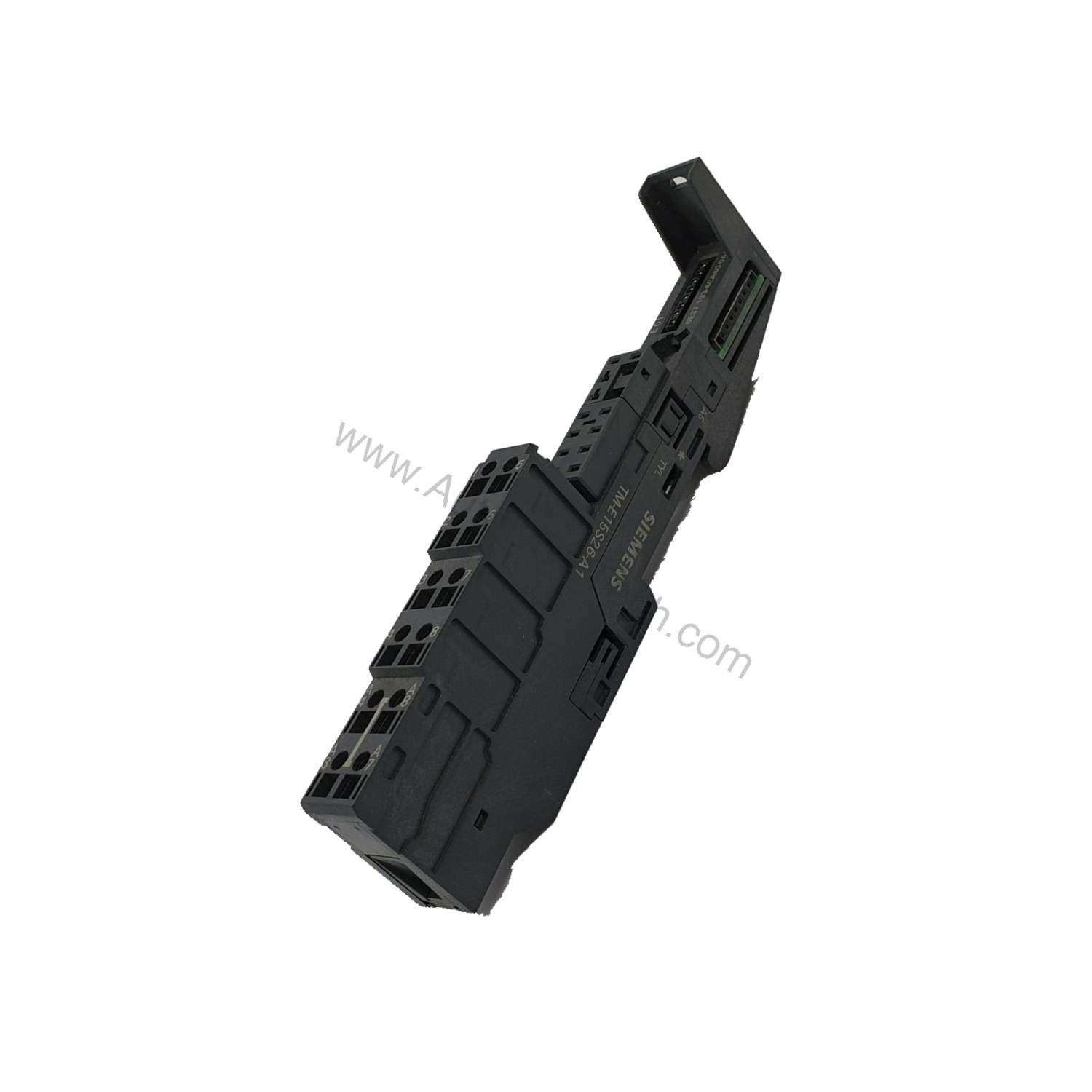

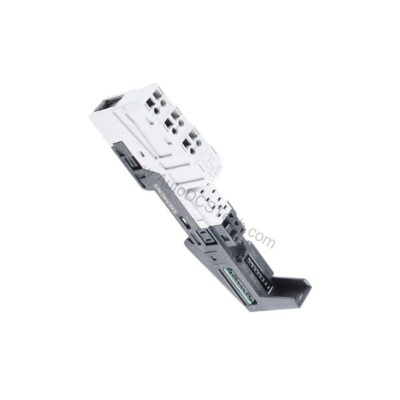

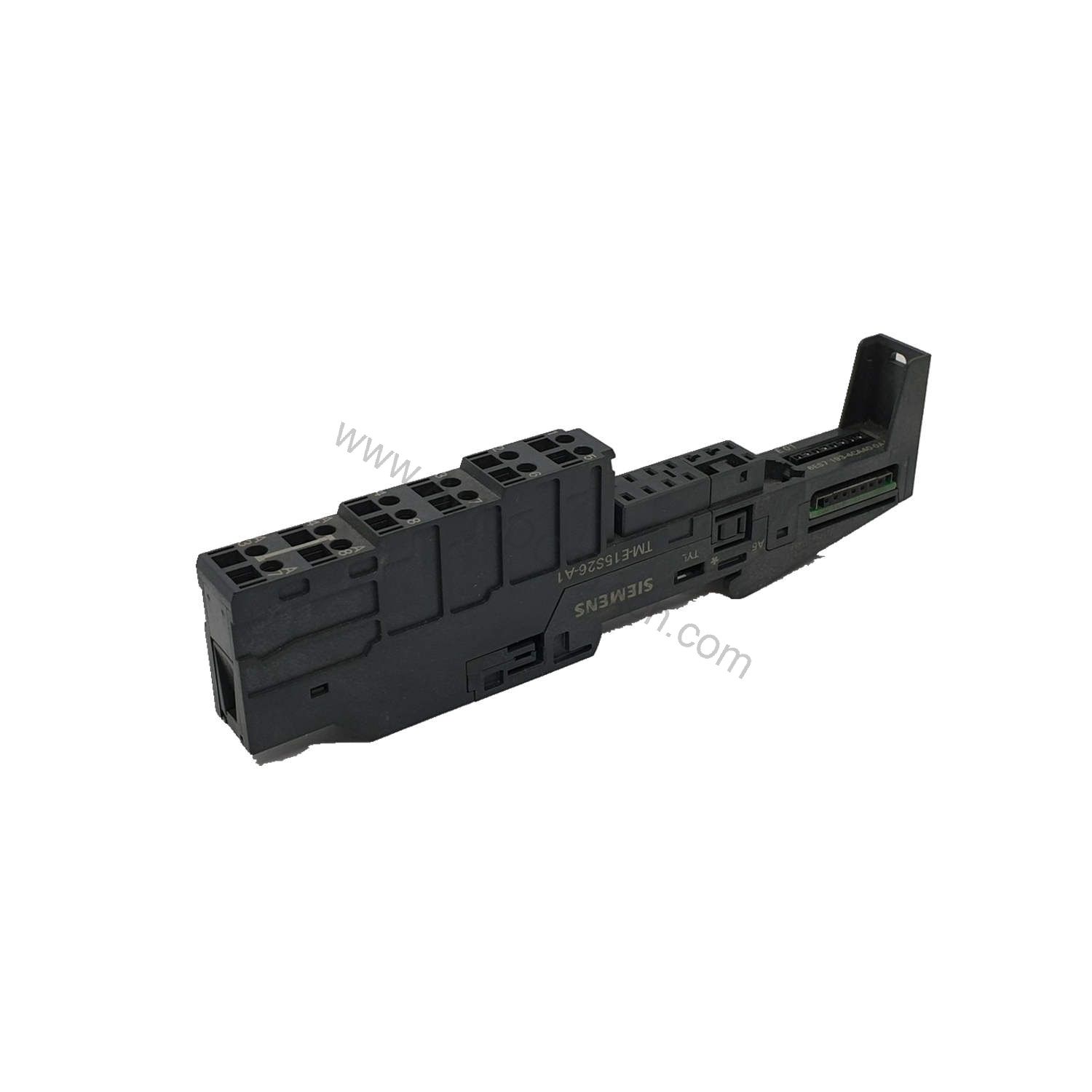

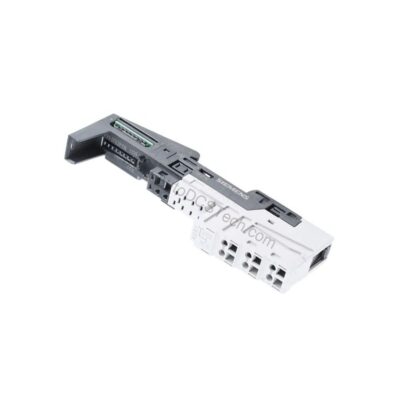

6ES7193-4CA40-0AA0 15mm Universal Terminal Module

Key Features and Technical Specifications

The 6ES7193-4CA40-0AA0 is designed specifically for the SIMATIC DP and ET 200S families. Here are the core parameters you can rely on:

• System Compatibility: Works with SIMATIC DP and ET 200S distributed I/O systems.
• Module Type: Universal Terminal Module TM-E15S26-A1.
• Width per Module: 15 mm, allowing high-density mounting on the DIN rail.
• Connection Type: Screw terminals for secure and reusable wiring.
• Terminal Configuration: 2 × 6 terminal connections per module, giving you 12 points for field wiring.
• AUX1 Access: Yes, with continuous AUX1 connectivity on terminals A3, A4, A7, and A8, enabling easy power distribution.
• Dimensions: 15 × 157 × 43 mm (W × H × D) per module.
• Weight: Approximately 83 g per module, about 0.46 kg per pack.

One distinctive feature is the continuous AUX1 bus. This allows you to feed auxiliary voltage along the terminal block without extra jumpers, which simplifies wiring and reduces potential points of failure. For engineers who value clean panel layouts, this is a practical advantage.

Real-World Applications for the 6ES7193-4CA40-0AA0

In a typical ET 200S node, you might have digital input modules, output modules, and analog modules mounted side by side. The 6ES7193-4CA40-0AA0 acts as the interface between these electronic modules and the field devices—sensors, actuators, or indicators. Consequently, it is used in a wide range of industries, from automotive assembly lines to material handling systems. Moreover, because the module supports screw terminals, it is especially suitable for applications where vibration could loosen spring-clamp connections, or where maintenance staff prefer the familiarity of screw clamps. Therefore, if you are retrofitting an existing panel or designing a new one, this terminal module provides a dependable wiring foundation.

Installation and Setup Guidance

Mounting the 6ES7193-4CA40-0AA0 is straightforward. Each module snaps onto a standard DIN rail, and the 15 mm width ensures that you can place multiple modules side by side without wasting space. When wiring, use the screw terminals to secure each conductor firmly. Because the AUX1 bus is continuous, you can connect the auxiliary supply once and then tap it at terminals A3, A4, A7, and A8 as needed. Always follow the Siemens ET 200S manual for torque ratings and wire sizes, as these are not specified in the basic data. For best practice, label each terminal clearly to simplify future troubleshooting.

Maintenance and Reliability Tips

Although the terminal module has no moving parts, it still benefits from periodic inspection. Check that all screw terminals remain tight, especially in environments with thermal cycling or mechanical vibration. Also, verify that the AUX1 connections are secure and free of corrosion. Because the module is passive, it rarely fails, but a loose connection can cause intermittent signals. Therefore, a simple visual check during routine maintenance can prevent unexpected downtime. If you notice any sign of overheating or damage, replace the module promptly to maintain system integrity.

Why the 6ES7193-4CA40-0AA0 Is a Smart Choice for ET 200S Wiring

The 6ES7193-4CA40-0AA0 is a pack of five universal terminal modules (TM-E15S26-A1) that simplifies this interface. Each module provides a robust screw-terminal connection point, so you can terminate field wiring with confidence. This article explains the key specifications, practical applications, and installation considerations to help you decide if this module fits your control panel.

Compatibility and Integration

This terminal module is designed for the SIMATIC ET 200S system, which operates under SIMATIC DP. It is compatible with a wide range of ET 200S electronic modules, including digital and analog I/O modules. However, you should always verify that the specific electronic module you plan to use is mechanically and electrically compatible with the TM-E15S26-A1. The 15 mm width is standard for many ET 200S modules, but some modules may require a different terminal module. Therefore, consult the Siemens ET 200S catalog or contact AutoDCSTech for guidance.

Troubleshooting Common Issues

If you encounter signal faults, the first step is to check the wiring at the terminal module. Loose screws are a common cause of intermittent connections. Additionally, verify that the AUX1 bus is properly fed and that no terminal is shorted to ground. Because the module is passive, most issues originate from external wiring or the connected electronic module. If you suspect the terminal module itself is faulty, you can swap it with a spare from the pack of five. Always power down the system before making any changes.

Product Support and Availability

AutoDCSTech stocks the Siemens 6ES7193-4CA40-0AA0 as new surplus. It is ready to ship, and our team can assist with compatibility questions. Contact AutoDCSTech for current availability and lead times.
