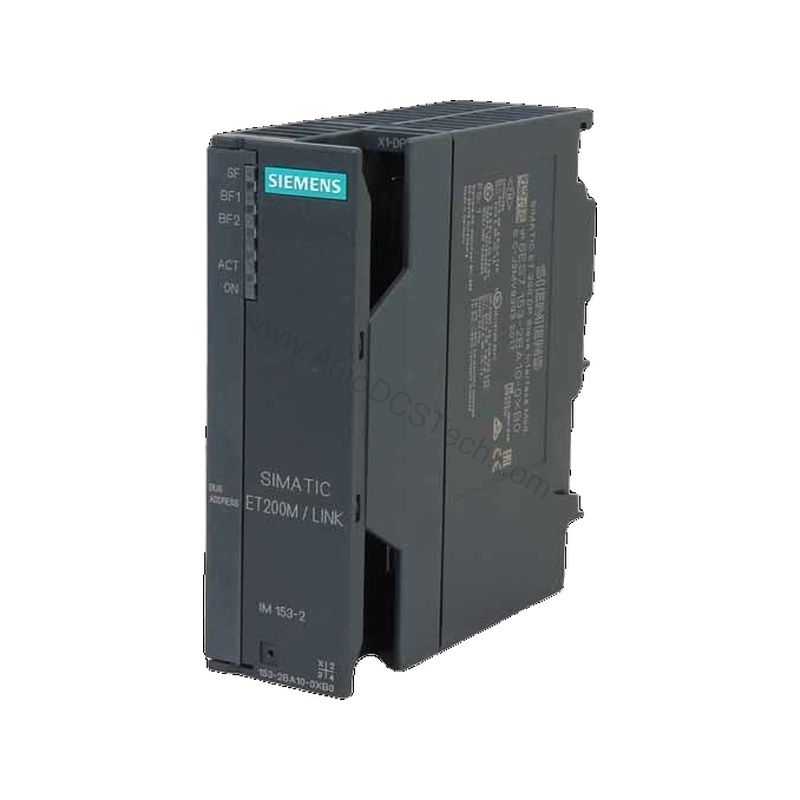

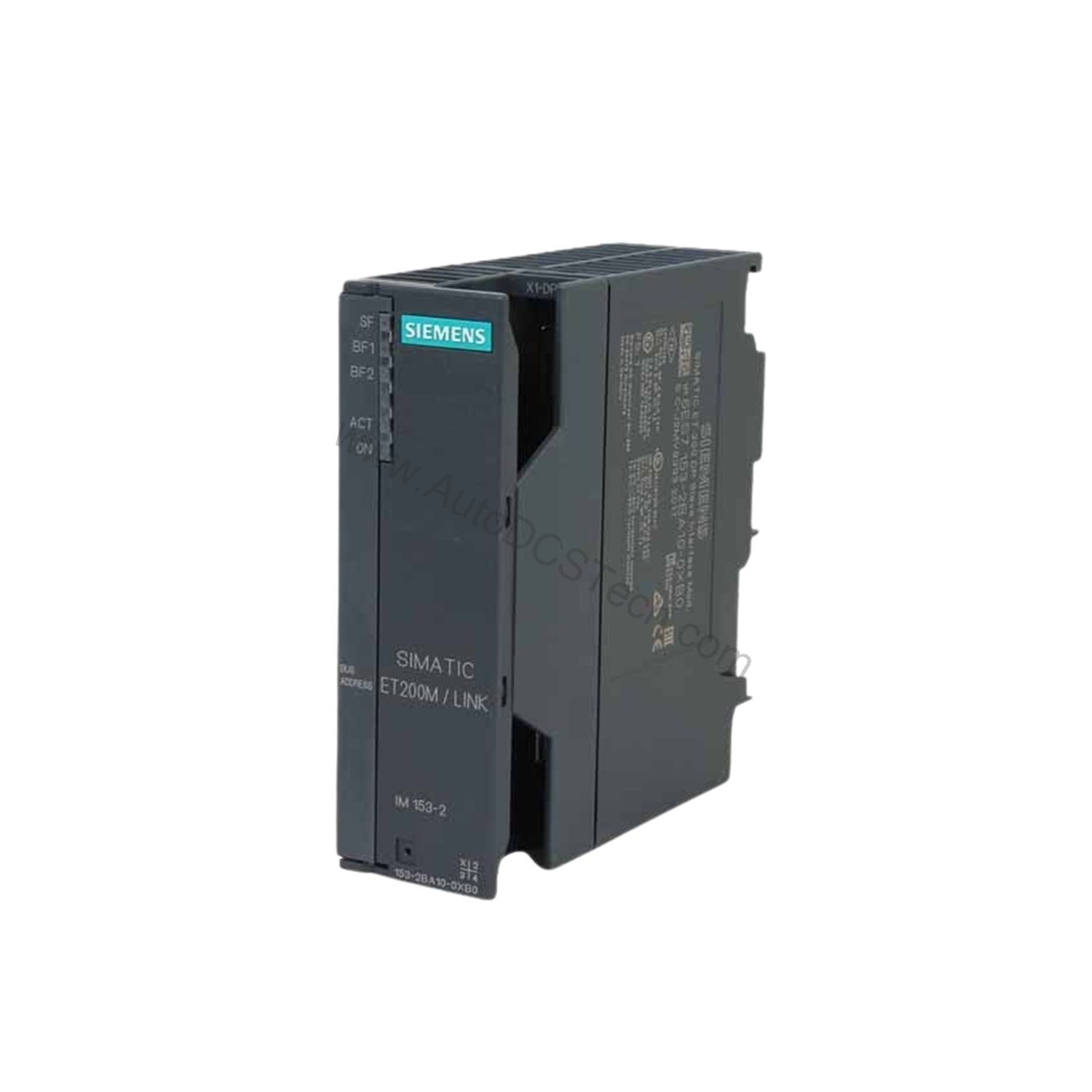

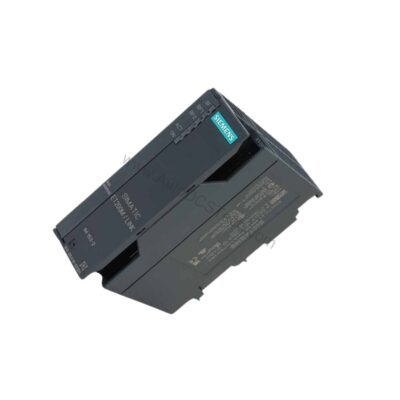

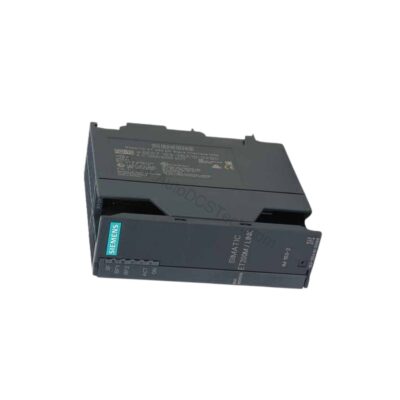

6ES7153-2BA10-0XB0 IM 153-2 DP HF Interface Module

Introduction to the 6ES7153-2BA10-0XB0

When your automation system demands reliable remote I/O connectivity, the 6ES7153-2BA10-0XB0 from Siemens delivers an interface for ET 200M stations. As an IM 153-2 DP HF module, it acts as the communication backbone between the PROFIBUS DP network and up to 12 S7-300 I/O modules. This module is engineered for applications that require redundancy, timestamping, and high data throughput.

It supports isochronous mode and timestamping, making it suitable for precise control and monitoring tasks.

Key Features and Technical Specifications

The 6ES7153-2BA10-0XB0 offers a robust set of features that ensure reliable operation in demanding industrial environments. Below are the critical specifications extracted from the official datasheet.

• Supply voltage: Rated 24 V DC, with a permissible range of 20.4 V to 28.8 V.
• Current consumption: Maximum 650 mA at 24 V DC.
• Inrush current: Typical 3 A, with an I²t of 0.1 A²·s.
• Output current for backplane bus: Maximum 1.5 A at 5 V DC.
• Power loss: Typical 5.5 W.
• Addressing volume: 244 bytes for inputs and 244 bytes for outputs.
• Number of modules per DP slave: Up to 12.
• Transmission rate: Up to 12 Mbit/s via RS 485.
• Isolation: Tested at 500 V.
• Degree of protection: IP20.
• Dimensions: 40 mm width, 125 mm height, 117 mm depth; weight approximately 360 g.

One distinctive feature is the timestamping accuracy: 1 ms when using up to 8 modules, and 10 ms when using up to 12 modules. This allows for precise event logging, which is critical for diagnostics and process optimization.

Applications and Use Cases

The 6ES7153-2BA10-0XB0For example, in a production line where multiple sensors must be synchronized, the timestamping capability ensures that events are recorded with millisecond accuracy. Additionally, the module supports the operation of 64-channel modules with 32 signals per slot, enabling dense I/O configurations.

Furthermore, the module's compatibility with Drive ES and Switch ES allows for seamless integration into drive and switchgear systems. Its ability to handle HART auxiliary variables makes it suitable for process automation where smart transmitters are used.

Installation and Setup

Installing the 6ES7153-2BA10-0XB0 is straightforward. The module mounts on a standard DIN rail and connects to the ET 200M station via the backplane bus. Ensure that the supply voltage is within the specified range (20.4 V to 28.8 V) and that external protection for the power supply lines is provided, as recommended in the manual.

For PROFIBUS DP communication, use a 9-pin sub D socket connector. The module supports automatic detection of transmission rate, simplifying configuration. Use the GSD file SI05801E.GSG for integration with non-Siemens tools.

Maintenance and Reliability

To ensure long-term reliability, regularly inspect the module for signs of wear or environmental stress. The operating temperature range is 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation. Keep the module within these limits to avoid overheating.

Also, verify that the power supply is stable and within the permissible range. Periodically check the PROFIBUS cable connections for tightness and signal integrity. Following these practices will minimize downtime and extend the service life of the module.

Compatibility and Integration

The 6ES7153-2BA10-0XB0 supports PROFIBUS DP to EN 50170, with node addresses from 1 to 125. It is compatible with STEP 7, COM PROFIBUS, and non-Siemens tools via the GSD file. The module also supports SYNC and FREEZE capabilities, as well as direct data exchange (slave-to-slave communication) as a publisher with all I/O and as a subscriber with F-IO only.

This integration flexibility makes it easy to incorporate into existing automation systems, whether you are upgrading an older station or building a new one.

Troubleshooting Common Issues

If you encounter communication errors, first check the PROFIBUS address settings and ensure that the transmission rate is correctly detected. Verify that the supply voltage is within range and that the module is properly seated in the backplane. If timestamping is not working, confirm that the time format is set to RFC 1119 and that the message buffers are configured correctly.

For persistent issues, consult the official Siemens manual or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7153-2BA10-0XB0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Contact us for current stock and lifecycle status.
