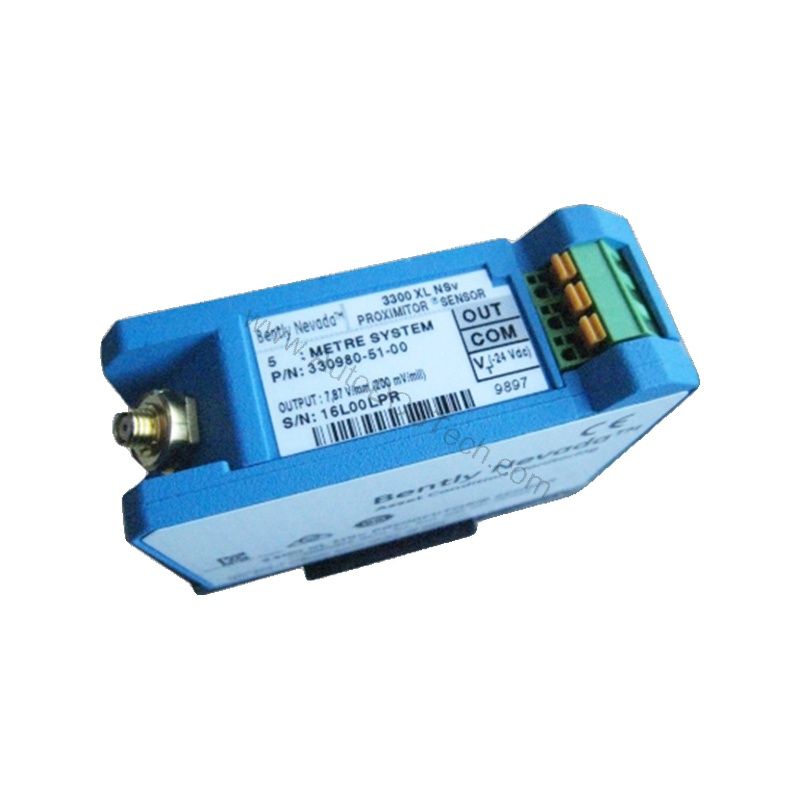

330980-70-05 7.0m NSv Proximitor Sensor

What Makes the 330980-70-05 NSv Proximitor Sensor Essential?

When machinery vibration threatens uptime, how do you ensure accurate, interference-free measurement? The 330980-70-05 from Bently Nevada provides a robust solution. This NSv Proximitor Sensor is engineered for high-density installations and demanding industrial environments. It delivers reliable performance where space is limited and signal integrity is critical.

Key Features and Technical Specifications

The 330980-70-05 combines a compact form factor with advanced RFI/EMI immunity. This design eliminates the need for special mounting considerations to meet European CE mark approvals. The sensor accepts one noncontacting 3300 RAM or 3300 NSv proximity probe and extension cable. It operates on a power supply of -17.5 Vdc to -26 Vdc without barriers, or -23 Vdc to -26 Vdc with barriers, at a maximum consumption of 12 mA. The output resistance is 50 Ω, and sensitivity variation is less than 2 mV per volt of input change. These specifications ensure stable and accurate vibration data.

• Model: 330980 - NSv Proximitor Sensor
• Total Length and Mounting: 7.0 meters (23.0 feet) system length, panel mount
• Agency Approval: Multiple approvals (option 05)
• Proximitor Sensor Material: A380 aluminum
• Weight: 255 g (9 oz)
• Power Requirement: -17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers), 12 mA max
• Output Resistance: 50 Ω
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: 100% condensing, nonsubmersible (IEC 68-2-3 damp heat tested)

Real-World Applications and Benefits

The 330980-70-05 excels in applications where panel space is at a premium. Its thin profile allows for mounting in high-density DIN-rail installations or traditional panel configurations. This flexibility makes it ideal for retrofitting existing machinery or designing new monitoring systems. Moreover, the enhanced RFI/EMI immunity prevents nearby high-frequency radio signals from corrupting transducer data. Consequently, engineers can rely on accurate vibration readings even in electrically noisy environments. This reliability translates into reduced false alarms and better predictive maintenance decisions.

Installation and Setup Guidance

Installing the 330980-70-05 is straightforward. The SpringLoc terminal strips require no special tools, enabling fast and secure field wiring. For optimal performance, ensure the probe gap is set to 1.0 mm (40 mils) when using a Bently Nevada AISI 4140 steel target. The system accuracy specifications apply only with this target type. Therefore, always verify the target material before calibration. Additionally, protect connectors from submersion, as the sensor is rated for condensing humidity but not immersion.

Maintenance and Reliability Tips

Regular inspection of the sensor and its connections is essential for long-term reliability. Check the mounting integrity and wiring connections periodically. Because the sensor operates over a wide temperature range, ensure that environmental conditions remain within the specified limits. The robust A380 aluminum housing withstands harsh industrial conditions. By following these simple practices, you can extend the service life of the 330980-70-05 and maintain measurement accuracy.

Compatibility and Integration

The 330980-70-05 is designed to work with Bently Nevada 3300 RAM or 3300 NSv proximity probes and extension cables. This compatibility ensures seamless integration into existing Bently Nevada monitoring systems. The sensor's output can be connected to standard monitoring equipment that accepts a -24 Vdc powered transducer signal. For specific system integration details, consult the official Bently Nevada documentation or contact AutoDCSTech.

Common Issues and Troubleshooting

One common issue is reduced linear range when operating at a more positive voltage than -23.5 Vdc. To avoid this, ensure the power supply provides the required negative voltage. Another potential problem is signal interference from high-frequency sources. The improved RFI/EMI immunity of this model mitigates such issues. If you encounter erratic readings, verify the probe gap and target material. Also, check that all connections are secure and free from corrosion.

Product Support and Availability

The 330980-70-05 is available through AutoDCSTech. For current lifecycle status and availability, please contact our team. We are ready to assist with your order and provide technical support.
