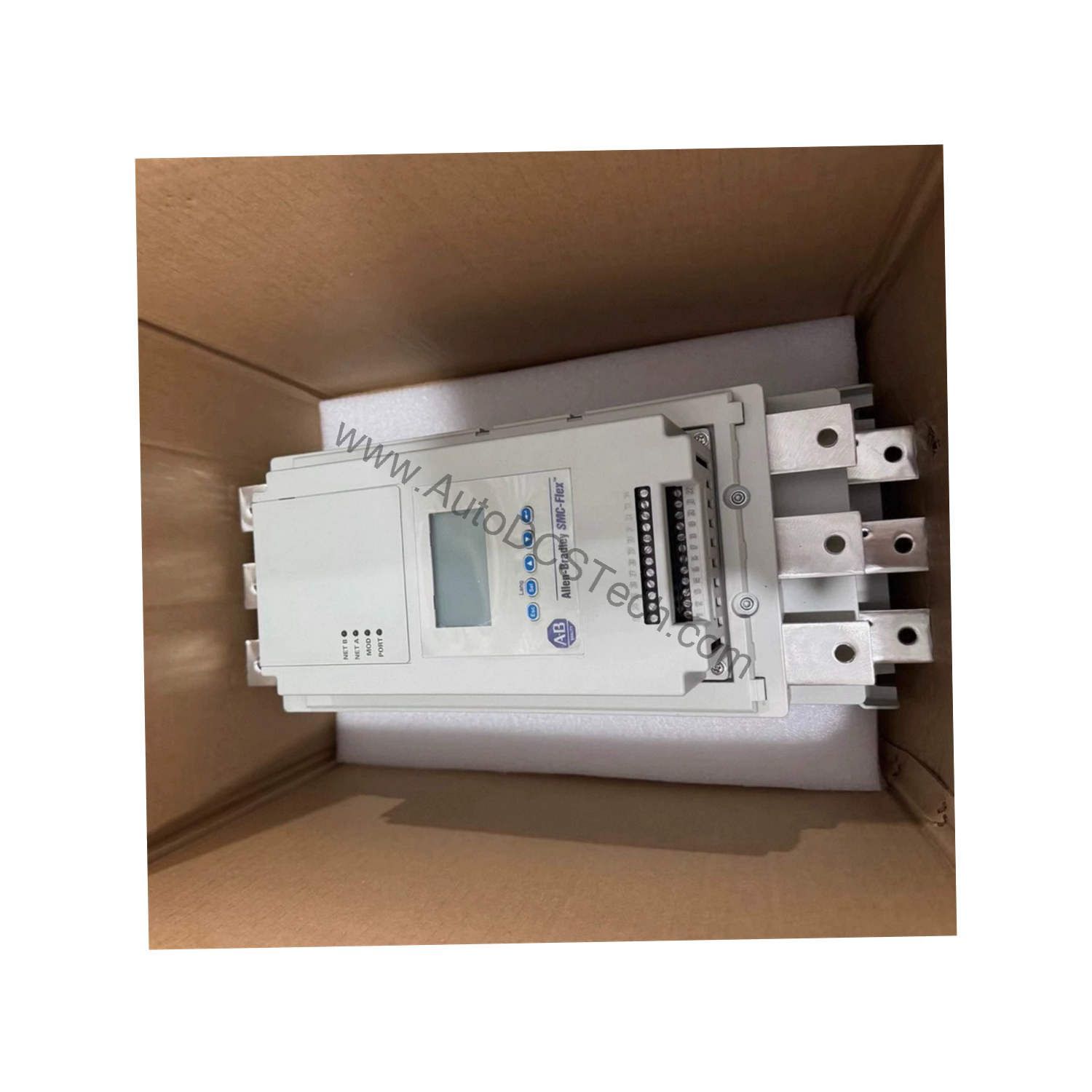

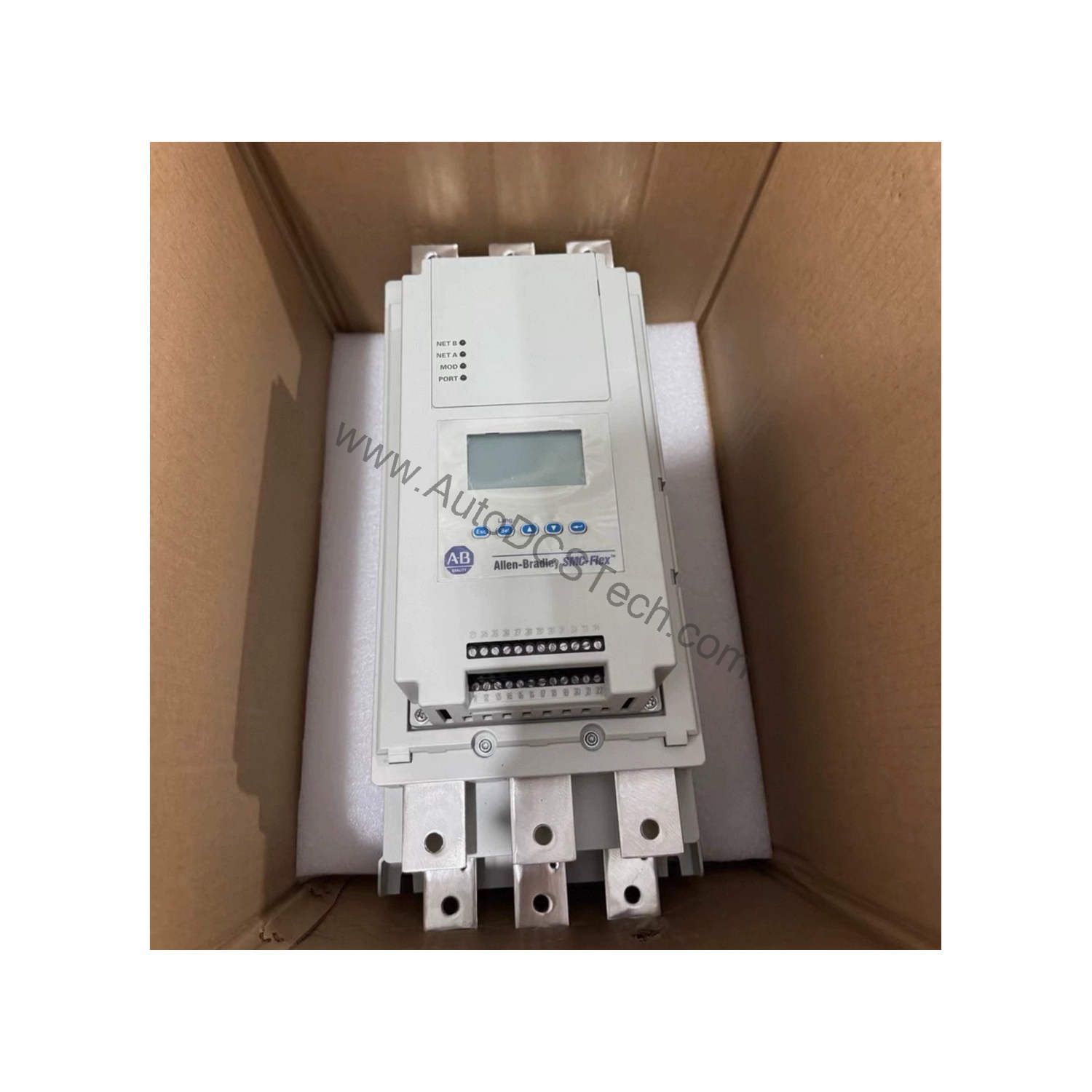

Allen-Bradley 150-F43NBDD SMC Flex Smart Motor Controller 43A

Optimize Motor Control with the Allen-Bradley 150-F43NBDD SMC Flex

Industrial motor management demands precision and reliability. The Allen-Bradley 150-F43NBDD SMC Flex Smart Motor Controller delivers robust performance for three-phase applications. This Bulletin 150 solid-state controller provides advanced control options, including braking control, to enhance system uptime and process efficiency.

Technical Specifications Breakdown

Key parameters for the 150-F43NBDD are listed below for quick reference:

Real-World Applications for the SMC Flex Controller

The 43 A rating supports motors up to 30 Hp at 460V AC, making it suitable for conveyors, pumps, and fans. The integrated braking control reduces mechanical wear and improves safety in high-inertia loads. By using this unit, facilities can lower maintenance costs and extend equipment life.

Installation and Setup Guidance

Mount the open-style controller in a clean, dry enclosure rated for the environment. Ensure the input line voltage matches the 200..480V AC, 3-phase supply. Connect control wiring to the 100...240V AC terminals per the manual. Verify that the motor full-load current does not exceed 43 A. Always follow local electrical codes and lockout/tagout procedures during installation.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. Keep the ambient temperature within the specified range. The solid-state design offers high reliability with no moving parts. For critical applications, consider a spare unit to minimize downtime.

Compatibility and Integration

The 150-F43NBDD integrates with standard three-phase motor systems. Its braking control feature works with existing motor starters and PLCs. The open enclosure allows flexible mounting in custom panels. For system design assistance, consult the product manual or contact AutoDCSTech.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the rating to your motor's full-load current. The 150-F43NBDD handles 43 A continuous. Verify the input voltage and control voltage match your facility. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
