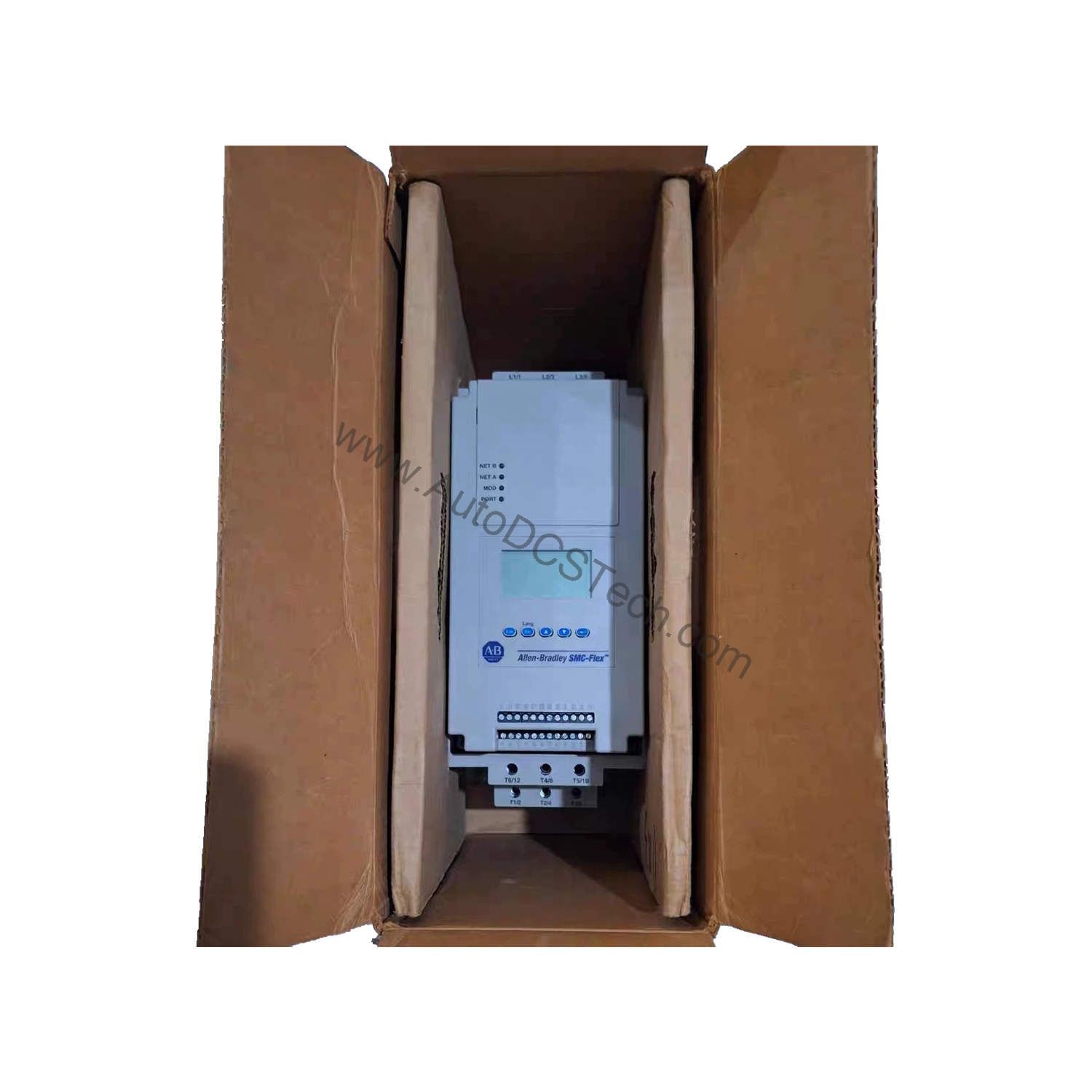

Allen-Bradley 150-F43FCD SMC-Flex Solid State Controller 43A IP65

Technical Specifications Breakdown

Key parameters for the 150-F43FCD are listed below for quick reference:

Industry Applications and Practical Use

For example, in a conveyor system handling heavy loads, the dual ramp start mode allows gradual acceleration for varying load conditions, reducing mechanical stress. Similarly, in pump applications, the soft stop feature minimizes water hammer effects, extending pipeline life. The IP65 rating ensures reliable operation in wet or dusty environments such as cement plants or wastewater treatment facilities.

Installation and Setup Guidance

When installing the 150-F43FCD, ensure the input line voltage matches the 500-575V AC, 3-phase supply. The control voltage should be 100-240V AC. Mount the controller on a flat, vibration-free surface to maintain enclosure integrity. Use appropriate conduit connections to preserve the IP65 seal. The front-mounted HMI with dedicated start, stop, folder, and control keys simplifies configuration and operation.

Maintenance and Reliability

Periodically inspect the enclosure seals and cable glands to maintain IP65 protection. Keep the cooling fins clean from dust accumulation. The solid state design reduces wear compared to electromechanical contactors, but verify that the ambient temperature stays within the controller's operating range. No internal adjustments are required under normal conditions.

Reliable Motor Control for Harsh Environments

In demanding industrial settings, equipment must withstand dust, moisture, and physical impact while delivering consistent performance. The Allen-Bradley 150-F43FCD SMC-Flex solid state controller is engineered to meet these challenges head-on.

Compatibility and Integration

It supports multiple starting modes including soft start, current limit start, dual ramp start, full voltage start, preset slow speed, linear speed acceleration with selectable kickstart, and soft stop. This flexibility allows it to replace electromechanical starters in retrofit projects.

Selection Guide and Purchasing Advice

When selecting a solid state controller, consider the motor full-load current and enclosure requirements. The 150-F43FCD is suitable for motors drawing up to 43A at 460V AC. For applications requiring higher horsepower or different voltage ratings, consult the SMC-Flex family lineup. AutoDCSTech offers this controller with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
