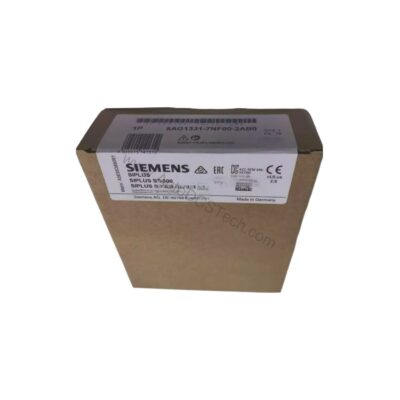

6AG1331-7NF00-2AB0 8 AI Analog Input SIPLUS S7-300

Introduction: The Evolution of Industrial Analog Input Modules

Industrial automation has evolved from simple relay logic to sophisticated distributed control systems. As process plants expanded, the need for accurate, reliable analog signal acquisition became critical. The Siemens 6AG1331-7NF00-2AB0 represents the next step in this evolution—a SIPLUS version of the classic SM 331 module, engineered for harsh environments and demanding applications.

This module is based on the standard 6ES7331-7NF00-0AB0 but adds a conformal coating that protects against moisture, dust, and chemical exposure. With a wide operating temperature range of -25 to +70 °C, it is designed for installations where standard electronics might fail.

Key Features & Technical Specifications

The 6AG1331-7NF00-2AB0 is an analog input module with eight isolated channels, each configurable for voltage or current measurement. It provides high-resolution 16-bit conversion with a fast 55 ms conversion time, ensuring precise data for control loops.

• Analog Inputs: 8 isolated channels
• Voltage Ranges: ±5 V, ±10 V, 1-5 V
• Current Ranges: ±20 mA, 0-20 mA, 4-20 mA
• Resolution: 16 bit (including sign)
• Integration Time: Parameterizable (10/16.67/20/100 ms)
• Input Resistance: 2 MΩ for voltage, 250 Ω for current
• Destruction Limits: 50 V for voltage, 32 mA for current
• Power Loss: 0.6 W typical
• Backplane Current: 130 mA max at 5 V DC

One distinctive feature is the single rooting (50 V COM) capability, which simplifies common wiring and enhances signal integrity. The module also supports parameterizable diagnostics and limit value alarms on channels 0 and 2, allowing proactive maintenance.

Real-World Applications

This module is ideal for process industries such as chemical, pharmaceutical, and food & beverage, where analog signals from transmitters and sensors must be captured reliably. Its conformal coating and wide temperature range make it suitable for outdoor installations or areas with high humidity.

For example, in a water treatment plant, the 6AG1331-7NF00-2AB0 can monitor flow, pressure, and level signals from 4-20 mA transmitters, ensuring accurate process control. The module's isolation (50 V COM) reduces ground loop issues, improving measurement stability.

Installation & Setup

Mount the module on a standard S7-300 DIN rail. Use a 40-pin front connector (required) for wiring. Ensure the bus connector is properly seated to establish backplane communication. Configure the input ranges and integration time via the parameterization tool in your engineering software.

For current measurement with 2-wire transducers, an external transmitter supply is required. For 4-wire transducers, the module can be connected directly. Shielded cables up to 200 m are supported, reducing noise pickup in industrial environments.

Maintenance & Reliability

Routine inspection is essential to ensure long-term reliability. Periodically check the module for dust accumulation or moisture ingress, especially in harsh environments. The conformal coating provides a first line of defense, but keep the enclosure clean and sealed.

Verify that the front connector is tight and that all wiring is secure. Monitor diagnostic LEDs (group error SF) for any faults. If a limit value alarm is triggered, investigate the process condition promptly to avoid downtime.

Compatibility & Integration

The 6AG1331-7NF00-2AB0 is part of the Siemens S7-300 family and is compatible with S7-300 CPUs and ET 200M distributed I/O systems. It communicates over the backplane bus, so no additional network interface is required.

It supports voltage and current measurements, making it versatile for various sensors. The module is CE, UL, RCM, KC, EAC approved, and meets railway standard EN 50155 (sections 4, 5, and 12), ensuring broad acceptance in industrial and transportation applications.

Troubleshooting & Common Issues

If readings are inaccurate, first check the input range configuration. Ensure the signal is within the selected range and that the wiring matches the transducer type (2-wire vs 4-wire). Verify that the common voltage (COM) is properly connected to avoid exceeding the 50 V limit.

If the SF LED is lit, use the diagnostic buffer in your PLC to read the error code. Common issues include wire breaks, overrange, or configuration mismatches. The module's diagnostics function can be parameterized to generate alarms, helping you quickly isolate faults.

Product Support & Availability

The Siemens 6AG1331-7NF00-2AB0 is available from AutoDCSTech, a trusted industrial automation parts supplier. Contact our team for current stock, pricing, and delivery options. We are ready to support your project with genuine components.
