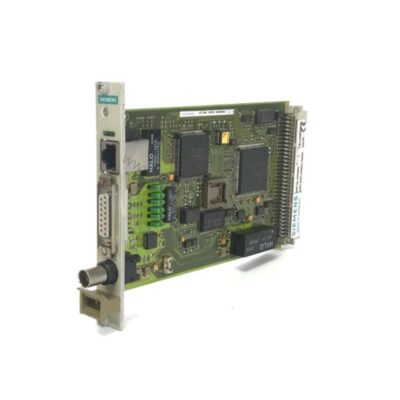

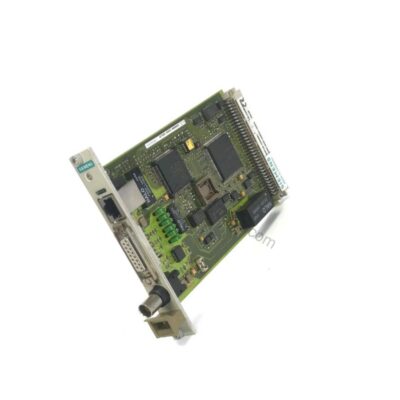

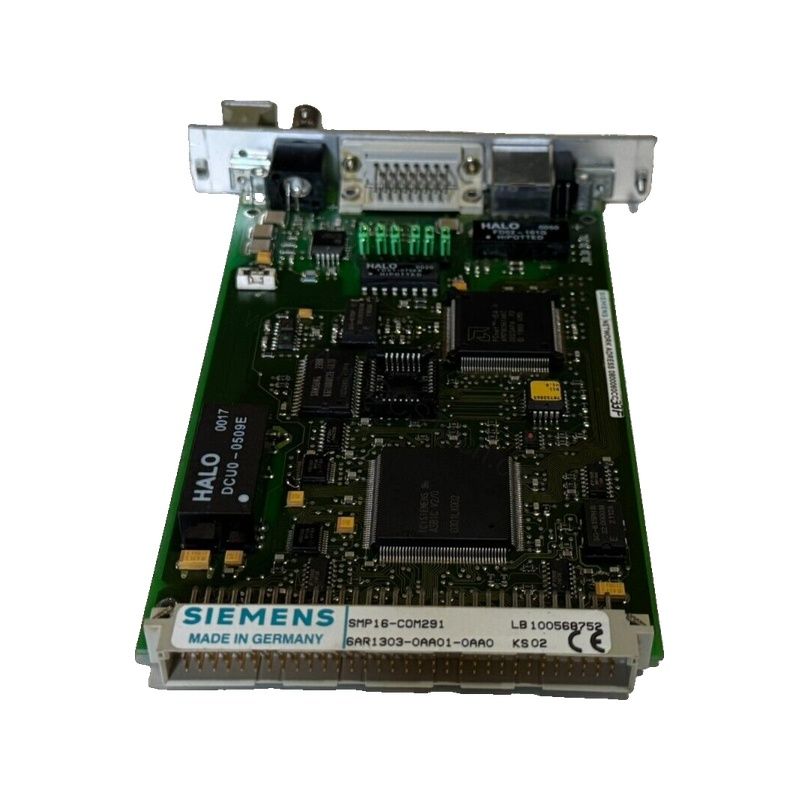

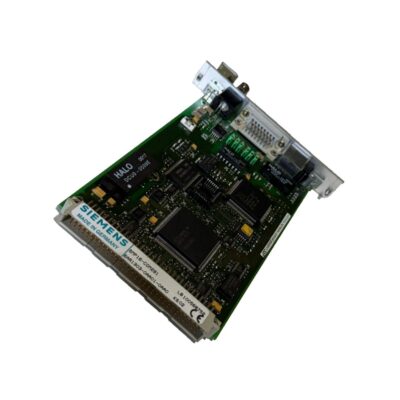

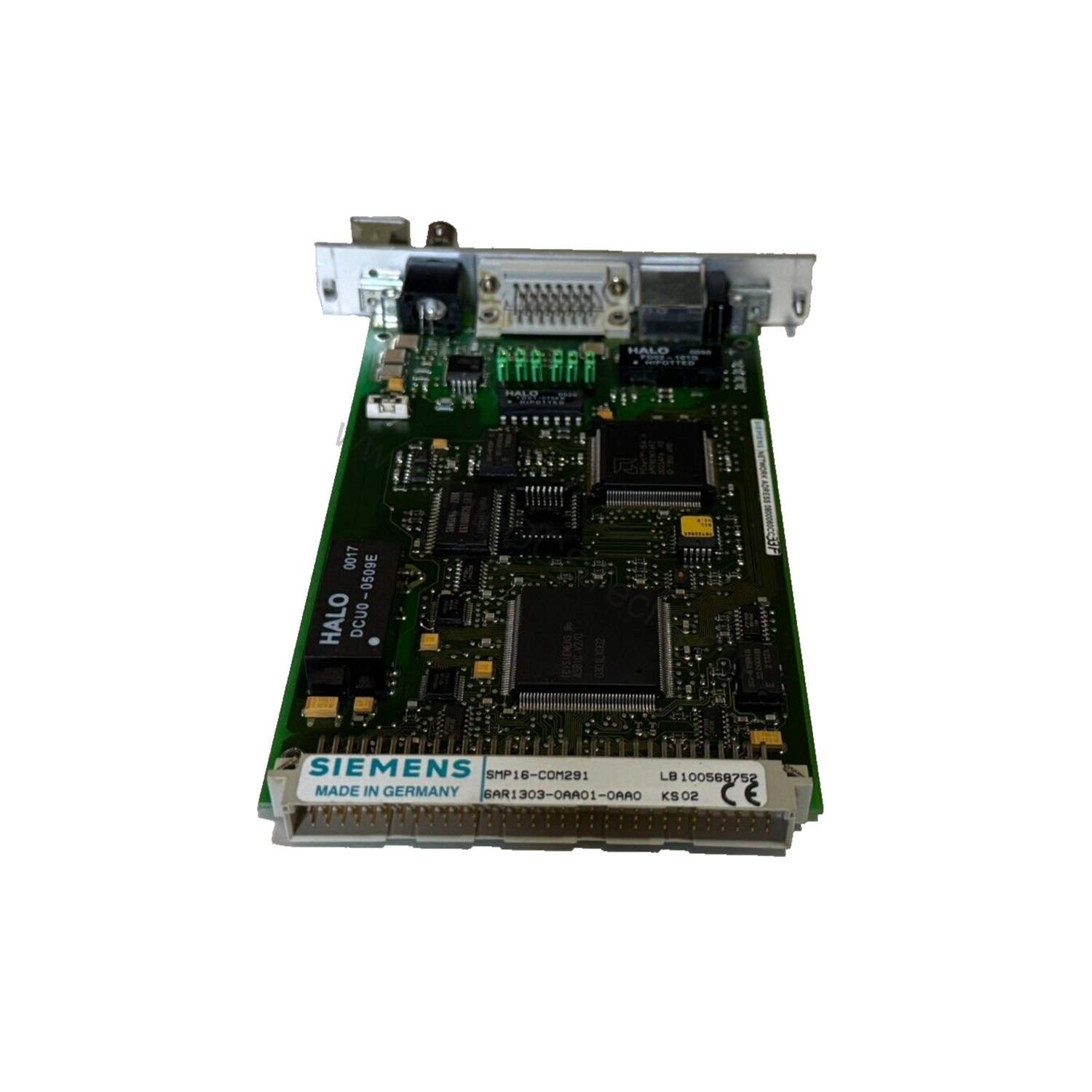

Introduction to the 6AR1303-0ED00-0AA0
When industrial networks demand reliable data exchange, the 6AR1303-0ED00-0AA0 from Siemens provides a robust solution. This communication module supports both PROFIBUS DP and Ethernet interfaces, enabling seamless integration into diverse automation architectures. With a data transfer rate of up to 12 Mbit/s on PROFIBUS DP, it ensures fast and dependable communication for time-critical processes.
Engineers often face challenges when connecting legacy fieldbus systems with modern Ethernet-based networks. The 6AR1303-0ED00-0AA0 addresses this pain point by offering dual-protocol support in a compact, plug-in modular design. This simplifies installation and reduces the complexity of managing separate communication gateways.
Key Features and Technical Specifications
The 6AR1303-0ED00-0AA0 is engineered with several technical parameters that enhance its performance and reliability. Below is a structured overview of its core specifications:
- Data Transfer Rate: Up to 12 Mbit/s on PROFIBUS DP
- Interface Configuration: PROFIBUS DP and Ethernet ports
- Protocol Compliance: Supports PROFIBUS DP standards
- Power Requirements: 24 V DC supply
- Power Consumption: ≤ 2 W under full load
- Ethernet Port Speed: 10/100 Mbit/s (Auto-negotiating)
- Electrical Interface (Ethernet): RJ45 (8P8C) with Auto-MDI/MDIX
- Operating Temperature Range: -20°C to +60°C
- Electrical Isolation: Integrated signal protection
- Diagnostic Indicators: LED status lights for monitoring
One distinctive feature is the integrated electrical isolation, which safeguards the module against electrical disturbances. This is critical in industrial environments where voltage spikes and noise can disrupt communication. The LED indicators provide real-time status, allowing technicians to quickly identify operational issues and reduce downtime.
Applications and Use Cases
The 6AR1303-0ED00-0AA0 is suitable for a wide range of industrial applications, including manufacturing lines, process control systems, and material handling equipment. Its dual-interface capability makes it ideal for bridging PROFIBUS DP field devices with Ethernet-based supervisory systems. For example, in a production facility, this module can connect PLCs and sensors to a central monitoring station, enabling real-time data collection and analysis. Moreover, its wide operating temperature range (-20°C to +60°C) ensures reliable performance in harsh environments, such as outdoor installations or unheated factory floors.
Installation and Setup
Installing the 6AR1303-0ED00-0AA0 is straightforward due to its compact, plug-in modular design. The module can be mounted directly onto a DIN rail or into a standard enclosure, depending on the system configuration. When wiring, ensure the 24 V DC supply is connected with correct polarity to avoid damage. The Ethernet port uses an RJ45 connector with Auto-MDI/MDIX, which automatically detects the cable type, eliminating the need for crossover cables. For PROFIBUS DP, follow standard bus termination practices to maintain signal integrity. Always refer to the official Siemens installation manual for detailed wiring diagrams and configuration steps.
Maintenance and Reliability
To ensure long-term reliability, periodic inspection of the 6AR1303-0ED00-0AA0 is recommended. Check the LED indicators regularly to verify normal operation. Keep the module free from dust and moisture, as these can affect electrical connections and heat dissipation. The module's low power consumption (≤ 2 W) reduces heat generation, contributing to a longer service life. In case of communication errors, first verify the network cabling and termination. If issues persist, consult the Siemens documentation or contact AutoDCSTech for technical support.
Compatibility and Integration
The 6AR1303-0ED00-0AA0 is designed to work with PROFIBUS DP and Ethernet networks. It complies with PROFIBUS DP standards, ensuring compatibility with a wide range of Siemens and third-party devices. The Ethernet interface supports 10/100 Mbit/s speeds and Auto-MDI/MDIX, making it easy to connect to switches, routers, or directly to a PC. This module can be integrated into existing control systems without major modifications, thanks to its standard interfaces and compact form factor.
Troubleshooting and Common Issues
Common issues with communication modules include incorrect wiring, faulty connectors, and configuration errors. For the 6AR1303-0ED00-0AA0, always verify that the PROFIBUS DP address is set correctly and that the bus is properly terminated. For Ethernet, check the link LED to confirm a physical connection. If the module does not respond, ensure the 24 V DC supply is within the specified range. The LED indicators provide valuable diagnostic information; refer to the user manual for a detailed explanation of each LED state.
Product Support and Availability
The 6AR1303-0ED00-0AA0 is available from AutoDCSTech, an industrial automation parts supplier. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical inquiries and provide documentation to support your integration.
Availability & Condition at AutoDCSTech
| Part Number | 6AR1303-0ED00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
