45358-09 Bently Nevada Extension Cable

Introduction to the 45358-09 Bently Nevada Extension Cable

When signal integrity matters in harsh industrial environments, the 45358-09 from Bently Nevada delivers reliable performance. This extension cable is engineered to connect accelerometers to interface modules, ensuring accurate vibration data transmission. Its rugged design withstands extreme temperatures and mechanical stress, making it a dependable choice for critical rotating machinery monitoring.

Key Features and Technical Specifications

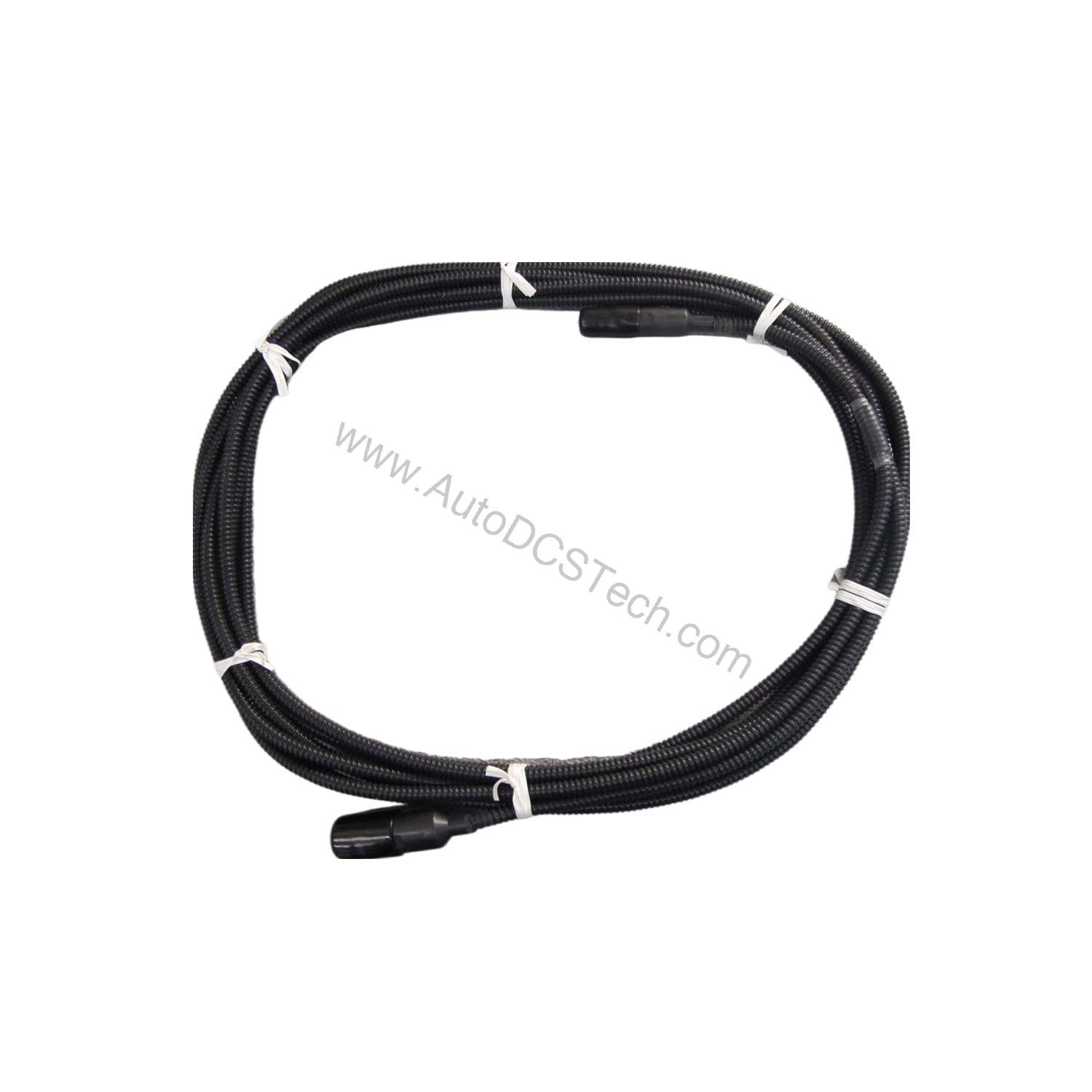

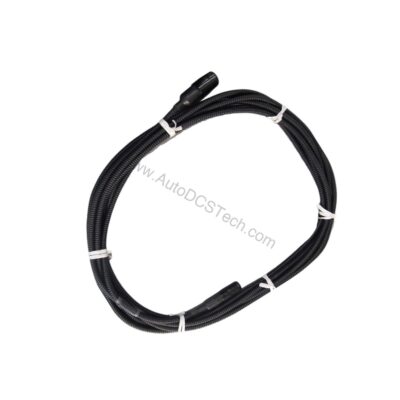

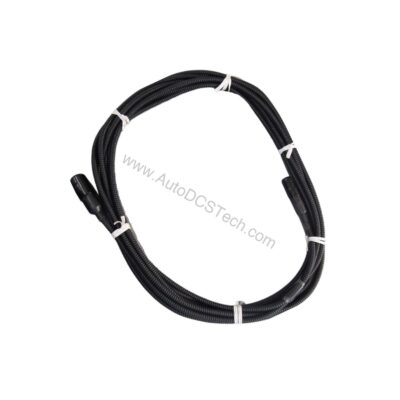

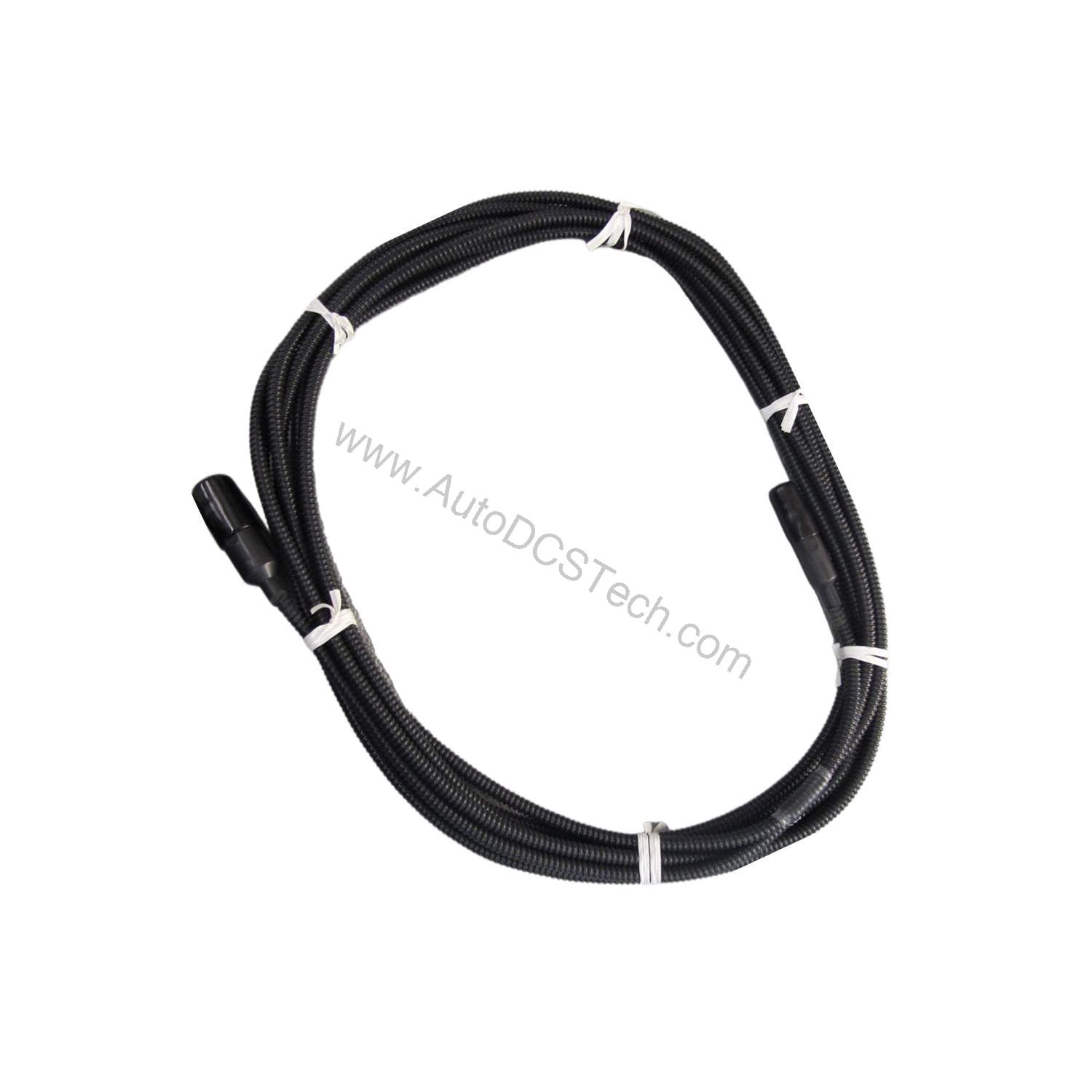

The 45358-09 is a 9-meter softline cable designed for accelerometer interface modules. It features a twisted shielded pair with low noise construction, protected by convoluted Teflon tubing. The rear connectors are potted for enhanced durability. Operating temperatures range from -65°F to +400°F for the cable, with connector-specific ratings up to +392°F. This cable mates with MS 3100R-10SL-4P receptacles on the accelerometer side and MS 3112-8-3P on the interface module side.

• Model: Extension Cable
• Manufacturer: Bently Nevada
• Length: 9 meters
• Construction: Twisted shielded pair, low noise
• Protection: Convoluted Teflon tubing, potted connectors
• Accelerometer Connector: MS 3100R-10SL-4P with Viton insert
• Interface Module Connector: MS 3112-8-3P
• Cable Temperature Range: -65°F to +400°F (-54°C to +204°C)
• Accelerometer Connector Temperature Range: -65°F to +392°F (-54°C to +200°C)
• Interface Module Connector Temperature Range: -50°F to +200°F (-45°C to +93°C)

Applications and Use Cases

The 45358-09 is ideal for vibration monitoring in turbines, compressors, and other rotating equipment. Its low-noise cable design ensures accurate signal transmission, which is critical for predictive maintenance programs. Furthermore, the wide temperature range allows deployment in extreme environments, from cold outdoor installations to high-heat process areas. Consequently, this cable supports reliable data acquisition in demanding industrial settings.

Installation and Setup

When installing the 45358-09, ensure the connectors are properly aligned and fully seated to maintain a secure connection. The MS-style connectors provide a robust, threaded coupling that resists vibration loosening. Route the cable away from high-interference sources, such as variable frequency drives, to minimize noise pickup. Additionally, avoid sharp bends or kinks that could damage the Teflon tubing. For best results, follow the manufacturer's installation guidelines and torque specifications.

Maintenance and Reliability

Regular inspection of the 45358-09 is essential to maintain signal integrity. Check connectors for signs of corrosion, wear, or loose fit. Inspect the cable jacket for cuts, abrasions, or chemical damage. Since the cable is potted and sealed, there are no user-serviceable parts. If damage is detected, replace the cable promptly to avoid data loss or equipment malfunction. Following these practices ensures long-term reliability and accurate vibration monitoring.

Compatibility and Integration

The 45358-09 is designed to work with Bently Nevada accelerometers that use MS 3100R-10SL-4P receptacles and interface modules with MS 3112-8-3P connectors. This compatibility makes it a direct replacement for original cables in existing monitoring systems. Always verify connector types and pinouts with your specific equipment before ordering.

Troubleshooting Common Issues

If you experience signal loss or noise, first check the cable connections for tightness and cleanliness. A loose connector can cause intermittent signals. Also, inspect the cable for physical damage that might expose the shielding. If the cable has been subjected to temperatures beyond its rated range, the insulation may degrade, leading to short circuits. In such cases, replace the cable with a new 45358-09 to restore performance.

Availability and Support

The 45358-09 is available from AutoDCSTech in new, original factory packaging. Contact AutoDCSTech for current pricing and lead times. Our team can assist with compatibility questions and order processing.
