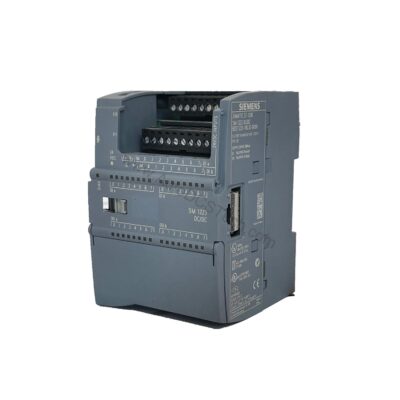

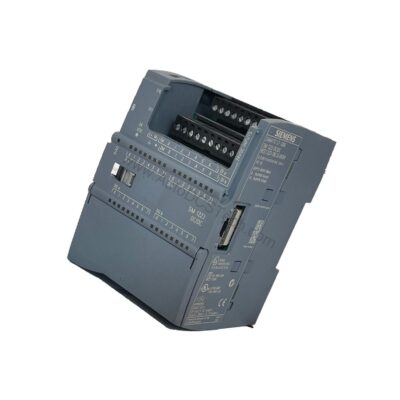

6ES7223-1BL32-0XB0 16DI/16DO SM 1223

Introduction to the Siemens 6ES7223-1BL32-0XB0 SM 1223

This SIMATIC S7-1200 digital I/O module integrates 16 digital inputs and 16 digital outputs, simplifying cabinet layout and reducing wiring complexity. For engineers balancing performance with budget, this module offers a cost-effective way to expand I/O capacity without sacrificing reliability.

Key Features and Technical Specifications

The 6ES7223-1BL32-0XB0 is engineered for demanding 24 V DC applications. Its key specifications include:

• Inputs: 16 digital inputs, 24 V DC, sink/source, in groups of 2.
• Outputs: 16 digital outputs, transistor, 0.5 A per channel, in groups of 1.
• Input voltage range: 20.4 V DC to 28.8 V DC (rated 24 V DC).
• Signal levels: Signal "0" at 5 V DC (1 mA), signal "1" at 15 V DC (2.5 mA).
• Output voltage: 24 V DC rated; signal "1" min. 20 V DC; signal "0" max. 0.1 V with 10 kΩ load.
• Output current: 0.5 A rated, max. 0.5 A per channel; residual current max. 10 µA.
• Power loss: Typ. 4.5 W.
• Isolation: 500 V AC between channels and backplane bus.
• Ambient temperature: -20 °C to +60 °C (horizontal), -20 °C to +50 °C (vertical).
• Protection: IP20.

One distinctive feature is the input delay parameterization: you can set delays of 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, or 12.8 ms in groups of four. This flexibility lets you fine-tune response times for specific applications, potentially reducing false triggers and improving process stability—a direct benefit to operational efficiency.

Installation and Setup Considerations

Installing the 6ES7223-1BL32-0XB0 is straightforward. The module mounts directly on the S7-1200 DIN rail and connects to the backplane bus. A front connector is required for wiring. For inputs, the module accepts both sink and source configurations, giving you flexibility in sensor wiring. For outputs, note that short-circuit protection is not built-in; you must provide external fusing or circuit breakers to protect the outputs. This is a critical step to avoid damage and ensure safe operation.

Maintenance and Reliability Tips

To maximize the lifespan of the 6ES7223-1BL32-0XB0, follow these practices:

• Periodically inspect the module for dust accumulation, especially in industrial environments.
• Verify that ambient temperatures stay within the specified range to prevent overheating.
• Check that all wiring connections are secure and that the front connector is properly seated.
• Monitor the diagnostic LED indicators for input and output status to catch issues early.

Regular inspection per the manufacturer's manual helps prevent unexpected failures and reduces long-term repair costs.

Cost-Benefit Analysis: Why This Module Makes Sense

From a financial perspective, the 6ES7223-1BL32-0XB0 offers several advantages. First, combining 16 inputs and 16 outputs in one unit reduces the number of modules needed, lowering hardware costs and cabinet space. Second, the transistor outputs have fast switching times (max. 50 µs for 0-to-1, 200 µs for 1-to-0), which can improve machine throughput. Third, the wide operating temperature range (-20 °C to +60 °C) ensures reliable operation in harsh environments, minimizing downtime and maintenance expenses. Over the lifecycle of a machine, these factors contribute to a lower total cost of ownership.

Compatibility and Integration

The 6ES7223-1BL32-0XB0 is part of the SIMATIC S7-1200 family, designed to work with S7-1200 CPUs. It supports diagnostic alarms and features LED status indicators for each input and output, simplifying troubleshooting. The module is approved with CE, UL, CSA, cULus, FM, RCM, KC, and marine approvals, ensuring broad acceptance in global markets.

Troubleshooting Common Issues

If you encounter problems, consider these common scenarios:

• Input not reading: Verify the input voltage is within 20.4–28.8 V DC and that the signal meets the threshold (15 V DC at 2.5 mA for signal "1").
• Output not switching: Check the load current—each output is rated for 0.5 A max. Exceeding this can damage the transistor.
• Diagnostic alarm: Use the LED indicators to identify which channel is faulty, then check wiring and load conditions.

For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7223-1BL32-0XB0 is available through AutoDCSTech, your trusted industrial automation parts supplier. Contact us for current pricing and lead times. Please verify lifecycle status and availability with our team before ordering.
