Introduction: The Evolution of Compact Control

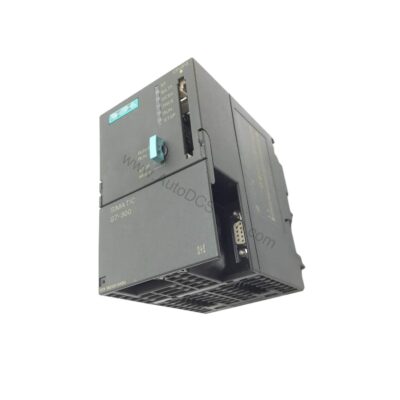

Industrial automation has evolved from centralized control rooms to distributed, compact solutions that sit right on the machine. The Siemens 6ES7313-5BE01-0AB0 embodies this shift, packing substantial processing power and versatile I/O into a single unit.
With a 32 KB working memory and integrated 24 V DC power supply, the 6ES7313-5BE01-0AB0 handles moderate applications without the need for additional modules. Its design reflects decades of Siemens engineering, ensuring reliability in demanding environments.
Key Features and Technical Specifications

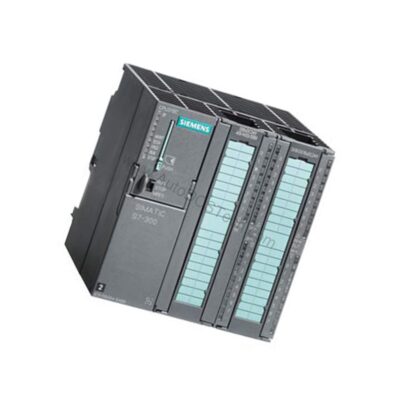

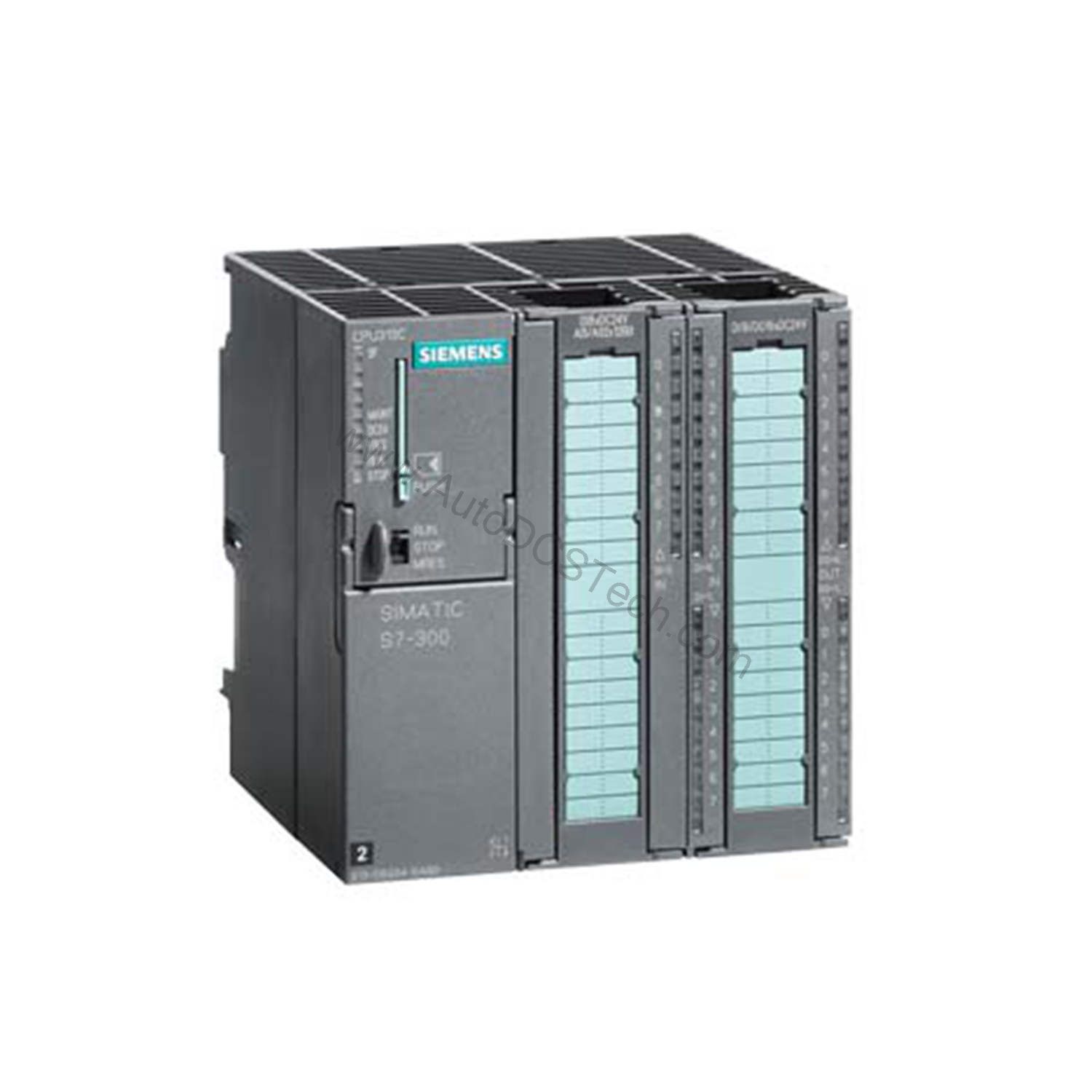

The 6ES7313-5BE01-0AB0 is a feature-rich compact CPU. Below are the critical specifications derived directly from the datasheet:
- Digital Inputs: 24 integrated channels, rated 24 V DC, with signal "1" at +15 to +30 V and signal "0" at -3 to +5 V.
- Digital Outputs: 16 integrated channels, 24 V DC rated, with max output current 500 mA per channel and short-circuit protection.
- Analog Inputs: 4 for voltage/current (0-10 V, 0-20 mA, 4-20 mA) plus 1 for resistance thermometer (Pt100).
- Analog Outputs: 2 channels supporting 0-10 V, -10 to +10 V, and 0-20 mA ranges.
- Working Memory: 32 KB integrated, not expandable.
- Load Memory: Plug-in MMC up to 8 MB, with data retention of at least 10 years.
- Power Supply: Integrated 24 V DC, permissible range 20.4 to 28.8 V.
- Power Loss: Typical 14 W.
- Interfaces: Integrated MPI (RS485), max transmission rate 187.5 kbit/s, up to 8 connections.
- Dimensions: 120 mm width, 125 mm height, 130 mm depth; weight approx. 660 g.
One distinctive feature is the integrated analog I/O, which eliminates the need for separate analog modules in many applications. This reduces cost and panel space, while the 30 kHz fast counters enable precise speed or position monitoring.
Real-World Applications
The 6ES7313-5BE01-0AB0 suits a wide range of machinery and process applications. For example, in packaging lines, the fast counters can track product counts at high throughput, while the analog inputs read sensors for temperature or pressure. The integrated PID controller supports closed-loop control, making it suitable for temperature or flow regulation.
Furthermore, the CPU's 24 digital inputs and 16 outputs provide ample capacity for discrete control, such as conveyor interlocks or valve actuation. Its compact form factor allows installation in tight control cabinets, a common requirement in modern machine design.
Installation and Setup Considerations

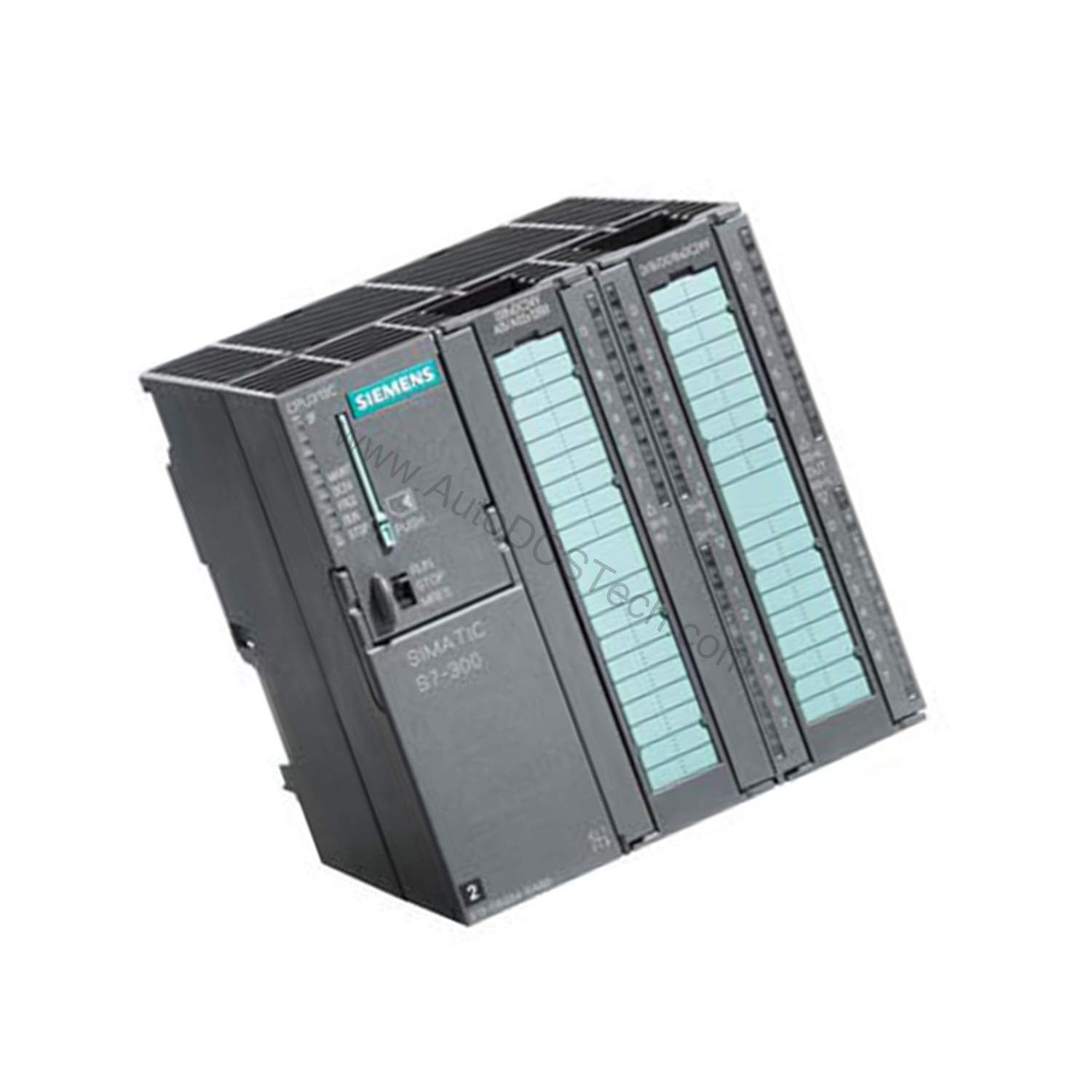

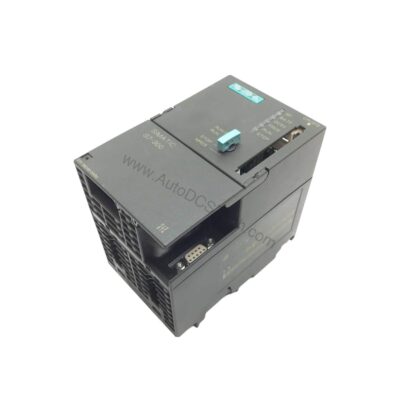

Proper installation ensures reliable operation. The 6ES7313-5BE01-0AB0 mounts on a standard DIN rail within a Siemens S7-300 rack. It requires a front connector (2 x 40-pin) and a micro memory card (MMC) for program storage. The integrated 24 V DC supply simplifies wiring, but ensure the supply voltage stays within 20.4 to 28.8 V DC.
For digital inputs, the input delay is parameterizable (0.1 / 0.3 / 3 / 15 ms), allowing optimization for fast or noisy signals. Outputs are grouped with potential separation in groups of 8, and the total output current per group is limited to 8 A up to 40 °C and 4 A up to 60 °C. Always respect these limits to avoid thermal damage.
Maintenance and Reliability
Routine maintenance is minimal due to the maintenance-free MMC backup. The hardware clock has a backup time of 6 weeks at 40 °C, ensuring time retention during power outages. Regularly inspect the unit for dust accumulation and ensure adequate ventilation. The power loss of 14 W is moderate, so proper airflow is essential in enclosed cabinets.
Given the integrated design, there are fewer external components to fail, enhancing overall reliability. The clocked electronic short-circuit protection on outputs prevents damage from wiring faults.
Compatibility and Integration
The 6ES7313-5BE01-0AB0 communicates via MPI, supporting PG/OP communication, global data communication, and S7 basic communication. It can act as an S7 server, but not as a client (unless via CP). For PROFIBUS DP, it requires an external CP. The CPU supports up to 3 expansion units, allowing additional I/O or communication modules.
Programming is done with STEP 7 V5.2 SP1 or higher, using LAD, FBD, STL, SCL, GRAPH, or HiGraph®. This flexibility makes it easy to integrate into existing Siemens ecosystems.
Troubleshooting Common Issues
If the CPU fails to start, check the MMC is properly seated and the power supply is within range. For digital input issues, verify the signal levels: signal "0" is -3 to +5 V, signal "1" is +15 to +30 V. For outputs, ensure the load current is at least 5 mA to maintain a defined "1" state.
Analog input errors may arise from incorrect range selection or wiring. The input resistance for voltage is 100 kΩ, for current 100 Ω, and for Pt100 10 MΩ. Use shielded cables for analog signals to minimize noise, with max cable length 1000 m for digital and analog.
Product Support and Availability
The Siemens 6ES7313-5BE01-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and integration advice.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7313-5BE01-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
