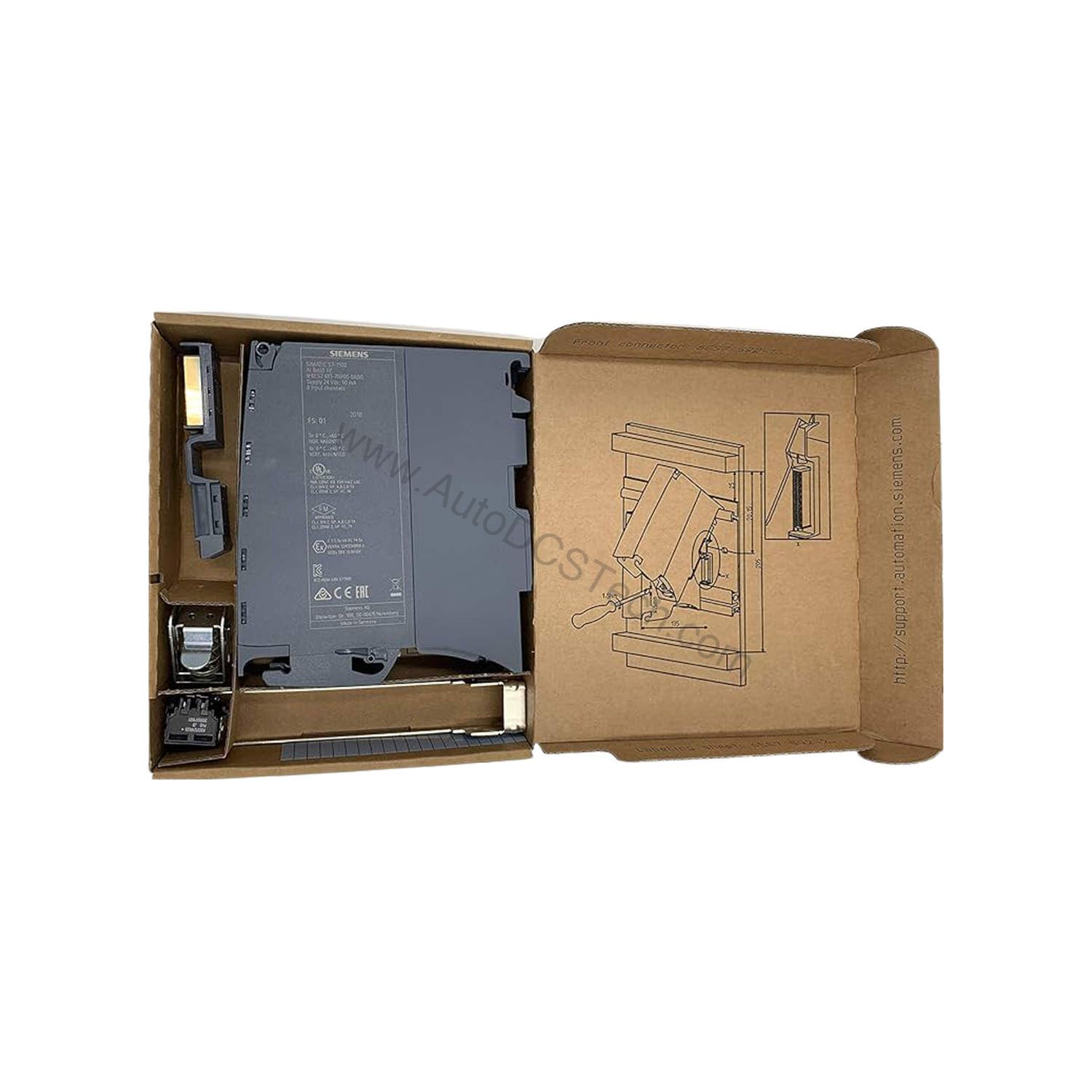

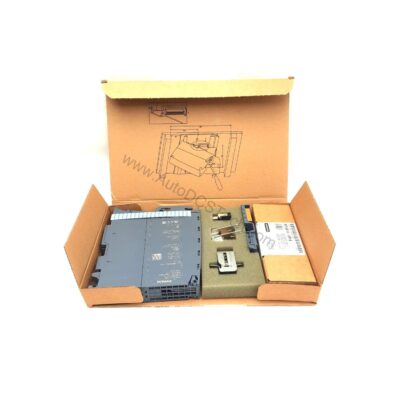

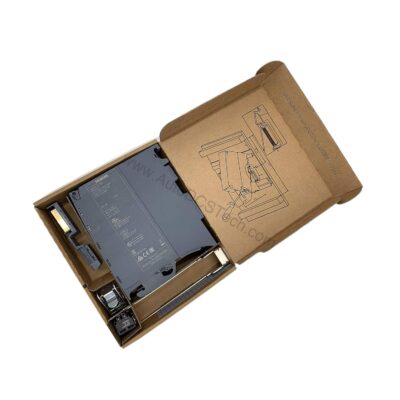

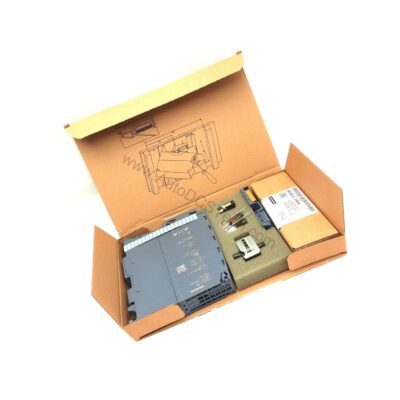

6ES7531-7NF00-0AB0 8-Channel Analog Input Module

Introduction to the Siemens 6ES7531-7NF00-0AB0

When your process demands precise analog signal acquisition, the 6ES7531-7NF00-0AB0 from Siemens provides a reliable solution. This SIMATIC S7-1500 analog input module offers 8 channels in groups of 1, ensuring channel-to-channel isolation and flexible configuration. With up to 24-bit resolution and 0.1% accuracy, it meets the needs of demanding industrial applications.

Key Features and Technical Specifications

The 6ES7531-7NF00-0AB0 is engineered for signal acquisition. Below are its core specifications:

• Input channels: 8 analog inputs, each configurable for voltage or current measurement.
• Resolution: Up to 24 bits with overrange, using 32-bit REAL format for scaled values.
• Accuracy: 0.1% operational error limit across the full temperature range.
• Supply voltage: 24 V DC rated, with a permissible range of 19.2 V to 28.8 V DC.
• Power loss: 1.9 W typical, with 0.85 W from the backplane bus.
• Diagnostics: Yes, including wire-break detection for 1-5 V and 4-20 mA ranges.
• Alarms: Diagnostic and limit value alarms (two upper and two lower limits per channel).
• Isolation: 2000 V DC tested between channels, backplane bus, and supply voltage.

One distinctive feature is the common mode voltage of 30 V AC/60 V DC, which allows the module to handle signals with higher potential differences safely. Additionally, the module supports calibration in RUN, enabling adjustments without stopping your process.

Applications and Use Cases

The 6ES7531-7NF00-0AB0Its 8 channels can be individually configured for voltage (e.g., ±10 V, 1-5 V) or current (e.g., 4-20 mA, 0-20 mA) inputs, making it versatile for various sensors and transmitters. For example, in a chemical plant, you can connect 4-20 mA transmitters for pressure and temperature monitoring, while using voltage inputs for level sensors. The module's per-channel isolation reduces ground loop issues, enhancing signal integrity.

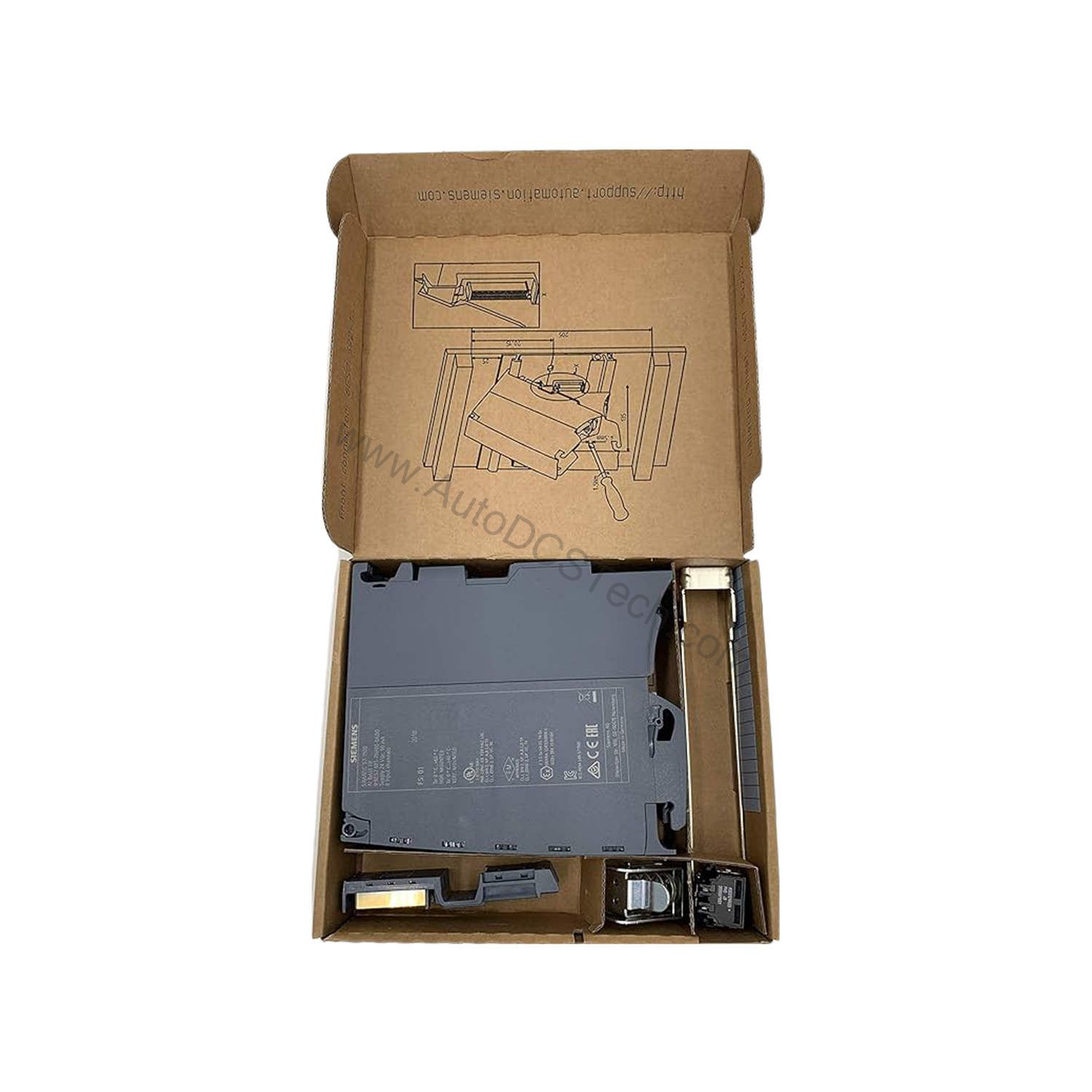

Installation and Setup

Mounting the 6ES7531-7NF00-0AB0 is straightforward. The module fits onto a standard S7-1500 DIN rail. It includes an infeed element, shield bracket, and shield terminal for proper shielding. A front connector (screw or push-in) must be ordered separately. Ensure the supply voltage is within 19.2-28.8 V DC to avoid damage. For wiring, use shielded cables up to 800 m for optimal noise immunity.

Maintenance and Reliability

Routine maintenance is minimal. Periodically inspect the module for dust accumulation and ensure all connections are tight. The module's diagnostics, including supply voltage monitoring and wire-break detection, help identify issues early. With a typical power loss of only 1.9 W, it runs cool, extending component life. The operating temperature range is -30°C to 60°C (horizontal) and -30°C to 40°C (vertical), making it suitable for harsh environments.

Compatibility and Integration

The 6ES7531-7NF00-0AB0 is configurable with STEP 7 TIA Portal V14 or higher, and STEP 7 V5.5 SP3 or higher. It supports PROFIBUS (GSD V1.0/V5.1) and PROFINET (GSD V2.3) integration. Firmware V1.1.0 allows updates, and I&M data (I&M0 to I&M3) is supported for asset management.

Troubleshooting and Common Issues

If you encounter measurement errors, check the input range configuration and ensure the sensor wiring matches the selected mode. Wire-break alarms are active only for 1-5 V and 4-20 mA ranges. If the module reports over/underflow, verify the signal is within the configured range. For persistent issues, consult the Siemens manual or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7531-7NF00-0AB0 is available at AutoDCSTech. Contact our team for current stock and delivery options.
