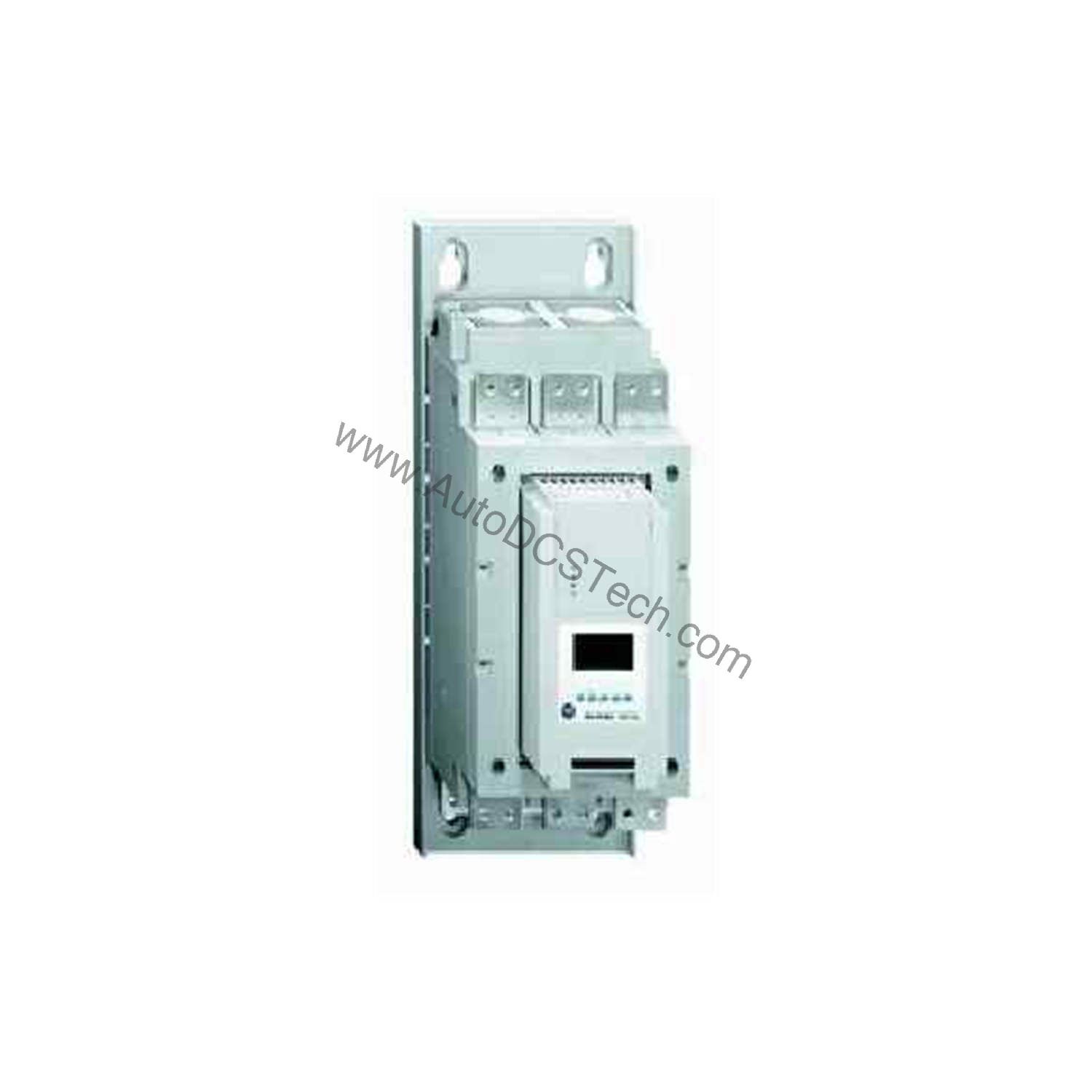

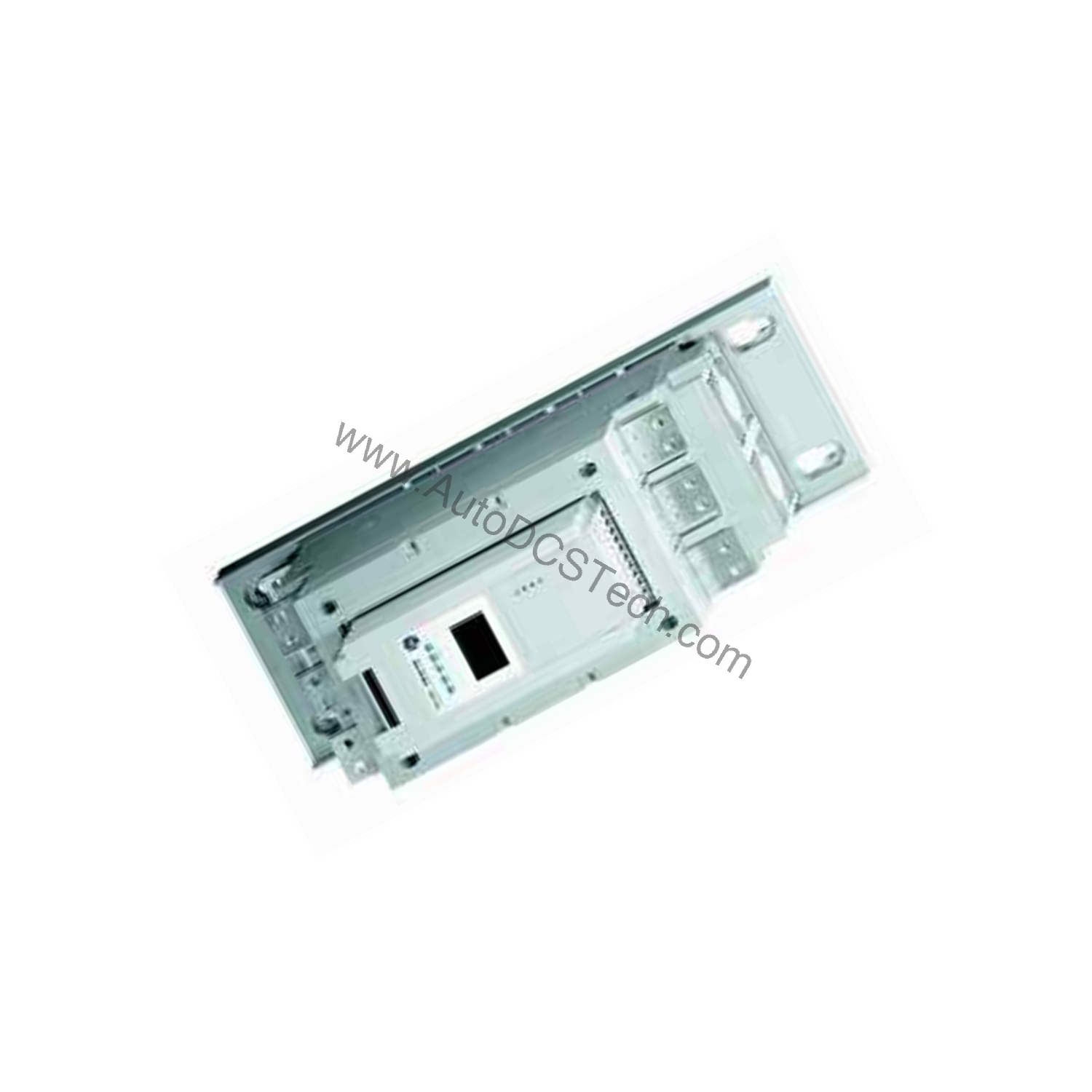

Allen-Bradley 150-F108FCD SMC-Flex Solid State Controller 108A

Product Overview

Industrial motor control demands reliability and precision. The Allen-Bradley 150-F108FCD SMC-Flex Solid State Controller delivers robust performance for standard three-phase squirrel cage induction motors. Designed for demanding environments, this unit combines advanced protection features with flexible programming. Its IP65 (Type 4/12) enclosure ensures resistance to dust and water ingress, making it suitable for washdown and outdoor applications.

Technical Specifications Breakdown

Key parameters for the 150-F108FCD are listed below for quick reference:

Industry Applications

With undervoltage and overvoltage protection, it safeguards equipment against power fluctuations common in manufacturing plants. The IP65 enclosure allows installation in wet or dusty environments such as food processing or wastewater treatment facilities.

Installation & Setup Guidance

Mount the controller securely on a flat surface, ensuring adequate clearance for heat dissipation. Connect the three-phase input line voltage (500-575V AC) to the appropriate terminals. Use the five-button keypad on the front for initial programming. Configure auxiliary contacts as needed—four fully programmable hard contacts are standard. Verify that the control voltage (100-240V AC) matches the auxiliary supply. For Wye-Delta (6-lead) motors, follow the wiring diagram provided in the manual.

Maintenance & Reliability

Periodically inspect the enclosure seals and clean the exterior to maintain IP65 integrity. Check for loose connections and signs of overheating. The built-in electronic motor overload protection uses an I2t algorithm to prevent thermal damage. Monitor power parameters such as three-phase current, voltage, and motor thermal capacity usage via the LCD display. Replace the unit if the enclosure is damaged or if internal faults are indicated.

Compatibility & Integration

The 150-F108FCD supports DPI communication for integration with Allen-Bradley networks. It also includes network I/O, ground fault input, PTC input, and tach input for expanded functionality. This allows seamless connection to PLCs and SCADA systems. The controller is compatible with standard three-phase induction motors and Wye-Delta configurations.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the current rating to your motor full-load amps. The 108 A rating suits motors up to 75 Hp at 460V AC. Verify that the input line voltage matches your facility supply (500-575V AC). For applications requiring high ingress protection, the IP65 enclosure is a key advantage. AutoDCSTech offers this unit with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
