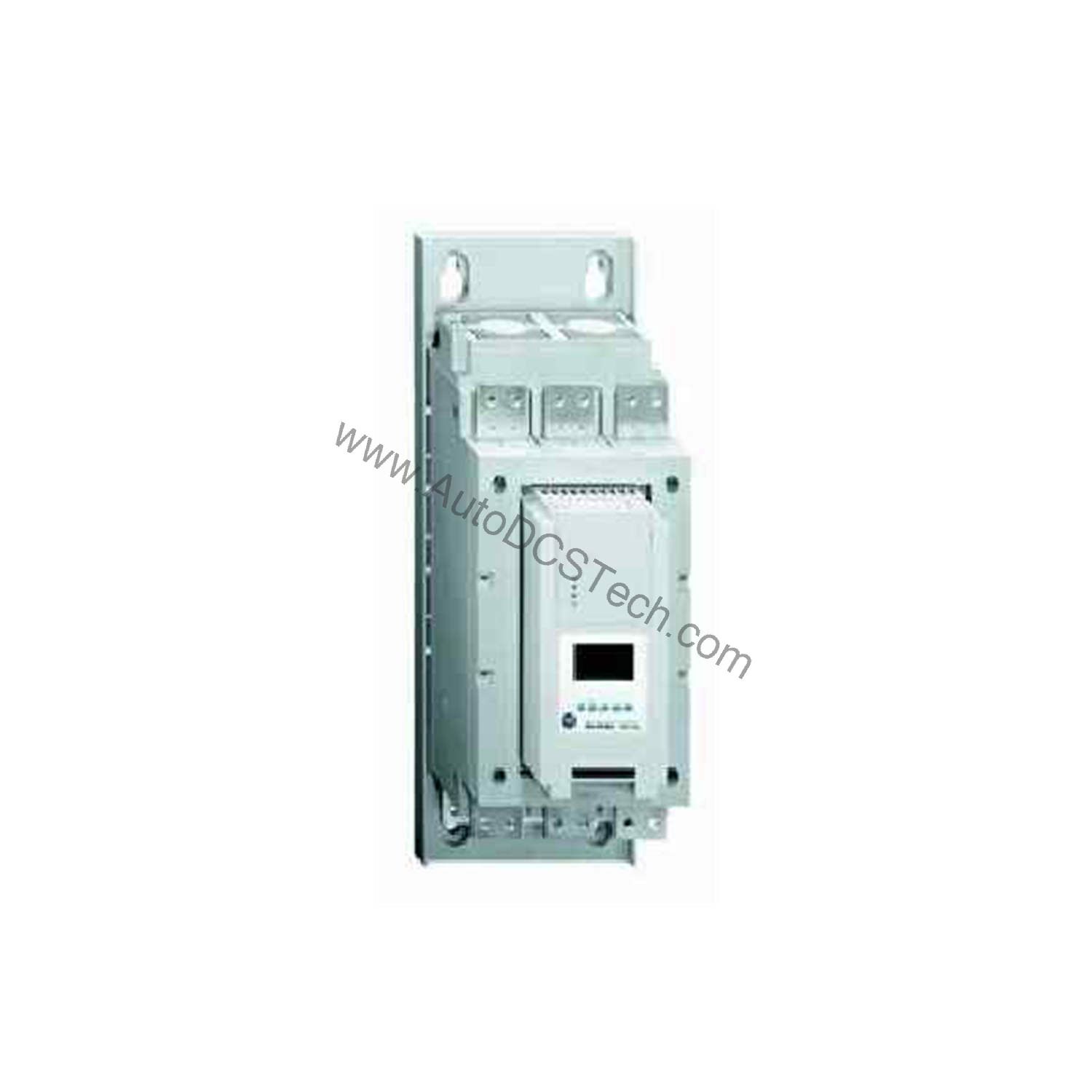

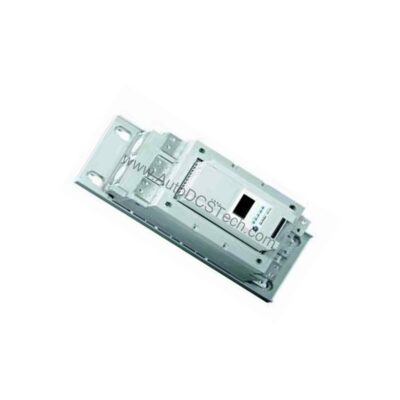

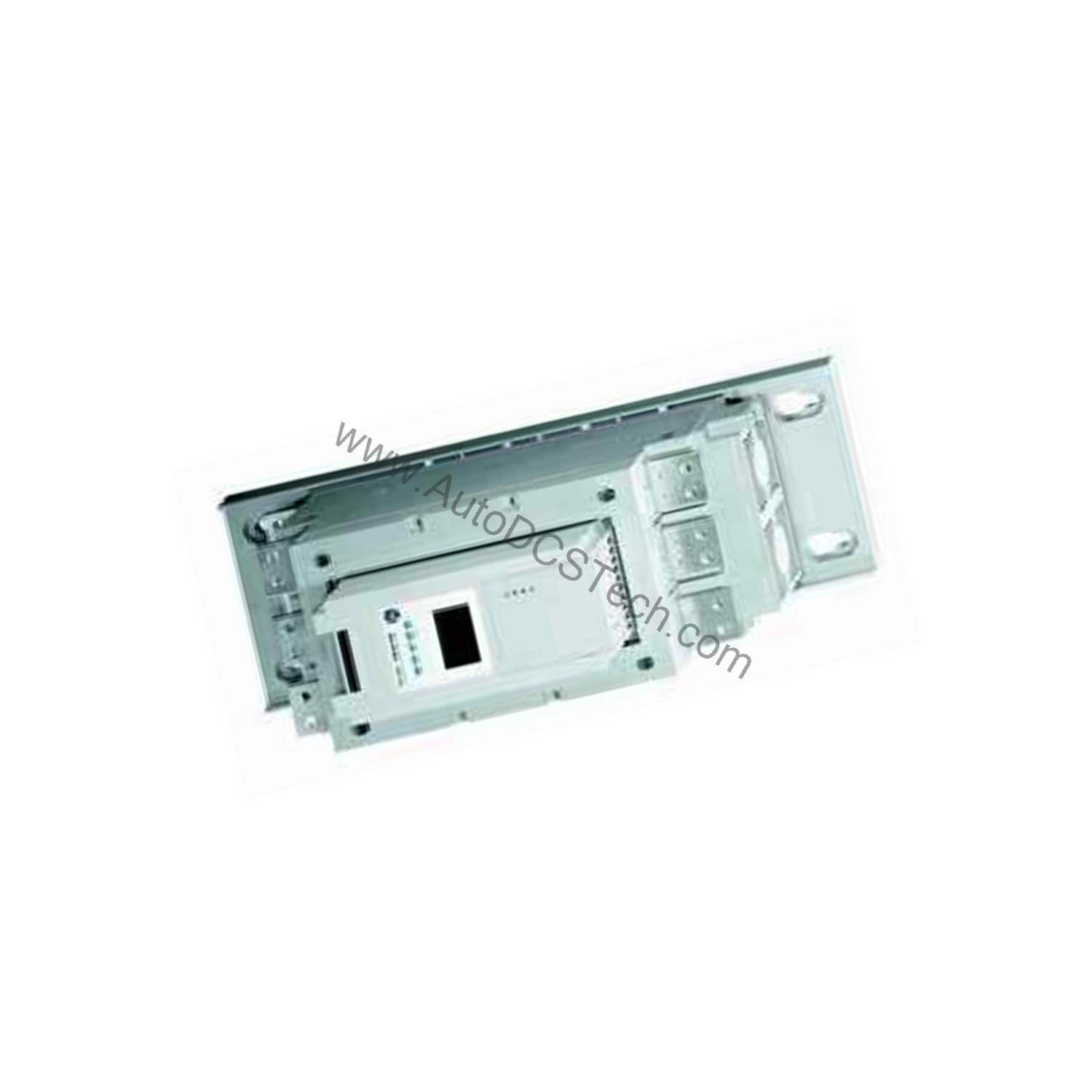

Allen-Bradley 150-F108FAD SMC-Flex Solid State Controller 108A IP65

Technical Specifications Breakdown

Key parameters for the 150-F108FAD are listed below for quick reference:

Industrial Applications and Benefits

The IP65 (Type 4/12) enclosure provides protection against dust, water jets, and corrosion, making it suitable for food processing, chemical plants, and outdoor installations. The 108 A rating and 75 Hp output at 460V AC support large conveyors, pumps, and compressors. By reducing inrush current and mechanical shock, the soft starter extends equipment life and lowers maintenance costs—a direct return on investment.

Installation and Setup Guidance

Mount the controller in a location that allows adequate airflow around the IP65 enclosure. Ensure the input line voltage matches the 230V AC, 3-phase supply at 50 or 60 Hz. Connect the control voltage (100-240V AC) to the designated terminals. Use the programmable keyboard and LCD screen to configure the desired start mode, ramp time, and current limit. Always follow local electrical codes and the manufacturer's manual for safe wiring.

Maintenance and Reliability

The sealed IP65 housing resists shock, vibration, humidity, and magnetic fields, reducing the need for frequent inspections. Periodically check the enclosure for damage and ensure the LCD screen remains clean. The SCR/bypass protection guards against motor recharge, enhancing reliability. No special tools are required for routine visual checks.

Reliable Motor Control for Heavy Loads

Industrial motor starting often causes mechanical stress and electrical disturbances. The Allen-Bradley 150-F108FAD solid state controller from the SMC-Flex series addresses these challenges with seven standard start modes, including soft start and current limit, to protect both the motor and driven equipment. This unit is designed for three-phase induction motors and Wye-Delta motors with six derivations, making it a versatile solution for demanding applications.

Compatibility and Integration

The seven start modes accommodate various motor types and load conditions. The programmable interface allows remote monitoring and adjustment via the built-in LCD, simplifying system integration.

Selection Guide and Purchasing Advice

When selecting a soft starter, verify that the controller rating (108 A) and horsepower (75 Hp @ 460V AC) match your motor specifications. The 150-F108FAD is a robust choice for heavy-duty applications requiring an IP65 enclosure. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can confirm compatibility and provide fast shipping.
