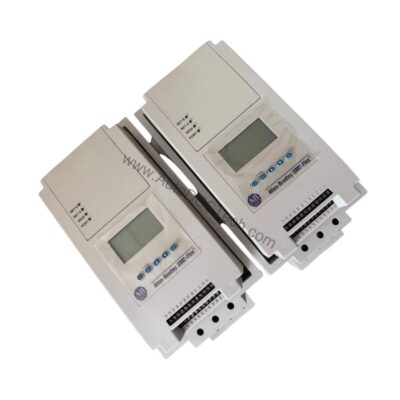

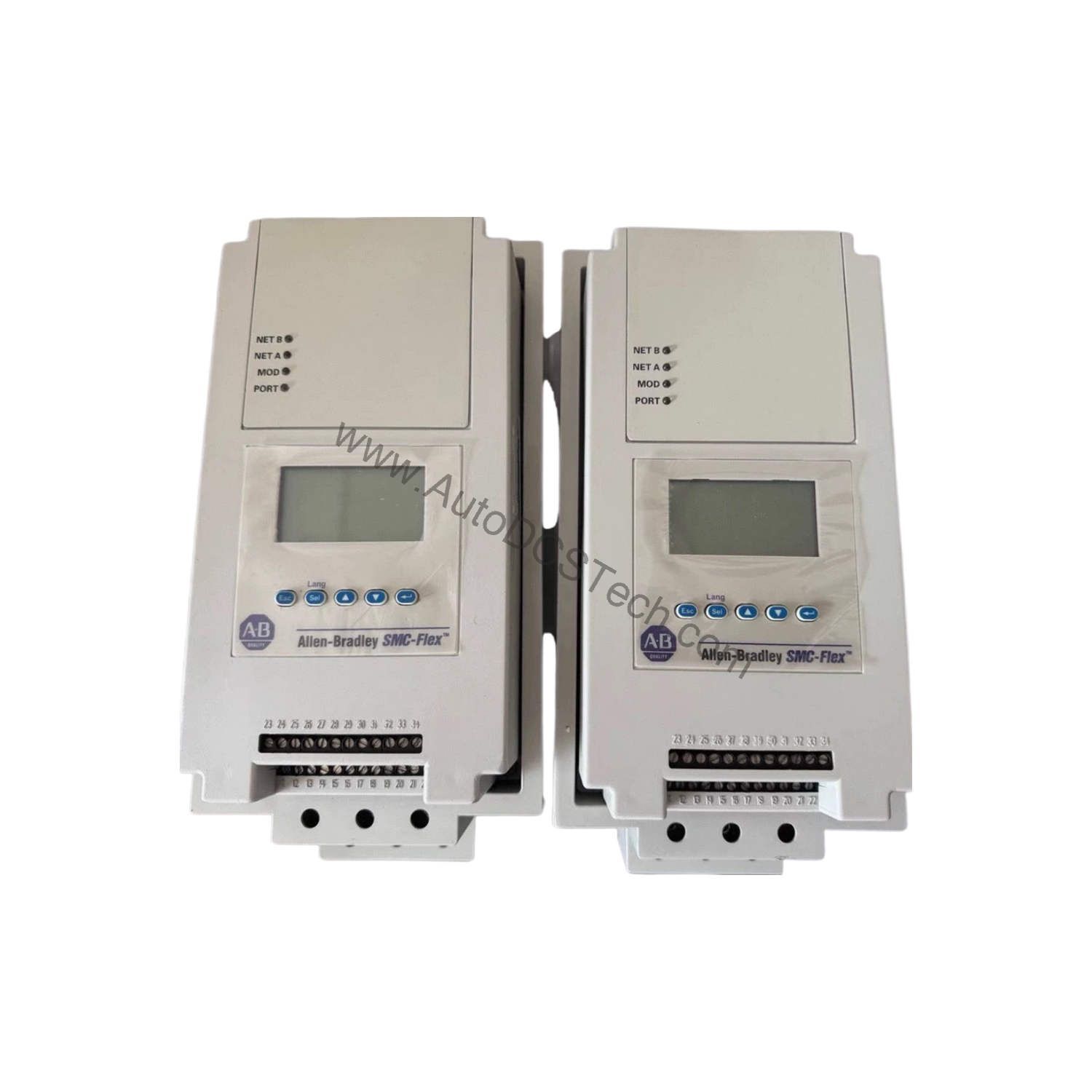

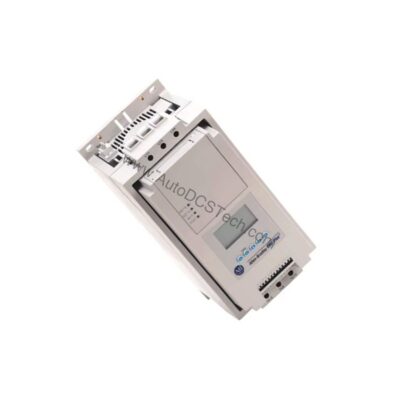

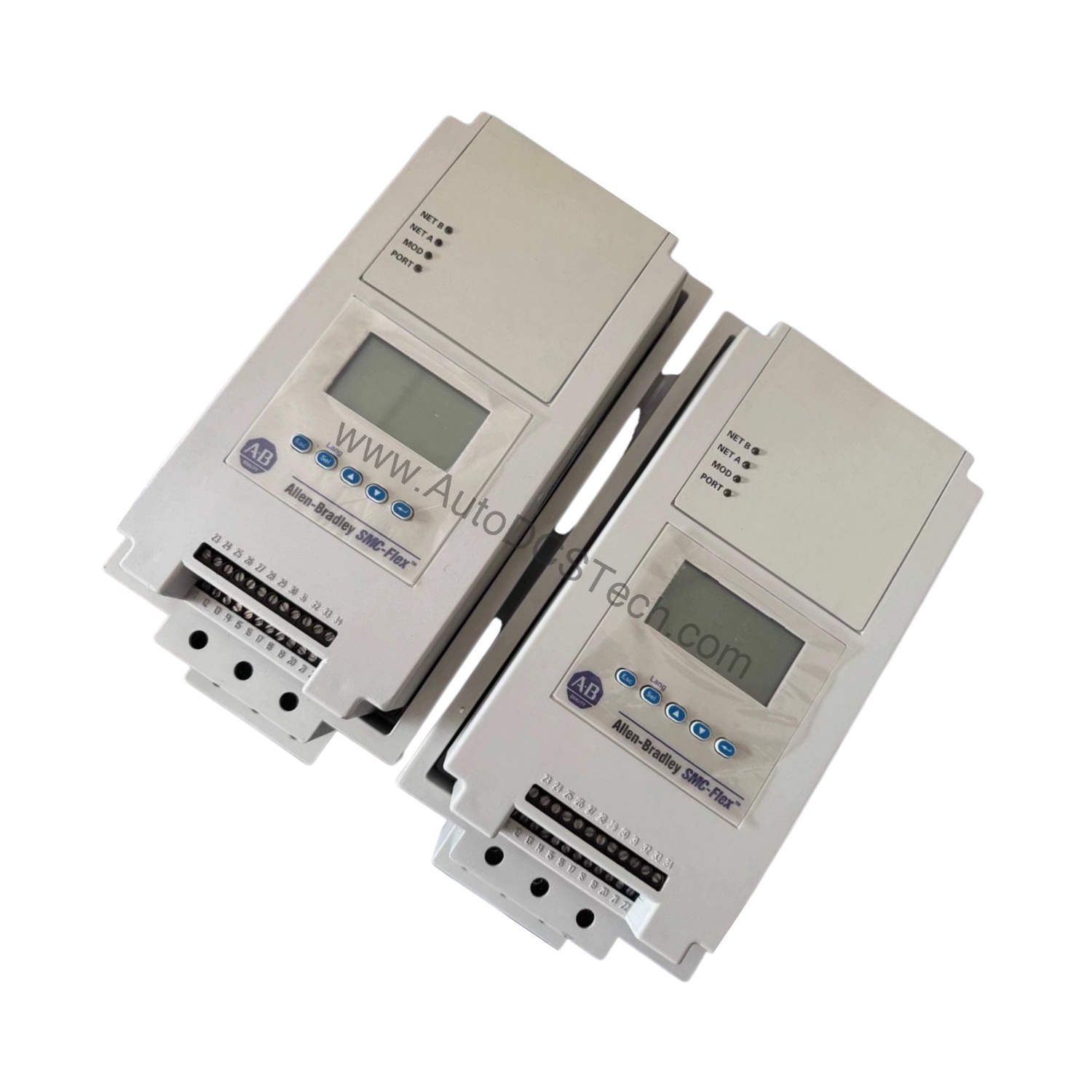

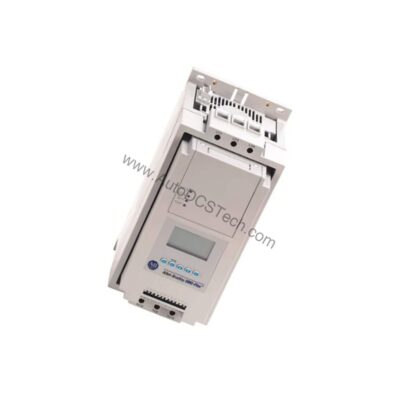

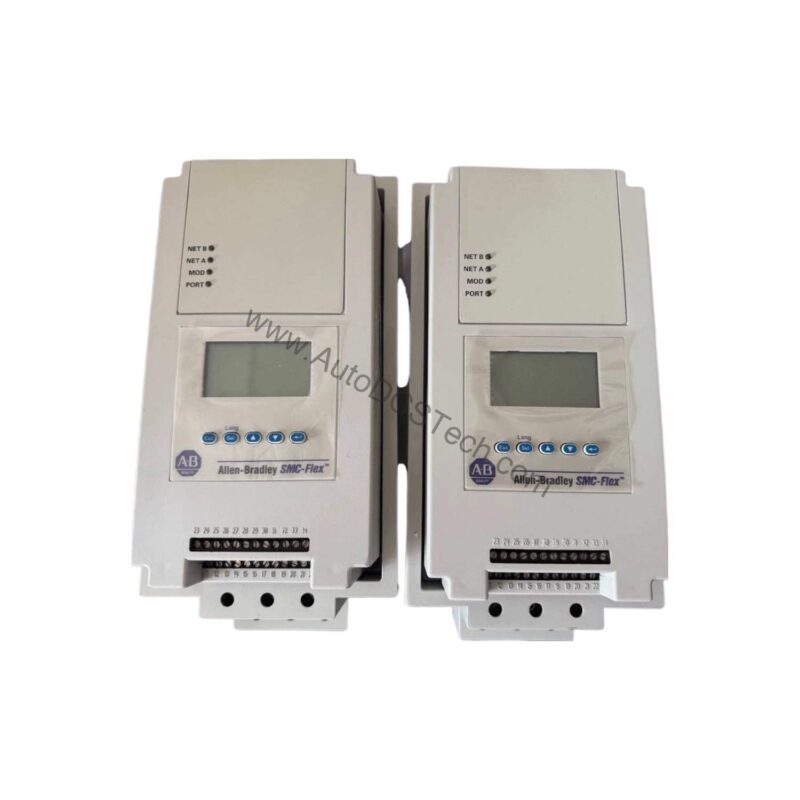

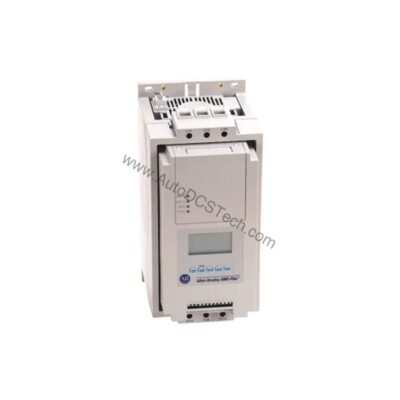

Allen-Bradley 150-F108NBD SMC Flex Smart Motor Controller

Product Overview

The Allen-Bradley 150-F108NBD is a SMC Flex Smart Motor Controller designed for precise motor management in industrial environments. By offering a wide range of operating modes, it helps reduce energy costs and extends equipment life. The 150-F108NBD is part of the SMC-Flex series, known for its compact design and advanced features, making it a cost-effective choice for facilities aiming to improve operational efficiency.

Technical Specifications Breakdown

Key parameters for the 150-F108NBD are listed below for quick reference:

Industry Applications

Pump and Fan Control

In water treatment and HVAC systems, the 150-F108NBD provides soft start and pump stop modes that minimize pressure surges and reduce pipe stress. This lowers maintenance costs and prevents costly downtime. The dual ramp start feature allows fine-tuning acceleration for different load conditions, optimizing energy use.

Conveyor Systems

For material handling, the controller’s current limit start and smart motor braking reduce mechanical wear on gearboxes and belts. By controlling torque during startup, it cuts peak demand charges and extends equipment life. The Accu-Stop function ensures precise positioning, improving throughput.

Compressor and Crusher Applications

In heavy-duty applications like compressors or crushers, the 150-F108NBD’s overload and jam protection prevent motor damage. The selectable kickstart provides extra torque for high-inertia loads, reducing start-up time and energy waste. This translates to lower operational costs and higher reliability.

Installation & Setup Guidance

When installing the 150-F108NBD, ensure the line voltage matches the 200-460V AC, 3-phase supply and the control voltage is within 100-240V AC. Use the integrated LCD backlit display and front panel buttons for local configuration. The DPI interface allows connection to optional human interface modules or communication modules for remote monitoring. For optimal performance, follow the wiring diagrams in the user manual and verify all auxiliary contact programming matches your application needs.

Maintenance & Reliability

The open-type enclosure requires installation in a clean, dry environment to prevent dust and moisture ingress. Periodically inspect the controller for signs of overheating or loose connections. The built-in diagnostics monitor parameters like motor thermal capacity usage and voltage unbalance, helping identify issues early. Regular firmware updates via the DPI port can enhance functionality and reliability.

Compatibility & Integration

The 150-F108NBD communicates via two DPI ports: one for optional human interface modules and one for communication modules. This allows integration with PLCs and SCADA systems for centralized control. The controller supports metering of amps, volts, kW, kWh, and power factor, providing data for energy management systems. This compatibility reduces integration costs and simplifies system expansion.

Selection Guide & Purchasing Advice

When selecting the 150-F108NBD, consider the motor’s full-load current and voltage rating. This model delivers 108 A continuous output and 75 HP at 460V AC, making it suitable for medium-sized motors. For applications requiring additional protection or communication features, the SMC-Flex series offers various options. AutoDCSTech stocks this controller and can provide lifecycle status and availability details. Contact AutoDCSTech for assistance in choosing the right configuration for your facility.
