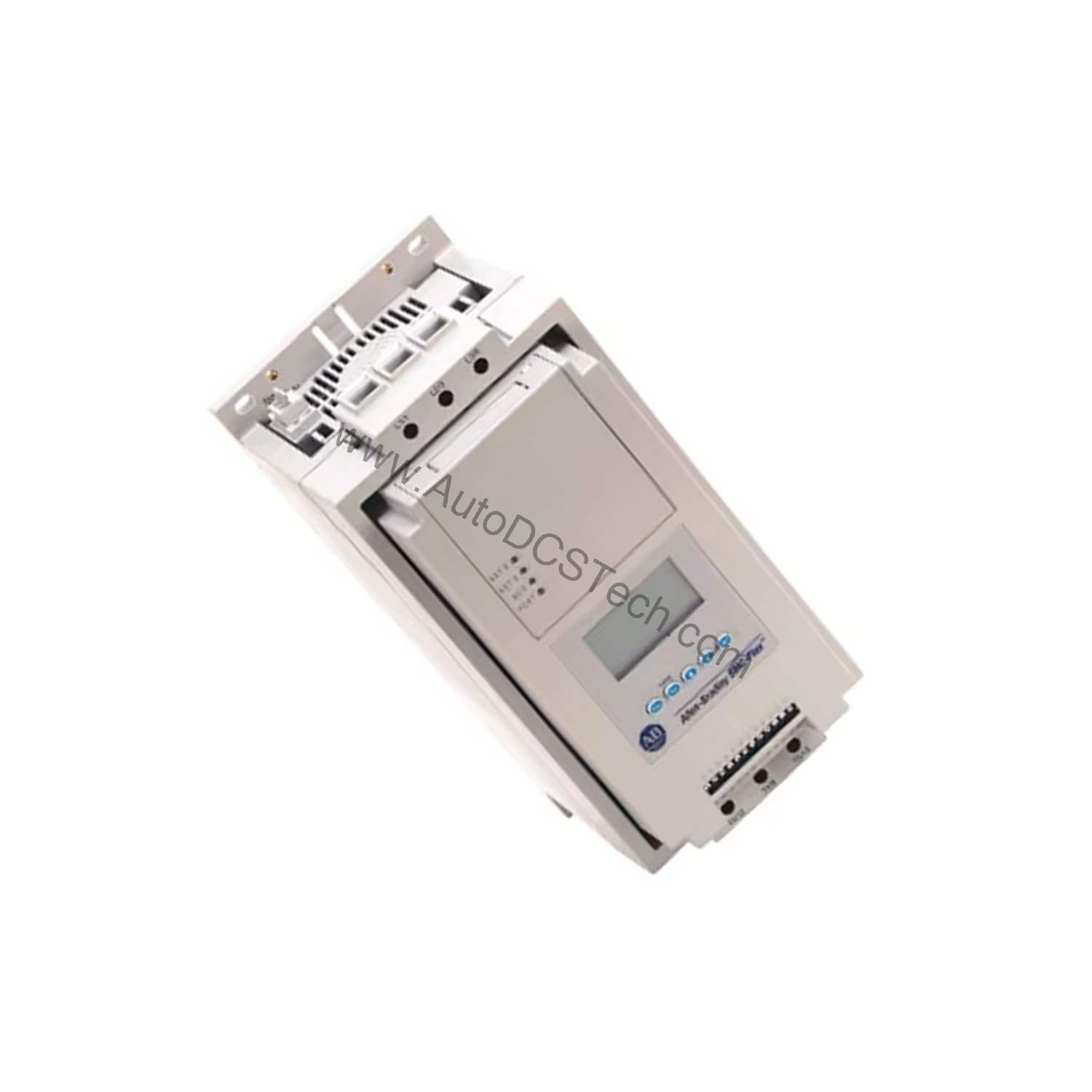

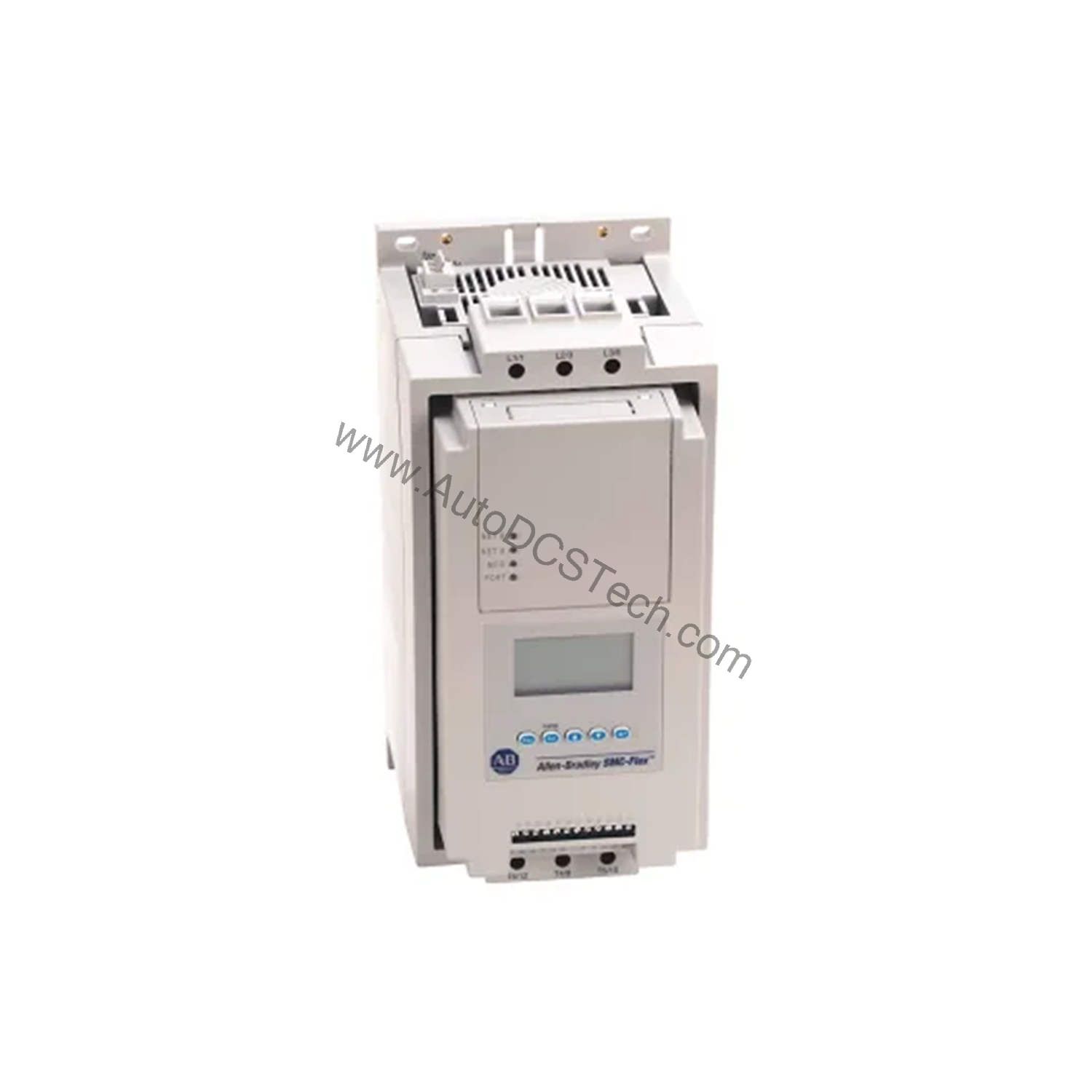

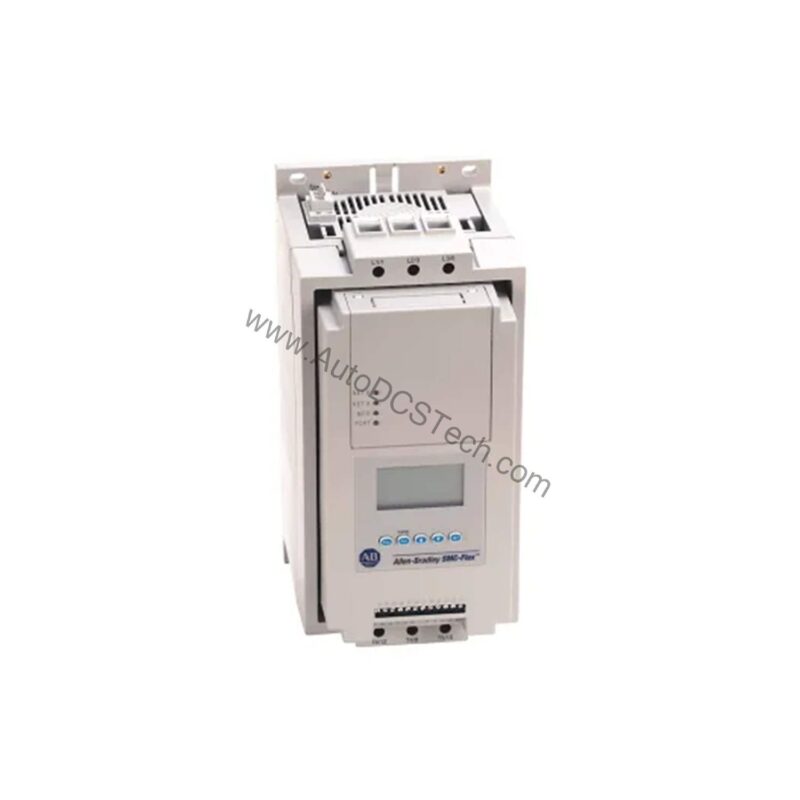

Allen-Bradley 150-F108NBDD SMC Flex Smart Motor Controller 108A

Technical Specifications Breakdown

Key parameters for the 150-F108NBDD are listed below for quick reference:

Real-World Applications for the 150-F108NBDD

First, in pumping stations, the pump start and soft stop modes minimize water hammer and pipeline stress, extending system life. Second, on conveyor lines, the current limit start and dual ramp start reduce mechanical shock to gearboxes and belts, lowering maintenance costs. Third, for HVAC fans, the smart motor braking and slow speed with braking enable precise positioning and rapid stopping without mechanical wear. These applications directly improve operational ROI by reducing downtime and component replacement.

Installation and Setup Guidance

When installing the 150-F108NBDD, ensure the line voltage matches the 200-460VAC, 3-Phase supply. Use the integrated LCD backlit display and front panel buttons to configure start modes such as soft start, full voltage start, or current limit start. The DPI communication port allows connection to an optional human interface module for remote monitoring. Verify that the control voltage is within the 100-240V AC range. Always follow local electrical codes and lockout/tagout procedures during installation.

Maintenance and Reliability

Periodically inspect the open type enclosure for dust accumulation and ensure adequate ventilation. Monitor the metering parameters—such as motor thermal capacity usage and power factor—to detect early signs of overload or imbalance. The built-in diagnostics cover power loss, phase reversal, and overvoltage, alerting operators before failures occur. Routine checks of auxiliary contact functionality and communication integrity help maintain reliable operation.

The Evolution of Motor Control: Why the SMC Flex Stands Out

Industrial motor control has progressed from simple electromechanical starters to intelligent solid-state systems that optimize energy use and protect equipment. The Allen-Bradley 150-F108NBDD SMC Flex Smart Motor Controller represents this evolution, delivering precise starting and stopping sequences to reduce mechanical stress and inrush current. Whether managing pumps, conveyors, or compressors, this controller provides the flexibility modern facilities demand.

Compatibility and Integration

One port supports an optional HIM for local programming; the other connects to communication modules for network integration. The four programmable auxiliary contacts can be configured as normal/up-to-speed, fault, alarm, or network indicators. This flexibility allows the controller to fit into existing automation architectures without major redesign.

Selection Guide and Purchasing Advice

Selecting the right SMC Flex model depends on motor horsepower and voltage. The 150-F108NBDD handles up to 75 HP at 460V AC with 108A continuous output. For higher ratings, consider other models in the SMC Flex family. AutoDCSTech stocks this part and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
