6AV2123-2MA03-0AX0 12" HMI PROFIBUS Panel | Siemens

Introduction: Solving the Challenge of Reliable HMI Operation

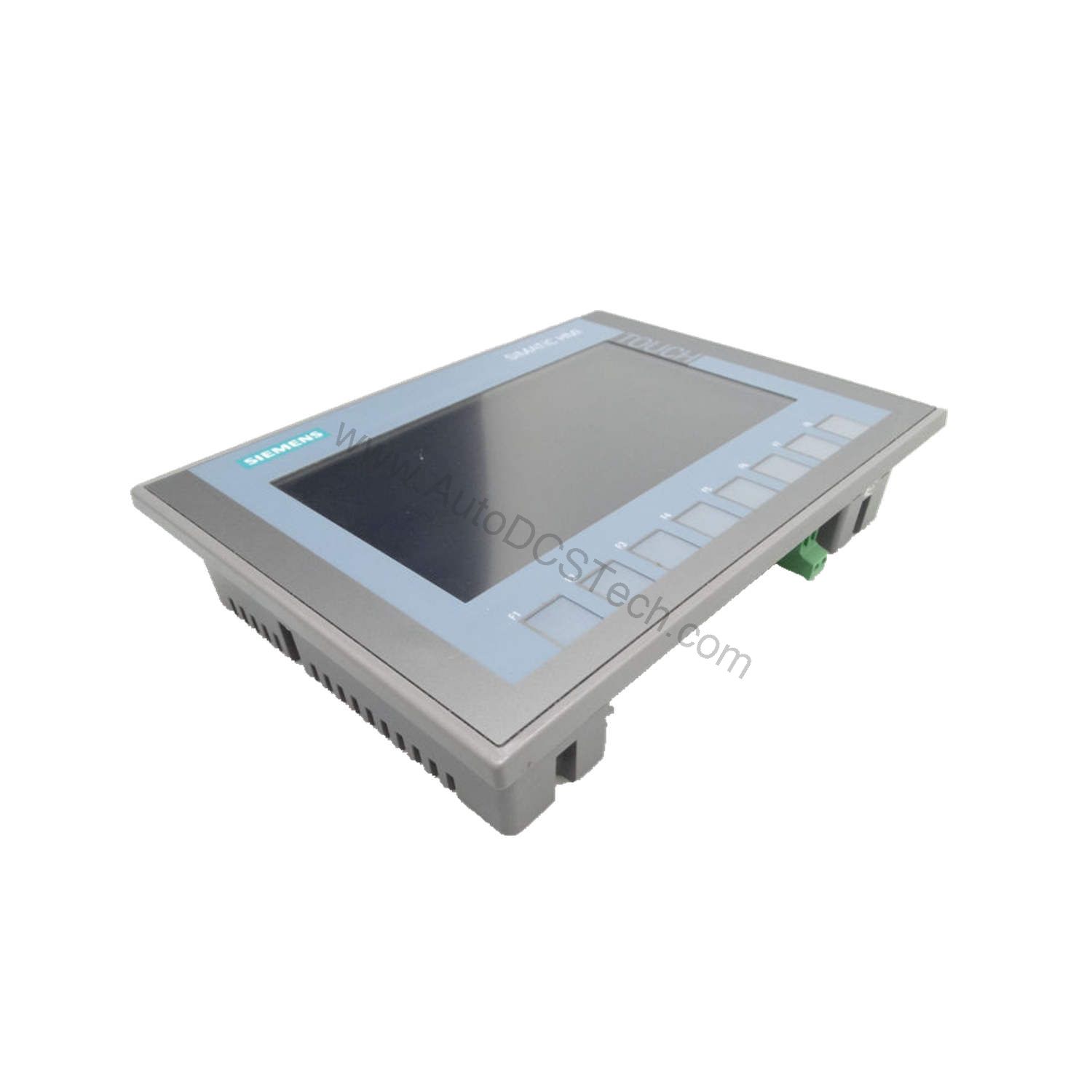

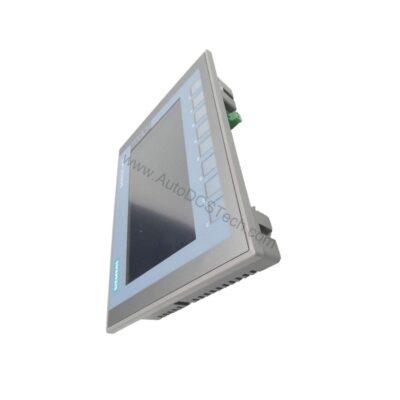

When a production line demands both robust visualization and precise operator input, the 6AV2123-2MA03-0AX0 from Siemens delivers a dependable solution. This SIMATIC HMI KTP1200 Basic DP panel is engineered for industrial environments where clarity, responsiveness, and connectivity are non-negotiable. With its 12-inch TFT widescreen display and 65,536 colors, operators gain a clear view of processes, while the combination of function keys and touch operation ensures flexible control.

This panel is part of the Siemens SIMATIC HMI family, known for its integration with TIA Portal engineering software. It is configurable with WinCC Basic V13 or STEP 7 Basic V13, making it a practical choice for systems already using Siemens automation. The 6AV2123-2MA03-0AX0 supports PROFIBUS and MPI protocols, enabling seamless communication with a wide range of PLCs.

Key Features and Technical Specifications

The 6AV2123-2MA03-0AX0 is built to perform in demanding settings. Its 12-inch screen offers a resolution of 1,280 x 800 pixels, providing sharp visuals for process data. The LED backlight has a mean time between failures (MTBF) of 20,000 hours at 25 °C, and it is dimmable to suit ambient lighting conditions.

• Display: 12-inch TFT widescreen, 65,536 colors, 1,280 x 800 pixels
• Backlight: LED, dimmable, MTBF 20,000 h at 25 °C
• Control: 10 function keys plus analog-resistive touch screen
• Supply Voltage: 24 V DC (range 19.2 V to 28.8 V)
• Current Consumption: 550 mA (rated), inrush I²t 0.2 A²·s
• Power Input: 13.2 W (typical)
• Processor: ARM-based
• Memory: Flash, RAM, 10 MB user data
• Interfaces: 1 RS 485, 1 RS 422 (shared), 1 USB (up to 16 GB)
• Protocols: PROFIBUS, MPI, MODBUS RTU
• Degree of Protection: IP65 (front), IP20 (rear)
• Certifications: CE, cULus, RCM, KC, marine approvals (GL, ABS, BV, DNV, LRS, Class NK)

One distinctive feature is the combination of key and touch operation. This allows operators to use physical keys for critical functions while navigating screens via touch, which can reduce errors in high-speed operations.

Real-World Applications and Use Cases

The 6AV2123-2MA03-0AX0 excels in machine building, packaging lines, and process control where space is limited but performance is critical. For example, in a bottling plant, the panel can display real-time production counts and allow operators to adjust parameters via the touch screen, while the function keys provide quick access to start/stop commands.

Thanks to its PROFIBUS interface, the panel integrates easily with existing Siemens S7-300/400 or S7-1200 controllers. Additionally, its support for MODBUS RTU opens doors to non-Siemens devices, making it a versatile choice for mixed-vendor environments.

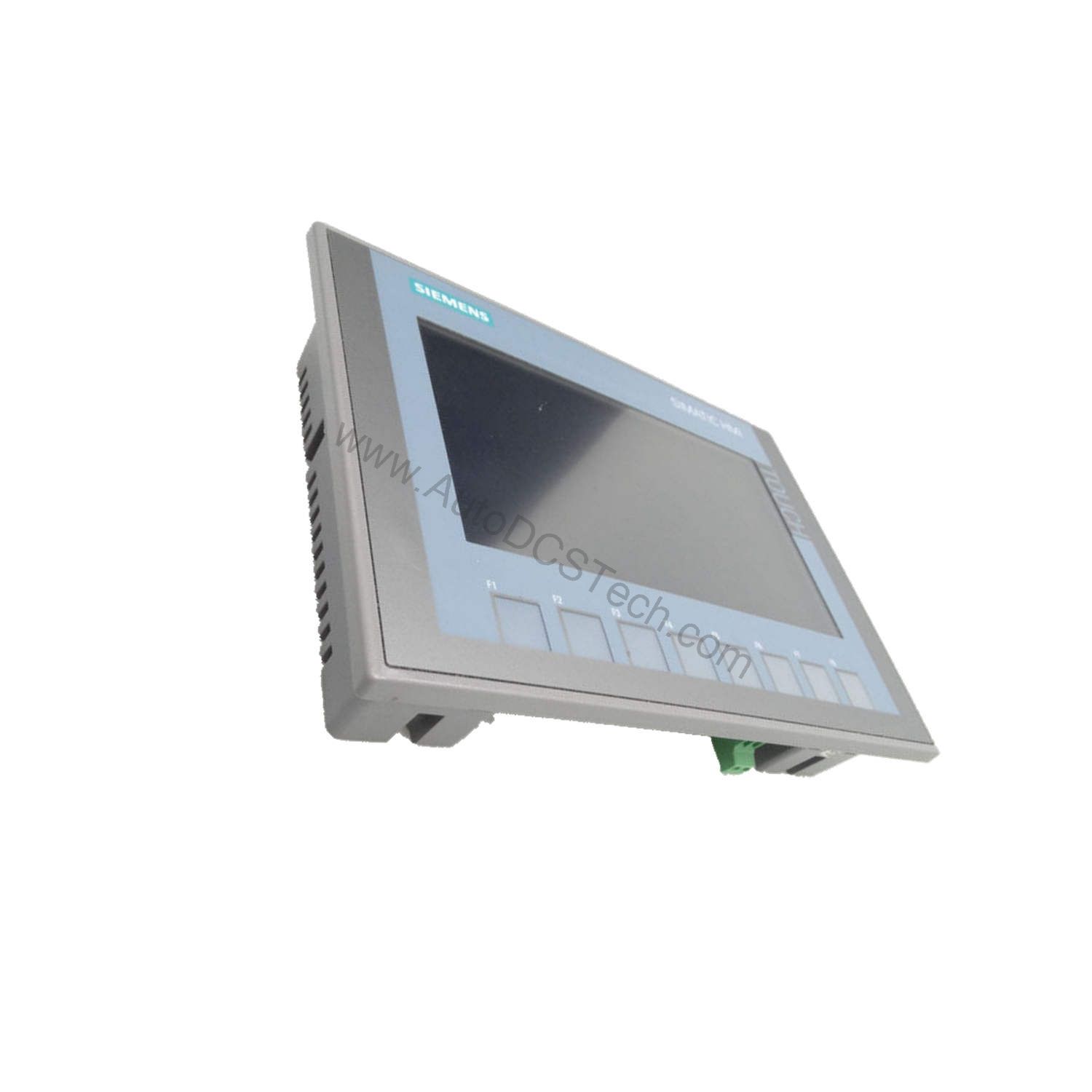

Installation and Mounting Guidelines

Proper installation ensures optimal performance and longevity. The 6AV2123-2MA03-0AX0 is designed for vertical mounting, but it also supports portrait and landscape orientations. The maximum permissible tilt angle without external ventilation is 35°.

For panel mounting, the cutout dimensions are 310 mm (width) by 221 mm (height). The front housing measures 330 mm by 245 mm, with an overall depth of 54.9 mm. Ensure the panel is securely fastened and that the front gasket provides a proper seal to maintain IP65 protection.

When wiring the DC supply, adhere to the specified voltage range of 19.2 V to 28.8 V DC. Use appropriate fusing and follow Siemens guidelines for grounding to avoid electrical noise issues.

Maintenance and Reliability Tips

To maximize the lifespan of the 6AV2123-2MA03-0AX0, regular inspection is recommended. Check the front seal for damage to maintain IP65 integrity. Keep the screen clean using a soft, dry cloth; avoid abrasive cleaners that could scratch the surface.

The LED backlight is rated for 20,000 hours of operation, which translates to over two years of continuous use. When the backlight dims, consider replacing the unit or contacting Siemens for service. Also, verify that the ambient temperature stays within the specified range (0 °C to 50 °C for vertical installation) to prevent overheating.

Since the panel contains a real-time clock with a backup battery (typically 6 weeks), it is wise to check the clock accuracy periodically and replace the battery as needed to avoid time-stamp errors in alarms.

Compatibility and Integration

The 6AV2123-2MA03-0AX0 is designed to work seamlessly with Siemens automation systems. It supports S7-1200, S7-1500, S7-300/400, S7-200, LOGO!, WinAC, SINUMERIK, and SIMOTION controllers. For third-party devices, it offers MODBUS RTU and Allen Bradley DF1 protocols, expanding its integration possibilities.

Configuration is performed via WinCC Basic (TIA Portal) or STEP 7 Basic (TIA Portal), ensuring a unified engineering environment. The panel supports up to 10 online languages and 32 project languages, making it suitable for global deployments.

Troubleshooting and Common Issues

If the panel fails to communicate with the PLC, verify the PROFIBUS address and cable connections. Ensure that the bus terminator is set correctly at both ends of the network. For MODBUS RTU, check the baud rate and parity settings.

In case of a blank screen, confirm that the supply voltage is within the acceptable range and that the backlight is functioning. If the touch screen becomes unresponsive, recalibrate it through the system settings. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6AV2123-2MA03-0AX0 is available through AutoDCSTech, an industrial automation parts supplier. For pricing and lead times, contact our sales team. We offer fast shipping and reliable support to keep your operations running.
