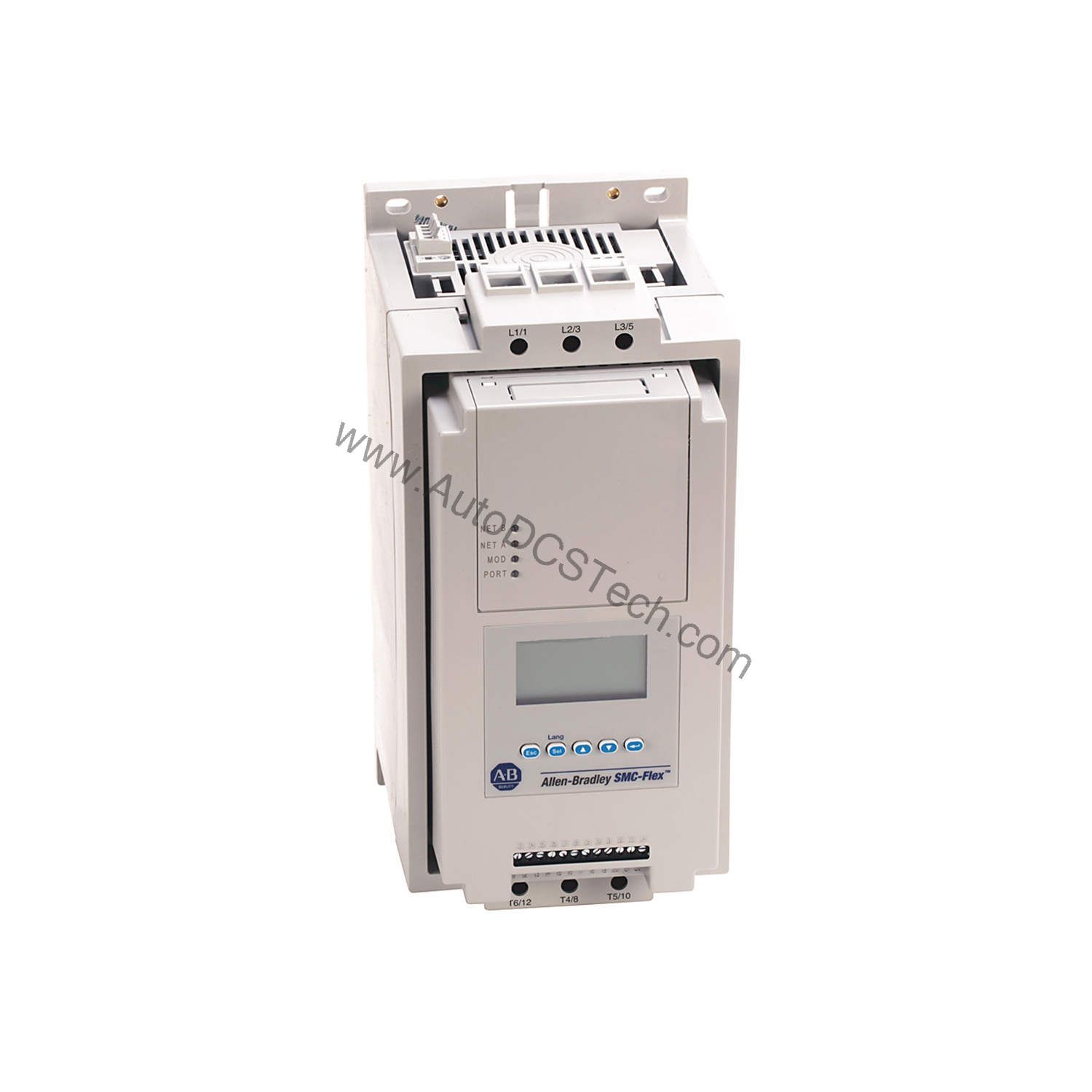

Allen-Bradley 150-F780NBAD SMC-Flex Solid State Motor Controller, 780A

Product Overview

The Allen-Bradley 150-F780NBAD is an SMC-Flex solid state controller designed for open configuration. It handles continuous currents up to 780 A and supports motors rated at 600 Hp at 460V AC. The controller accepts input voltages from 200 to 480V AC and requires a control voltage of 230 to 240V AC. A key feature is its integrated braking control option, which allows for controlled deceleration of loads, improving process repeatability and safety.

Technical Specifications Breakdown

Key parameters for the 150-F780NBAD are listed below for quick reference:

Industry Applications

The braking control option reduces wear on mechanical brakes and improves safety in emergency stops. For example, in a cement plant's belt conveyor system, the 150-F780NBAD provides smooth acceleration to prevent material spillage and controlled braking to avoid belt damage.

Installation & Setup Guidance

Mount the controller in a clean, dry enclosure with adequate ventilation to dissipate heat from the 780 A rating. Ensure the input voltage matches the 200...480V AC supply and control wiring is connected to the 230...240V AC control terminals. Follow the manufacturer's manual for proper power wiring torque values and fuse sizing. Verify that the motor's full-load current does not exceed the controller's continuous rating.

Maintenance & Reliability

Periodically inspect the controller for dust accumulation on heat sinks and verify that all power connections remain tight. Check the ambient temperature stays within the specified range. The solid-state design minimizes moving parts, but thermal cycling over time may degrade internal components; schedule annual thermographic inspections to detect hot spots early.

The Evolution of Motor Control

Industrial motor control has progressed from simple electromechanical starters to sophisticated solid-state controllers that deliver precision, energy savings, and enhanced diagnostics. The Allen-Bradley 150-F780NBAD SMC-Flex solid state controller exemplifies this advancement, providing robust performance for high-horsepower applications while reducing mechanical stress on connected equipment.

Compatibility & Integration

The SMC-Flex series integrates with most Allen-Bradley motor control centers and can be networked via optional communication modules (not included). The braking control option requires proper configuration with the motor and load inertia. Verify that the control voltage source is stable and dedicated to avoid nuisance trips.

Selection Guide & Purchasing Advice
