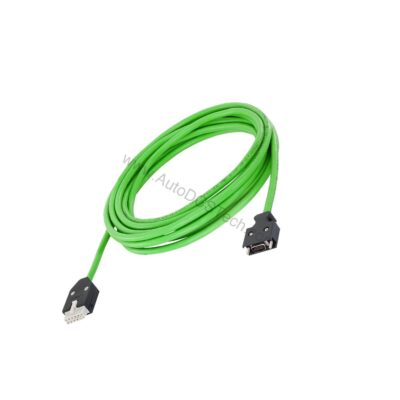

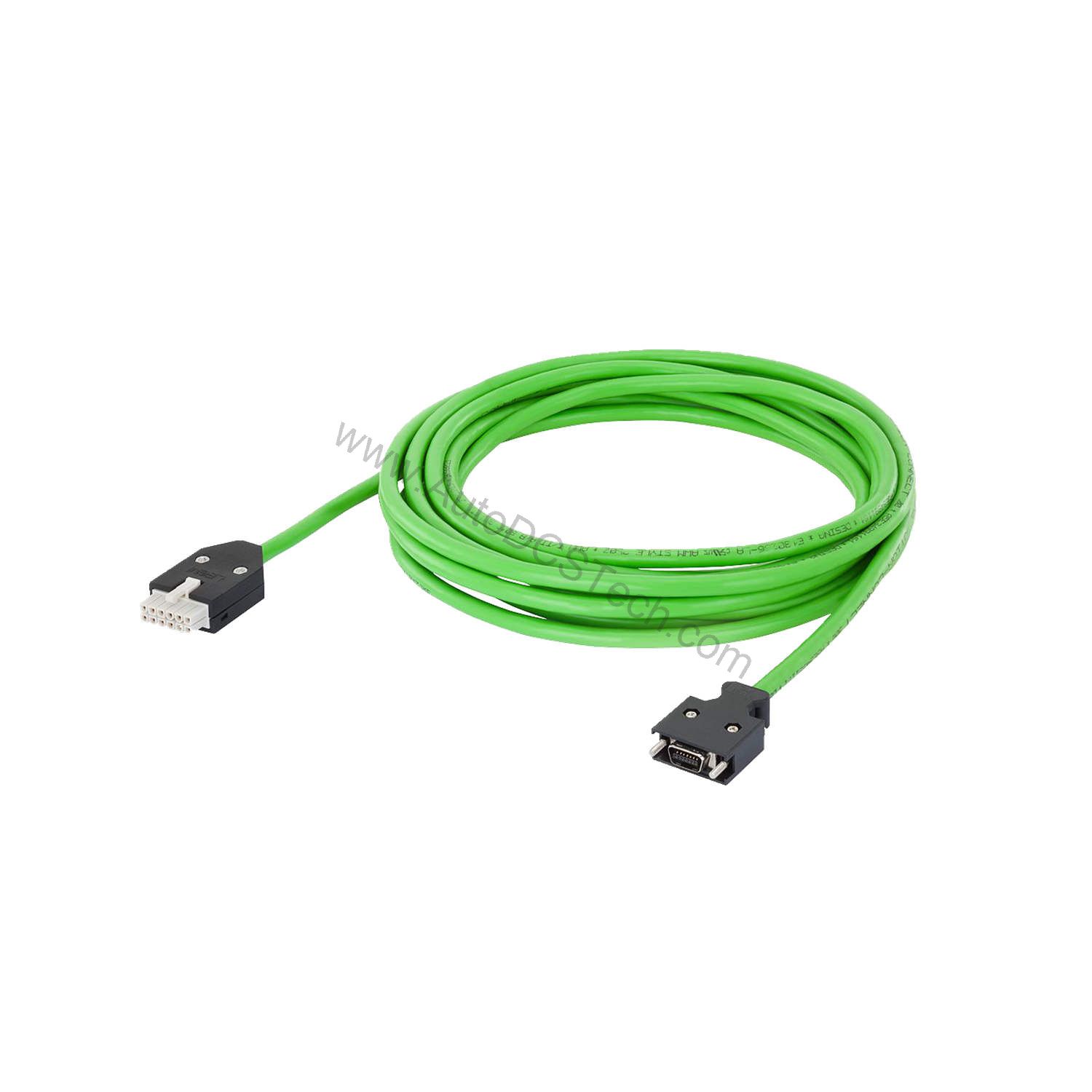

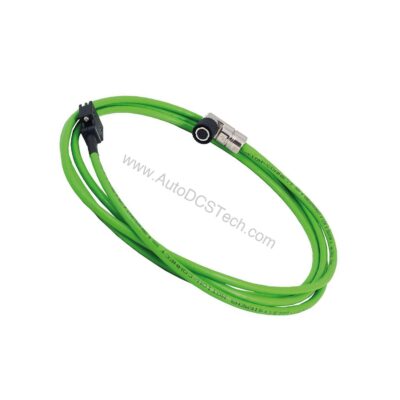

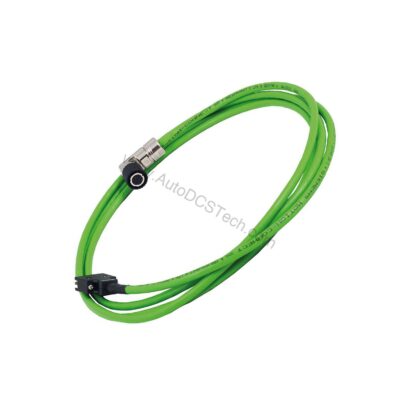

6FX3002-2CT20-1BA0 10m Siemens V90 Servo Encoder Cable

Introduction to the 6FX3002-2CT20-1BA0 Servo Encoder Cable

The 6FX3002-2CT20-1BA0 from Siemens prevents that. This V90 servo encoder cable delivers precise signal integrity over a 10.0-meter length, ensuring your motion control system operates without interruption.

Designed for demanding factory environments, this cable combines robust construction with flexible installation options. Its straight connector with fixed cable outlet direction simplifies routing, while the 100,000 bend rating supports continuous flexing applications.

Key Features and Technical Specifications

The table below summarizes the critical parameters of the 6FX3002-2CT20-1BA0. Every value is taken directly from the manufacturer's datasheet to guarantee accuracy.

• Conductor configuration: 3x2x0.20 + 2x2x0.25 mm² – provides dedicated pairs for signal and power.
• Test voltage (rms): 500V – ensures insulation integrity under factory conditions.
• Rated voltage U0/U (EN 50395): 30V/30V – suitable for low-voltage control circuits.
• Smallest bending radius (fixed): 6 x diameter – allows tight, space-saving routing.
• Smallest bending radius (flexible): 155 mm – accommodates dynamic cable tracks.
• Number of bends (max): 100,000 – long service life in flexing applications.
• Tensile stress (fixed): 50 N/mm² – robust for stationary installations.
• Tensile stress (flexible): 20 N/mm² – maintains performance during motion.
• Torsional stress: Absolute 30°/m – handles twisting without signal loss.

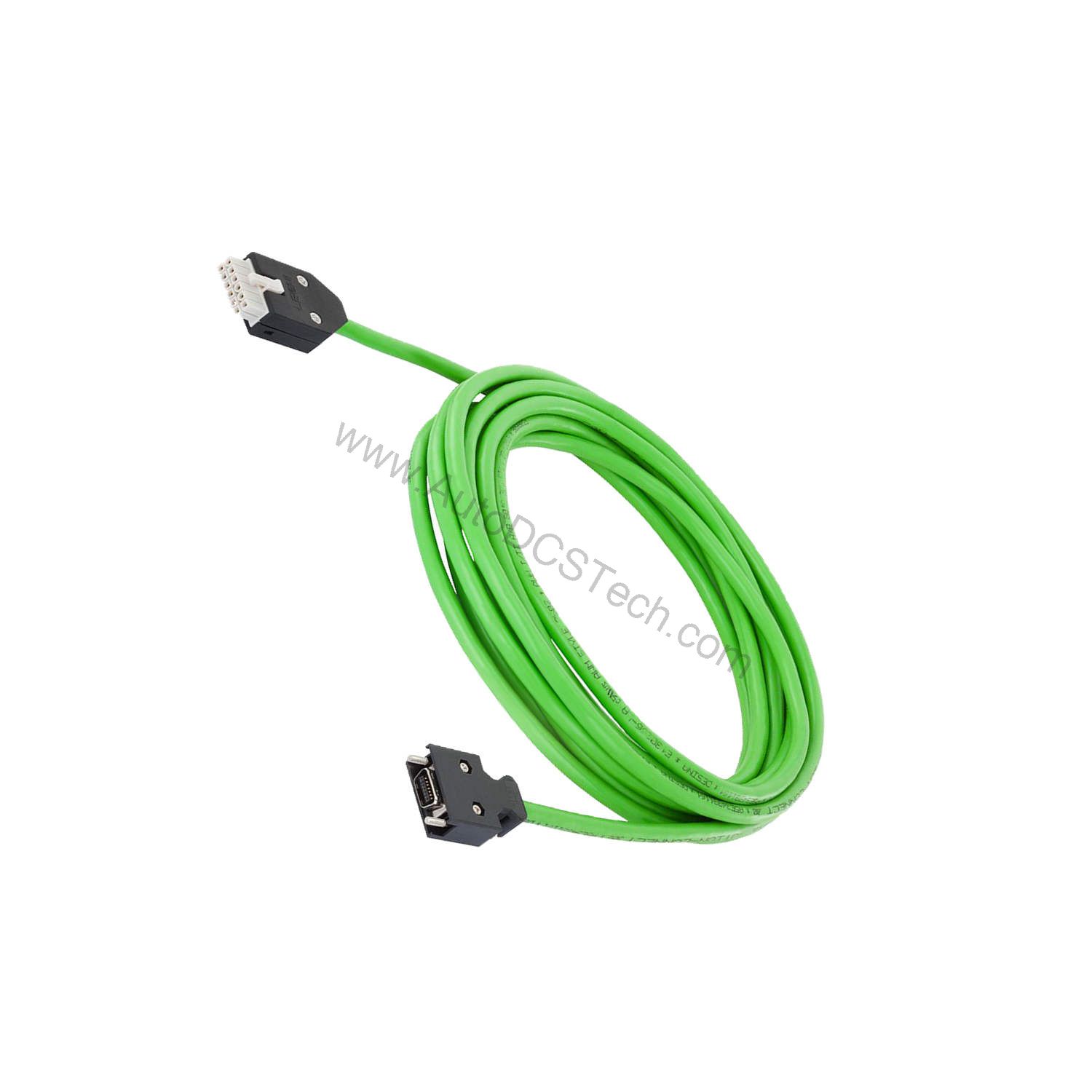

• Connection type: Straight connector (fixed cable outlet direction) – simplifies installation.
• Length: 10.0 m – ready for immediate integration.

One standout feature is the torsional stress rating of 30°/m. In robotic arms or rotating tables, cables twist continuously. This rating ensures the internal conductors maintain contact, preventing intermittent encoder faults that cause drive alarms.

Real-World Applications

In these settings, the encoder cable must endure constant flexing and occasional twisting. The 6FX3002-2CT20-1BA0 meets those demands with its high bend cycle rating and flexible installation radius.

For retrofits, the 10-meter length provides ample reach between drive and motor. Its straight connector fits standard V90 servo drives, making it a direct replacement for worn or damaged cables. Consequently, downtime is minimized, and production resumes quickly.

Installation and Setup

Proper installation extends cable life. When routing the 6FX3002-2CT20-1BA0, maintain a bending radius larger than the specified minimum. For fixed installations, use the 6 x diameter guideline; for flexible tracks, respect the 155 mm radius.

Secure the cable at both ends to avoid strain on the connector. The straight connector should be aligned with the cable outlet direction to prevent kinking. Additionally, avoid sharp edges and ensure the cable is not pinched during installation.

Maintenance and Reliability

Regular inspection of the cable and connector prevents unexpected failures. Check for cuts, abrasions, or crushed areas, especially near the connector and bending points. Verify that the connector is firmly seated and that the locking mechanism engages properly.

Because the cable is rated for 100,000 bends, it offers a long operational life. However, environmental factors like oil, chemicals, or extreme temperatures can accelerate wear. Therefore, periodic visual checks are recommended, particularly in harsh conditions.

Compatibility and Integration

The 6FX3002-2CT20-1BA0 is designed for Siemens V90 servo systems. It connects the servo drive to the motor's encoder, transmitting position and speed feedback. Ensure that your drive model supports this cable type; refer to the Siemens V90 documentation for compatibility details.

If you are unsure about integration, contact AutoDCSTech for guidance. Our team can verify that this cable matches your specific drive and motor combination.

Troubleshooting Common Issues

Encoder cable failures often manifest as drive faults like "encoder feedback lost" or "signal error." If you encounter these, first inspect the cable for visible damage. Next, check the connector for bent pins or loose contacts.

Another common issue is intermittent signals caused by excessive bending. If the cable is routed too tightly, it may exceed the minimum bending radius. Relieve the strain and reposition the cable to restore reliable communication.

Product Support and Availability

The 6FX3002-2CT20-1BA0 is available at AutoDCSTech. Contact our sales team for current pricing and lead times. We ship globally and offer technical support to help you select the right cable for your application.
