Product Overview

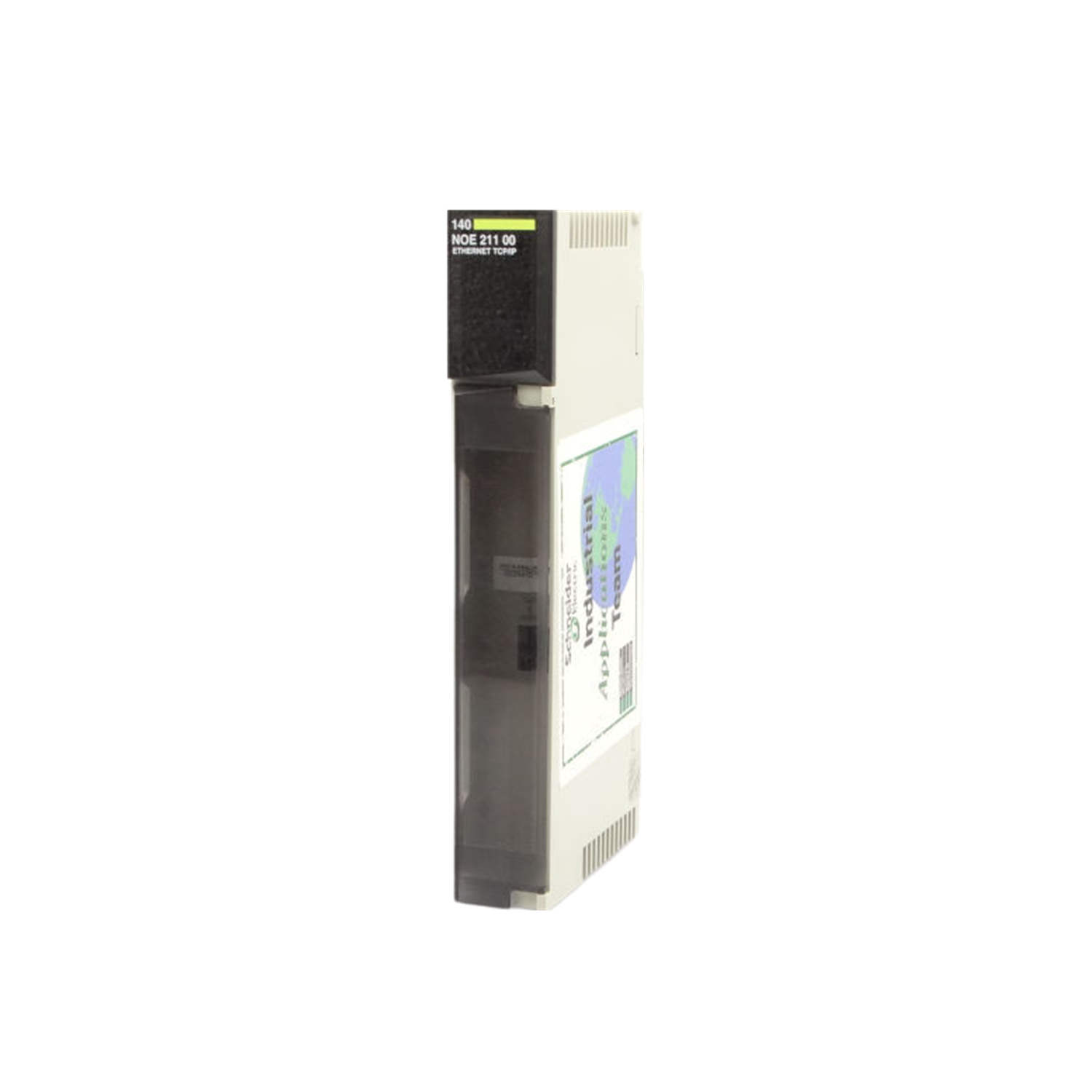

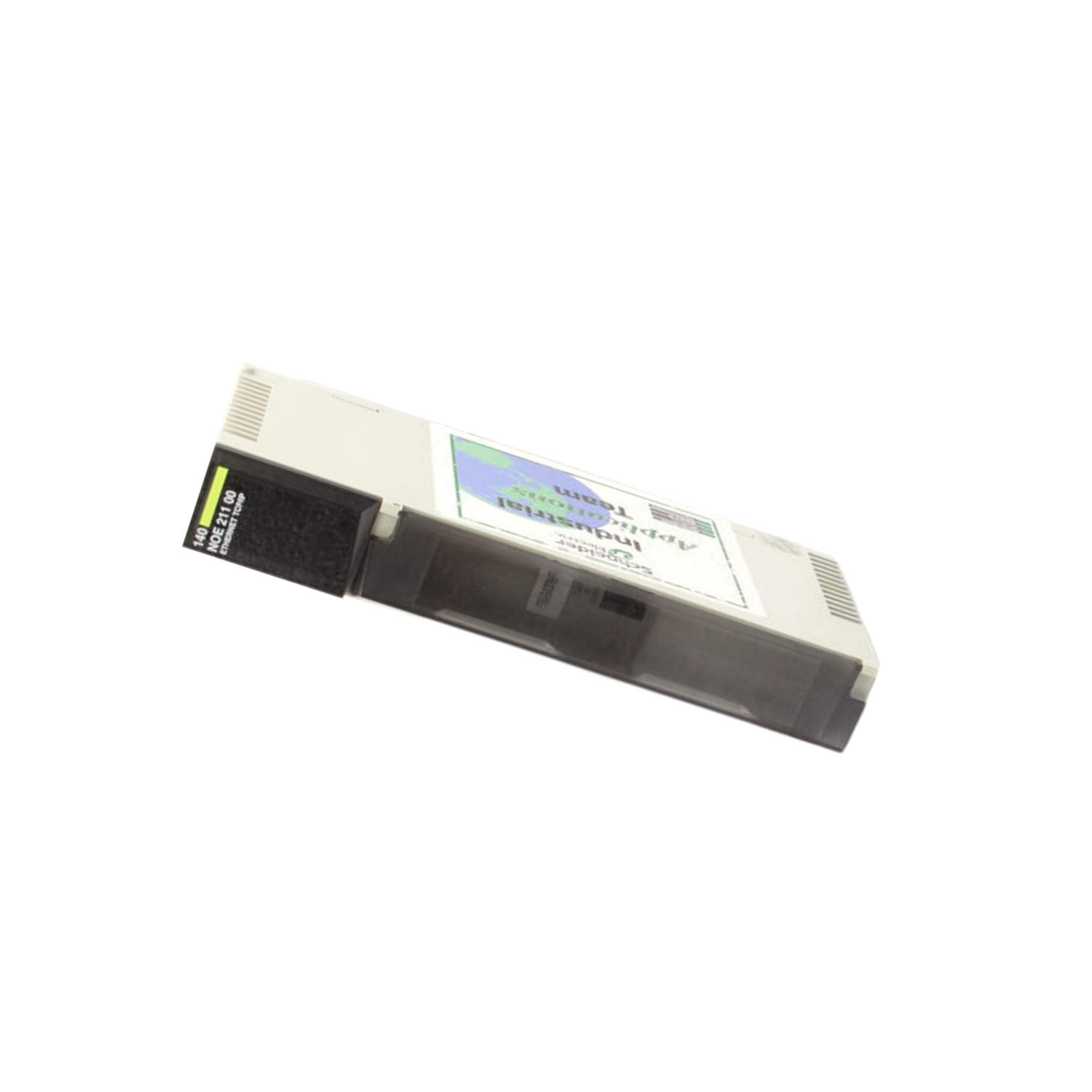

As a maintenance engineer, you know that reliable network communication is critical for keeping production lines running. The Schneider Electric 140NOE21100C is a TCP/IP module from the Modicon Quantum series, designed to facilitate various machine control tasks. This unit supports applications across material handling, packaging, and textile machinery, providing a robust solution for integrating control systems into your network.
Technical Specifications Breakdown
Key parameters for the 140NOE21100C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | TCP/IP Module |
| Product Line | Modicon Quantum |
| Part Number | 140NOE21100C |
| Number of Channels | 1 Channel |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH, non-condensing |
| Maximum Storage Humidity | 80% RH, non-condensing |
| Maximum Operating Altitude | 1000m above sea level |
| Maximum Storage Altitude | 1000m above sea level |
| Operating Environment | Clean indoor environment (no corrosive chemicals) |
Industry Applications
This module is engineered for machine control in three primary sectors. In material handling, it enables reliable communication between conveyors and sortation systems. For packaging lines, the unit supports precise coordination of wrapping, labeling, and sealing machinery. In textile manufacturing, it facilitates control of looms and finishing equipment. The 1-channel TCP/IP interface ensures stable data exchange, reducing downtime in these demanding environments.
Installation & Setup Guidance
Install the module in a clean indoor cabinet free from corrosive chemicals. Ensure ambient temperature stays within 0 to 40 degrees Celsius and humidity below 80% RH non-condensing. Mount the unit securely on a DIN rail or panel, and connect the Ethernet cable to the RJ45 port. Verify network settings match your plant's IP scheme before powering up. Avoid locations exceeding 1000m altitude to maintain reliable operation.
Maintenance & Reliability
Inspect the module quarterly for dust accumulation and ensure ventilation paths are clear. Check that the operating environment remains within specified temperature and humidity limits. Since the unit is designed for clean indoor use, avoid exposure to moisture or chemical vapors. Periodic visual checks of cable connections can prevent intermittent network faults.
Compatibility & Integration
The 140NOE21100C integrates seamlessly into Modicon Quantum automation platforms. It supports TCP/IP protocol for communication with supervisory systems and other networked devices. Use standard Ethernet switches and cabling for straightforward integration. The module's single channel is ideal for dedicated machine control networks.
Selection Guide & Purchasing Advice
When selecting this module, confirm your application matches the supported machine control tasks. The 140NOE21100C is a proven choice for material handling, packaging, and textile machinery. Please verify current lifecycle status and availability with SpareTechPLC before ordering. Our team can help you confirm compatibility with your existing Quantum system.
Troubleshooting & Common Issues
If the module fails to communicate, first check the Ethernet cable and switch connections. Verify that the IP address is correctly configured and not conflicting with other devices. Ensure the ambient temperature is within 0 to 40 degrees Celsius and humidity below 80% RH. If issues persist, inspect the module for physical damage and confirm it is installed in a clean environment free of corrosive chemicals.
