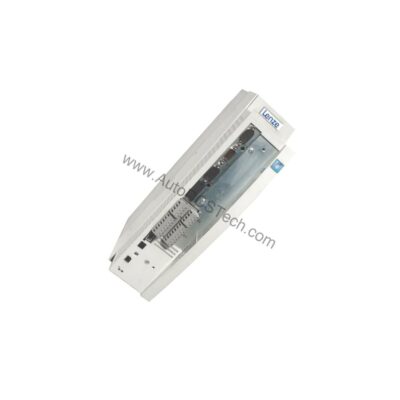

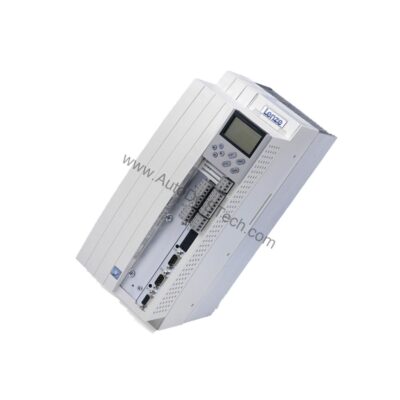

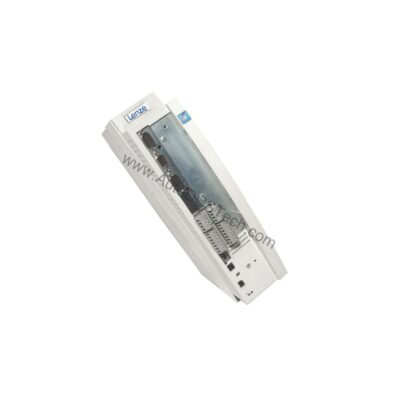

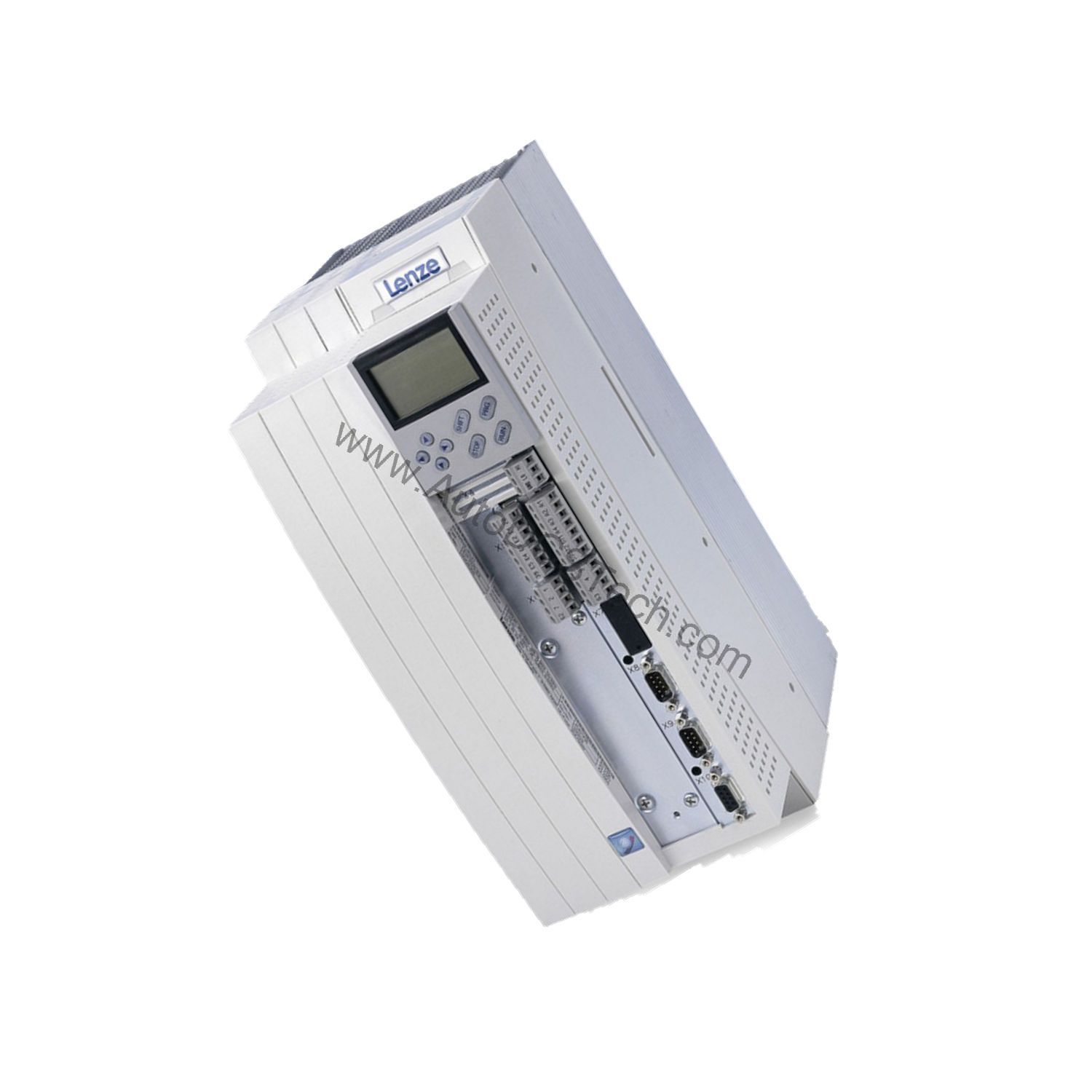

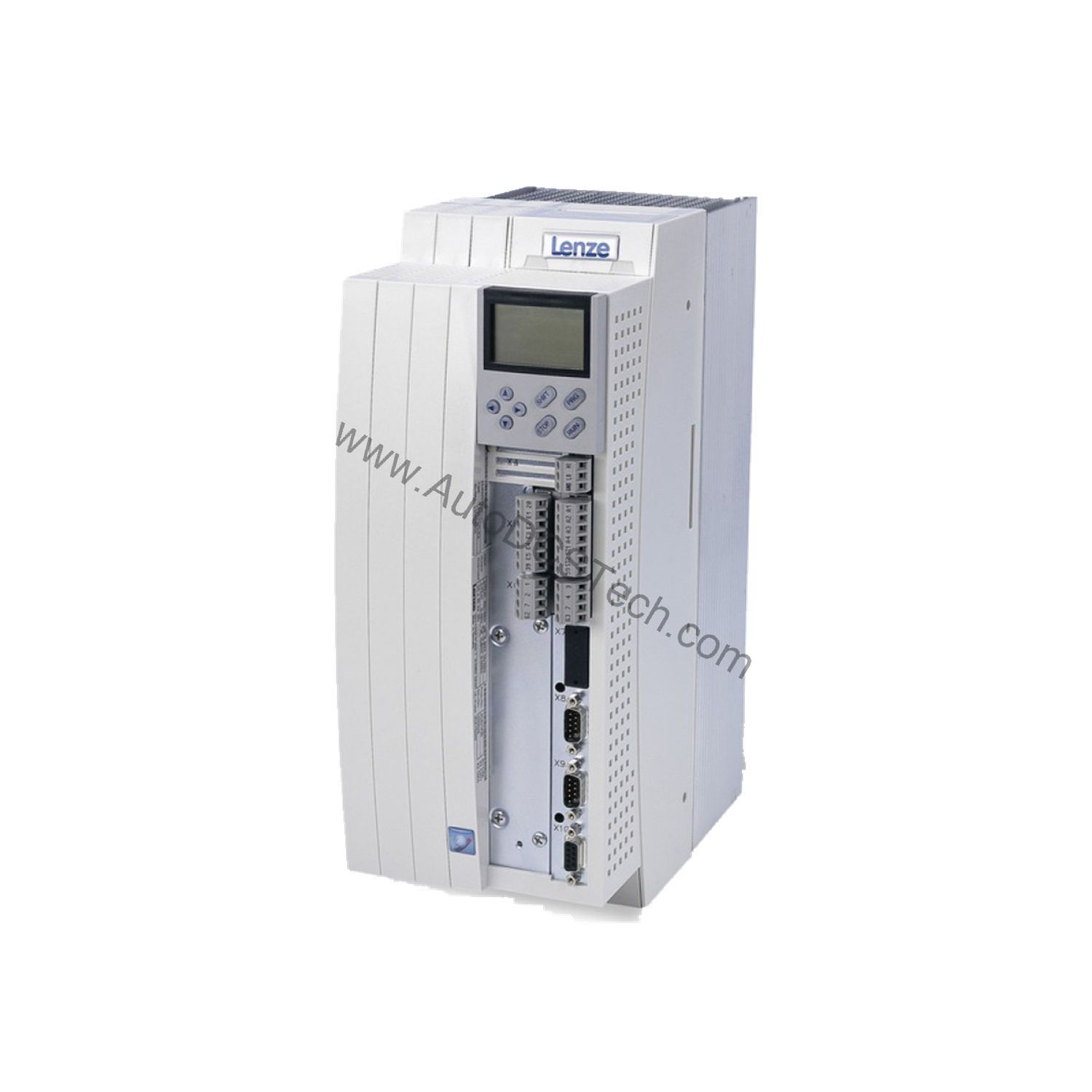

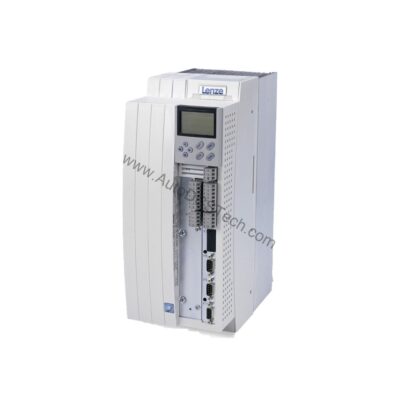

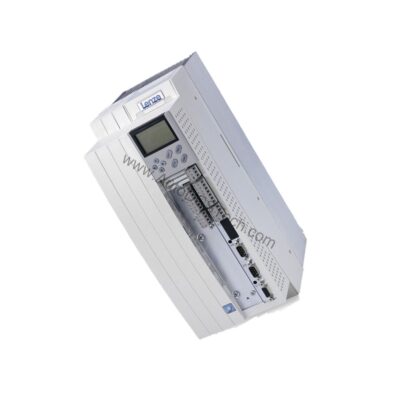

Lenze EVF9337-EVV030 Frequency Inverter Module 250 HP

Technical Specifications Breakdown

Key parameters for the EVF9337-EVV030 are listed below for quick reference:

Built for High-Power Applications

This frequency inverter module supports motor power up to 250 HP, which suits heavy-duty equipment such as large conveyors, industrial mixers, and high-capacity fans. The 285 A mains current capability ensures the module can handle significant inrush and steady-state loads without compromising performance. Engineers working with such machinery will appreciate the module’s ability to maintain consistent operation under demanding conditions.

Installation and Setup Guidance

Proper installation is critical for reliable operation. The EVF9337-EVV030 is designed for back-panel mounting inside a control cabinet. Ensure the cabinet provides adequate ventilation to keep the ambient temperature within the specified 0 °C to +50 °C range. The IP20 rating means the module is protected against solid objects larger than 12 mm, but it is not sealed against moisture or dust ingress. Therefore, install the module in a clean, dry environment and avoid exposing it to conductive dust or condensation.

When wiring the module, follow the manufacturer’s wiring diagram and torque specifications. Use appropriately sized cables for the 285 A mains current to prevent overheating. Verify that the supply voltage is within the 340-456V AC range and that the supply frequency is between 45 and 65 Hz before energizing. Always disconnect power before performing any installation or maintenance work.

Maintenance and Reliability

Regular inspection helps extend the service life of the frequency inverter module. Check for dust accumulation on heatsinks and fans, as blocked airflow can cause overheating. Inspect all power connections for signs of loosening or corrosion. The operating temperature range of 0 °C to +50 °C should be maintained; if the cabinet temperature approaches the upper limit, consider adding forced ventilation or air conditioning.

Because the module weighs 175 kilograms when equipped with an RFI filter, use appropriate lifting equipment and follow safe handling procedures during installation or removal. Periodically verify that the mounting hardware remains secure.

Reliable Motor Control for Demanding Industrial Environments

The Lenze EVF9337-EVV030, part of the Series 9300 product line, offers the robust performance needed for continuous industrial operation. This module is designed to manage substantial electrical loads, making it a solid foundation for motor control systems in sectors like material handling, pumping, and processing.

Compatibility and Integration

The EVF9337-EVV030 is part of the Lenze Series 9300 family, which is known for its modular design and ease of integration into existing control systems. While specific communication protocols are not listed, the module is designed to work with standard motor control setups. For retrofit or upgrade projects, verify that the existing control signals and power supply are compatible with the module’s input requirements.

Selection Guide and Purchasing Advice

When selecting a frequency inverter module, consider the motor’s power rating, supply voltage, and environmental conditions. The EVF9337-EVV030 meets these needs with its 250 HP capacity and 340-456V AC input. Before ordering, confirm the current lifecycle status and availability with AutoDCSTech. They can provide guidance on compatibility and ensure you receive the correct part for your application.

Troubleshooting and Common Issues

If the module fails to operate, first check the supply voltage and frequency. Verify that the incoming power is within the specified ranges. Next, inspect the control wiring and ensure all connections are secure. Overheating is a common issue; check that the ambient temperature is within limits and that airflow is not obstructed. If the module trips on overcurrent, verify that the motor and load are within the rated capacity. For persistent issues, consult the Lenze documentation or contact AutoDCSTech for technical support.

Conclusion

The Lenze EVF9337-EVV030 frequency inverter module delivers the power and reliability required for high-demand industrial motor control. With its robust construction, high current rating, and wide supply frequency range, it is a dependable choice for maintaining efficient operations. Contact AutoDCSTech today to check availability and ensure your production line stays running.
