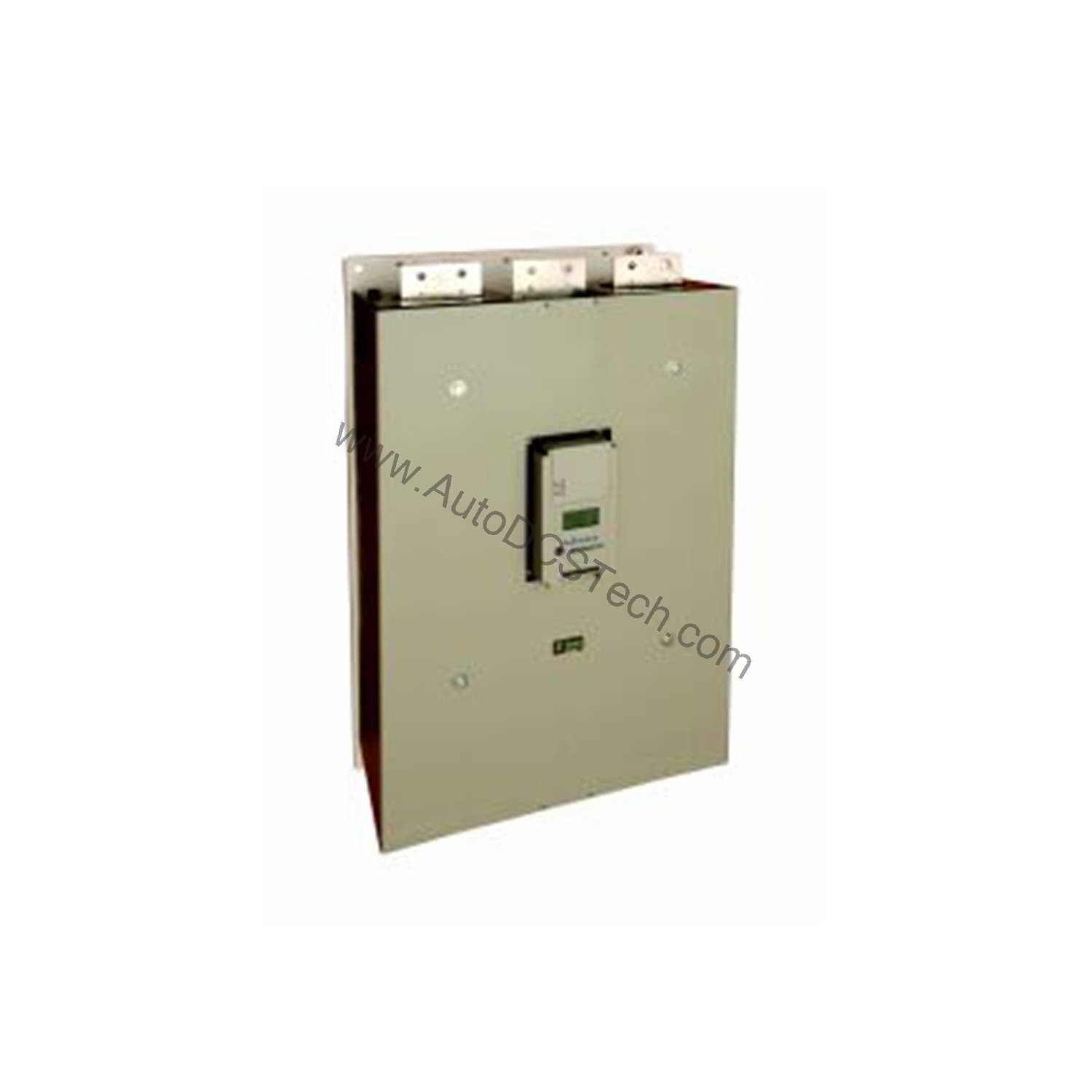

Allen-Bradley 150-F1250NBED SMC-Flex Open Smart Motor Controller 1250A

Optimize Heavy Motor Control with the Allen-Bradley 150-F1250NBED

Industrial facilities face constant pressure to reduce mechanical stress during motor starting while maintaining uptime. The Allen-Bradley 150-F1250NBED SMC-Flex open smart motor controller delivers precise solid-state control for large motors, integrating braking capability to enhance process safety and efficiency.

Technical Specifications Breakdown

Key parameters for the 150-F1250NBED are listed below for quick reference:

Failure Mode Prevention Through Solid-State Design

Traditional electromechanical starters subject motors to high inrush currents and torque spikes, accelerating wear on windings and driven equipment. The 150-F1250NBED uses silicon-controlled rectifiers to ramp voltage smoothly, reducing mechanical shock. The integrated braking control option allows controlled deceleration, preventing coast-down damage in conveyors or centrifuges. This proactive approach minimizes unplanned downtime and extends motor life.

Heavy-Duty Application Scenarios

Mining and Aggregate Processing – Starting large crushers or belt conveyors demands high torque without belt slippage. The 150-F1250NBED’s 1250A rating handles 1000 Hp motors at 460V AC, providing soft start and stop for massive loads.

Pumping Stations – Water and wastewater pumps often experience water hammer during direct-on-line starts. With adjustable acceleration and braking, this controller protects piping and valves from pressure surges.

HVAC and Compressor Systems – Large chillers and screw compressors benefit from reduced starting current, lowering peak demand charges and preventing nuisance breaker trips.

Installation and Setup Guidance

Mount the open-style controller in a suitable electrical enclosure rated for the environment. Ensure incoming 200..480V AC three-phase power is properly sized for 1250A continuous current. Connect control wiring to a 100...120V AC source. Configure the braking control parameters via the integrated keypad or remote communications (if equipped). Verify all power connections are torqued to manufacturer specifications before energizing.

Maintenance and Reliability

Periodically inspect the heat sink fins for dust accumulation, which can reduce thermal dissipation. Check all power lug connections for signs of overheating annually. The solid-state design has no moving contacts to wear, but environmental factors like humidity and vibration should be monitored. Keep the enclosure clean and ensure adequate ventilation.

Compatibility and Integration

The 150-F1250NBED is part of the Bulletin 150 SMC-Flex family, designed for straightforward integration with Allen-Bradley control systems. It accepts standard three-phase input voltages from 200 to 480V AC and provides a dedicated control voltage input of 100...120V AC. The braking control option is built-in, eliminating the need for external braking resistors in many applications.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the full-load current of your motor to the controller’s rating. The 150-F1250NBED is suited for motors up to 1000 Hp at 460V AC. For applications requiring dynamic braking, this model includes that capability as a standard option. AutoDCSTech stocks this unit and can assist with availability and lifecycle status verification.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
