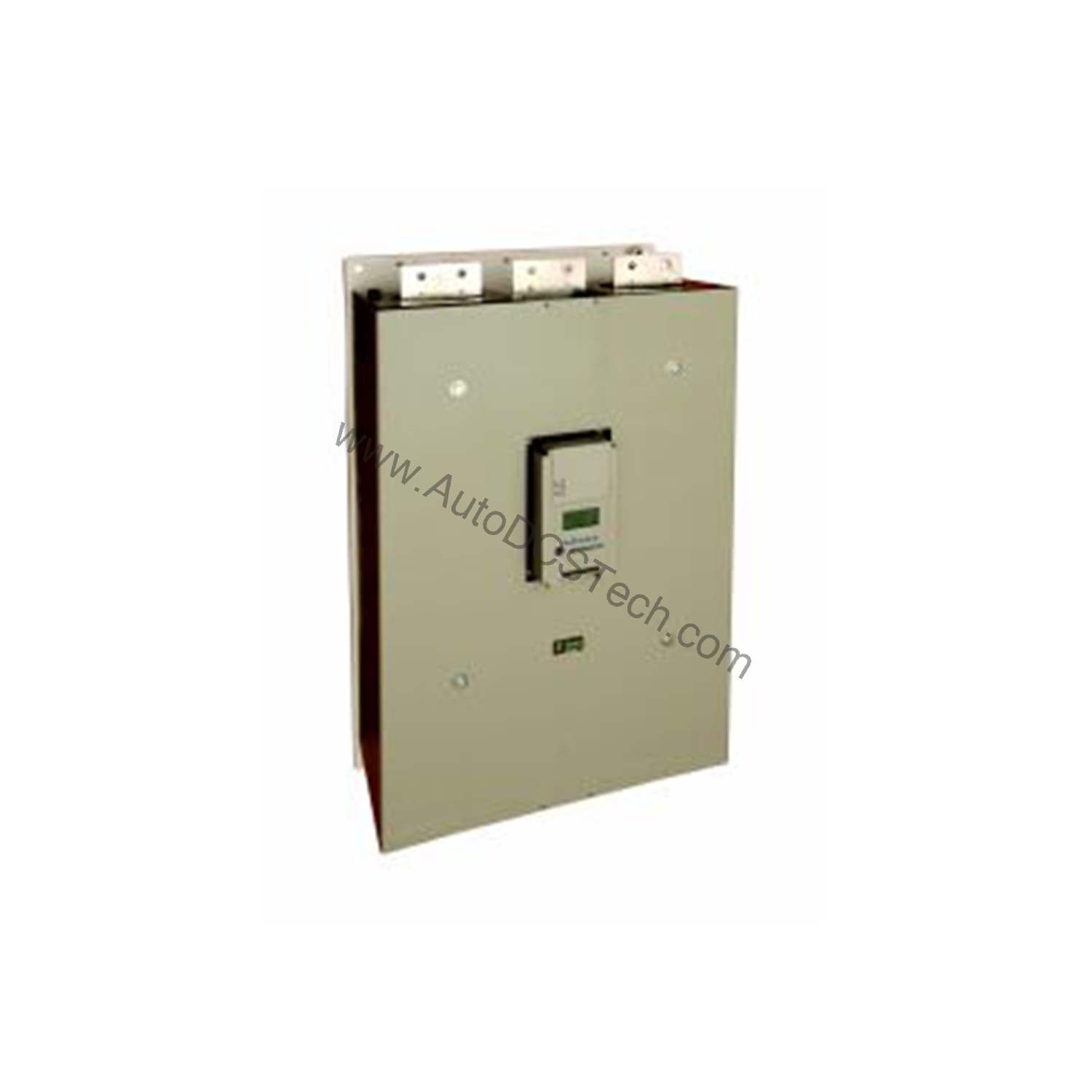

Allen-Bradley 150-F1250NZA SMC-Flex Solid State Controller 1250A

Product Overview

The Allen-Bradley 150-F1250NZA is a high-capacity SMC-Flex Solid State Controller designed for demanding industrial motor control applications. With a robust 1250 A controller rating and support for 1000 Hp @ 460V AC, this open enclosure unit is built to manage large motors in heavy industries such as mining, oil and gas, and water treatment. Its wide input voltage range of 230-690V AC, 3-phase, 50 and 60 Hz ensures compatibility with global power systems, reducing the need for additional transformers.

Technical Specifications Breakdown

Key parameters for the 150-F1250NZA are listed below for quick reference:

Industry Applications

In mining operations, the 1000 Hp capability at 460V AC handles heavy crushers and mills, reducing inrush current and mechanical shock. For water treatment plants, the 1250 A rating ensures reliable control of large pumps, minimizing water hammer and extending valve life. The wide voltage range (230-690V AC) allows deployment across different regions without modification.

Installation & Setup Guidance

Mount the open enclosure in a clean, dry, and well-ventilated cabinet to protect against dust and moisture. Ensure the supply voltage matches the input line voltage of 230-690V AC, 3-phase. Connect the control voltage (230/240V AC) as specified for 625-1250 A units. Use appropriately rated cables and fuses per local electrical codes. Verify that the motor horsepower does not exceed 1000 Hp @ 460V AC. Refer to the SMC-Flex user manual for detailed wiring diagrams and parameter settings.

Maintenance & Reliability

Periodically inspect the controller for signs of overheating, loose connections, or component degradation. Keep the enclosure and surrounding area free of conductive dust and debris. Check that the cooling fans (if present) operate freely. Given the high current rating, ensure all power connections remain tight to prevent arcing. No internal user-serviceable parts exist; contact qualified personnel for any repairs.

Compatibility & Integration

The 150-F1250NZA integrates with Allen-Bradley SMC-Flex communication modules for network control via DeviceNet, ControlNet, or EtherNet/IP (modules sold separately). It is compatible with standard 3-phase motors up to 690V AC. The controller supports both 50 and 60 Hz systems, making it suitable for global installations.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the controller rating to your motor's full-load current and horsepower. The 150-F1250NZA is designed for motors up to 1250 A and 1000 Hp at 460V AC. For applications requiring a NEMA-rated enclosure, consider the enclosed variants. AutoDCSTech stocks this unit and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the controller fails to start, check the control voltage (230/240V AC) and input line voltage (230-690V AC). Verify that the motor is not mechanically locked. Overheating may indicate insufficient ventilation or overload. For fault codes, consult the SMC-Flex manual. Do not attempt to bypass internal protection circuits.
