Product Overview

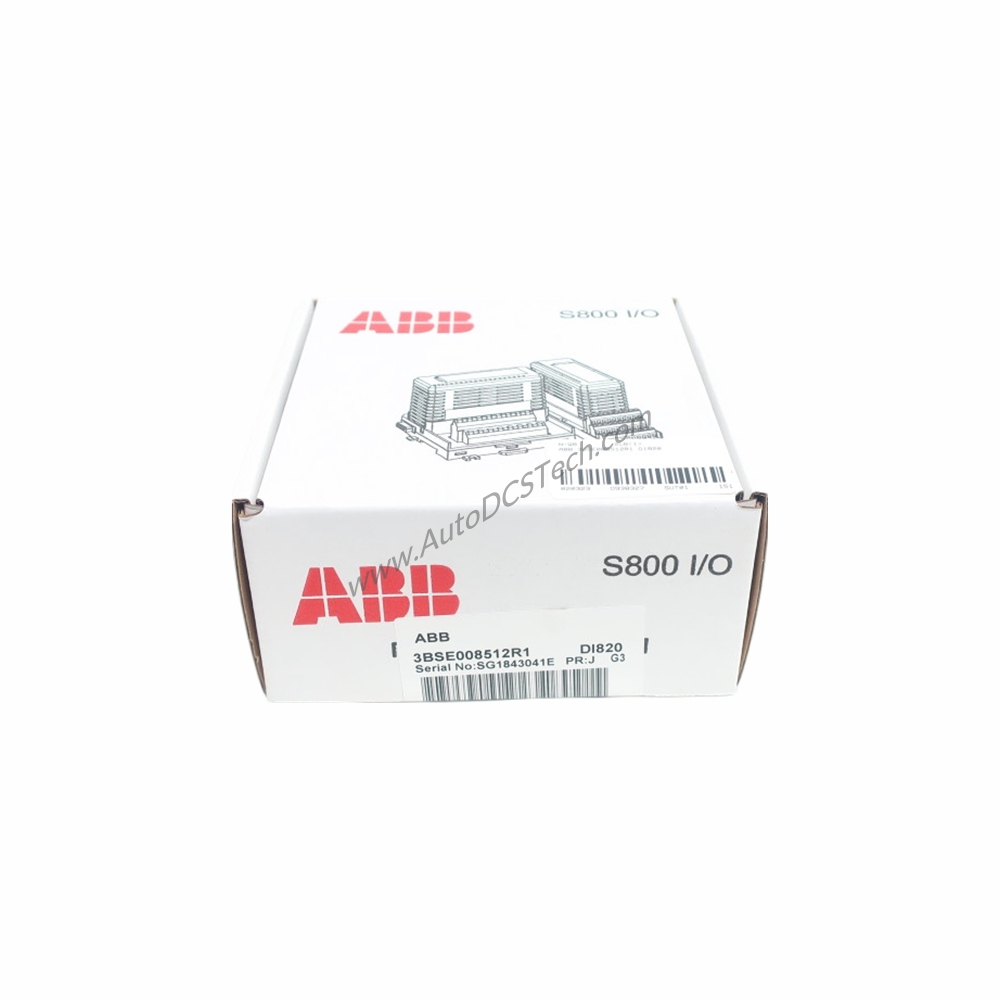

When field signal integrity is critical for process control, the ABB DI820 Digital Input Module provides a cost-effective solution for reliable signal acquisition. This module features 8 digital inputs with individually isolated channels, ensuring accurate detection of 120 V AC/DC signals while minimizing cross-channel interference. Part of the S800 I/O family, the DI820 is designed for demanding industrial environments where uptime and precision directly impact operational costs.
Technical Specifications Breakdown
Understanding key specifications helps you evaluate the DI820's fit for your application and its impact on total cost of ownership.
Input Voltage Range and Current
The DI820 accepts AC input voltages from 77 to 130 V with a typical current of 10 mA at 120 V AC. For DC signals, the range is 75 to 145 V with 2.8 mA at 110 V DC. This wide range accommodates common industrial voltages, reducing the need for external signal conditioning and lowering installation costs.
Isolation and Filtering
Each channel is individually isolated, preventing ground loops and protecting downstream electronics. Selectable digital filter times (2, 4, 8, or 16 ms) allow you to reject noise without sacrificing response time, minimizing false triggers and maintenance downtime.
Voltage Supervision
Channels 1 and 8 can supervise the field input power for groups of channels (2–4 and 5–7, respectively). If the supply voltage disappears, the Warning LED activates and an error signal is readable via the ModuleBus. This built-in diagnostic capability reduces troubleshooting time and prevents undetected signal loss.
Power Consumption and Environmental Ratings
With a typical power dissipation of only 2.8 W and a +5 V ModuleBus current consumption of 50 mA, the DI820 keeps energy costs low. It operates from 0 to +55 °C and is rated IP20, making it suitable for cabinet-mounted installations without forced cooling.
Industry Applications
The DI820's robust design and voltage supervision make it ideal for:
- Discrete Manufacturing: Monitoring limit switches, push buttons, and proximity sensors on assembly lines. The individually isolated channels prevent one faulty sensor from affecting others, reducing unplanned stops.
- Process Control: Reading valve position feedback or pump status in chemical plants. The voltage supervision feature alerts operators to loss of field power, avoiding costly process interruptions.
Installation & Setup Guidance
Mount the DI820 on a DIN rail within an S800 I/O system. Use compatible MTUs such as TU811, TU813, TU831, TU839, or TU851 to connect field wiring. Ensure field cable length does not exceed 200 meters for AC signals (with 100 pF/m capacitance) or 600 meters for DC signals. Follow standard wiring practices for individually isolated inputs to maintain noise immunity.
Maintenance & Reliability
The DI820 requires minimal maintenance. Periodically inspect front panel LEDs (Fault, Run, Warning, and channel status) to verify operation. The module's solid-state design and low power dissipation contribute to a long service life, reducing replacement costs over time. Keep the ambient temperature below 55 °C (40 °C for vertical mounting in compact MTU) to ensure reliable performance.
Compatibility & Integration
The DI820 integrates seamlessly with ABB's S800 I/O system via the ModuleBus. It is compatible with MTUs TU811, TU813, TU831, TU839, and TU851. The module supports CE marking and meets EMC standards EN 61000-6-4 and EN 61000-6-2, ensuring reliable operation in electrically noisy environments.
Selection Guide & Purchasing Advice
Before ordering, verify that your system uses the S800 I/O series and that the MTU keying code (AB) matches. Confirm field voltage requirements (77–130 V AC or 75–145 V DC) to avoid misapplication. SpareTechPLC stocks the ABB DI820 and can advise on compatibility with your existing setup. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the input impedance of the DI820?
A: The input impedance is 12 kΩ for AC signals and 39 kΩ for DC signals.
Q: Can the DI820 be used with both AC and DC signals on the same module?
A: Yes, each channel accepts either AC or DC within the specified voltage ranges, but all channels share the same signal type in practice.
Q: How does voltage supervision work?
A: Channels 1 and 8 monitor the field power for their respective groups (2–4 and 5–7). If the voltage disappears, the Warning LED turns on and an error is reported via ModuleBus.
Q: What is the maximum cable length for field wiring?
A: For AC signals, up to 200 meters (219 yards) with 100 pF/m capacitance; for DC signals, up to 600 meters (656 yards).
Q: Is the DI820 intrinsically safe?
A: No, the DI820 is not intrinsically safe. It is designed for general-purpose industrial environments.
