Product Overview

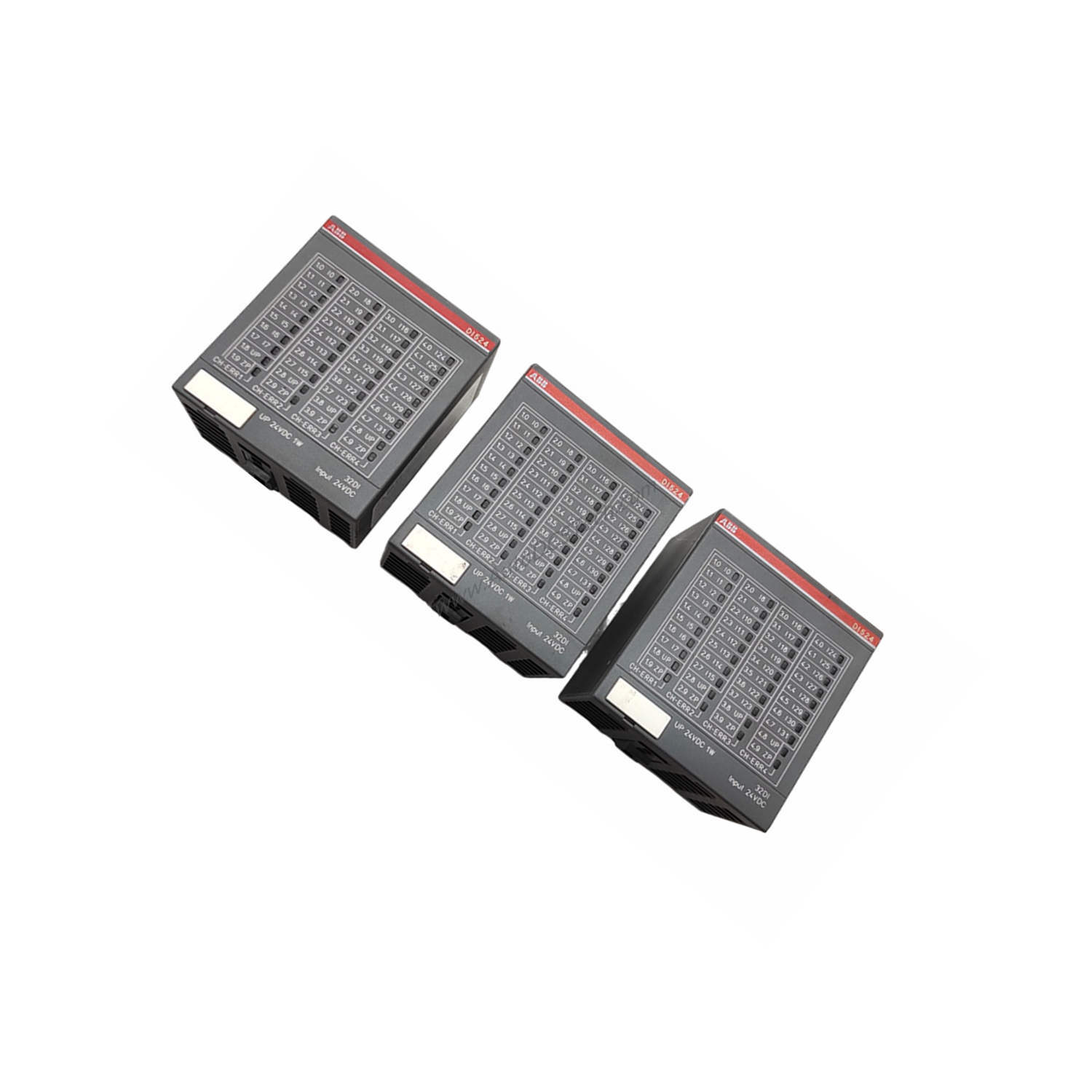

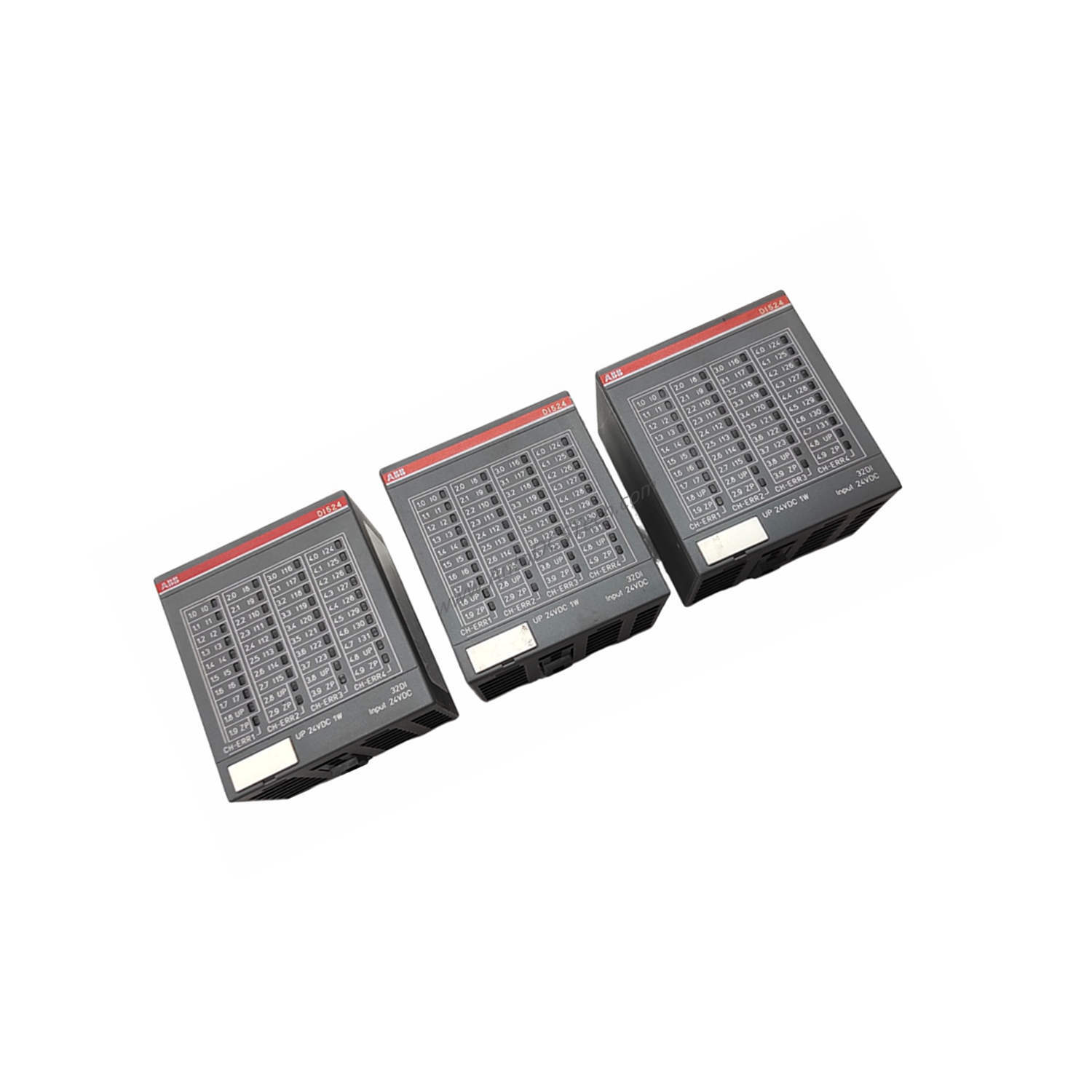

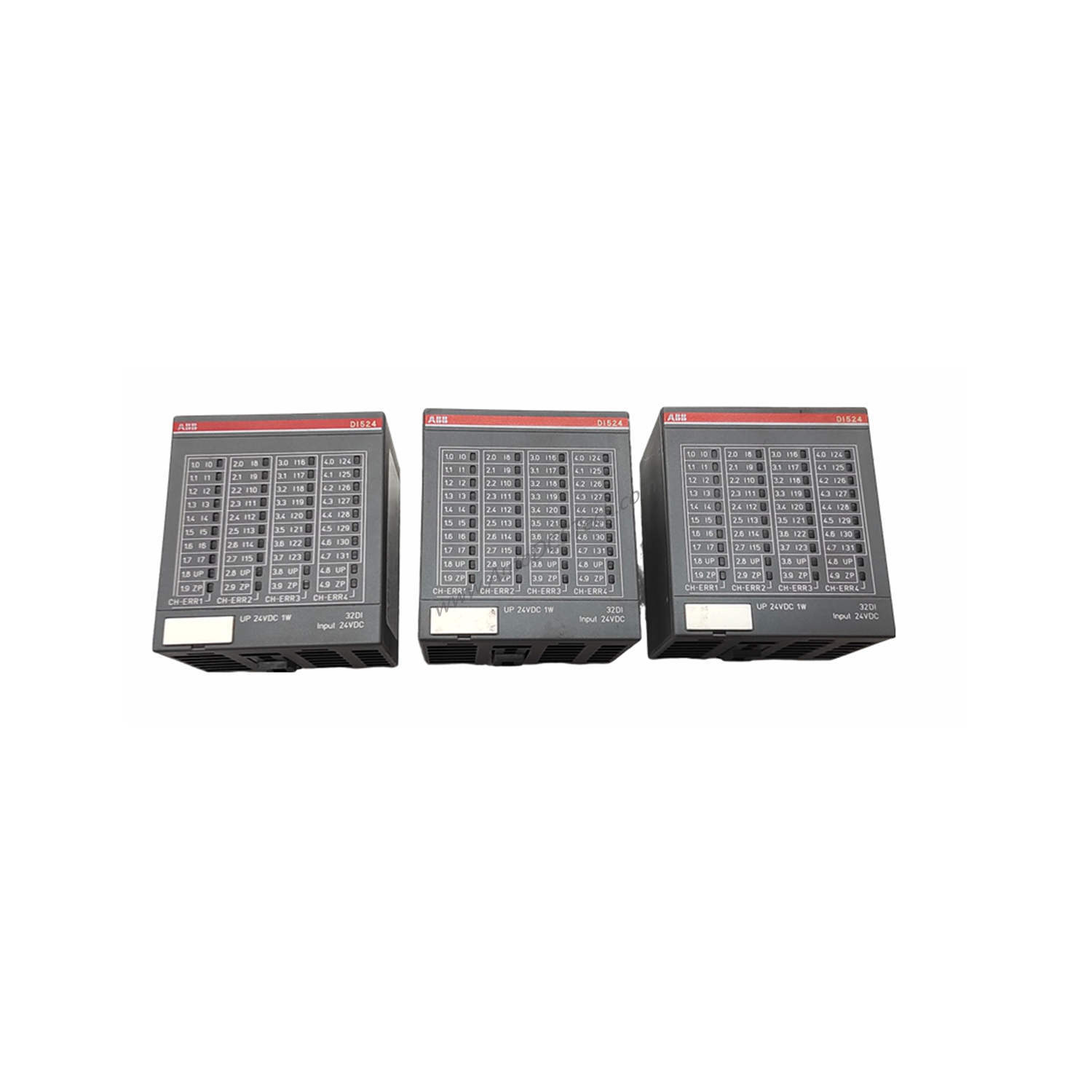

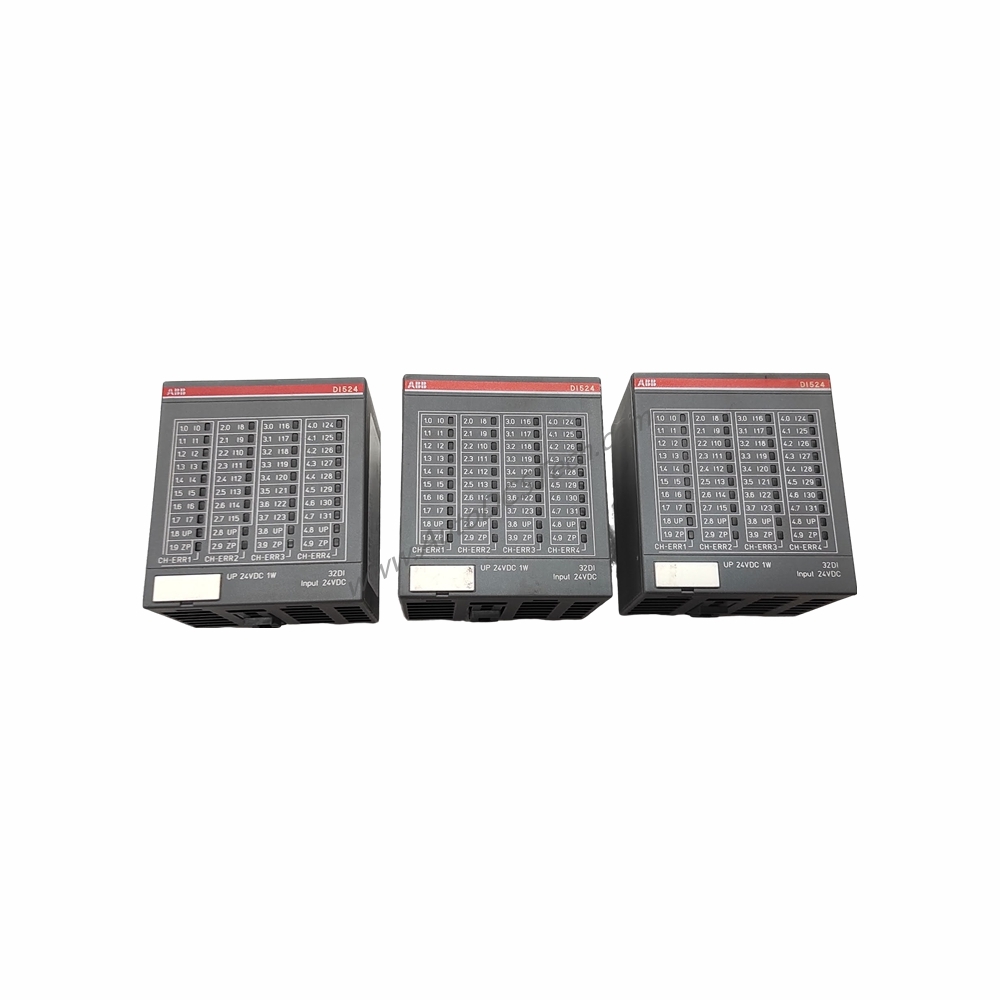

When upgrading or maintaining a distributed control system, the ABB DI524 digital input module delivers reliable 24VDC sensing at a cost that supports your budget. Part of the ABB S500 series, this module provides 32 digital inputs, each drawing only 5 mA, which reduces overall power consumption and lowers operational expenses over the product lifecycle. Its compact dimensions—62 mm depth, 76 mm height, and 67.5 mm width—save valuable cabinet space, directly cutting enclosure costs.
Technical Specifications Breakdown
- Number of Digital Inputs: 32 – Maximizes I/O density per module, reducing the number of modules needed and lowering hardware investment.
- Input Voltage Type: DC – Ensures compatibility with standard 24VDC industrial sensors and controls, avoiding costly voltage conversion.
- Input Current: 5 mA – Low per-channel current draw minimizes power supply sizing and heat generation, extending power supply life.
- Supply Voltage: 20.4 … 28.8 V DC – Wide operating range accommodates voltage fluctuations without additional regulation, improving system uptime.
- Delay Time (τ): 0.1 … 32 ms – Adjustable filtering helps reject noise and false triggers, reducing nuisance downtime.
- Degree of Protection: IP20 – Suitable for clean, dry control cabinets, keeping installation simple and cost-effective.
Industry Applications
In manufacturing lines where 24VDC sensors monitor part presence, the DI524’s 32 inputs consolidate wiring and reduce termination points. For example, a packaging facility can connect multiple proximity sensors to one module, cutting cabling costs and simplifying troubleshooting. In material handling systems, the adjustable delay time (0.1 to 32 ms) filters out vibration-induced false signals, preventing unnecessary stops and improving overall equipment effectiveness (OEE).
Installation & Setup Guidance
Mount the DI524 on a standard DIN rail inside an IP20-rated enclosure. Connect the 24VDC supply to the module’s power terminals, observing polarity. Wire each digital input to a 24VDC sensor or switch using 1-wire configuration. Set the delay time via the configuration tool to match your application’s noise environment—shorter delays for fast counting, longer delays for vibration-prone areas. No special tools are required, keeping installation labor low.
Maintenance & Reliability
Routine inspection of the DI524 should focus on verifying the supply voltage remains within 20.4 to 28.8 V DC and checking for loose wiring. Because the module draws only 5 mA per input, heat buildup is minimal, reducing thermal stress on nearby components. This low power dissipation contributes to longer service life and fewer replacements, directly improving total cost of ownership. Follow the manufacturer’s guidelines for periodic testing of input functionality.
Compatibility & Integration
The DI524 integrates seamlessly with ABB S500 distributed I/O systems and compatible PLCs. It uses standard 1-wire connection for each input, simplifying integration with existing 24VDC sensor networks. No proprietary protocols are required, making it a straightforward drop-in replacement for older modules. Verify compatibility with your controller’s I/O bus before ordering.
Buying Guide & Selection Advice
Before purchasing the DI524, confirm your system’s supply voltage range (20.4 to 28.8 V DC) and that you need 32 digital inputs at 24VDC. The module’s net weight of 0.1 kg and compact size make it easy to stock spares without occupying much inventory space. SpareTechPLC offers the DI524 with fast shipping and expert support to help you select the right I/O module for your application. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: Can the DI524 be used with 48VDC sensors?
A: No. The DI524 is designed for 24VDC input signals only, with a supply voltage range of 20.4 to 28.8 V DC. Using higher voltages may damage the module.
Q: How many inputs does the DI524 have?
A: It has 32 digital inputs, each rated for 24VDC and drawing 5 mA.
Q: What is the delay time adjustment range?
A: The delay time (τ) is adjustable from 0.1 ms to 32 ms to filter noise and prevent false triggering.
Q: Is the DI524 compatible with older ABB systems?
A: The DI524 is part of the S500 series. Check your controller’s I/O bus compatibility before integrating.
Q: What is the degree of protection?
A: The DI524 has IP20 protection, suitable for use in clean, dry control cabinets.
