Why Choose the TM3DQ32UK for Your Automation System?

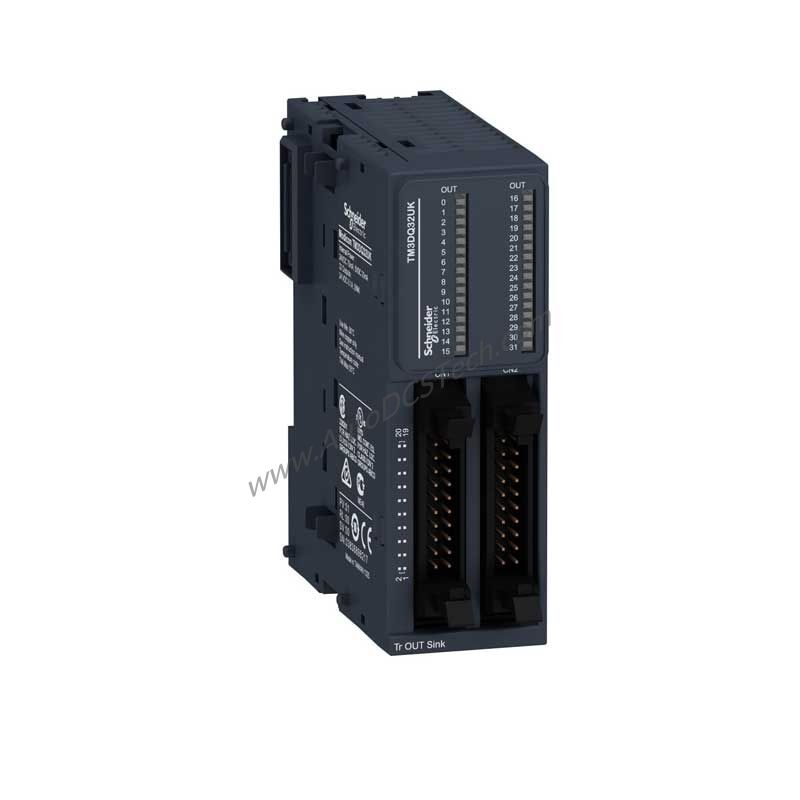

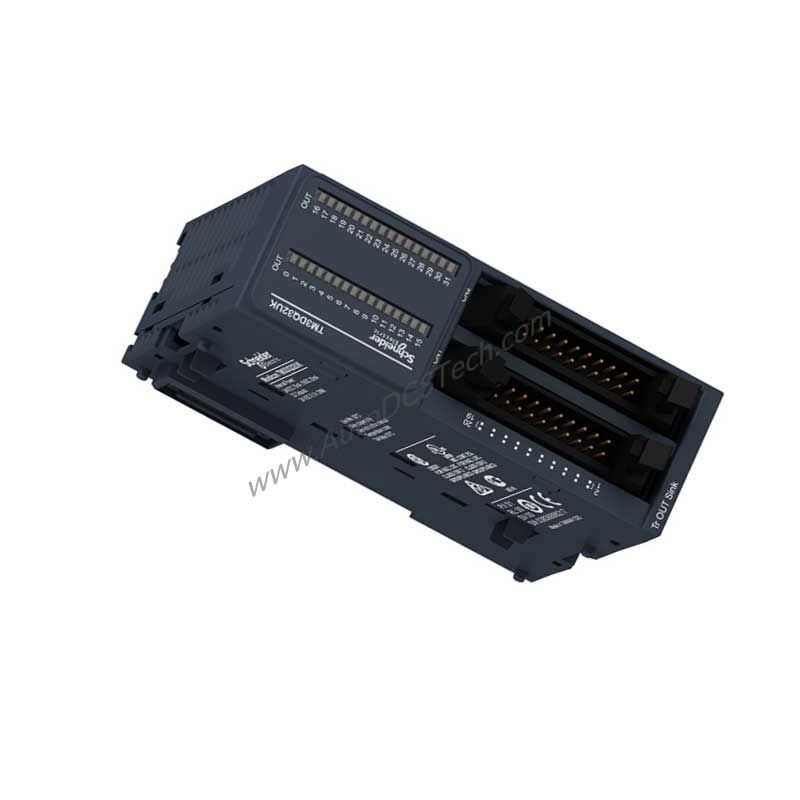

When you need to control multiple discrete loads with precision and reliability, the Schneider TM3DQ32UK discrete output module delivers a compact, high-density solution. Part of the Modicon TM3 family, this 32-point transistor NPN module uses negative logic (sink) outputs, making it ideal for applications where a common positive supply is preferred. With 32 outputs in a slim 33.5 mm wide package, it saves valuable panel space while providing robust performance.
Technical Specifications Breakdown
Let's examine the key specs that make the TM3DQ32UK a solid choice for engineers:
- Output Type and Logic: The module features 32 transistor outputs with negative logic (sink). This means the output switches the load to ground (0 V) when activated. It is designed for 24 V DC systems, with each output capable of sinking up to 100 mA. The total current consumption via the bus connector is 25 mA at 5 V DC and 40 mA at 24 V DC when outputs are on, ensuring efficient power usage.
- Response Time: Both turn-on and turn-off times are 450 µs. This fast switching is suitable for high-speed applications like sorting, packaging, or pick-and-place systems where timing is critical.
- Protection and Reliability: The module includes a maximum leakage current of 0.1 mA in the off state, preventing false triggering of sensitive loads. The maximum voltage drop is less than 0.4 V, ensuring efficient power delivery to connected devices. Additionally, the insulation between output and internal logic is rated at 500 V AC, providing robust isolation.
- Environmental Robustness: The TM3DQ32UK operates in temperatures from -10 to 55 °C (horizontal installation) and withstands vibration up to 3 gn and shock up to 15 gn. It is certified to EN/IEC 61131-2 and carries cULus, CE, UKCA, RCM, and EAC marks, along with marine specifications (LR, ABS, DNV, GL).
Industry Applications
Consider a high-speed packaging line where you need to control dozens of pneumatic actuators or indicator lights. The TM3DQ32UK's 32 outputs, fast 450 µs response, and negative logic simplify wiring when using a common 24 V DC supply. In material handling systems, its compact size allows mounting on a TH35 rail, saving space in crowded cabinets. For automotive assembly stations, the module's resistance to electromagnetic fields and fast transients ensures reliable operation in noisy environments.
Installation & Setup Guidance
Mount the TM3DQ32UK on a top hat TH35-15 or TH35-7.5 rail per IEC 60715, or use a plate or panel with a fixing kit. Connect outputs via the HE-10 connector; use shielded cable for distances up to 5 m for transistor outputs to minimize noise. The module communicates with the controller via the bus connector, drawing power from the backplane. Each channel has a green LED for status indication, simplifying troubleshooting.
Maintenance & Reliability
To maximize uptime, inspect the module periodically for signs of environmental stress. The IP20 rating with protective cover in place means it is suitable for clean, dry indoor environments. Avoid exposure to condensation (10–95% RH non-condensing) and operate within the specified temperature range. The solid-state transistor design has no moving parts, reducing wear. Regular verification of output status via LEDs helps catch issues early.
Compatibility & Integration
The TM3DQ32UK is designed for use with Modicon M221, M241, M251, and M262 controllers. It integrates seamlessly via the backplane bus, requiring no additional wiring for communication. The module's 32 outputs can be mapped in the controller's software, and its negative logic is compatible with sinking input modules on the same bus.
Selection Guide & Purchasing Advice
Before ordering, confirm your controller compatibility with the Modicon M221/M241/M251/M262 series. Verify that your application requires negative logic (sink) outputs and 24 V DC at 100 mA per channel. The TM3DQ32UK is available now at SpareTechPLC, a trusted supplier of industrial automation parts. Contact our team for current availability and lifecycle status.
Frequently Asked Questions
Q: What is the difference between positive logic (source) and negative logic (sink) outputs?
A: The TM3DQ32UK uses negative logic (sink), meaning the output switches the load to ground (0 V) when activated. This is common in systems with a common positive supply. Positive logic (source) modules switch the load to the positive supply.
Q: Can I use the TM3DQ32UK with a Modicon M258 controller?
A: No, the TM3DQ32UK is compatible only with Modicon M221, M241, M251, and M262 controllers as specified in the product data.
Q: What is the maximum cable distance for the transistor outputs?
A: For unshielded cable, the maximum distance is less than 5 m. For longer runs, use shielded cable and consult the installation manual.
Q: Does the module require an external power supply?
A: The module draws power from the controller via the bus connector. It consumes 25 mA at 5 V DC and 40 mA at 24 V DC when outputs are on.
Q: What certifications does the TM3DQ32UK hold?
A: It is certified to cULus, CE, UKCA, RCM, EAC, and meets marine specifications (LR, ABS, DNV, GL). It also complies with EN/IEC 61131-2.
