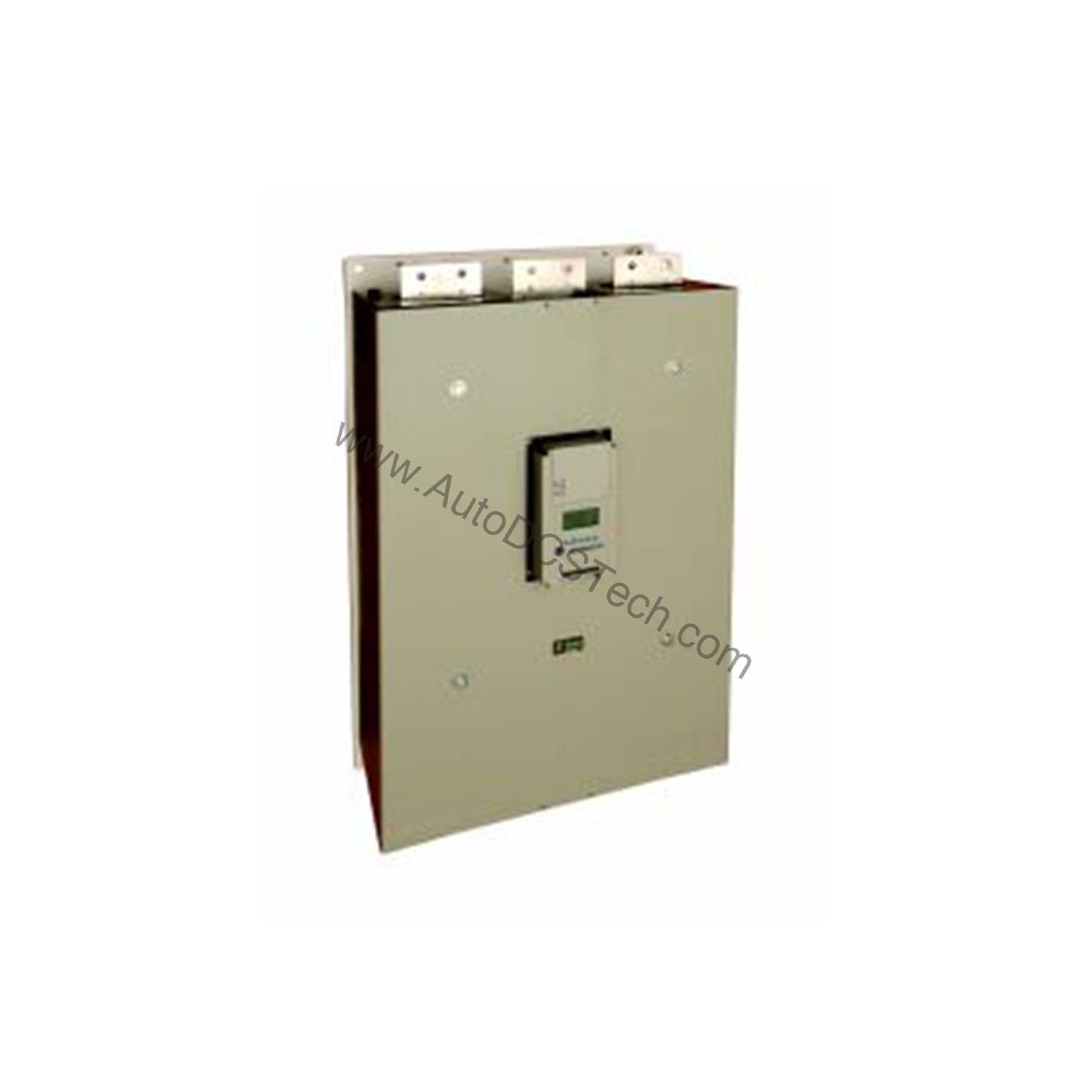

Allen-Bradley 150-F1250NZE SMC-Flex Solid State Motor Controller 1250A

Technical Specifications Breakdown

Key parameters for the 150-F1250NZE are listed below for quick reference:

Application-Specific Advantages

Mining Conveyor Systems

Starting large conveyors under load requires controlled acceleration to reduce mechanical stress. The SMC-Flex provides seven operational modes, including soft start and current limit, which protect belts and gearboxes. The built-in electronic overload and phase loss detection prevent costly unscheduled stops.

Pump Control in Water Treatment

For high-horsepower pumps, the 150-F1250NZE eliminates water hammer by ramping voltage smoothly. Its 230-690V AC input flexibility matches global power systems, and the 110/120V AC control simplifies integration with existing PLCs.

Compressor Stations

Oil & gas compressors benefit from the controller's DV/DT protection via RC network, reducing motor insulation stress. The 85KA fault current rating ensures branch circuit protection with Class CC fuses.

Reliable Motor Starting for High-Power Applications

Designed for 1250 A continuous current and rated 1000 HP at 460V AC, this unit handles the heaviest loads in industries such as mining, water treatment, and oil & gas. Its open enclosure allows integration into existing panels, while the built-in SCR bypass and electronic overload protection reduce downtime and maintenance costs.

Installation and Setup Guidance

Mount the controller in a clean, dry location within its operating temperature range of 23 to 122 °F. Ensure the enclosure provides adequate airflow for the 150VA heatsink fan (110-120V AC). Connect three-phase power from 230-690V AC, 50/60 Hz to the input terminals. Wire the control circuit with 110/120V AC, noting the minimum ON-state voltage of 85V AC at 20mA and maximum OFF-state voltage of 50V AC at <10mA. Use Class CC fuses rated for 85KA maximum fault current for branch circuit protection.

Maintenance and Reliability

Periodically inspect the heatsink fan and clean dust from the RC network components. Verify that the ambient humidity stays between 5 to 95% and that the unit is not subjected to shock above 4G or vibration above 1G peak. The controller's self-diagnostics and programmable auxiliary relays (4 contacts, 1 NC/NO, 3600/360VA MAKE/BREAK) simplify troubleshooting by indicating normal, up-to-speed, fault, alarm, or network status.

Compatibility and Integration

The 150-F1250NZE includes built-in DPI communication, allowing seamless connection to Allen-Bradley networks. It integrates with motor control centers and distributed control systems using standard protocols. The cUL-us, CSA, CE, and CCC certifications ensure global acceptance.

Selection Guide and Purchasing Advice

When selecting a solid state controller for 1250A applications, verify that your motor's full-load current and horsepower match the 1250 A and 1000 HP @ 460V AC rating. The open enclosure suits panel-mount installations. For lifecycle status and availability, please verify with AutoDCSTech before ordering. Our team can help confirm the right model for your voltage and control requirements.
