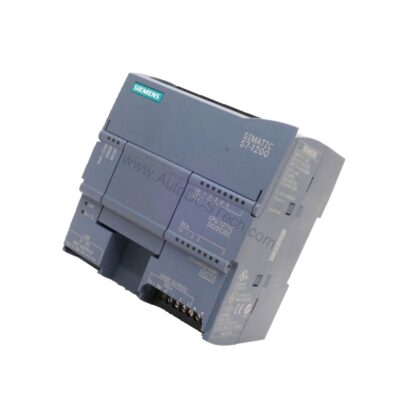

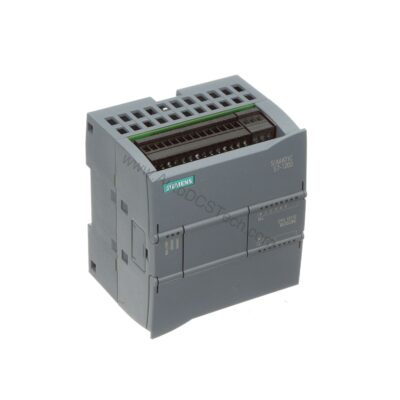

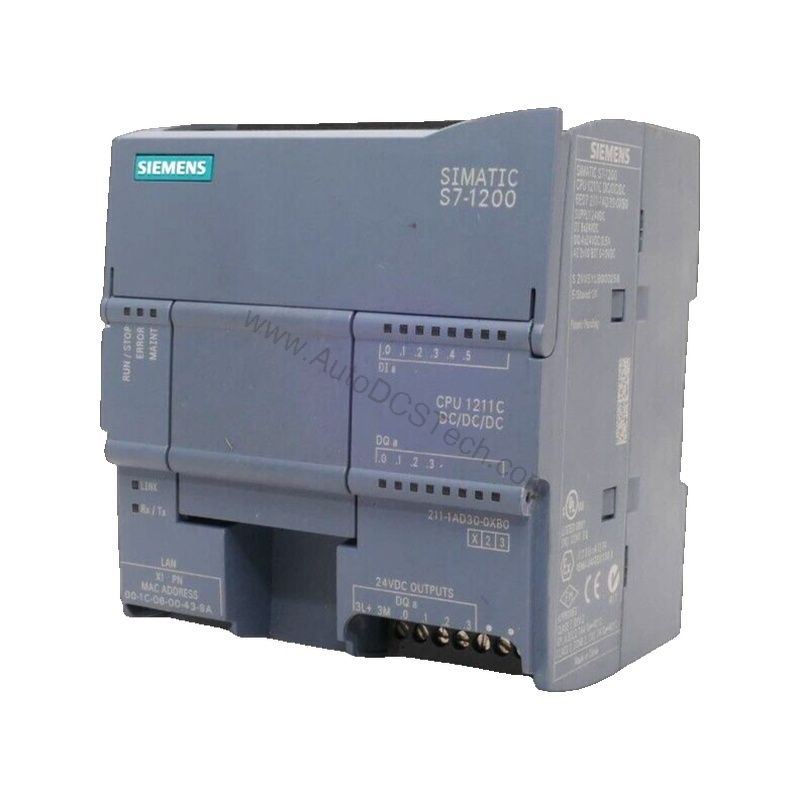

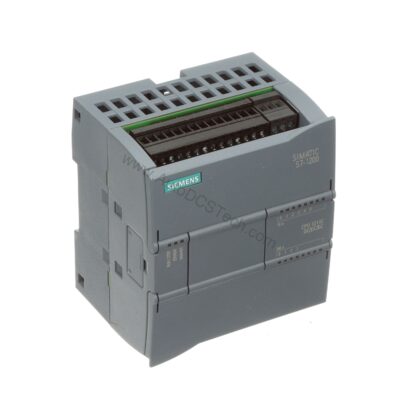

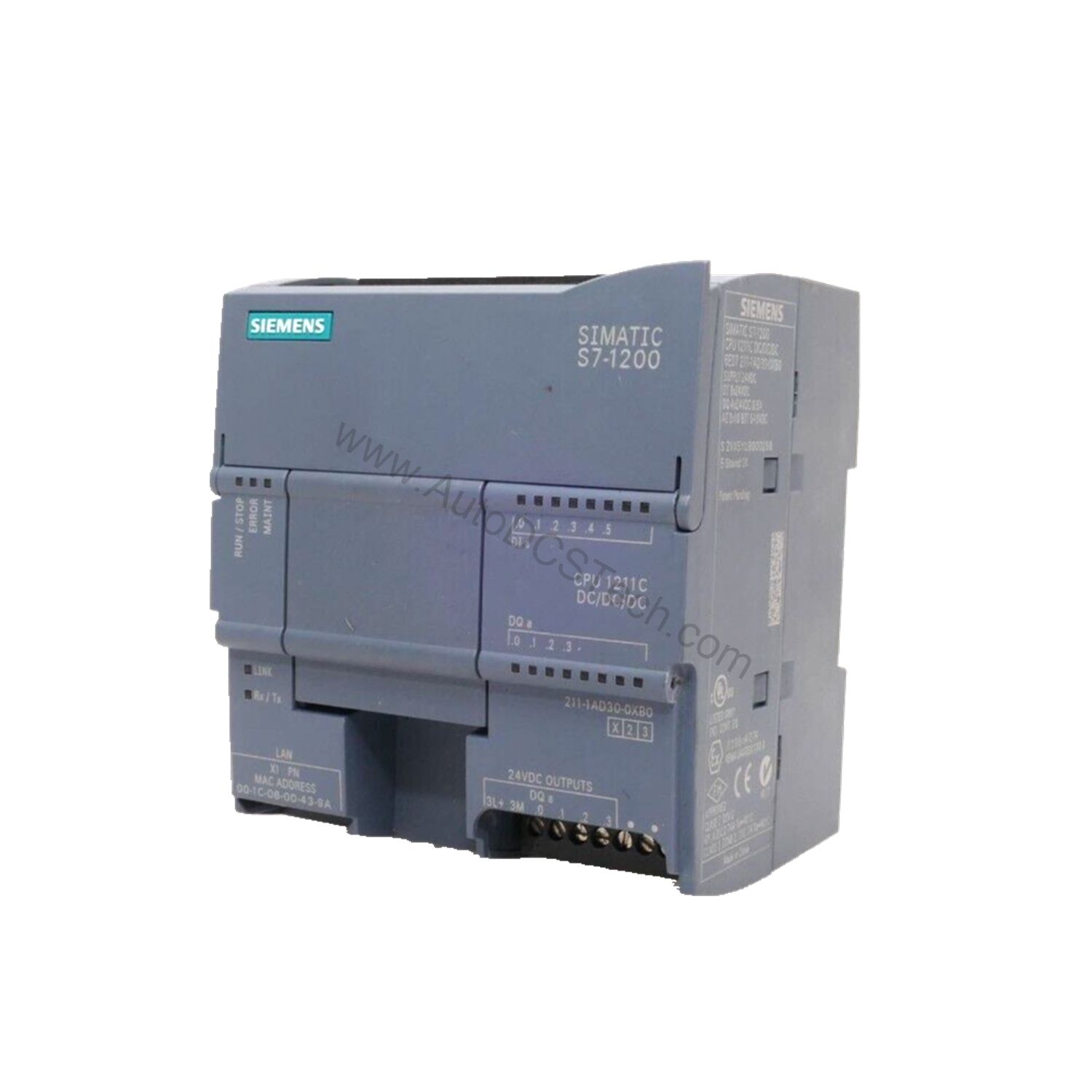

Product Overview: Siemens 6ES7211-1AE40-0XB0 CPU 1211C
When your application demands a compact yet powerful controller, the 6ES7211-1AE40-0XB0 from Siemens delivers. This CPU 1211C is part of the SIMATIC S7-1200 family, engineered for precise DC/DC/DC operation. It integrates onboard I/O, including 6 digital inputs at 24 V DC, 4 digital outputs at 24 V DC, and 2 analog inputs for 0-10 V DC signals. The power supply range spans DC 20.4 to 28.8 V, ensuring stable performance in industrial environments.
With a program/data memory of 50 KB, this CPU handles moderate automation tasks efficiently. Its firmware version V4.2 supports STEP 7 V14 or higher for programming, making it a flexible choice for system integrators.
Key Features and Technical Specifications
The 6ES7211-1AE40-0XB0 is built around a robust set of specifications that ensure reliability and performance. Below are the critical parameters derived from the datasheet:
- Supply Voltage: Rated at 24 V DC, with a permissible range of 20.4 to 28.8 V DC, including reverse polarity protection.
- Digital Inputs: 6 integrated inputs, rated at 24 V DC, with signal "0" at 5 V DC (1 mA) and signal "1" at 15 V DC (2.5 mA).
- Digital Outputs: 4 outputs, each rated for 0.5 A with resistive load, and a max switching frequency of 100 kHz for pulse outputs.
- Analog Inputs: 2 inputs for 0-10 V DC, with an input resistance of ≥100 kΩ and a resolution of 10 bits.
- Memory: 50 KB work memory (integrated, non-expandable) and 1 Mbyte load memory (expandable via SIMATIC Memory Card).
- Processing Times: Bit operations in 0.08 µs, word operations in 1.7 µs, and floating-point arithmetic in 2.3 µs (typical).
- PROFINET Interface: One port, supporting PROFINET IO Controller and Device functionality, with a max transmission rate of 100 Mbit/s.
- Power Loss: Typical 8 W, ensuring energy efficiency.
These specs make the 6ES7211-1AE40-0XB0 suitable for applications requiring precise control and fast response times.
Applications and Use Cases
Its integrated high-speed counters (3 at 100 kHz single-phase) and pulse train outputs (4 at 100 kHz) enable precise positioning and speed control. Additionally, the built-in PID controller simplifies temperature or pressure regulation loops.
For engineers evaluating this CPU, the compact form factor (90 x 100 x 75 mm) and lightweight design (370 g) allow easy mounting in control cabinets.
Installation and Setup Guide
When installing the 6ES7211-1AE40-0XB0, ensure the power supply is within the specified DC 20.4-28.8 V range. The CPU features reverse polarity protection, but proper wiring is still essential. Mount the unit horizontally or vertically, respecting ambient temperature limits: -20°C to 60°C for horizontal, and -20°C to 50°C for vertical installation.
For digital inputs, the source/sink configuration is supported, allowing flexible wiring. Use shielded cables for analog inputs, with a maximum length of 100 m (twisted and shielded). For digital I/O, shielded cables up to 500 m are permissible, while unshielded cables are limited to 300 m for inputs and 150 m for outputs.
Programming is straightforward with STEP 7 V14 or higher, using LAD, FBD, or SCL languages. The CPU supports password protection and copy protection to secure your intellectual property.
Maintenance and Reliability
To ensure long-term reliability, regularly inspect the CPU for dust accumulation and verify that ambient conditions stay within specified limits. The unit is designed for maintenance-free backup without a battery, thanks to its retentive memory of 10 KB. The hardware clock has a typical backup time of 480 hours, so time-sensitive operations continue even during power interruptions.
Environmental robustness includes an IP20 degree of protection, making it suitable for enclosed industrial panels. The CPU withstands vibration per IEC 60068-2-6 (2 g wall mounting, 1 g DIN rail) and shock testing per IEC 60068-2-27 (15 g peak, 11 ms duration).
Compatibility and Integration
It supports up to 3 communication modules and 1 signal board, expanding its I/O capabilities. The PROFINET interface enables connection to IO devices (up to 16), with prioritized startup for critical applications. Protocols like MODBUS (via CM 1243-5 for PROFIBUS or CM 1243-2 for AS-Interface) extend its communication versatility.
For existing systems, this CPU can replace older S7-200 controllers, offering enhanced performance and connectivity. Its web server capability allows remote monitoring and diagnostics via standard browsers.
Troubleshooting and Common Issues
If the CPU fails to start, check the power supply voltage—it must be between 20.4 and 28.8 V DC. The RUN/STOP LED indicates operational status; a steady STOP light may signal a configuration error. Use the diagnostic buffer to trace faults, and leverage the forcing function to test I/O points safely.
For analog input issues, verify that the input voltage is within 0-10 V DC and that the cable is properly shielded to avoid noise. If pulse outputs are not functioning, confirm that the load is resistive and within the 0.5 A rating.
Product Support and Availability
The 6ES7211-1AE40-0XB0 is available at AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can provide technical guidance and ensure you get the right component for your application.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7211-1AE40-0XB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
