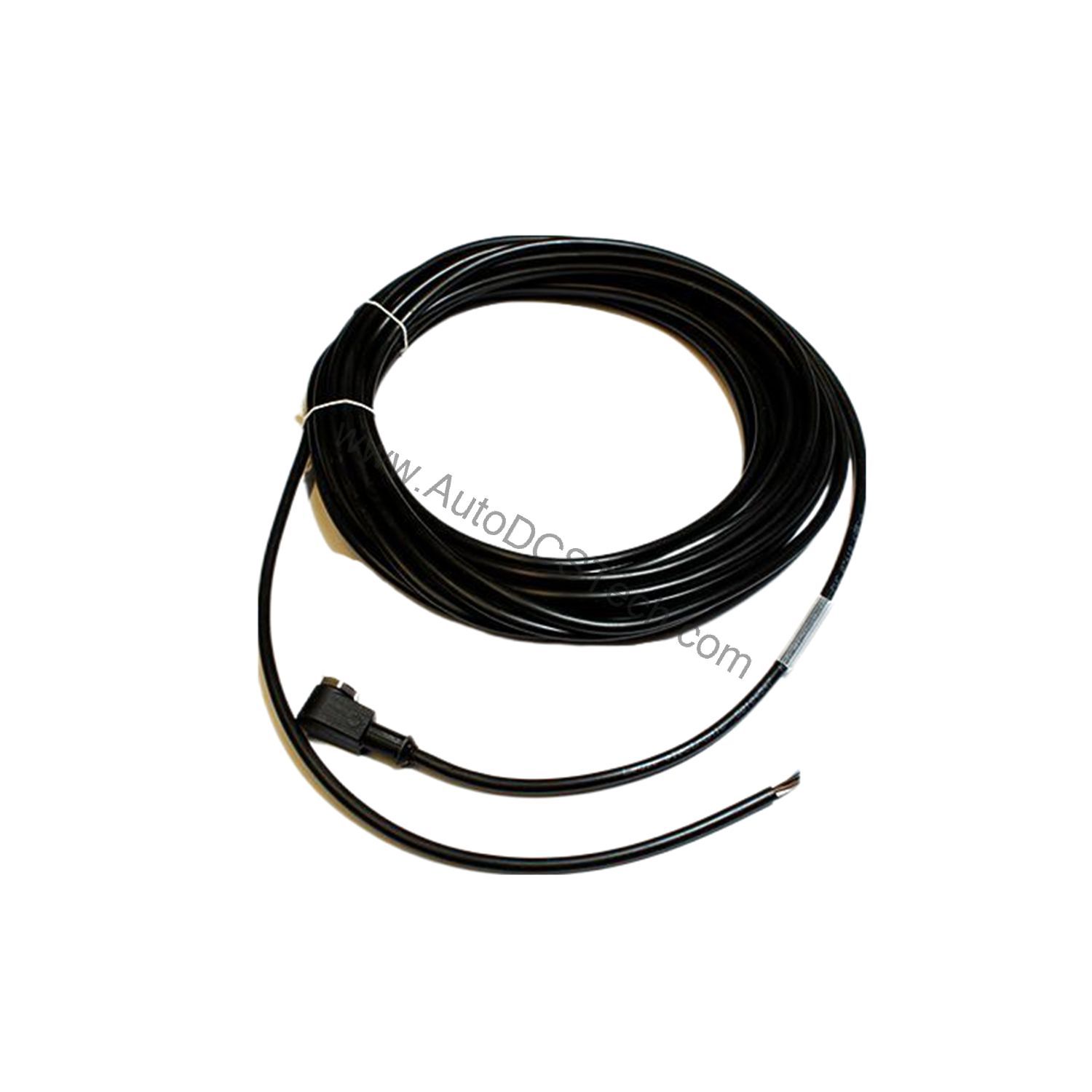

Lenze K-D M8W-3P-5m-PVC M8 Connection Cable – 5m PVC, 3-Pin

Technical Specifications Breakdown

Key parameters for the K-D M8W-3P-5m-PVC are listed below for quick reference:

Industry Applications

Automotive Assembly Lines – In automotive plants, sensors on robotic arms and conveyors require reliable connections. The K-D M8W-3P-5m-PVC’s 5-meter length offers flexibility in routing, while the PVC jacket resists oils and coolants common in machining areas. Its axial connector reduces strain on the sensor port, extending sensor life.

Packaging Machinery – High-speed packaging equipment relies on precise sensor feedback. The cable’s ≤4 A per contact rating ensures adequate power for most photoelectric sensors, and the -30 °C to +70 °C fixed wiring range accommodates cold storage or heated production areas. The robust screw-fitting connector (diecast zinc, nickel-plated) maintains a secure connection despite vibration.

Material Handling Systems – Conveyor systems with M8 sensors benefit from the cable’s flexible wiring capability down to -5 °C, allowing use in partially heated warehouses. The 5-meter length simplifies installation across longer distances, reducing the need for junction boxes.

Installation & Setup Guidance

Proper installation ensures maximum reliability. When connecting the K-D M8W-3P-5m-PVC, align the M8 connector’s keyway with the sensor port and tighten the screw fitting to the recommended torque of 0.6 Nm (self-locking). Avoid over-tightening, which can damage the threads. Route the cable with a bending radius of at least 10 times the sheath diameter to prevent internal conductor stress. For flexible wiring applications, secure the cable to avoid sharp bends or kinks. Always verify that the operating voltage and current do not exceed the cable’s ratings (≤250 VAC/DC, ≤4 A per contact).

Maintenance & Reliability

Periodic inspection of the cable and connector is essential for long-term reliability. Check for cuts, abrasions, or discoloration of the PVC jacket, especially in areas exposed to movement or heat. Ensure the connector remains tightly seated; the self-locking screw fitting helps maintain a secure connection. Clean the connector contacts with a dry, lint-free cloth if contamination is visible, but do not use solvents that may degrade the plastic. For fixed wiring installations, verify that the cable is not subject to continuous vibration that could fatigue the conductors. Replace the cable if any damage is detected to prevent intermittent signals or short circuits.

Reliable M8 Connection Cable for Industrial Sensors

Industrial automation depends on secure, durable connections between sensors and control systems. The Lenze K-D M8W-3P-5m-PVC is a 5-meter M8 connection cable engineered for reliable signal and power transmission in demanding environments. With a 3-pin axial M8 connector and PVC jacket, this cable provides a straightforward solution for proximity sensors, photoelectric sensors, and other M8-equipped devices. Its robust construction minimizes downtime caused by loose or damaged cables, ensuring consistent production throughput.

Compatibility & Integration

The K-D M8W-3P-5m-PVC is designed for devices with M8 3-pin axial connectors. It is compatible with a wide range of sensors, including inductive proximity sensors, photoelectric sensors, and limit switches from various manufacturers. The 5-meter length provides ample reach for most industrial layouts. Before integration, confirm that your device’s electrical requirements (voltage, current) are within the cable’s ratings. The cable’s PVC jacket is suitable for most industrial environments, but for extreme chemical exposure, consider alternative jacketing materials.

Selection Guide & Purchasing Advice

When selecting a connection cable, consider the environmental conditions, cable length, and connector configuration. The K-D M8W-3P-5m-PVC offers a balanced combination of length, durability, and electrical performance. For applications requiring longer runs or different pin configurations, consult AutoDCSTech’s catalog for alternatives. AutoDCSTech is an industrial automation parts supplier dedicated to providing genuine components. Contact our team to verify availability and lifecycle status before ordering, ensuring your production line stays operational.

Troubleshooting & Common Issues

Intermittent Sensor Signals – If a sensor connected with this cable operates sporadically, check the connector tightness and inspect the cable for damage. Loose connections or broken conductors are common causes. Replace the cable if necessary.

Voltage Drop – For long cable runs, voltage drop can affect sensor performance. Ensure the supply voltage is within the sensor’s operating range and that the cable’s current rating (≤4 A per contact) is not exceeded. If voltage drop is suspected, measure the voltage at the sensor end.

Cable Damage – PVC jackets can become brittle in extreme cold or degrade under prolonged UV exposure. If the cable is installed in a harsh environment, consider a more rugged cable type. Regularly inspect for cracks or cuts.

Connector Corrosion – In humid or chemical-laden atmospheres, the nickel-plated diecast zinc connector may corrode. Keep the connector dry and clean. If corrosion is visible, replace the cable to maintain a reliable connection.
