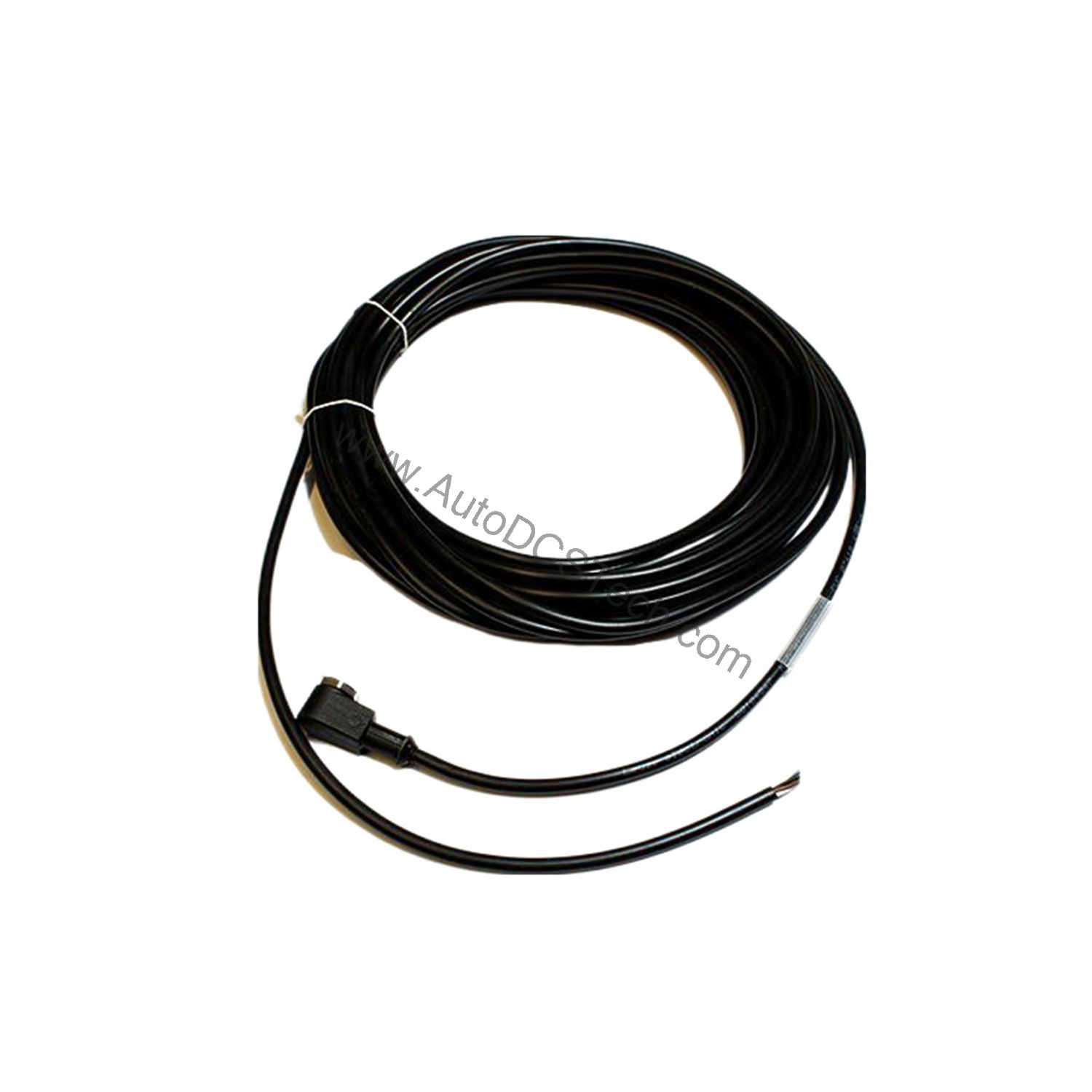

Lenze K-D M8W-3P-10m-PVC M8 Connection Cable 10m PVC

Technical Specifications Breakdown

Key parameters for the K-D M8W-3P-10m-PVC are listed below for quick reference:

Industry Applications

The K-D M8W-3P-10m-PVC is a versatile connection solution for various industrial settings.

• Sensor Connectivity in Manufacturing: Connect proximity sensors, photoelectric sensors, and limit switches to control cabinets. The 3-pin configuration supports standard sensor wiring, while the axial connector simplifies routing in tight spaces.
• Material Handling Systems: Use in conveyor systems, packaging machinery, and robotic cells where flexible wiring is required. The cable's temperature range for flexible wiring (-5°C...+70°C) ensures reliable performance in dynamic applications.
• Automotive Assembly Lines: With a rated voltage of ≤250VAC/DC and current capacity of ≤4A per contact, this cable can handle typical sensor loads in automotive production environments.

The cable's PVC jacket provides good resistance to oils, chemicals, and abrasion, making it suitable for factory floor conditions.

Installation & Setup Guidance

Proper installation ensures long service life and prevents downtime. Follow these engineer-level guidelines:

• Torque: The connector features a screw fitting with diecast zinc nickel-plated housing. Tighten the coupling nut to the recommended torque of 0.6Nm to ensure a secure, water-resistant connection without over-tightening.
• Bending Radius: For fixed wiring, maintain a bending radius of at least 10 times the sheath diameter. This prevents stress on the conductors and extends cable life.
• Cable Routing: Avoid sharp edges and excessive tension. Use cable trays or conduits where possible. For flexible wiring applications, ensure the cable is not twisted or kinked during movement.
• Environmental Considerations: The cable is rated for fixed wiring from -30°C to +70°C and flexible wiring from -5°C to +70°C. Do not exceed these limits to prevent insulation damage.

Maintenance & Reliability

Regular inspection of connection cables is essential to prevent unexpected failures. We recommend:

• Periodic Visual Checks: Inspect the cable for cuts, abrasions, or discoloration. Check the connector for signs of corrosion or damage.
• Torque Verification: After initial installation, re-check the connector torque periodically, especially in high-vibration environments.
• Environmental Monitoring: Ensure the operating temperature stays within the specified range. Excessive heat can degrade PVC insulation over time.

Reliable M8 Connection Cable for Industrial Automation

In industrial automation, a dependable connection cable is the lifeline between sensors and control systems. The Lenze K-D M8W-3P-10m-PVC is a pre-assembled M8 connection cable designed to deliver stable signal and power transmission in demanding environments. This 10-meter cable with a 3-pin axial M8 connector is engineered for applications where space is tight and reliability is non-negotiable.

Compatibility & Integration

The K-D M8W-3P-10m-PVC is designed to work with standard M8 connectors commonly used in industrial sensors and actuators. It is compatible with devices that have M8 threaded ports and require a 3-pin connection.

Selection Guide & Purchasing Advice

When selecting a connection cable, consider the following:

• Cable Length: The 10-meter length is suitable for most machine installations, providing flexibility in routing.
• Connector Type: Ensure the M8 axial connector matches your sensor's port orientation.
• Environmental Conditions: If your application involves constant flexing, verify that the flexible wiring temperature range meets your needs.

For the Lenze K-D M8W-3P-10m-PVC, AutoDCSTech offers genuine parts with competitive pricing. Contact our team to confirm availability and lifecycle status before ordering. We specialize in industrial automation parts and can assist with cross-reference and replacement needs.

Troubleshooting & Common Issues

If you encounter connectivity issues, consider these common causes:

• Loose Connection: Verify that the connector is fully tightened to 0.6Nm. A loose connection can cause intermittent signals.
• Cable Damage: Inspect the cable for cuts or crushed areas that could short-circuit or break conductors.
• Overload: Ensure the connected load does not exceed the rated current of 4A per contact. Overload can cause overheating and insulation failure.
• Temperature Extremes: If the cable is exposed to temperatures outside the rated range, insulation may become brittle or soft, leading to failure.

If problems persist, consult a qualified technician or contact AutoDCSTech for technical support.
