Technical Specifications Breakdown
Key parameters for the K-D M8A-4P-5m-PVC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Connector Type | M8, axial (A-type) |
| Number of Pins | 4 |
| Cable Length | 5 m |
| Cable Material | PVC |
| Operating Voltage (3/4-pin) | ≤250 VAC/DC |
| Operating Current | ≤4 A per contact |
| Insulation Grade | Category I acc. to IEC 60664-1 |
| Operating Temperature (fixed wiring) | -30°C to +70°C |
| Operating Temperature (flexible wiring) | -5°C to +70°C |
Applications in Industrial Automation
Its 5-meter length provides ample reach for distributed sensor layouts. The 4-pin configuration supports both power and signal lines, making it versatile for various sensor types. Whether you are retrofitting an existing line or building a new machine, this cable offers a reliable, cost-effective solution.
Installation and Setup Guidance
Proper installation is key to maximizing the lifespan of your connection cable. When routing the cable, ensure the bending radius is at least 10 times the sheath diameter to avoid stress on the conductors. For fixed installations, the cable can operate in temperatures from -30°C to +70°C. For flexible applications where the cable moves continuously, keep the temperature within -5°C to +70°C. Always tighten the connector to the recommended torque of 0.6 Nm to maintain a reliable seal and electrical contact.
Maintenance and Reliability
Regular inspection of the cable and connector is essential to prevent unexpected downtime. Check for signs of wear, cuts, or abrasion on the PVC jacket, especially in areas where the cable flexes or rubs against machine parts. Verify that the connector remains securely tightened and free of moisture or debris. Because the insulation is rated Category I per IEC 60664-1, it is suitable for basic insulation applications, but always follow local electrical codes and safety practices.

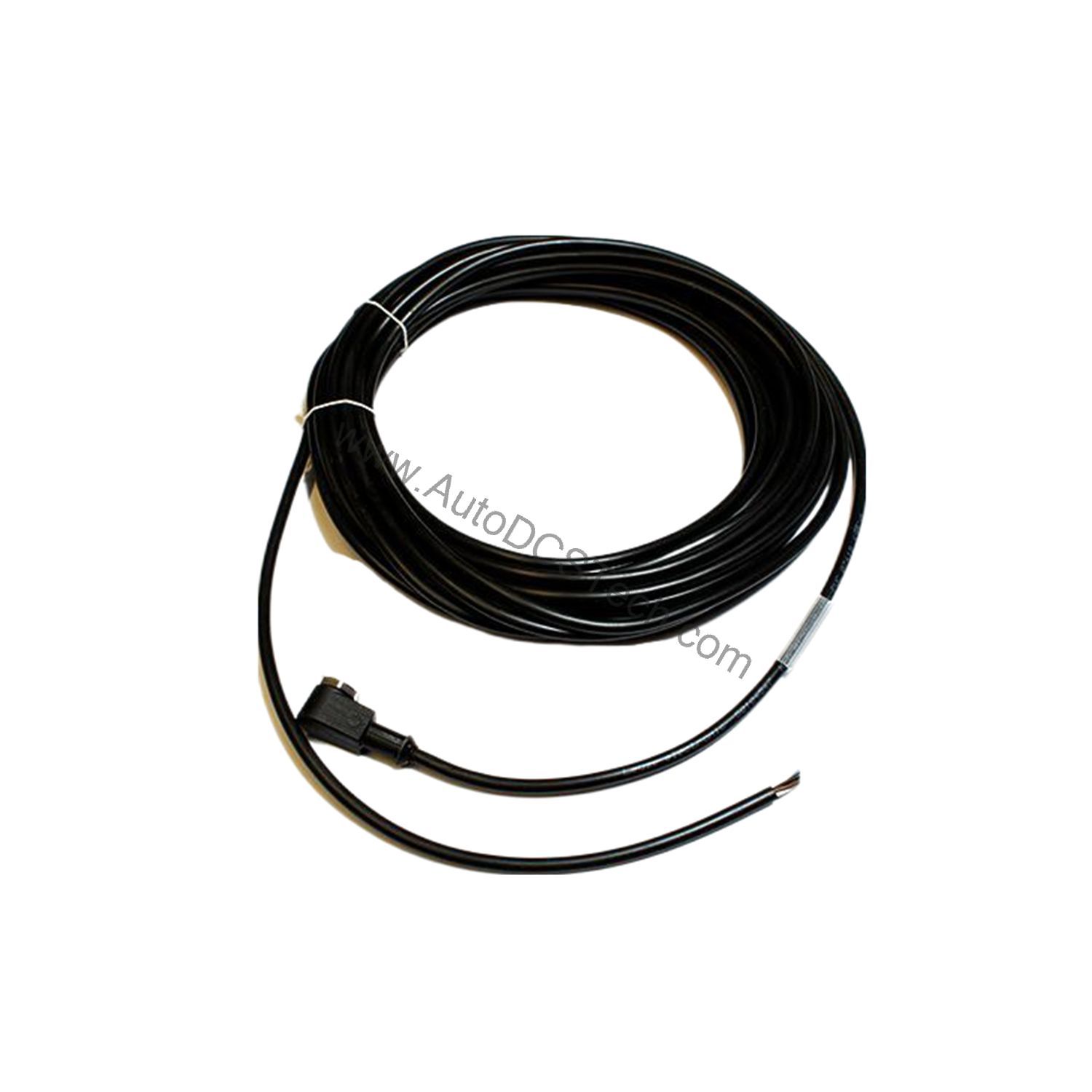

Reliable M8 Connection Cable for Industrial Automation
This M8 connector cable is engineered for environments where consistent signal integrity and mechanical robustness are non-negotiable. With a 5-meter length and a PVC jacket, it offers flexibility in routing while protecting against wear and tear.
Designed for Harsh Industrial Environments
This cable is built to withstand demanding conditions. The integral PVC jacket provides resistance to oils, chemicals, and abrasion, making it suitable for machine tools, packaging lines, and material handling systems. The M8 connector features a screw fitting with a diecast zinc nickel-plated body, ensuring a secure and corrosion-resistant connection. The recommended torque of 0.6 Nm with self-locking mechanism prevents loosening from vibration.
Purchasing and Support from AutoDCSTech
The Lenze K-D M8A-4P-5m-PVC is available for immediate shipment. Our team of automation specialists can help you verify compatibility with your existing equipment. Contact us for pricing and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Troubleshooting Common Issues
If you encounter intermittent signals or connection failures, first inspect the cable for visible damage. Check that the connector is fully seated and locked. Measure the voltage at the connector to ensure it is within the rated ≤250 VAC/DC. If the cable has been flexed beyond its rated temperature range, it may have cracked internally – replace it with a new one. For persistent issues, consult the machine manual or contact technical support.
Availability & Condition at AutoDCSTech
| Part Number | K-D M8A-4P-5m-PVC |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
