Product Overview

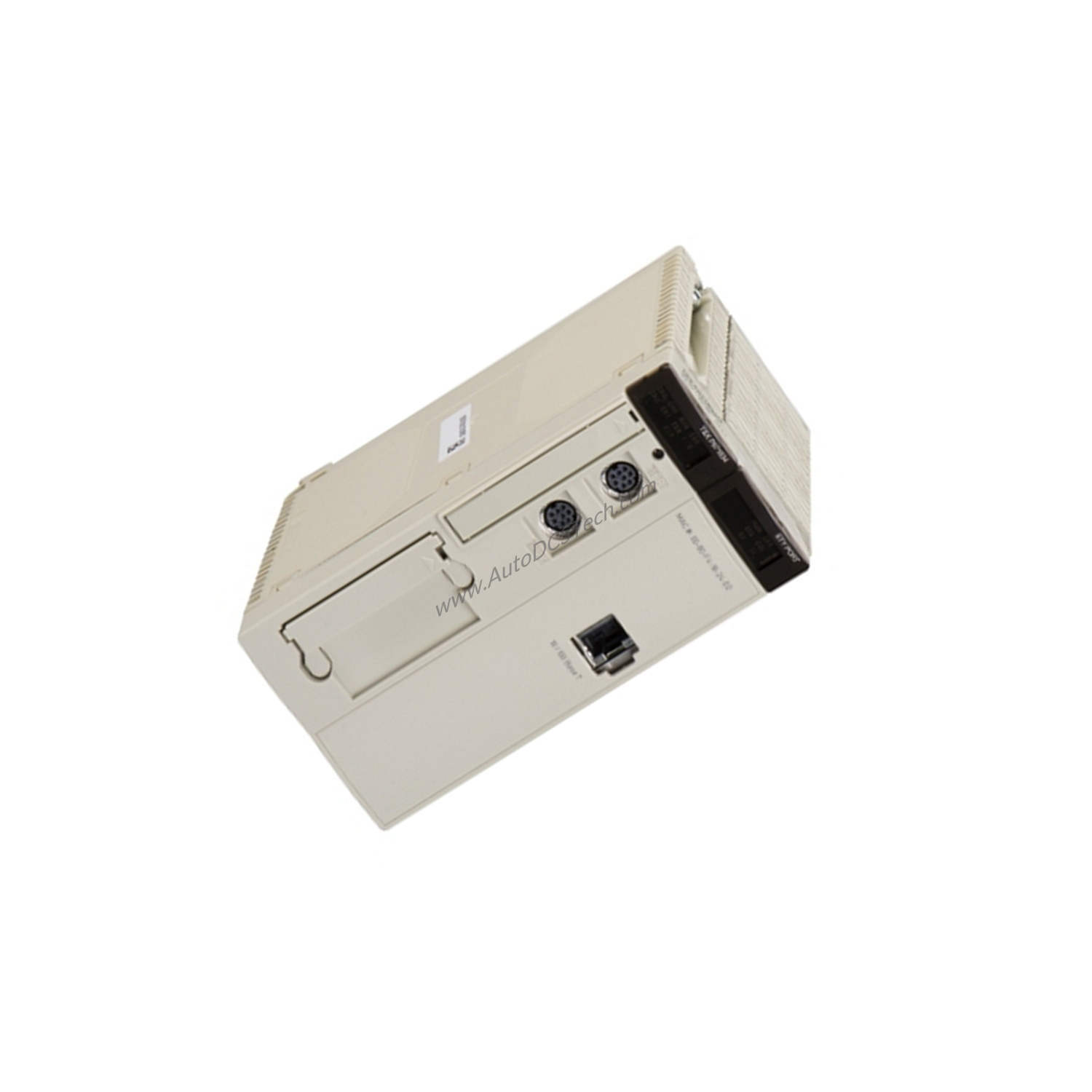

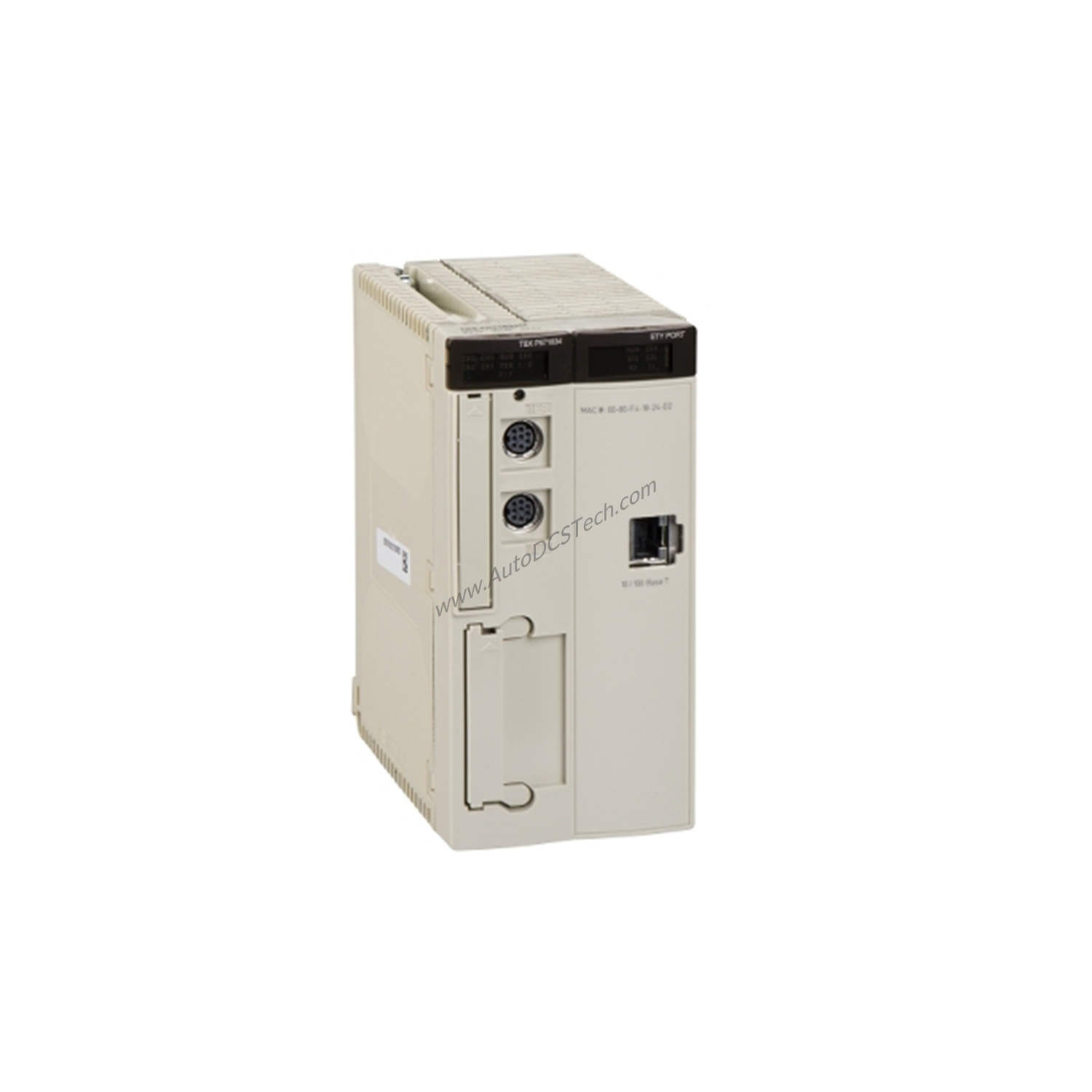

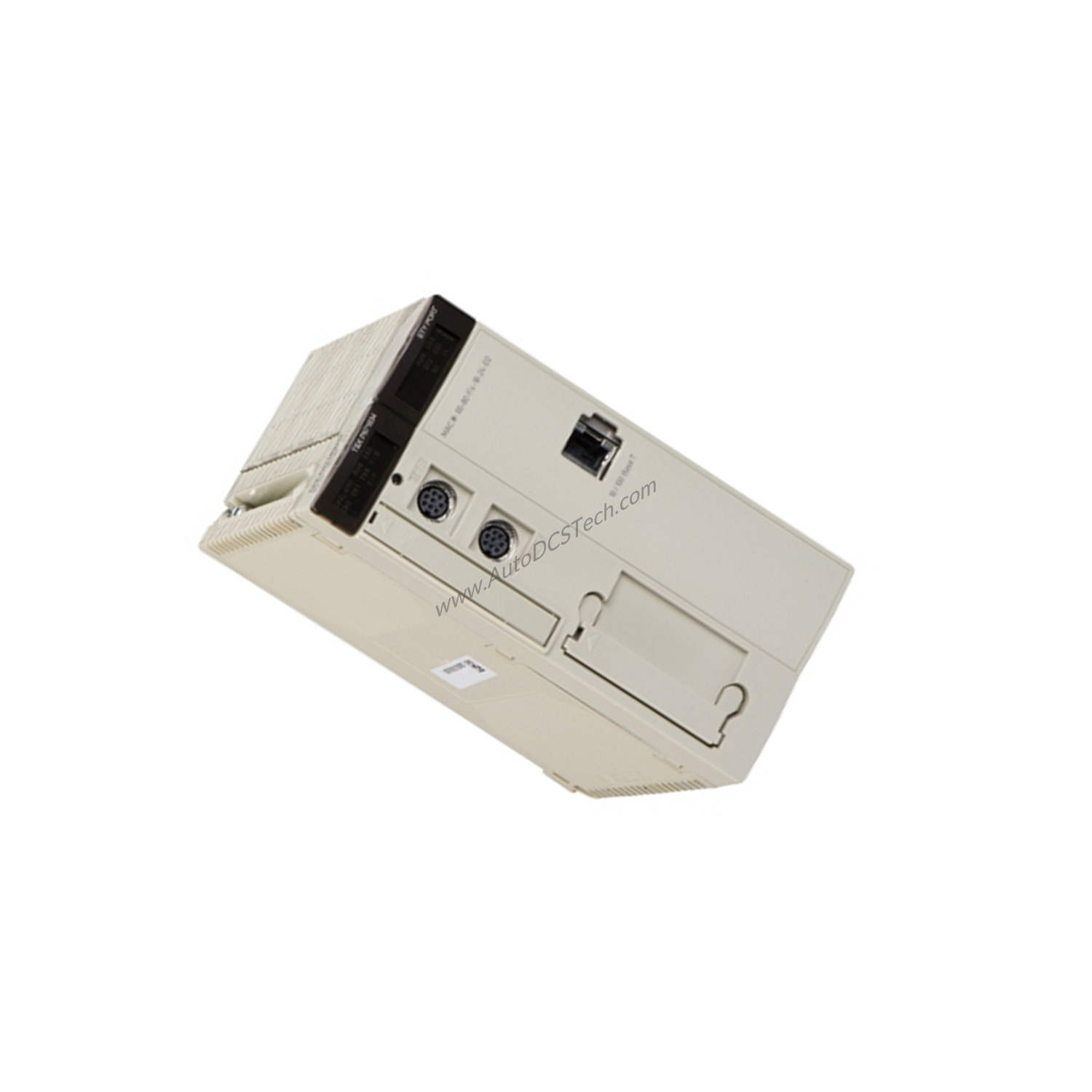

When industrial automation systems require reliable communication between controllers and field devices, the Schneider TSXP571634M communication module delivers a cost-effective solution. Part of the TSX Micro PLCs series, this module integrates Ethernet TCP/IP via RJ45 and a serial link using 2 female mini-DIN RS485 interfaces at 19.2 kbit/s. It supports up to 2 communication modules, enabling flexible network architectures without overspending on extra hardware.
Technical Specifications Breakdown
The TSXP571634M offers a discrete I/O processor capacity of 512 I/O and an analog I/O processor capacity of 24 I/O, allowing you to handle mixed signal types in a single unit. This consolidation reduces the need for multiple modules, lowering overall system cost. The internal RAM provides 96 KB data, expandable via a PCMCIA card that adds 256 KB additional data storage. With memory description showing internal RAM (with PCMCIA card) 224 KB program and 96 KB data, you can run larger programs without upgrading the entire PLC. Execution time per instruction is 0.19 µs Boolean without PCMCIA card and 0.25 µs Boolean with PCMCIA card, ensuring fast processing that minimizes cycle times and boosts throughput.
The module supports 2 racks (12 slots) and 4 racks (4/6/8 slots), giving you scalability to match your application size. Current consumption is 1650 mA at 5 V DC, which keeps power supply costs low. The application structure includes 1 master task, 1 fast task, and 32 event tasks, with system overhead of 0.3 ms fast task and 1 ms master task. This efficient task management reduces idle time and improves overall equipment effectiveness (OEE), directly impacting your bottom line.
Industry Applications
In packaging lines, the TSXP571634M connects sensors and actuators via its Ethernet TCP/IP port, enabling real-time data exchange with a central controller. The 19.2 kbit/s RS485 link handles slower field devices, reducing wiring costs. For water treatment plants, the module's 512 discrete I/O capacity manages numerous pumps and valves, while the 24 analog I/O handles flow and pressure transmitters. This consolidation cuts installation and maintenance expenses.
Installation & Setup Guidance
Mount the TSXP571634M in a standard TSX Micro PLC rack. Connect the Ethernet TCP/IP RJ45 port to your network switch using a shielded Cat5e cable. For the serial link, use a 2 female mini-DIN RS485 cable with proper termination resistors. Ensure the 5 V DC power supply can deliver at least 1650 mA. Configure the module using Unity Pro software. Verify the IP address and baud rate settings before commissioning to avoid downtime.
Maintenance & Reliability
Inspect the module's LEDs regularly—green for RUN and Ethernet ready, yellow for activity, red for faults. The IP20 protection degree requires installation in a clean, dry cabinet. Operating temperature range is 32…140 °F (0…60 °C). Periodic cleaning of air vents prevents overheating, extending module life and reducing replacement costs.
Compatibility & Integration
The TSXP571634M integrates with Modicon Premium Automation platform and uses Unity Pro software. It works with TSX Micro PLCs racks and supports Ethernet 10BASE-T/100BASE-TX. The serial link RS485 interface is non-isolated, so use shielded cables in noisy environments. This compatibility ensures seamless integration into existing Schneider systems, minimizing retraining and spare parts inventory.
Selection Guide & Purchasing Advice
Before ordering, verify your rack configuration supports the TSXP571634M. Check that your power supply can provide 1650 mA at 5 V DC. Consider adding a PCMCIA card if your program exceeds 96 KB. SpareTechPLC offers this module with fast shipping and expert support, ensuring you get the right part for your application.
Frequently Asked Questions
Q1: Can the TSXP571634M be used without a PCMCIA card?
Yes, the module operates with 96 KB internal RAM for program and data without a PCMCIA card. Execution time is faster at 0.19 µs Boolean.
Q2: What is the maximum number of racks supported?
The module supports 2 racks with 12 slots each, or 4 racks with 4, 6, or 8 slots each.
Q3: Does the RS485 serial link require isolation?
No, the serial link is non-isolated. Use proper grounding and shielding to prevent noise issues.
Q4: What software is needed to configure this module?
Unity Pro software is required for configuration and programming.
Q5: How many event tasks can the application structure handle?
The module supports up to 32 event tasks, allowing precise handling of time-critical events.
