Product Overview

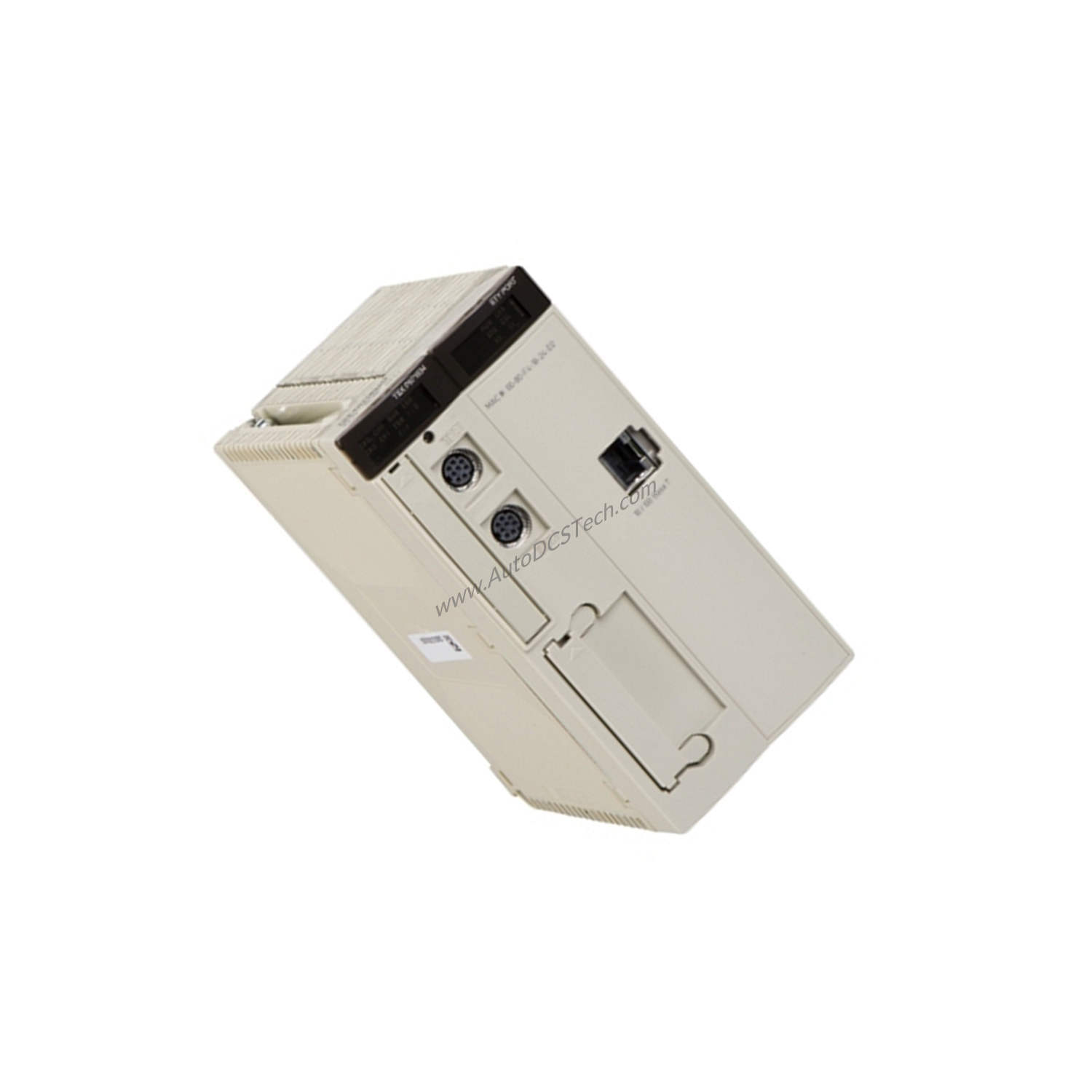

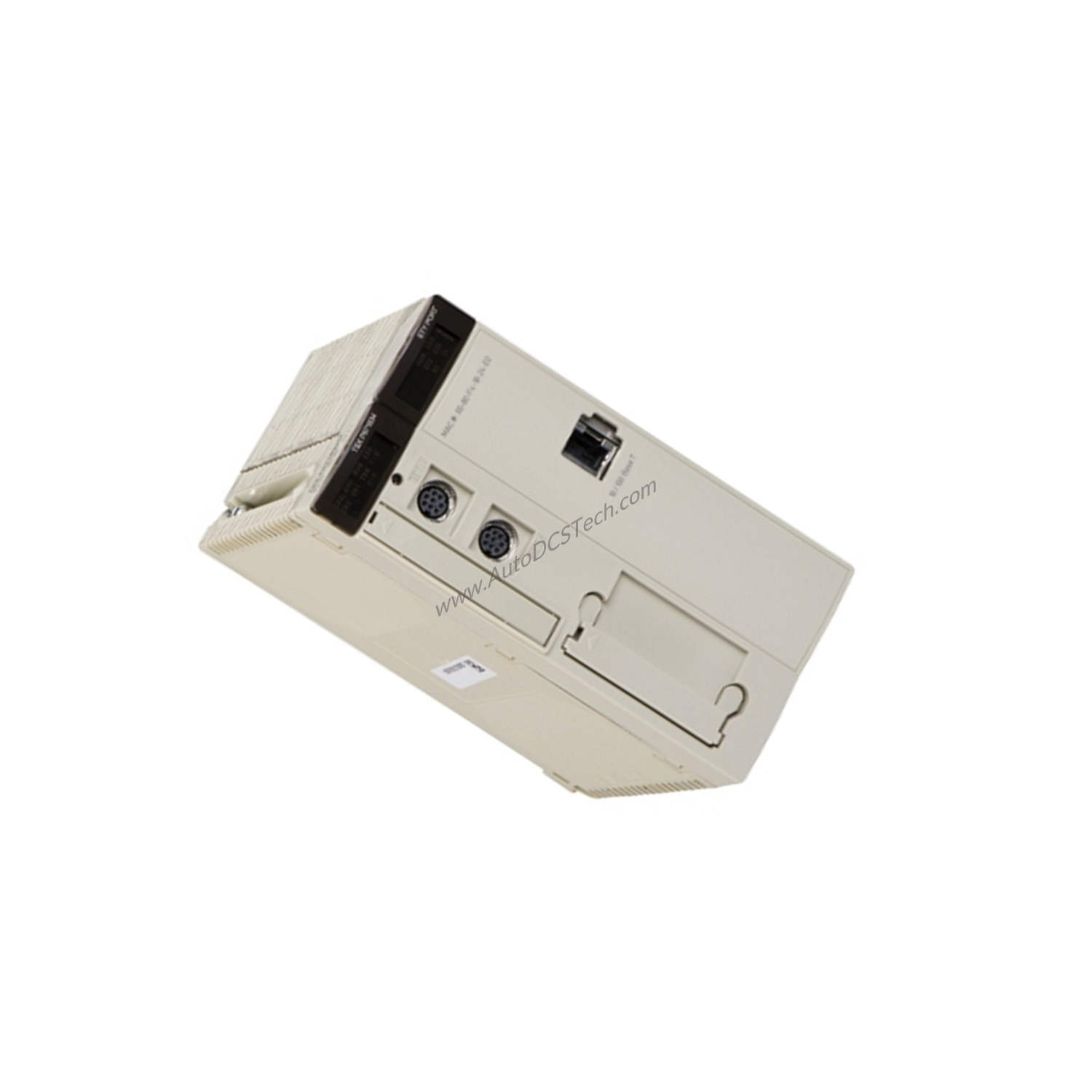

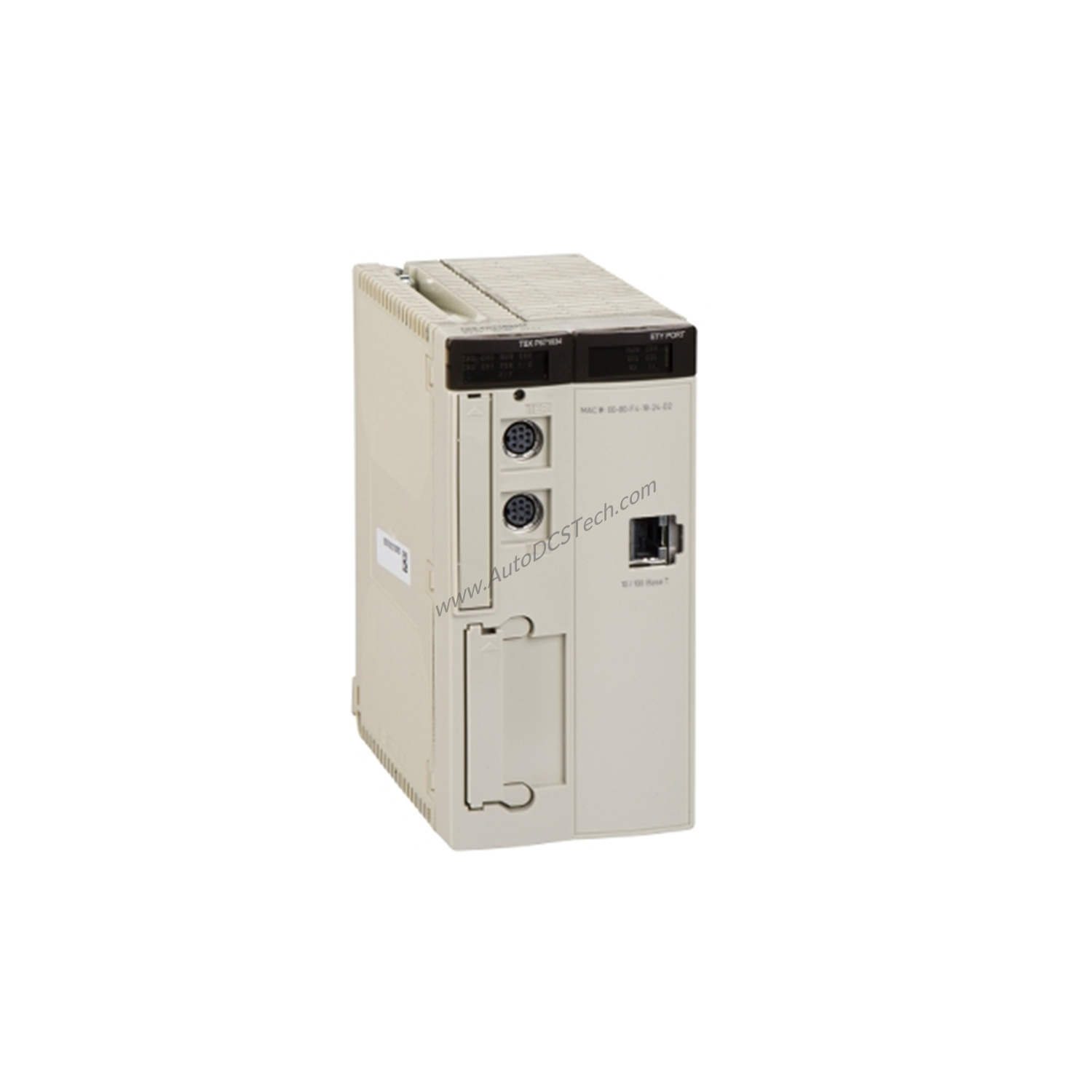

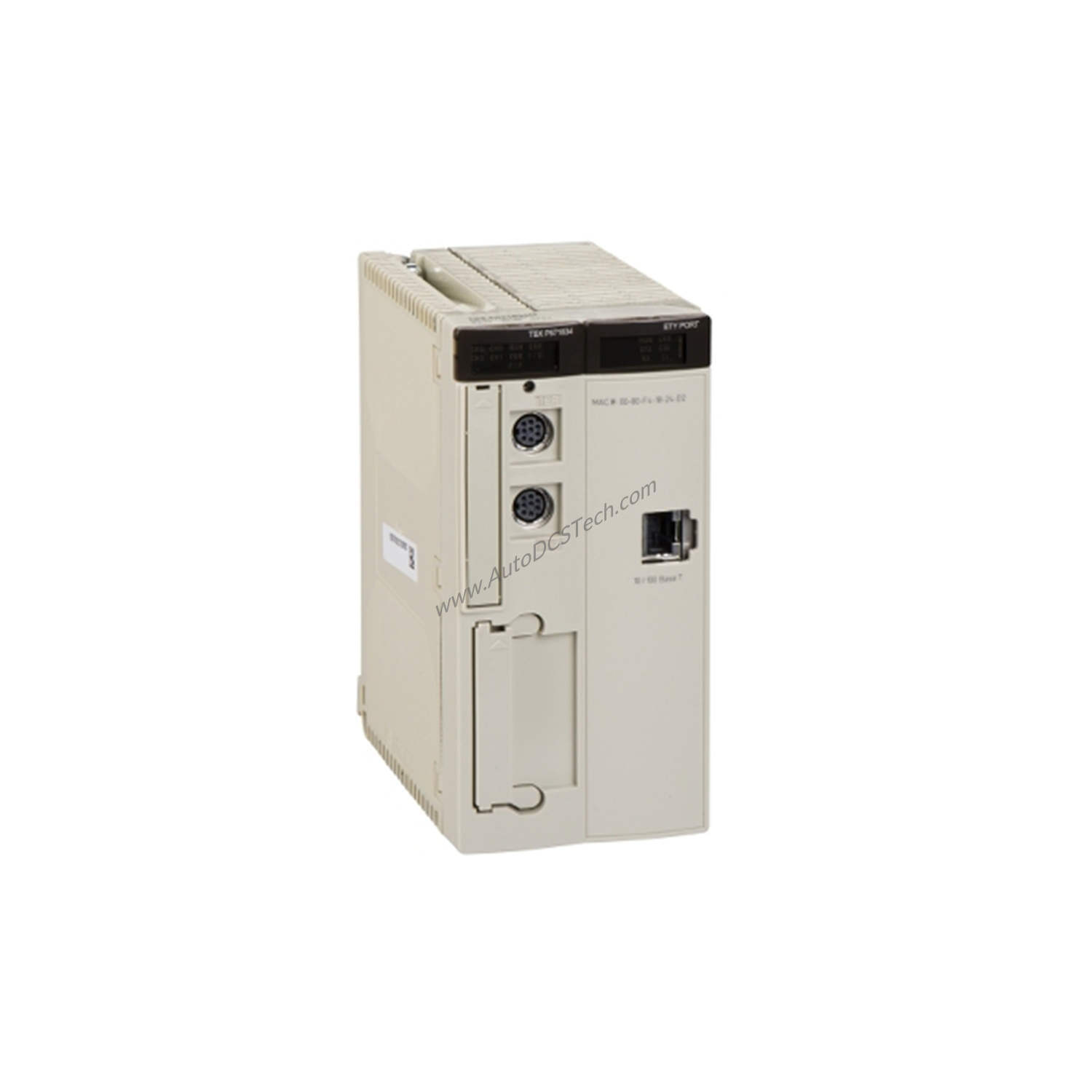

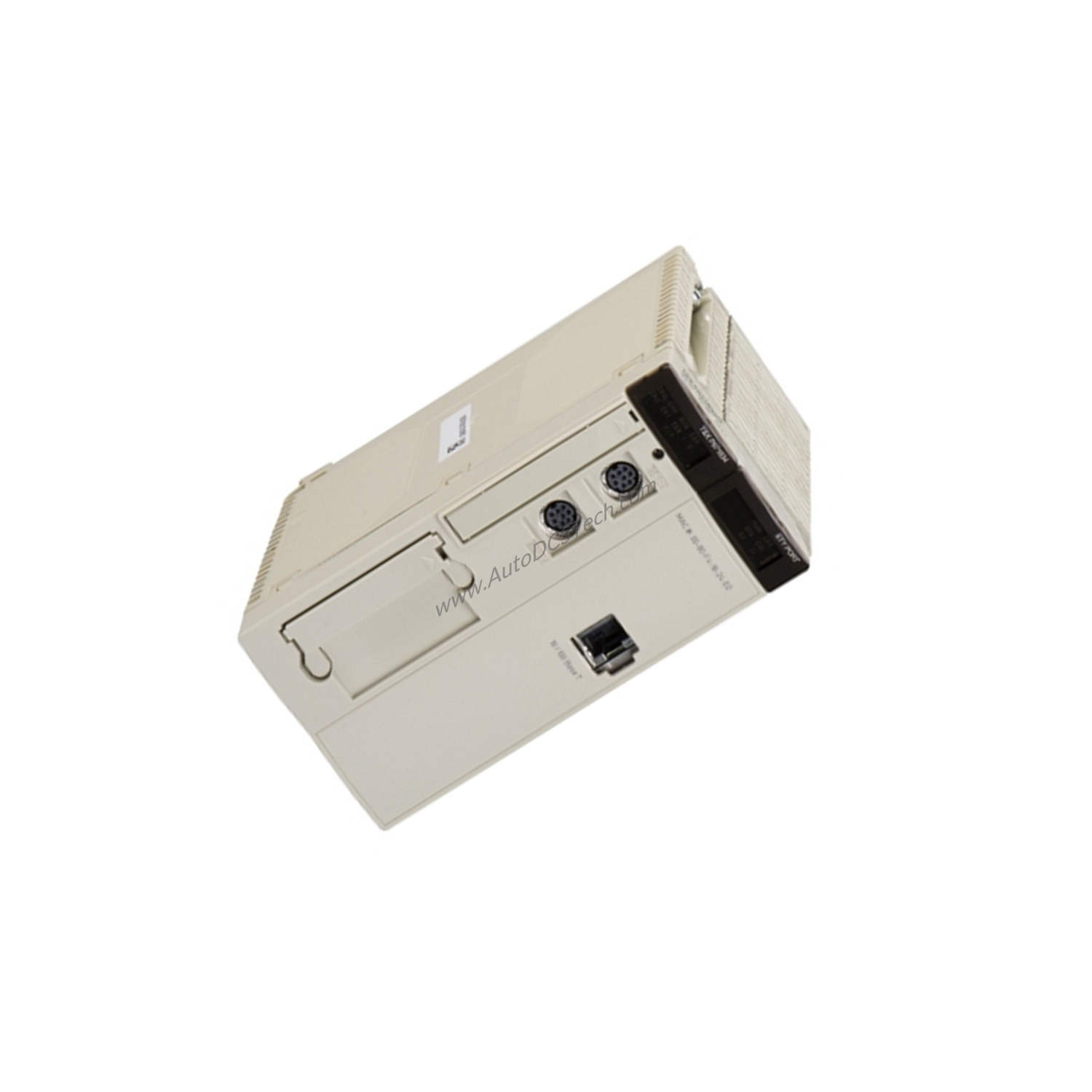

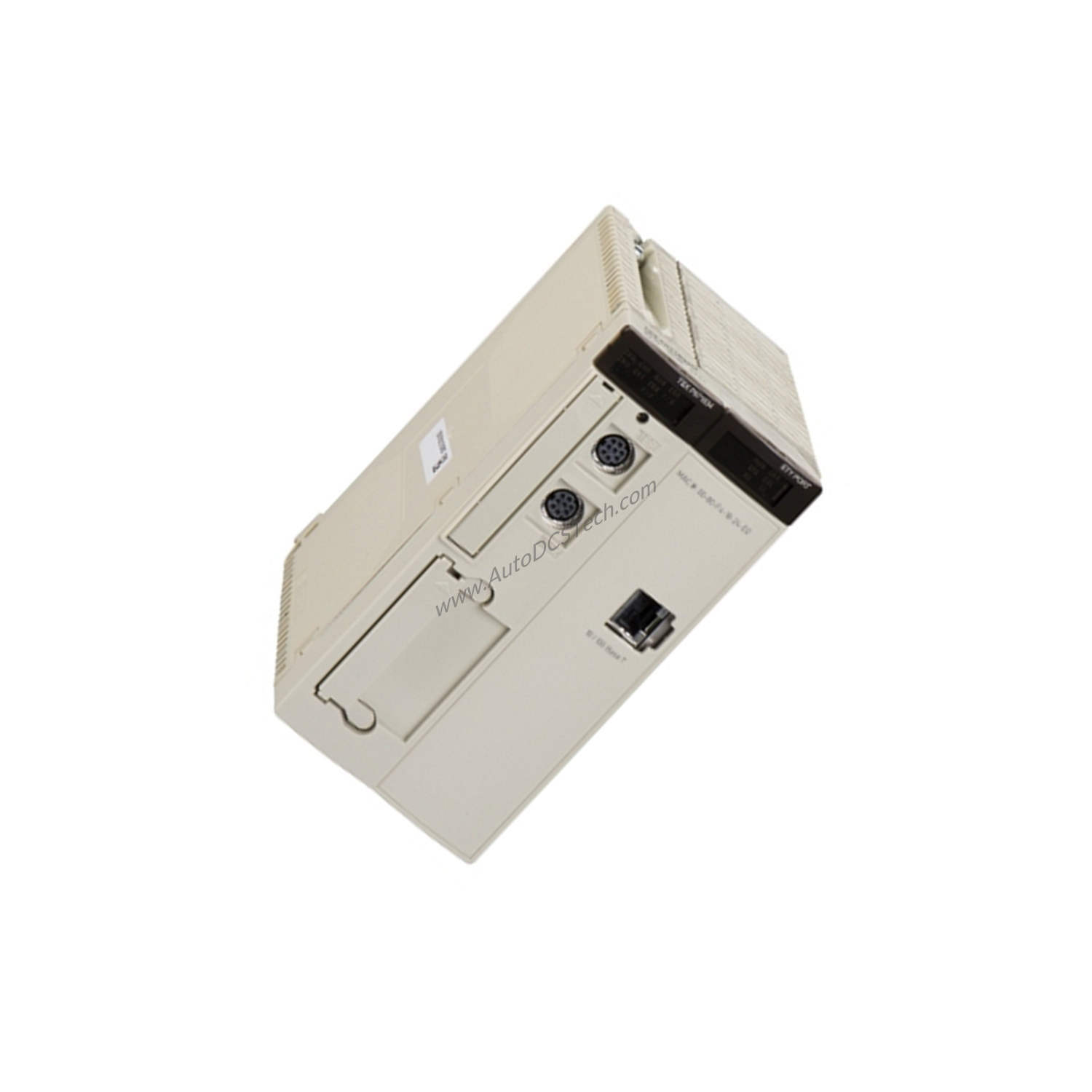

When a compact yet powerful controller is needed for precise automation tasks, the Schneider TSXP57103M micro PLC delivers reliable performance. Part of the TSX Micro PLCs family, this processor integrates an internal RAM of 32 Kwords for data processing, ensuring fast handling of control logic. Its non-isolated serial link with two female mini DIN connectors operates at 19.2 kbit/s, providing straightforward connectivity for programming and monitoring.
Technical Specifications Breakdown
- Internal RAM: 32 Kwords dedicated to data, expandable with a PCMCIA card for an additional 128 Kwords data storage and 64 Kwords program memory.
- Inrush Current: Handles 38 A at both 240 V and 100 V, ensuring robust startup under varying line conditions.
- I/O Capacity: Supports up to 512 discrete I/O and 24 analogue I/O, suitable for mixed-signal applications.
- Execution Speed: Boolean instructions execute in 0.5 µs without PCMCIA card, or 0.6 µs with card, enabling responsive control loops.
- Communication Module Capacity: Accommodates 1 network module, 2 AS-Interface bus modules, and 1 CANopen, offering flexible networking.
Industry Applications
In manufacturing lines, the TSXP57103M excels at controlling conveyor systems and packaging machines, where its 512 discrete I/O handle numerous sensors and actuators. For process control, the 24 analogue I/O manage temperature or pressure transducers, while the CANopen interface coordinates drives and remote I/O. Its compact standard module format fits easily into existing cabinets, reducing installation time.
Installation & Setup Guidance
Mount the TSXP57103M in a standard rack system: up to two racks with 12 slots each, or four racks with 4, 6, or 8 slots. Connect the serial link via the two female mini DIN ports using a shielded cable for reliable communication at 19.2 kbit/s. Ensure the 5 V DC supply can deliver 440 mA. The IP20 enclosure suits clean indoor environments; maintain ambient temperature between 32…140 °F (0…60 °C).
Maintenance & Reliability
From a maintenance engineer's perspective, the TSXP57103M offers straightforward diagnostics via four front-panel LEDs: green RUN, red I/O fault, red ERR, and yellow TER activity. These indicators allow quick status checks without a programming terminal. The module consumes only 440 mA at 5 V DC, minimizing heat buildup. Periodic inspection of connectors and ambient conditions ensures long-term reliability.
Compatibility & Integration
This processor integrates seamlessly with the Modicon Premium automation platform. It supports one network module, two AS-Interface bus modules, and one CANopen, enabling connection to drives, sensors, and remote I/O. The non-isolated serial link uses PL7 Junior/Pro software for programming. Memory expansion via PCMCIA card (128 Kwords data, 64 Kwords program) allows for larger applications.
Selection Guide & Purchasing Advice
Before ordering, verify your rack configuration and I/O requirements. The TSXP57103M fits 2-rack (12 slots) or 4-rack (4/6/8 slots) setups. Ensure your power supply can deliver 440 mA at 5 V DC. For extended memory, order a compatible PCMCIA card separately. SpareTechPLC stocks this module and can confirm current lifecycle status and availability. Contact our team for assistance with replacement options.
Troubleshooting & Common Issues
If the ERR LED lights red, check for processor or system faults. An I/O LED indicates module or configuration errors—verify wiring and module seating. The TER LED should flash during terminal activity; if not, check the serial cable and PL7 software connection. For slow execution, consider using the PCMCIA card to optimize program memory. Always follow the manufacturer's guidelines for diagnostics.
