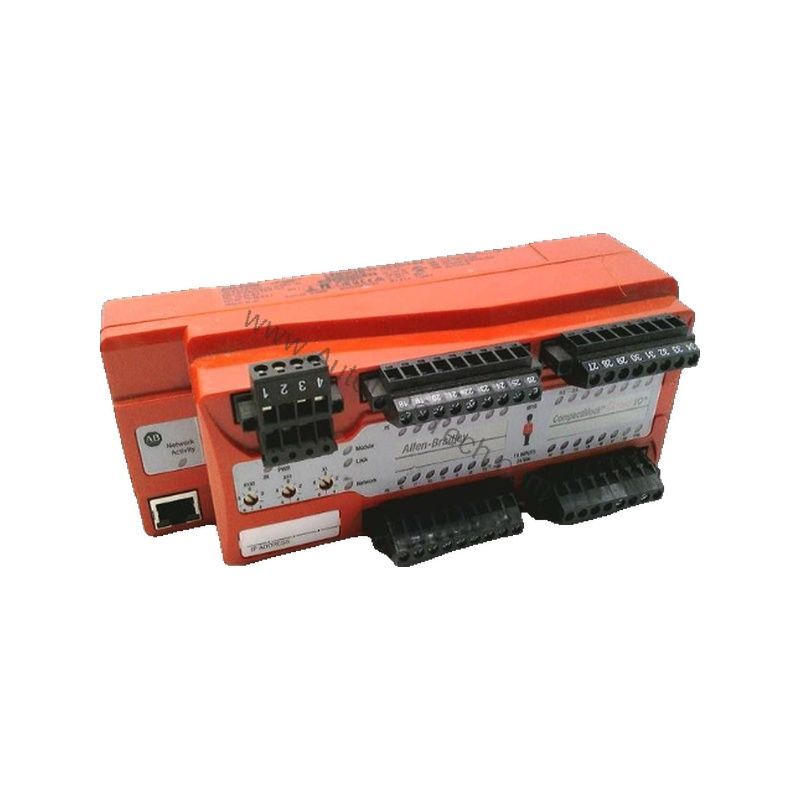

Allen-Bradley 1791ES-IB8XOBV4 CompactBlock Guard I/O Safety Module

Product Overview

The Allen-Bradley 1791ES-IB8XOBV4 is a CompactBlock Guard I/O EtherNet/IP safety module from the Guard I/O 1791ES and 1791DS product line. This module provides eight current sinking safety inputs and four bipolar output pairs, making it suitable for safety applications requiring Safety Integrity Level (SIL) Category Level (CL) 3. It connects directly to an EtherNet/IP safety network and performs self-diagnostics while allowing locking of safety configuration. For maintenance engineers, this module offers robust I/O status feedback, enabling real-time monitoring of safety circuits including individual point input status, combined input status, individual point output status, combined output status, individual test output status, and individual output readback (actual ON/OFF state of the outputs).

Technical Specifications Breakdown

Key parameters for the 1791ES-IB8XOBV4 are listed below for quick reference:

Industry Applications

In manufacturing lines, the eight current sinking inputs with IEC 61131-2 Type 3 characteristics allow direct connection to safety sensors such as light curtains and emergency stop buttons. The four bipolar output pairs provide flexible control of actuators like safety contactors and muting lamps. The pulse test outputs enable identification of line short circuits, reducing nuisance downtime and improving overall equipment effectiveness. Maintenance engineers appreciate the self-diagnostics and I/O status feedback, which simplify troubleshooting and reduce mean time to repair.

Installation & Setup Guidance

When installing the 1791ES-IB8XOBV4, ensure the operating voltage range of 19.2 to 28.8 Volts DC is supplied from a regulated safety-rated power source. The module connects to an EtherNet/IP safety network via its single RJ45 port. Configure the IP address using the rotary switches on the front panel, or via BOOTP/DHCP server, or by retrieving an existing IP address from non-volatile memory. For sinking inputs, verify the on-state voltage is at least 11V DC and on-state current is at least 3.3 mA. For bipolar outputs, respect the per-point limit of 2 A and total module limits of 8 A at 40 °C and 6 A at 60 °C. Use the pulse test outputs for line short circuit detection; they can also be configured as standard outputs if needed.

Maintenance & Reliability

Regular inspection of the module and its connections is recommended to ensure reliable operation. The electronic short circuit protection and cross-circuit fault detection help prevent damage from wiring faults. The module's self-diagnostics continuously monitor internal health, and the I/O status feedback allows operators to quickly verify circuit integrity. Keep the module within its operating temperature range (derate total output current at higher temperatures) and ensure the enclosure provides adequate ventilation. No disassembly or contact cleaning is required; simply inspect periodically for secure connections and physical damage.

Compatibility & Integration

The 1791ES-IB8XOBV4 is designed for EtherNet/IP safety networks, providing seamless integration with Allen-Bradley GuardLogix controllers and other safety-rated devices. The module supports SIL CL 3 applications and can be used in conjunction with other CompactBlock Guard I/O modules in the 1791ES and 1791DS product family. The bipolar output pairs allow both current sourcing and current sinking configurations, offering flexibility in actuator selection. For replacement or expansion, verify compatibility with your existing safety system architecture.

Selection Guide & Purchasing Advice

When selecting the 1791ES-IB8XOBV4, consider your specific input and output requirements. This module provides eight sinking inputs and four bipolar output pairs, suitable for medium-scale safety applications. If you need different I/O counts or output types, explore other modules in the CompactBlock Guard I/O family. For purchasing, AutoDCSTech offers this module along with technical support to help you choose the right part for your system. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
