Solving Signal Integrity in Harsh Industrial Environments
In large-scale industrial automation networks, signal degradation over long distances or in electrically noisy environments can cause data loss, downtime, and costly production delays. The Schneider Electric 140NRP95401C fibre optic repeater is engineered to address these challenges within the Modicon Quantum automation platform. By converting electrical signals to optical signals and regenerating them, this device ensures robust, error-free communication across extended plant floors.

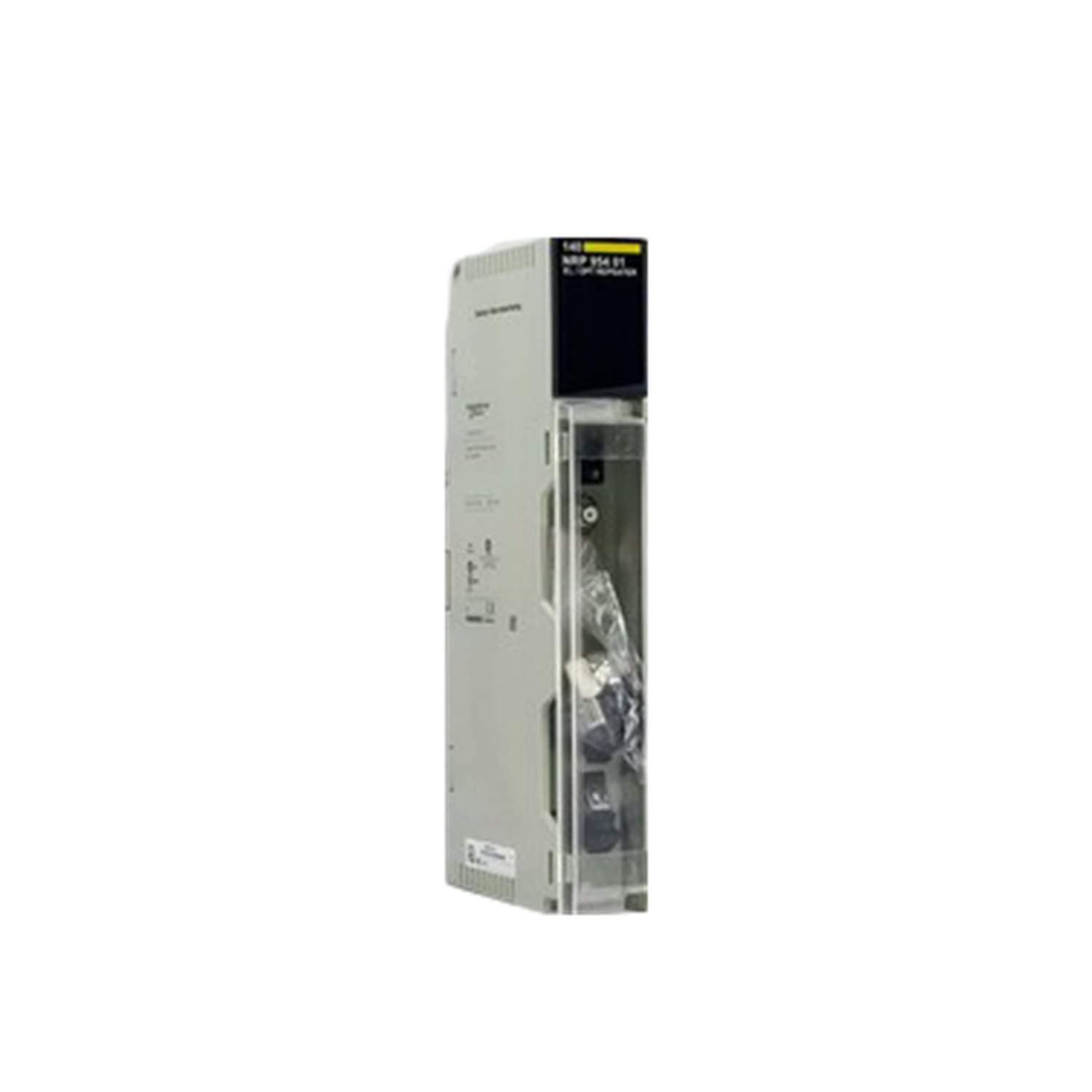

Technical Specifications Breakdown
Key parameters for the 140NRP95401C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Fibre Optic Repeater |
| Product Line | Modicon Quantum |
| Part Number | 140NRP95401C |
| Power Dissipation | 5 Watts |
| Required Bus Current | 750 milliamperes |
| Inrush Current | 1.8 Amperes at 5 Volts DC |
| Fibre Optic Type | Single mode |
| Receiver Sensitivity | -25 decibel-milliwatts |
| Detected Silence | -45 decibel-milliwatts |
| Rise/Fall Time | 20 nanoseconds |
| Ambient Operating Temperature | 0 to 60°C (non-condensing) |
| Storage Temperature | -40 to 85°C (non-condensing) |
| Humidity Tolerance | 0 to 95% relative humidity (without condensation) |
| Operating Altitude | Up to 2,000 meters (6,561.68 feet) |
| Net Weight | 0.5 kg |
Industry Applications for the Modicon Quantum Repeater
This fibre optic repeater is ideal for connecting remote I/O racks in large manufacturing plants, where distances exceed copper cable limits. Its single mode optics support long-haul links, while the -25 dBm receiver sensitivity ensures reliable signal capture even with some attenuation. The 20 ns rise/fall time maintains data integrity for high-speed control loops, making it suitable for automotive assembly lines and continuous process industries.

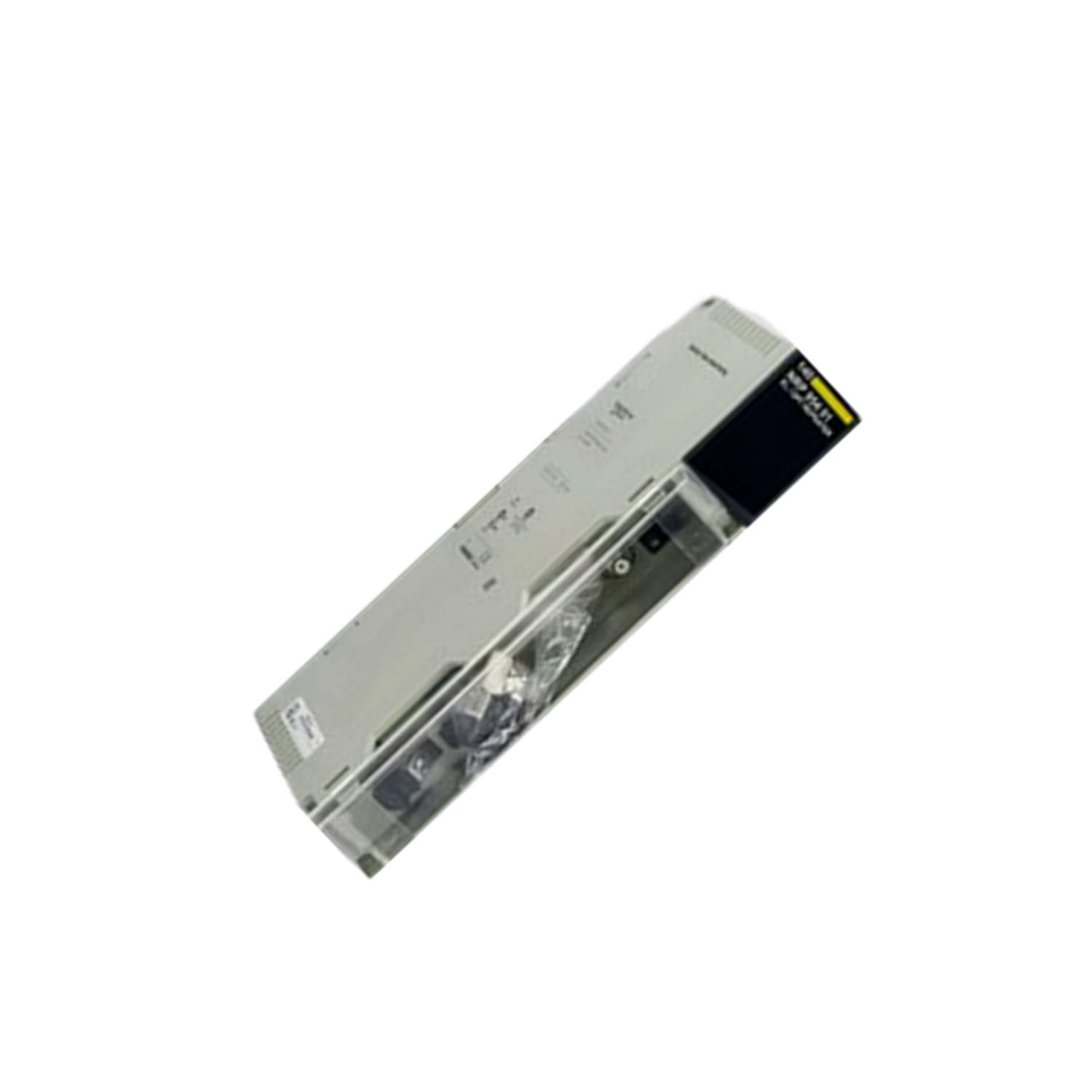

Installation and Setup Guidance
Mount the 140NRP95401C securely in a clean, dry cabinet within the 0 to 60°C ambient range. Use LC connectors for the two fibre optic ports and a coaxial connector for the third port. Ensure the bus current supply can deliver at least 750 mA, and account for the 1.8 A inrush at startup. Observe the four green and three red LED indicators for local signalling during commissioning.
Maintenance and Reliability
Periodically inspect the PC (polycarbonate) housing for cracks or contamination. Clean fibre optic connectors with approved wipes to maintain signal quality. The unit tolerates 0-95% non-condensing humidity, but avoid exposure to condensation. Storage between -40°C and 85°C is acceptable.
Compatibility and Integration
The repeater is designed for the Modicon Quantum automation platform. It integrates seamlessly with existing single mode fibre infrastructure. The two LC ports and one coaxial port allow flexible network topologies.
Selection Guide and Purchasing Advice
When selecting a fibre optic repeater, verify that your network uses single mode fibre and that the bus current requirement (750 mA) matches your power supply. The 140NRP95401C is available from SpareTechPLC, your trusted source for industrial automation parts. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting and Common Issues
If the red LEDs illuminate, check for power supply issues or fibre link faults. Ensure the inrush current does not trip upstream breakers. If signal loss occurs, verify receiver sensitivity (-25 dBm) and detected silence (-45 dBm) thresholds are met. Clean connectors and check for bends in the fibre.
