Product Overview
When process uptime and safety are non-negotiable, the ABB PM867K02 Redundant Processor Unit HI delivers a certified high-integrity control solution. This processor unit combines dual CPUs, redundant communication interfaces, and SIL3 certification to minimize costly downtime while meeting strict safety standards. With a 133 MHz clock frequency and 64 MB memory, it handles complex control tasks efficiently, reducing the total cost of ownership through improved reliability and reduced maintenance interventions.
Technical Specifications Breakdown
Processor and Memory
- Clock Frequency: 133 MHz
- Memory: 64 MB (46.559 MB available for application)
- Processor Type: MPC866
- Performance: 0.09 ms for 1000 boolean operations
These specs translate to fast logic execution, enabling tighter process control and faster response to safety events. The ample application memory supports complex programs without requiring additional hardware, saving on expansion costs.
Power and Redundancy
- Power Supply: 24 V DC (19.2-30 V DC)
- Power Consumption: 210 mA typical, 360 mA max at +24 V
- Power Dissipation: 5.1 W typical, 8.6 W max
- Redundancy: Yes, with switchover time max 10 ms
Redundancy ensures that a single CPU failure does not halt production. The low power dissipation reduces heat load in cabinets, potentially lowering cooling costs over the system life.
Environmental and Certifications
- Operating Temperature: 0 to +55 °C
- Protection Class: IP20
- Certifications: CE Mark, TUV Approval, ISA Secure certified
- Safety: High integrity, certified for SIL3
SIL3 certification allows deployment in safety-critical applications without separate safety controllers, consolidating hardware and reducing installation complexity.
Industry Applications
Chemical Processing
In chemical plants, the PM867K02 manages batch reactions requiring SIL3-rated emergency shutdown. Its redundant CPUs ensure that a single processor fault does not interrupt safety monitoring, preventing costly product loss and environmental incidents.
Oil and Gas
For offshore platforms, the unit handles fire and gas detection systems. The 0.09 ms performance and 10 ms switchover time maintain safety integrity even in harsh environments, reducing unplanned shutdowns that can cost millions per day.
Power Generation
In turbine control, the PM867K02 coordinates protection logic with business-critical control. The 64 MB memory supports large application programs, eliminating the need for additional controllers and lowering capital expenditure.
Installation and Setup Guidance
Mount the PM867K02 on a DIN rail in a clean, dry cabinet. Connect the 24 V DC power supply (19.2-30 V DC) to the designated terminals. Use the two RJ45 Ethernet ports (CN1, CN2) for Control Network connection. For high-integrity operation, add the SM812 module and configure according to the Safety Manual. Ensure compatibility with 800xA 6.0.2 and onwards. Verify that local organizations meet the required qualifications for safety system sales.
Maintenance and Reliability
Regularly inspect the two backup batteries (3.6 V lithium) and replace them per manufacturer guidelines to prevent memory loss. Monitor the redundant power supply status input for early warning of power issues. The IP20 protection requires keeping the enclosure free of dust and moisture. Following these steps extends service life and avoids unexpected replacement costs.
Compatibility and Integration
The PM867K02 integrates seamlessly with ABB 800xA 6.0.2 and later systems. It supports up to 12 communication modules on the CEX bus and up to 96 I/O modules on the Modulebus (84 with redundant CPU). The Control Network uses MMS and IAC protocols over 100 Mbit/s switched Ethernet. This compatibility reduces integration effort and ensures smooth data exchange with existing infrastructure.
Selection Guide and Purchasing Advice

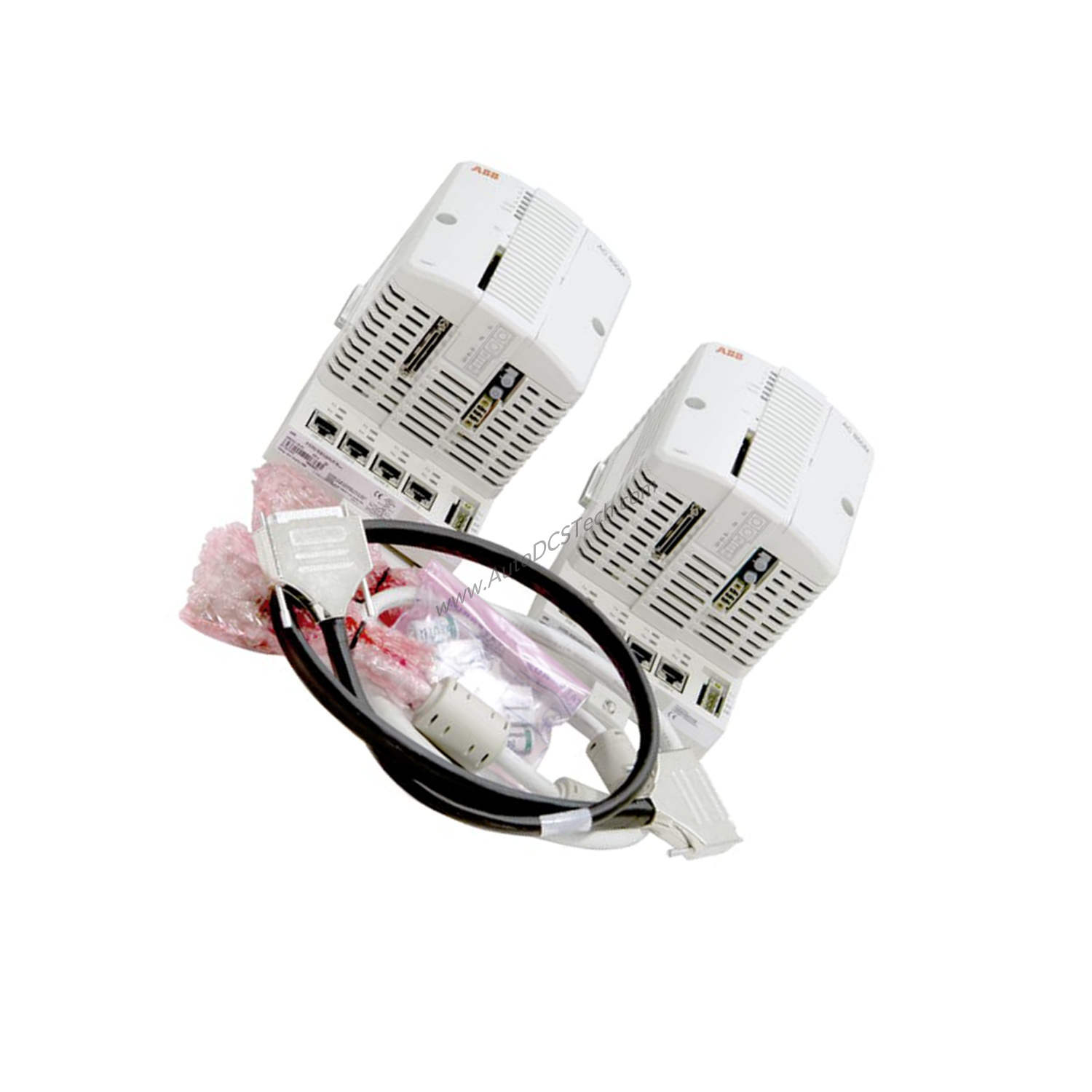

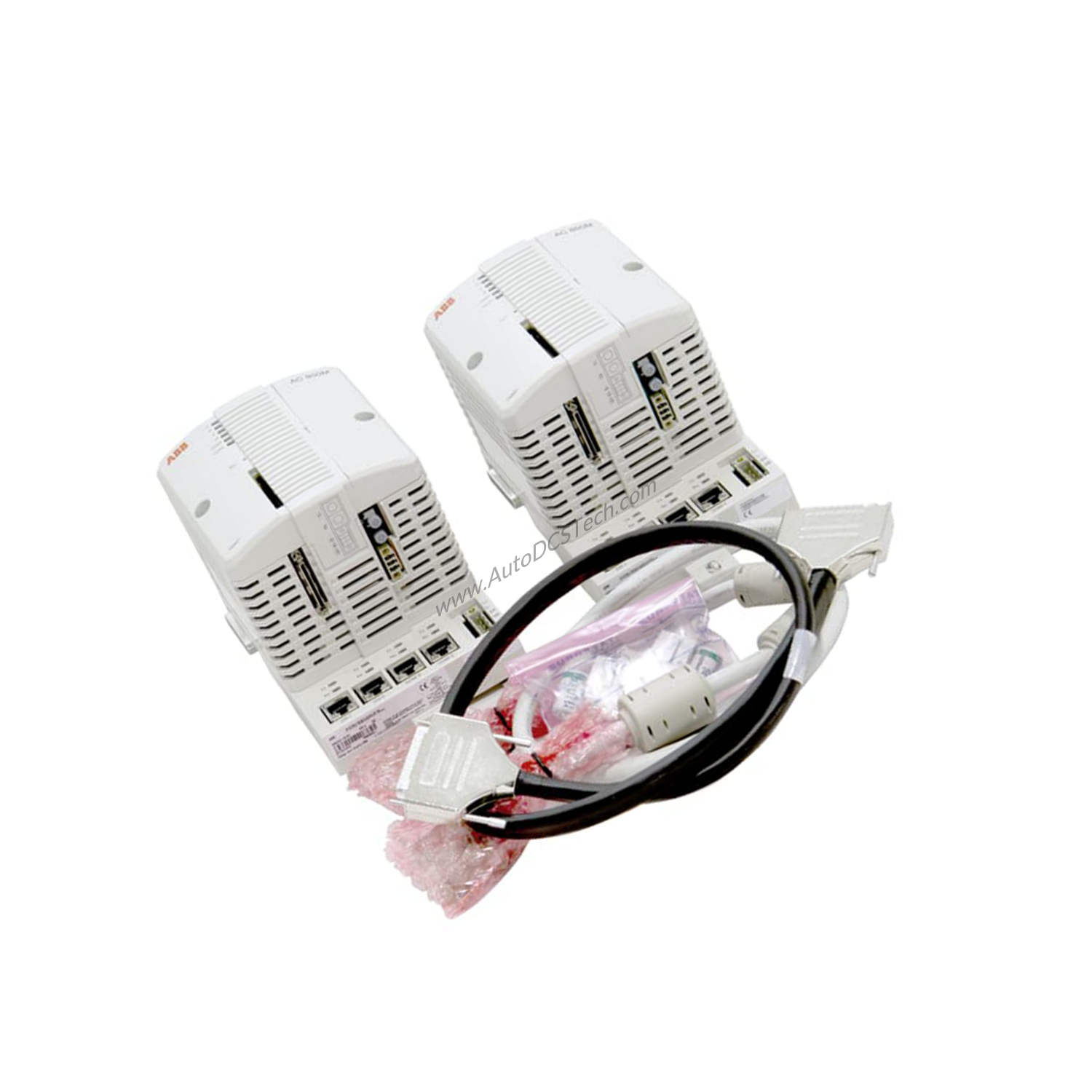

Before ordering, verify that your system runs 800xA 6.0.2 or later. The package includes two PM867 CPUs, two TP830 baseplates, two TB807 terminators, one TK850 CEX-bus cable, one TK851 RCU-Link cable, and two backup batteries. No license is included. Contact SpareTechPLC to confirm current lifecycle status and availability. Our team can help you select the right configuration for your application, ensuring you get the best value for your investment.
Frequently Asked Questions
Q: What is the switchover time during CPU redundancy?
A: The switchover time is max 10 ms, ensuring minimal process disruption.
Q: How much memory is available for application programs?
A: 46.559 MB of the total 64 MB RAM is available for applications.
Q: Is the PM867K02 compatible with older 800xA versions?
A: No, it is only compatible with 800xA 6.0.2 and onwards.
Q: What safety certifications does this unit hold?
A: It is high integrity, certified for SIL3, and has TUV Approval and ISA Secure certification.
Q: What is the typical power consumption?
A: Typical power consumption is 210 mA at +24 V DC, with maximum 360 mA.
