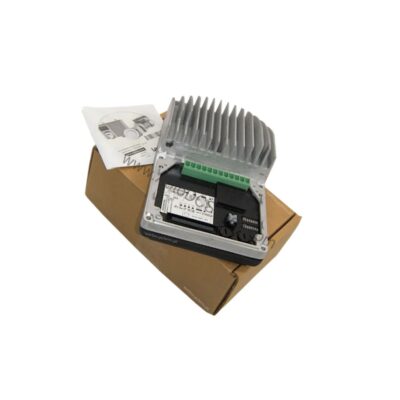

Lenze E84DGDVB75242PS 8400 Motec Inverter Drive 7.5kW IP54

Technical Specifications Breakdown

Key parameters for the E84DGDVB75242PS are listed below for quick reference:

Industry Applications: Solving Real-World Problems

Conveyor Systems in Food & Beverage

Processing lines often face regular washdowns. The IP54-rated enclosure of this Lenze drive helps protect the electronics from moisture and cleaning agents. Its ability to run on a standard 400 V supply simplifies integration into existing plant infrastructure.

Pump and Fan Control in HVAC

For HVAC applications, energy efficiency is a top priority. This inverter allows pumps and fans to run at optimal speeds, reducing energy consumption. The 340 V to 528 V input range ensures stable operation even in facilities with fluctuating supply voltages. The integrated service switch simplifies maintenance, allowing technicians to safely isolate the drive for routine checks.

Packaging Machinery

Packaging lines require precise speed control and reliable operation. The E84DGDVB75242PS delivers consistent performance, helping to maintain product quality and minimize downtime. Its robust design withstands the vibrations and shock loads common in high-speed packaging equipment. The drive's overload capacity (200% for 3s; 150% for 60s) provides extra torque during difficult starts or jams.

Installation & Setup Guidance

Proper installation is key to maximizing the lifespan of this drive. The unit is designed for either motor mounting or wall mounting. When wall mounting, ensure the mounting surface is flat and vibration-free. For motor mounting, use the appropriate Lenze system cable to maintain the IP rating. The maximum shielded motor cable length is 20 meters, which helps ensure EMC compliance. For EMC Category C2, keep cable lengths under 20 meters when the switching frequency is 4 kHz or less, and under 10 meters for 8 kHz. Always follow the provided manual for wiring and configuration.

Maintenance & Reliability

Regular inspection is recommended to ensure long-term reliability. Check the enclosure for any signs of damage or water ingress. Verify that all cable glands are tight and that the service switch operates smoothly. The drive is designed for a maximum ambient temperature of 55 °C, with derating above 45 °C. Keeping the ambient temperature within limits helps prevent thermal overload. No internal maintenance is required, but periodic cleaning of the exterior with a dry cloth is advisable.

The E84DGDVB75242PS: A Compact Drive for Demanding Environments

This inverter is designed for direct motor mounting, eliminating the need for a separate control cabinet. Its robust construction helps protect against dust and water ingress, making it suitable for a wide range of production machinery.

The E84DGDVB75242PS is engineered to handle a rated power of 7.5 kW and a rated output current of 16.5 A. It connects to a 3/PE AC 340 V ... 528 V mains supply, accommodating standard 400 V industrial networks. The unit's degree of protection is rated at IP54, providing solid defense against dust and splashing water. This makes it a reliable choice for environments where washdowns or airborne particulates are a concern.

Compatibility & Integration

The E84DGDVB75242PS is part of the Lenze 8400 motec series, designed for seamless integration with Lenze motors and system cables. It is compatible with standard 400 V mains networks (3/PE AC 340 V ... 528 V). The drive supports switching frequencies of 4, 8, and 16 kHz, allowing you to balance acoustic noise and efficiency. For operation with a residual current circuit breaker, use a 30 mA type B breaker for motor mounting or wall mounting with a Lenze system cable shorter than 3 meters. For longer cables, a 300 mA type B breaker is required.

Selection Guide & Purchasing Advice

When selecting a drive, verify that the rated power and current match your motor's requirements. The E84DGDVB75242PS is a solid choice for 7.5 kW motors. Always confirm the supply voltage and frequency are within the specified range. For expert advice and competitive pricing, contact AutoDCSTech. We can help you verify the lifecycle status and availability of this part. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the drive fails to start, first check the mains supply voltage and frequency. Ensure the service switch is in the ON position. If the motor runs but speed fluctuates, check the motor cable for damage or loose connections. Overheating can occur if the ambient temperature exceeds the rated limit or if the switching frequency is set too high. Always refer to the manual for error codes and their meanings. For persistent issues, contact a qualified service engineer.
