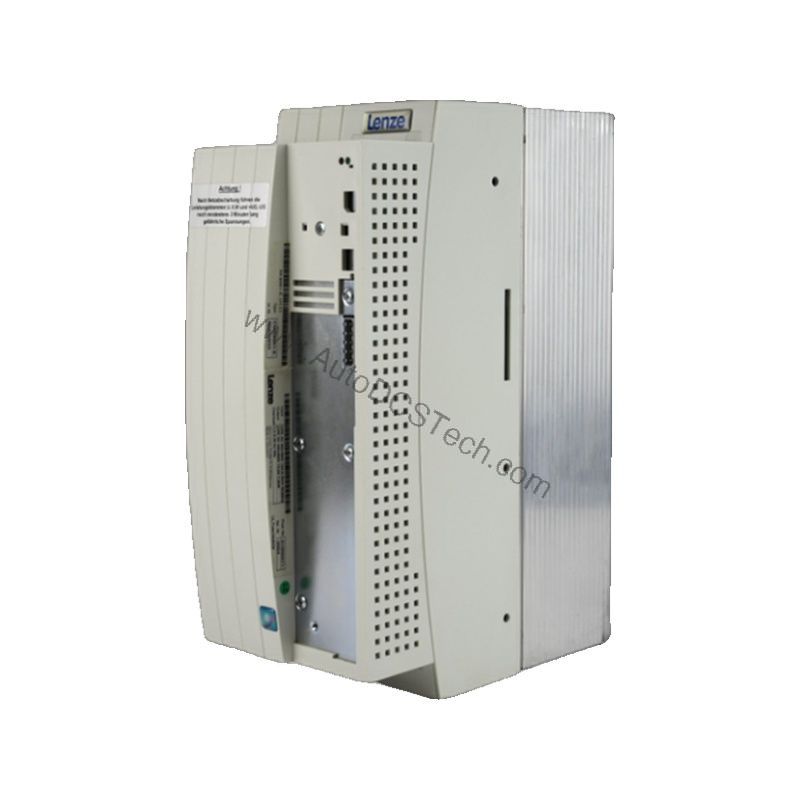

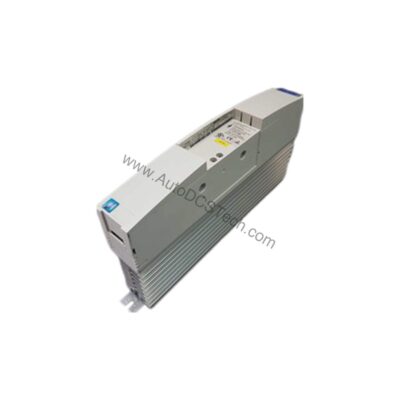

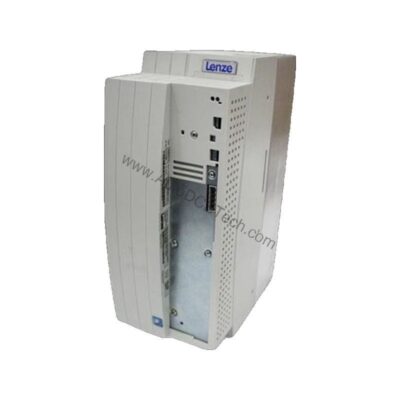

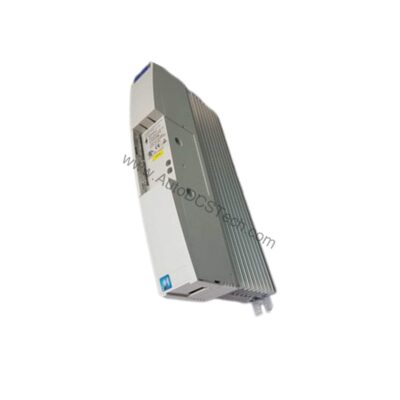

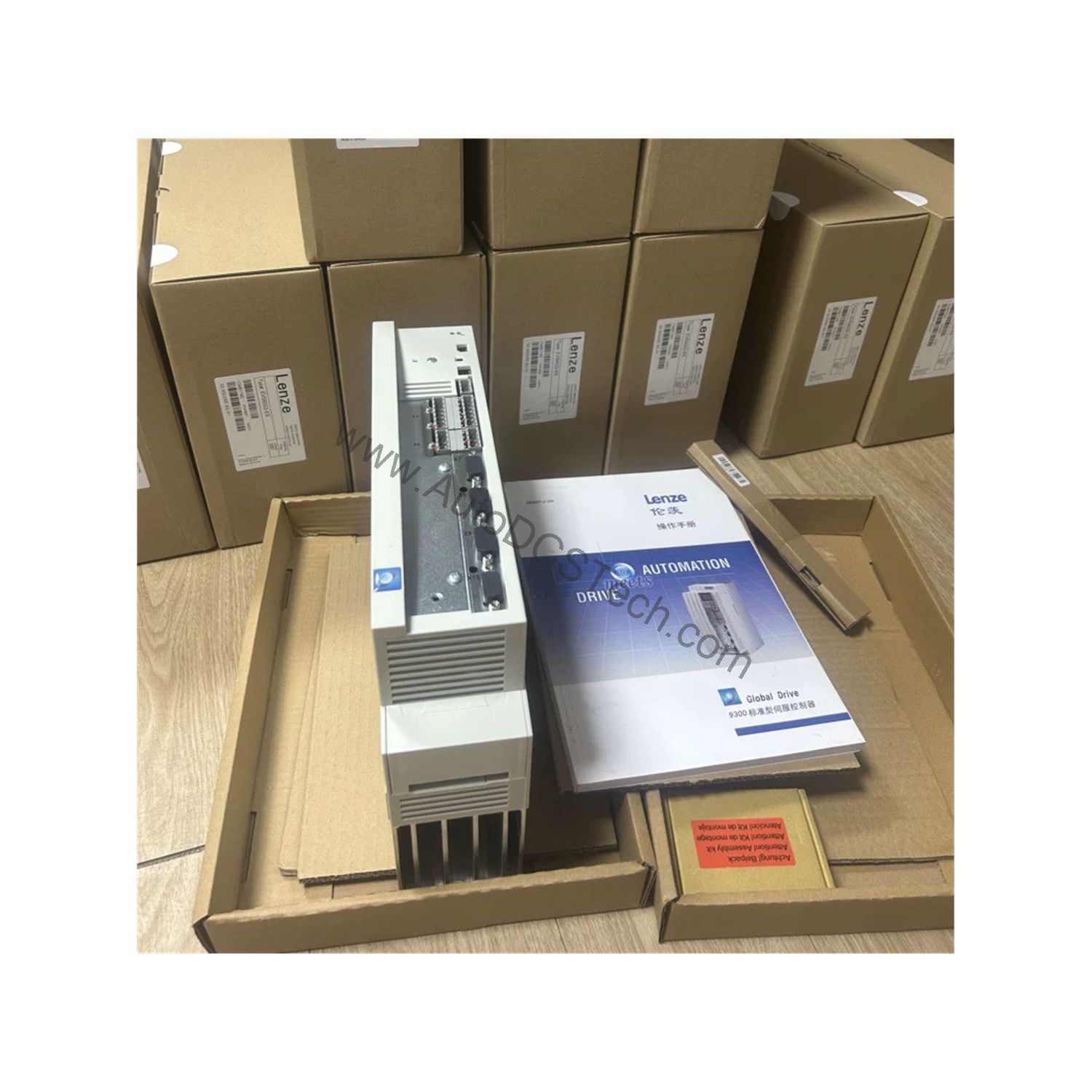

Lenze EMB9342-E Regenerative Power Supply | 14.4 kW

Technical Specifications Breakdown

Key parameters for the EMB9342-E are listed below for quick reference:

Industry Applications

Material Handling and Conveyors

Conveyor systems often run continuously and may need controlled deceleration. The regenerative capability of this unit helps manage load variations while feeding energy back during braking cycles.

Hoists and Cranes

Hoisting applications involve lifting and lowering heavy loads. Lowering a load can generate excess energy; the EMB9342-E handles this by converting it into usable DC power, reducing strain on the mechanical brake and lowering energy consumption.

Centrifuges and Test Stands

Centrifuges and dynamometers require precise speed control and frequent reversals. The high peak power of 21.6 kW ensures the unit can handle short bursts of demand without tripping, while the continuous 14.4 kW capacity supports sustained operation.

Installation and Setup Guidance

Proper installation is critical for safe and reliable operation. Follow the manufacturer's manual and local electrical codes. Key considerations include:

• Input Voltage Check – Verify that the AC supply matches the input voltage range of 320 V to 528 V. Connecting to an incorrect voltage can damage the unit.
• Frequency Check – Ensure the AC supply frequency is within 48 Hz to 62 Hz. This range accommodates most industrial grids.
• DC Bus Connection – Use appropriately sized cables for the continuous DC bus current of 26 A and peak current of 39 A. Loose connections can cause overheating.
• Cooling – Mount the unit in a well-ventilated area. The thermal derating factor of 2% per degree above 40°C means that for every degree above 40°C ambient, the output power must be reduced by 2%. Plan the enclosure cooling accordingly.
• Grounding – Follow standard grounding practices to ensure safety and reduce electromagnetic interference.

Maintenance and Reliability

Regular inspection helps extend the life of the EMB9342-E. Check for dust accumulation on heat sinks and fans, and verify that all power connections remain tight. Because the unit dissipates 200 W of power, ensure that airflow is not blocked. Periodically measure the DC bus voltage and current to confirm they are within expected ranges. If the unit operates in a harsh environment, increase inspection frequency.

Regenerative Power Supply for Modern Energy Management

Industrial facilities face rising energy costs and stricter efficiency targets. The Lenze EMB9342-E regenerative power supply addresses both by recovering braking energy and feeding it back into the DC bus. This reduces overall power consumption and heat generation, making it a smart investment for motor-driven systems.

Why Regenerative Power Supplies Matter

Traditional drives dissipate braking energy as heat through resistors. The Lenze EMB9342-E instead returns that energy to the DC bus, improving overall system efficiency. This is especially valuable in applications with frequent deceleration or overhauling loads, where energy recovery directly reduces operating costs.

Compatibility and Integration

The EMB9342-E is part of the Lenze Series 9300, designed to integrate with Lenze drives and other industrial control systems. Its regenerative function allows it to work with motors in both motoring and generating modes, as indicated by the total motor power of 12.0 kW and total generator power of 17.0 kW. This flexibility makes it suitable for retrofitting existing systems or for new installations.

Selection Guide and Purchasing Advice

When selecting a regenerative power supply, consider the continuous and peak power requirements of your application. The EMB9342-E offers a robust 14.4 kW continuous output and 21.6 kW peak, making it a strong candidate for medium-power applications. At AutoDCSTech, we stock this unit and can help you verify its compatibility with your existing setup. Contact our team for current availability and lifecycle status before ordering.

Troubleshooting and Common Issues

If the unit does not operate as expected, start with these checks:

• Input Power – Confirm that the AC supply is present and within the specified voltage and frequency ranges.
• DC Bus Voltage – Measure the DC bus voltage to ensure it is within the expected range for your system.
• Overload – If the unit trips on overload, check whether the connected motor or load exceeds the continuous power rating of 14.4 kW.
• Thermal Derating – If the ambient temperature exceeds 40°C, remember that the output power must be derated by 2% per degree. Ensure adequate cooling.
• Connections – Loose or corroded connections can cause intermittent faults. Inspect and tighten all power terminals.

For persistent issues, consult the Lenze documentation or contact AutoDCSTech for technical support.
