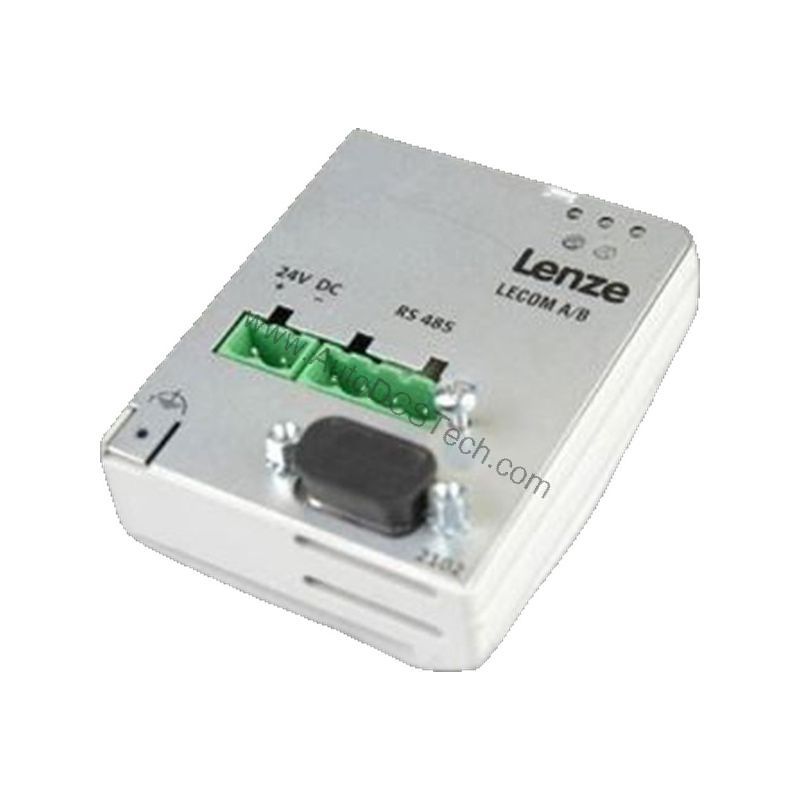

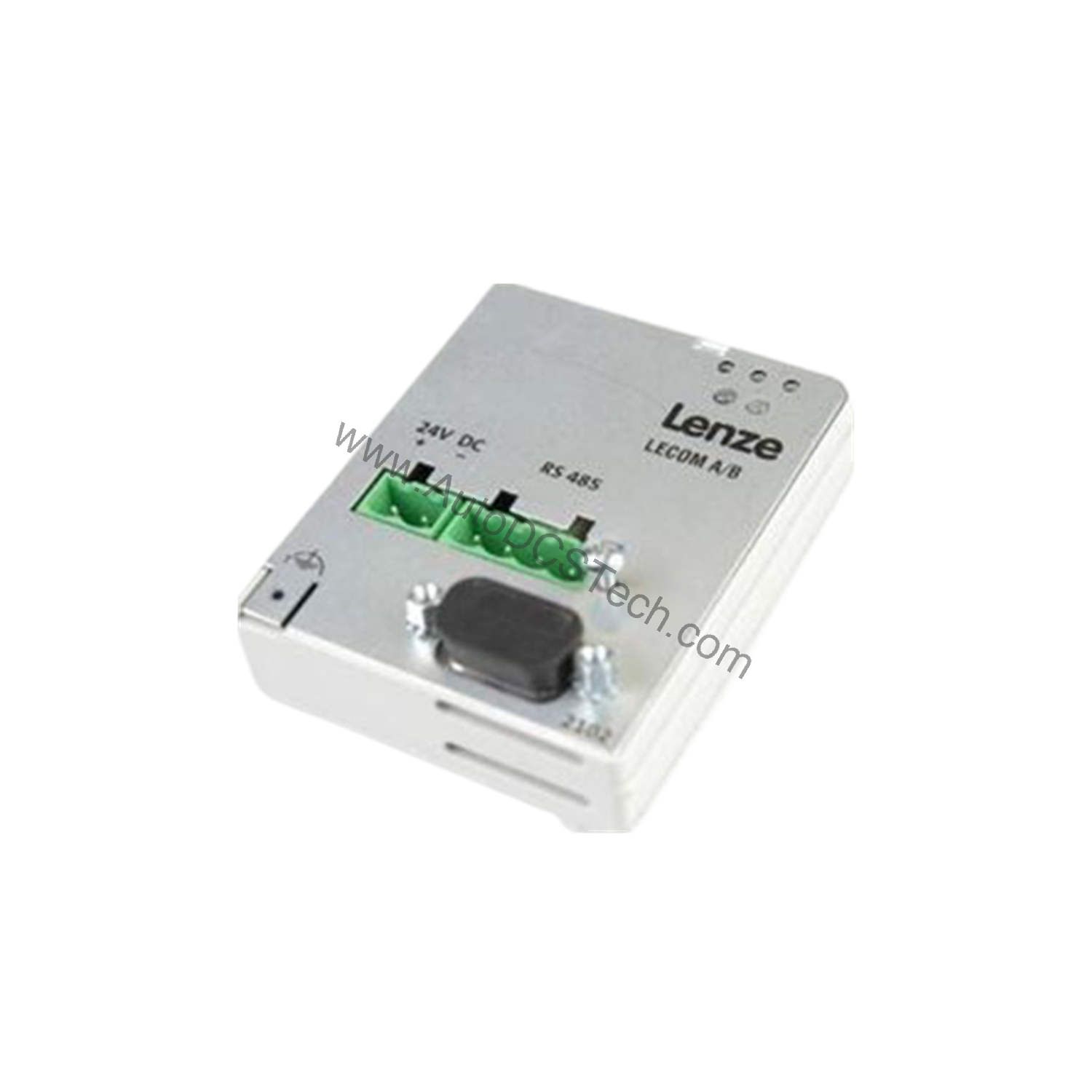

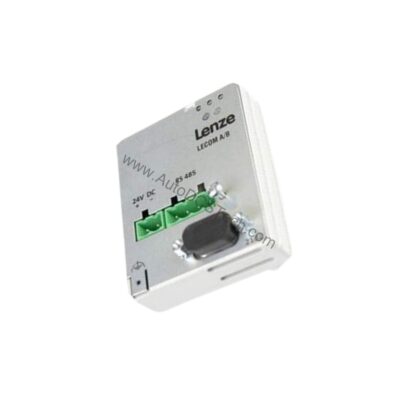

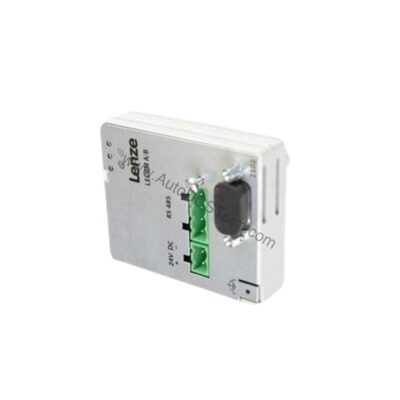

Lenze EMF2102IBCV001 Communication Module for Series 8200

Technical Specifications Breakdown

Key parameters for the EMF2102IBCV001 are listed below for quick reference:

1. Drive Networking in Material Handling

In conveyor systems, the EMF2102IBCV001 allows multiple drives to communicate with a central PLC using RS-485 (LECOM-B). With baud rates up to 19,200 bit/s, it supports real-time monitoring and control, reducing downtime and improving throughput.

2. Remote Diagnostics in Pumping Stations

Using RS232 (LECOM-A) for point-to-point connections, technicians can perform remote diagnostics and parameter adjustments. The module's wide operating temperature range (0 to 55°C) ensures reliable performance in pump houses without climate control.

3. Flexible Cable Options for Long-Distance Installations

For installations requiring cable runs up to 1,200 meters, the module supports CYPiMF shielded cable on RS-485, ensuring signal integrity over long distances—a key factor in large-scale processing plants.

Installation & Setup Guidance

Proper installation is critical for optimal performance. Follow these engineer-level guidelines:

• Mounting: Ensure the module is mounted in a clean, dry enclosure with adequate ventilation. The IP20 rating means it is protected against solid objects larger than 12 mm, but not against water—so avoid wet environments.
• Wiring: Use screw terminals with AWG 16 (1.5 mm²) screws. Tighten to a torque of 0.5 to 0.6 Newton-meters to ensure secure connections without damaging the terminal.
• Cable Selection: For RS232, use LiYCY low-frequency PVC shielded data cable. For RS485, choose LiYCY cable for runs up to 300 meters, or CYPiMF cable for distances up to 1,200 meters.
• Supply Voltage: Connect a 24V DC supply. Verify polarity before powering up to avoid damage.
• Baud Rate Configuration: Set the baud rate (1,200 to 19,200 bit/s) to match your network devices. Inconsistent settings will cause communication errors.

Maintenance & Reliability

To ensure long-term reliability, inspect the module periodically:

• Visual Checks: Look for signs of overheating, corrosion, or loose connections. Tighten screws if needed.
• Environmental Control: Keep the ambient temperature within 0 to 55°C. If the enclosure is near heat sources, consider additional cooling.
• Cable Integrity: Check shielding and insulation for wear, especially in high-vibration areas.
• Storage: If the module is not in use, store it between -25°C and 60°C to prevent damage.

Why the Lenze EMF2102IBCV001 Is a Smart Choice for Your Automation Network

Industrial communication modules often become the weakest link in a control system when they lack flexibility or robust connectivity. The Lenze EMF2102IBCV001 from the Series 8200 addresses this challenge with a compact design and versatile interface options. As a dedicated communication module, it enables reliable data exchange between drives and controllers, making it an essential component for modern manufacturing environments.

Compatibility & Integration

The EMF2102IBCV001 is designed to work within the Lenze Series 8200 ecosystem. It uses the LECOM-A/B Version 2.0 protocol, which is a standard for Lenze drives. The module supports 7-bit ASCII character format, making it compatible with many industrial controllers and HMIs. For new installations, verify that your controller software supports LECOM-A/B to avoid integration issues.

Selection Guide & Purchasing Advice

When selecting a communication module, consider your network topology, cable distances, and required baud rate. The EMF2102IBCV001 offers flexibility with both RS232 and RS-485, making it suitable for a wide range of applications. At AutoDCSTech, we stock this module and can help you verify compatibility with your existing system. Contact us for availability and lifecycle status before ordering.

Troubleshooting & Common Issues

Symptom: No Communication

• Check supply voltage (24V DC) and polarity.
• Verify baud rate and protocol settings match the master device.
• Ensure cable connections are secure and use the correct cable type.

Symptom: Intermittent Errors

• Inspect cable shielding and grounding. Use LiYCY or CYPiMF cable as recommended.
• Check for electromagnetic interference from nearby power cables.
• Confirm that the total cable length does not exceed the specified maximums.

Symptom: Module Overheating

• Measure ambient temperature; it should be between 0 and 55°C.
• Improve ventilation in the enclosure.

If issues persist, consult the Lenze documentation or contact AutoDCSTech for technical support.
