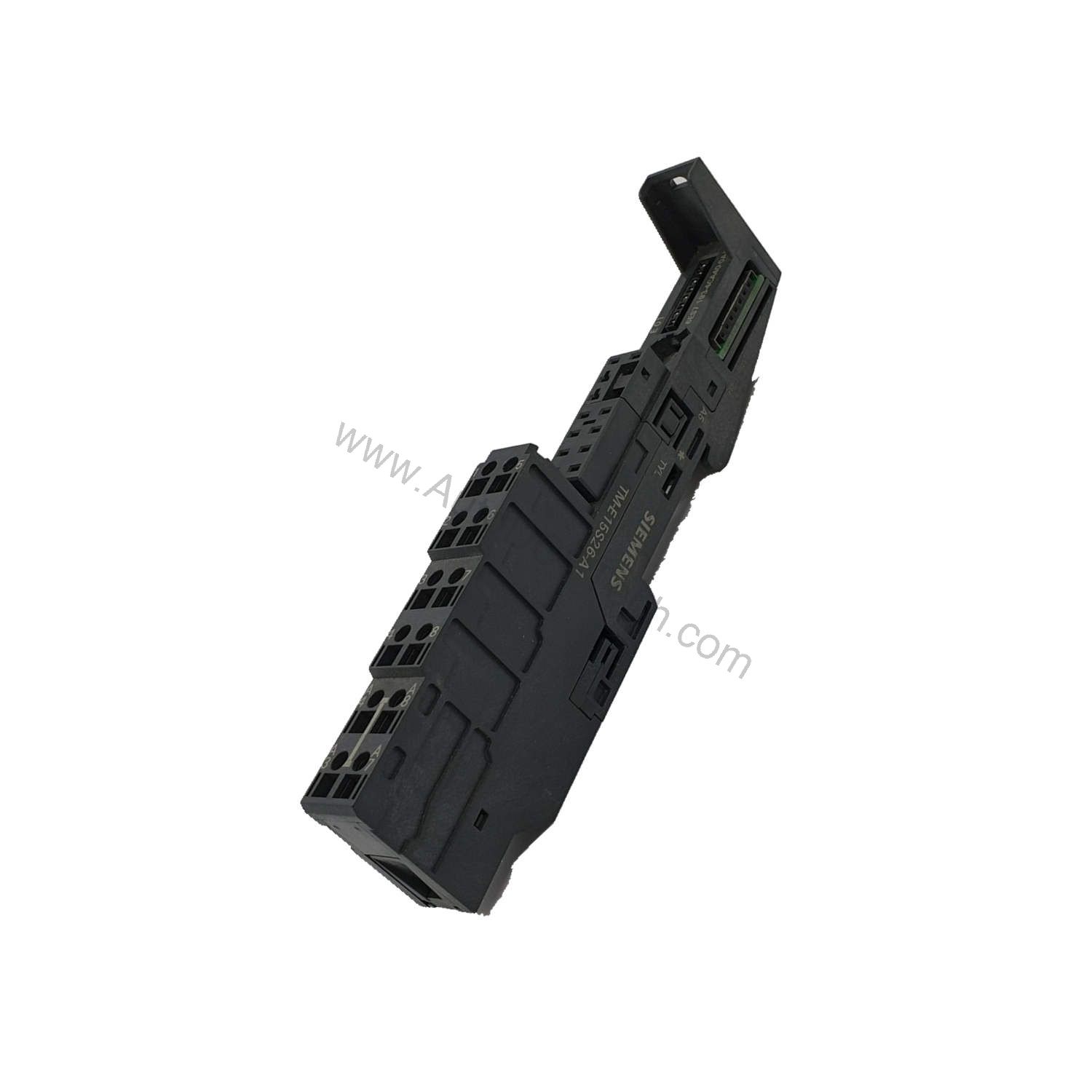

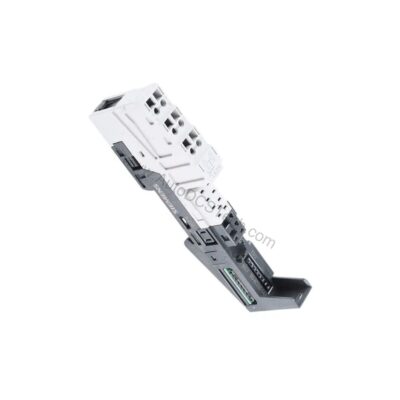

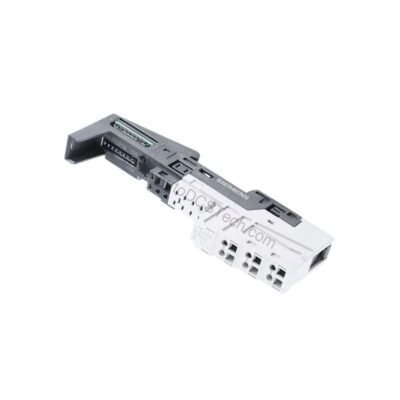

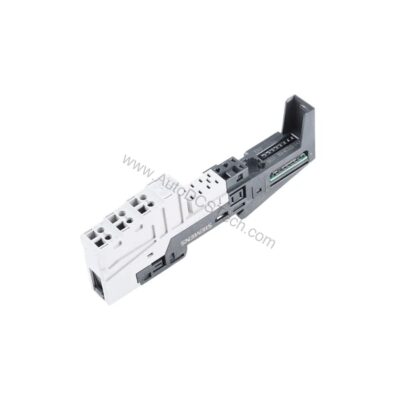

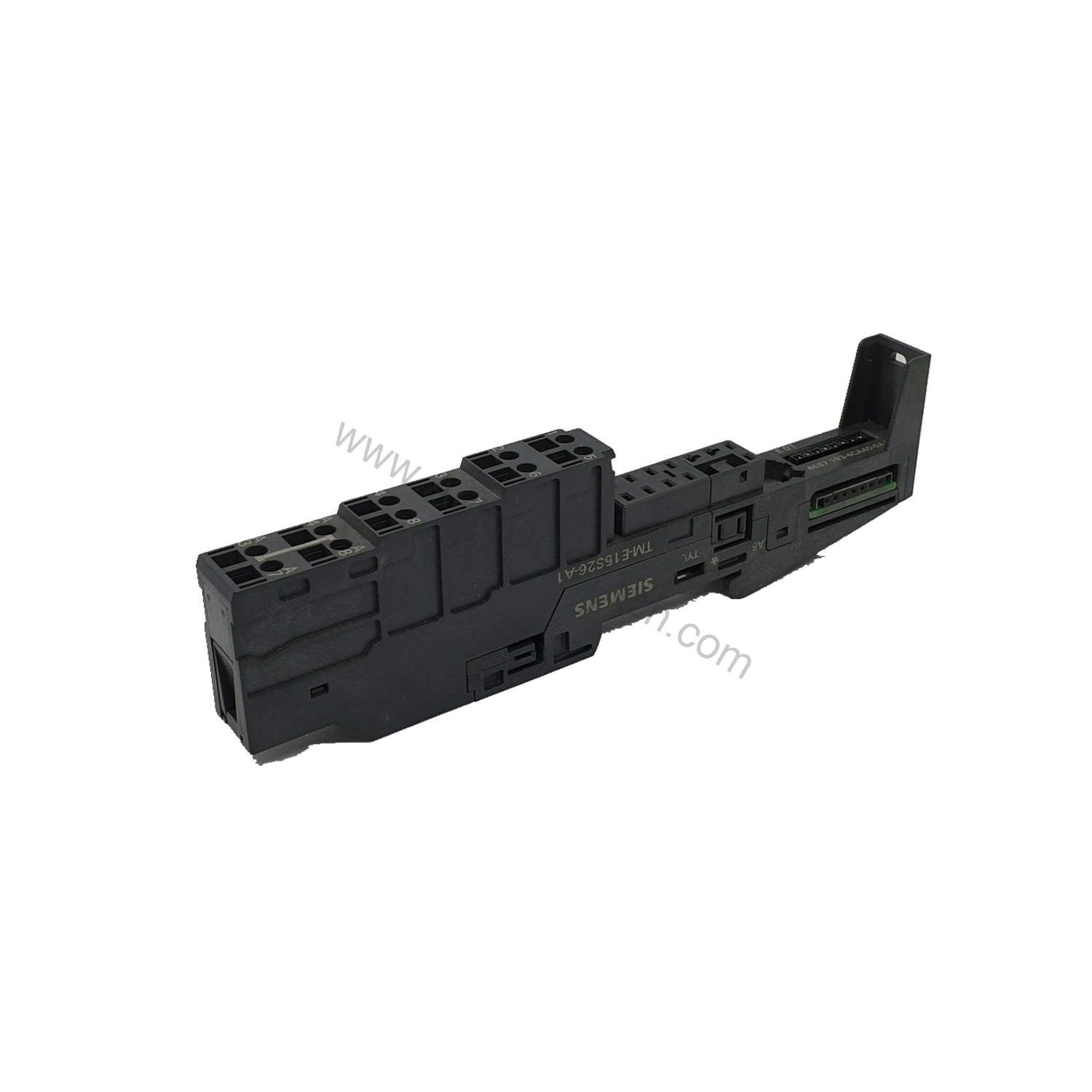

6ES7193-4CF50-0AA0 30mm ET 200S Terminal Module

Introduction to the 6ES7193-4CF50-0AA0

When wiring density and reliability matter, the 6ES7193-4CF50-0AA0 from Siemens provides a robust solution. This terminal module, designated TM-E30C46-A1, is engineered for the ET 200S distributed I/O system. It supports electronic modules with a 30 mm overall width, making it a versatile choice for compact control cabinets.

Because field wiring failures are a leading cause of downtime, this module uses spring-type terminals to ensure secure connections. The design includes 4x 6 terminal connections, offering ample points for signal wiring. Additionally, terminal access to AUX1 is provided, with AUX1 continuous for simplified daisy-chaining.

Key Features and Technical Specifications

The 6ES7193-4CF50-0AA0 is built for performance and ease of use. Its key specifications include:

• Width: 30 mm
• Height: 157 mm
• Depth: 43 mm
• Weight: approximately 131 g
• Spring-type terminals for tool-free wiring
• 4x 6 terminal connections for flexible I/O mapping
• Terminal access to AUX1, with AUX1 continuous

One distinctive feature is the continuous AUX1 rail, which simplifies the distribution of common potentials across multiple modules. This reduces wiring complexity and potential error points, directly improving system reliability.

Applications and Use Cases

In automated manufacturing lines, the 6ES7193-4CF50-0AA0 is used for connecting field devices such as sensors and actuators to the ET 200S system. Its compact 30 mm width saves cabinet space, which is critical in high-density installations.

For process industries, the AUX1 continuous feature allows efficient grouping of signals sharing a common reference. Consequently, engineers can reduce wiring errors and speed up commissioning. Whether upgrading an existing line or building a new one, this terminal module supports reliable signal transmission.

Installation and Setup

Mounting the 6ES7193-4CF50-0AA0 is straightforward. It snaps onto a standard DIN rail, and the spring terminals accept solid or stranded wires without special tools. To ensure a secure connection, insert the wire fully and release the spring lever gently.

Because the module provides access to AUX1, plan your wiring layout to take advantage of the continuous rail. This can minimize jumper wires and improve organization. Always verify that the module is correctly seated before powering up the system.

Maintenance and Reliability

Spring terminals are known for low maintenance, but periodic inspection is still recommended. Check that all wires remain firmly seated, especially in high-vibration environments. The module's compact design and robust construction contribute to long service life.

Environmental compliance is also a consideration. The product meets RoHS substance restrictions since 01/01/06. However, note that it contains lead (CAS 7439-92-1) above 0.1% w/w, so proper disposal per WEEE directives is required.

Compatibility and Integration

This terminal module is part of the Siemens SIMATIC DP family, specifically designed for the ET 200S system. It works with electronic modules of 30 mm width, allowing flexible configuration of digital and analog I/O. The spring-type terminals are compatible with standard field wiring, simplifying integration into existing plants.

For detailed compatibility with specific electronic modules, refer to the Siemens ET 200S manual. The module's design ensures a secure mechanical and electrical connection, maintaining signal integrity.

Troubleshooting and Common Issues

One common issue is loose wire connections, which can cause intermittent signals. To avoid this, ensure each wire is fully inserted and the spring lever is released properly. Another potential problem is incorrect AUX1 wiring, leading to short circuits. Always double-check the terminal assignment before energizing.

If the module fails to communicate, inspect the seating on the DIN rail and the connection to the electronic module. In most cases, reseating the module resolves the issue. For persistent problems, consult the official Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7193-4CF50-0AA0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact AutoDCSTech to confirm stock and lead times. Our team can assist with technical questions and ordering.
