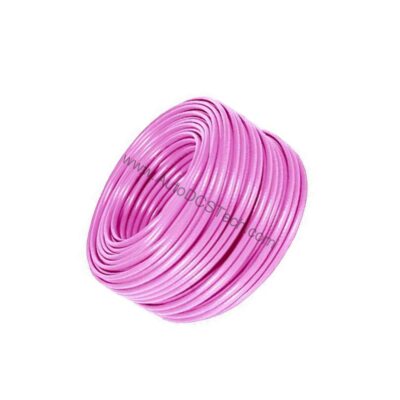

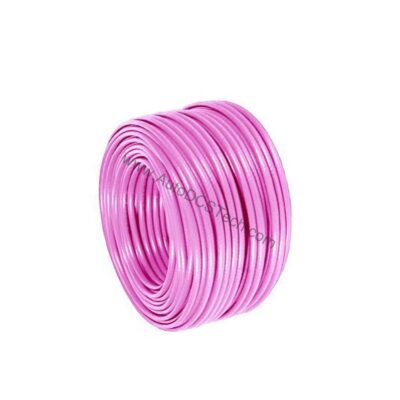

Schneider TSXCANCA300 CANopen Standard Cable 300m IP20

Technical Specifications Breakdown

Key parameters for the TSXCANCA300 are listed below for quick reference:

Industrial Applications for the CANopen Cable

This cable is engineered for use in discrete manufacturing, material handling, and process control systems where CANopen communication is standard. The 300-meter length allows for long-distance connections between controllers, I/O racks, drives, and sensors, reducing the need for repeaters in many layouts. The IP20 rating makes it suitable for installation in control cabinets and protected indoor environments, ensuring signal integrity in typical industrial settings.

Installation and Setup Guidance

When installing the TSXCANCA300, ensure the cable is routed away from high-voltage power lines to avoid electromagnetic interference. Use appropriate strain relief at connection points to prevent mechanical stress on the conductors. The cable complies with IEC 60332-1 for flame retardance, adding a layer of safety in case of fire. Always verify that the CANopen network terminator resistors are correctly placed at both ends of the bus for proper signal reflection control.

Maintenance and Reliability

Periodically inspect the cable for physical damage, especially near connectors and along exposed runs. Keep the cable clean and dry to maintain its IP20 protection effectiveness. In environments with vibration, secure the cable with cable ties or clamps to prevent abrasion. Regular visual checks help ensure long-term reliability of your CANopen network.

Robust CANopen Bus Connectivity with Schneider TSXCANCA300

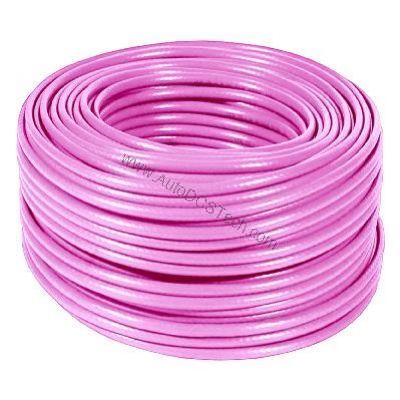

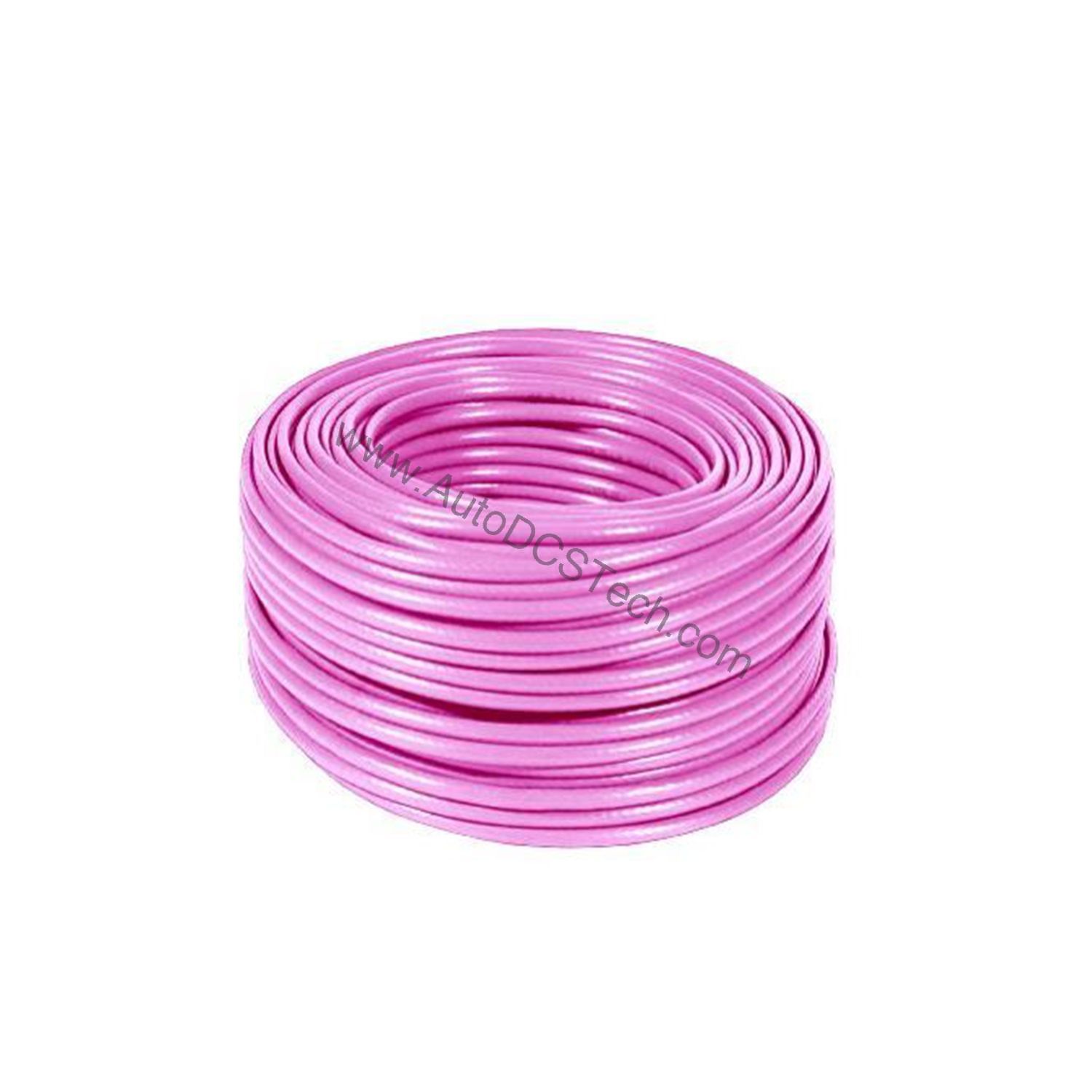

Industrial automation networks demand reliable, high-integrity cabling to ensure uninterrupted data flow. The Schneider TSXCANCA300 is a purpose-built CANopen standard cable designed for demanding factory floor environments. With a substantial 300-meter length (984.3 ft) and an IP20 protection rating, this cable provides a robust physical layer for your CANopen bus infrastructure.

Compatibility and Integration

The TSXCANCA300 is designed as a standard connecting cable for the CANopen bus, compatible with Schneider Electric's CANopen range and other CANopen devices. It serves as an accessory for connecting various automation components. Verify device compatibility with your specific controller or I/O module before installation.

Selection Guide and Purchasing Advice

When selecting a CANopen cable, consider the required length, environmental protection, and flame retardance. The TSXCANCA300 offers a 300-meter length, IP20 protection, and CE marking, making it a reliable choice for many applications. For current pricing and stock availability, contact AutoDCSTech, your trusted source for industrial automation parts.
