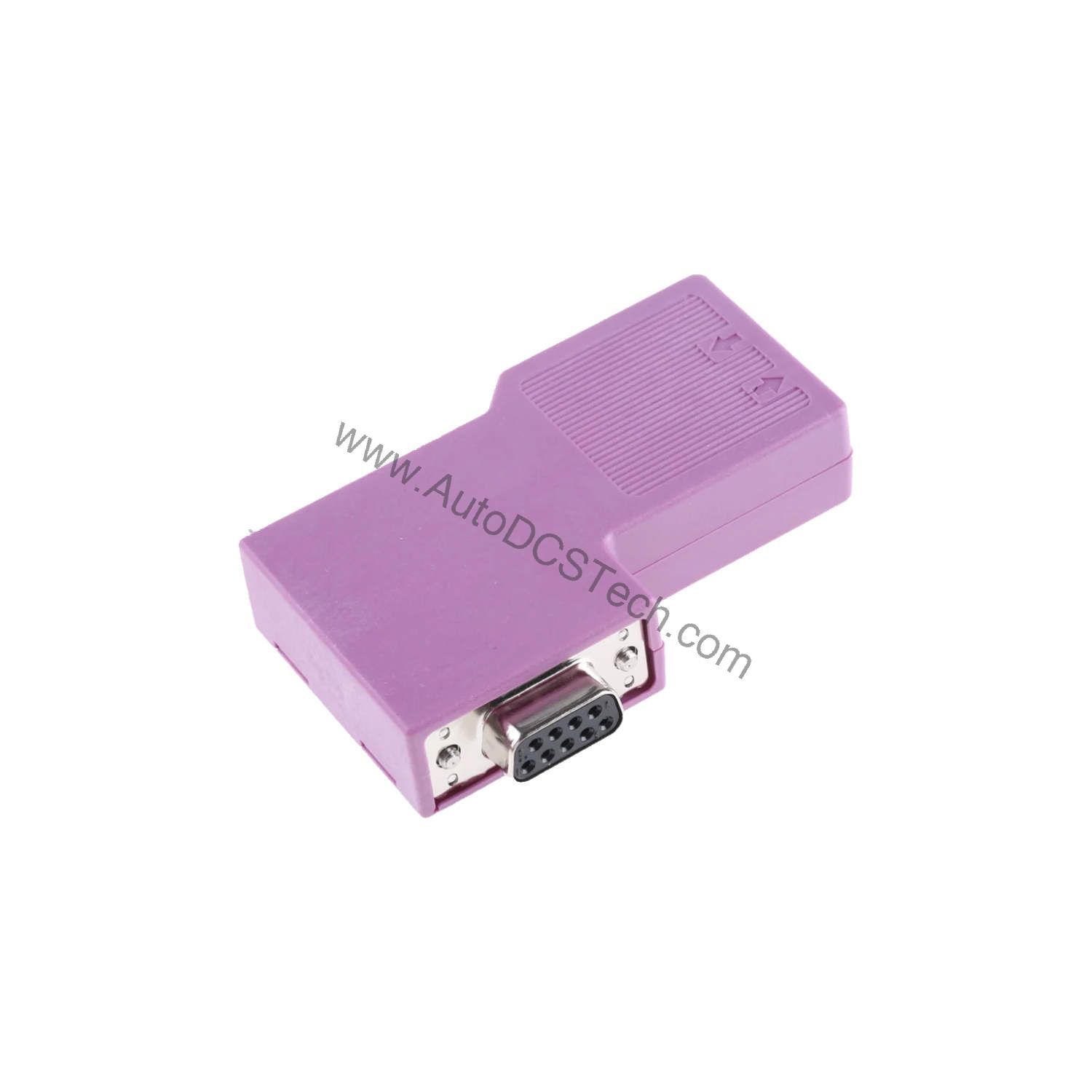

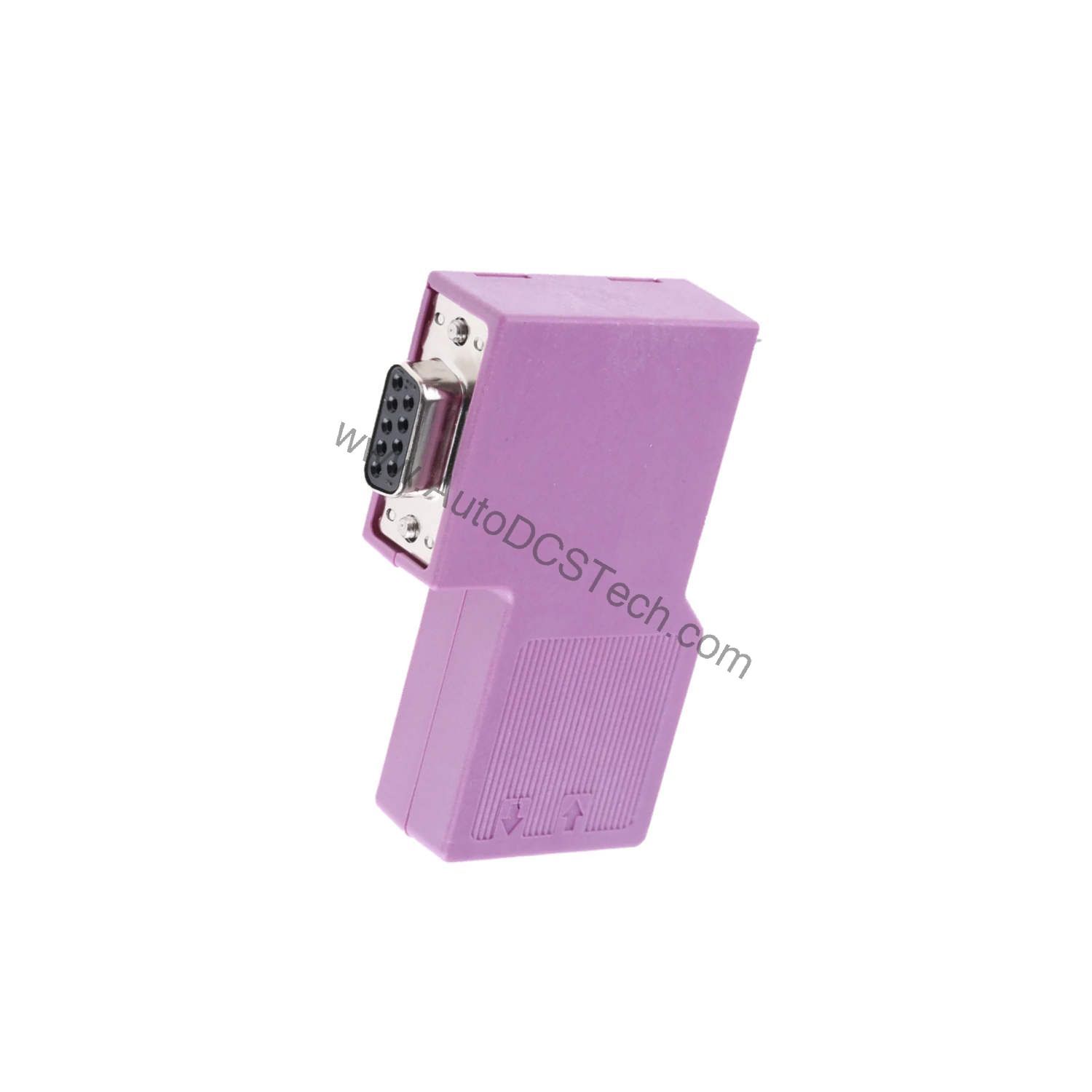

Schneider TSXCANKCDF90T CANopen SUB-D9 Connector with Terminator

Technical Specifications Breakdown

Key parameters for the TSXCANKCDF90T are listed below for quick reference:

Industry Applications and Use Cases

This connector is essential for terminating CANopen bus lines in applications such as:

• Manufacturing Lines: Ensuring error-free communication between PLCs, drives, and I/O modules on a production floor.
• Material Handling Systems: Providing reliable bus termination for conveyors, sorters, and robotic cells where network stability is critical.
• Process Control: Used in distributed control systems where CANopen is the backbone for sensors and actuators.

By using the TSXCANKCDF90T, engineers can avoid common issues like data corruption or node dropouts caused by unterminated bus ends.

Installation and Setup Guidance

Installation is straightforward. Connect the TSXCANKCDF90T to the last device on the CANopen bus segment. The 9-pin female connector accepts standard CANopen cables. Ensure the connector is firmly seated and the locking screws are tightened to maintain a reliable connection. The terminator is active as soon as it is plugged in; no additional configuration is required. Always verify that the bus topology adheres to CANopen guidelines for maximum cable length and node count.

Maintenance and Reliability

Periodically inspect the connector for signs of wear, corrosion, or loose connections. The IP20 rating means it is not sealed against moisture or dust ingress, so it should be installed in a clean, dry environment. No routine maintenance is needed beyond visual checks during system audits.

Robust CANopen Bus Termination with the Schneider TSXCANKCDF90T

In industrial automation networks, signal integrity is paramount. The Schneider TSXCANKCDF90T is a dedicated CANopen SUB-D9 female connector with an integrated line terminator, designed to ensure proper impedance matching and minimize signal reflections on CANopen bus segments. This accessory is part of the Schneider CANopen range, built for reliable communication in demanding environments.

Unlike generic connectors, this component is engineered specifically for CANopen networks, providing a secure 9-pin connection with a built-in terminator. This eliminates the need for external termination resistors, simplifying installation and reducing potential failure points. The IP20 rating makes it suitable for use in control cabinets and protected industrial settings.

Compatibility and Integration

The TSXCANKCDF90T is designed for the Schneider CANopen product range. It is compatible with any CANopen device that uses a standard SUB-D9 interface. It can be used with Schneider PLCs, drives, and I/O modules, as well as third-party CANopen equipment, as long as the bus termination requirements are met.

Selection Guide and Purchasing Advice

When ordering, verify that your network topology requires a terminator at the physical end of the bus. The TSXCANKCDF90T is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For bulk or urgent needs, contact our sales team for lead times.

Troubleshooting and Common Issues

If communication errors occur on the CANopen bus, check that the TSXCANKCDF90T is properly connected at the end node. A loose connection can cause intermittent faults. Ensure the connector is not damaged and that the pins are clean. If problems persist, verify that only two terminators are present on the bus (one at each end).
