Reliable Connection for Your PACSystems RX3i Energy Pack

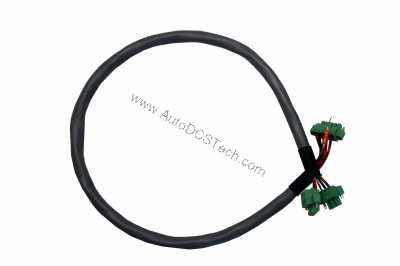

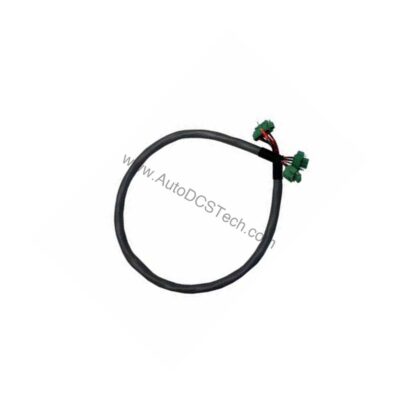

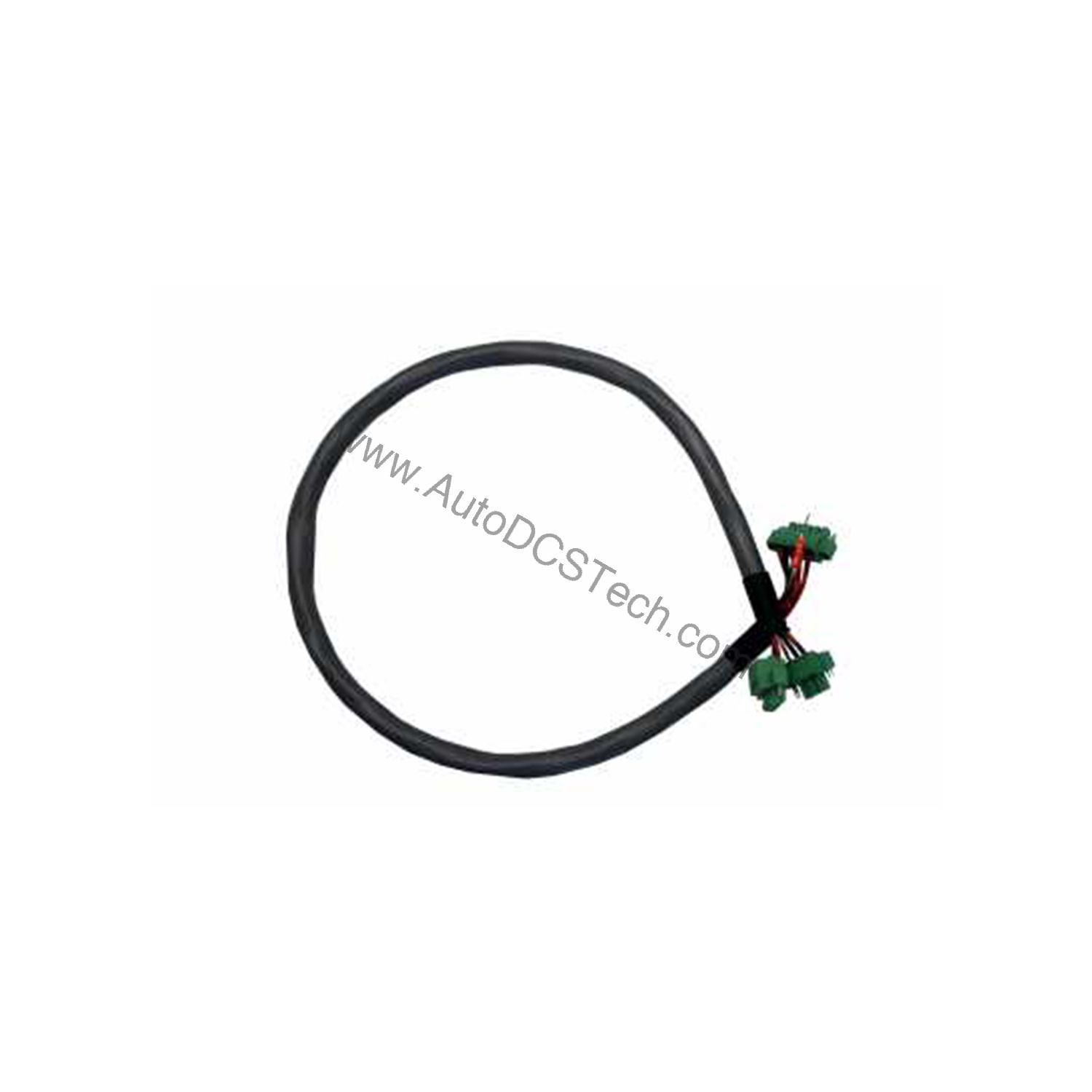

When maintaining uptime in critical industrial processes, a dependable connection between the CPU and its backup power source is non-negotiable. The GE Fanuc IC695CBL003 cable is a purpose-built replacement cable designed specifically for linking an optional energy pack to the controller within the RX3i PACSystems series. This 0.6-meter (24-inch) assembly ensures your system retains power integrity during short interruptions, safeguarding process data and preventing costly restarts.
Technical Specifications Breakdown
Key parameters for the IC695CBL003 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | RX3i PACSystems |
| Part Number | IC695CBL003 |
| Compatibility | PACSystems RX3i |
| Type | Replacement cable for Energy pack to Controller connection |
| Length | 0.6 meter (24 inches) |
| Voltage Range | 120/240 Volts / 125 Volts DC or 24 Volts DC |
| Type of Inputs/Outputs | Analog |
| Energy Pack Mounting | DIN rail |
| Termination Resistor | Yes |
| Wiring | Straight-through end-to-end |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Energy Pack Compliance | EU RoHS directive 2011/65/EU |
Industry Applications for the IC695CBL003
The analog I/O capability of compatible RX3i systems makes the cable suitable for continuous monitoring applications such as temperature, pressure, or flow control loops. By ensuring the energy pack remains connected, the IC695CBL003 helps maintain controller memory integrity during transient events.
Installation & Setup Guidance
Mount the energy pack on a standard DIN rail as specified. Before connecting the IC695CBL003, verify that both a ring terminal and a spade terminal are properly secured to ground the device. The cable features standard connectors and a straight-through wiring scheme, simplifying replacement. Ensure the controller is configured to power up directly from RAM to utilize the energy pack backup function.
Maintenance & Reliability
Inspect the cable periodically for signs of wear or damage, especially in environments with vibration or temperature extremes. The operating range of 0 to 60°C (32 to 140°F) covers most industrial enclosures. The protective coating helps resist moisture and contaminants. No special maintenance is required beyond visual inspection.
Compatibility & Integration
The IC695CBL003 is designed for use with the IC695ACC403 RX3i energy pack and PACSystems RX3i CPUs. It is part of the GE Fanuc RX3i series, which offers analog I/O and is a modern upgrade over older Series 90-30 systems. The energy pack includes LED indicators for input, output, and module status, along with self-diagnostic capabilities.
Selection Guide & Purchasing Advice
When selecting a replacement cable, confirm your system voltage matches the supported range: 120/240 Volts DC, 125 Volts DC, or 24 Volts DC. The 0.6-meter length is suitable for close mounting of the energy pack to the CPU. For availability and lifecycle status, contact AutoDCSTech. We stock genuine GE Fanuc parts to keep your automation running.
Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | IC695CBL003 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
Datasheet & Downloads
Specification sheet for IC695CBL003. For lead time, condition and price, contact our team.
