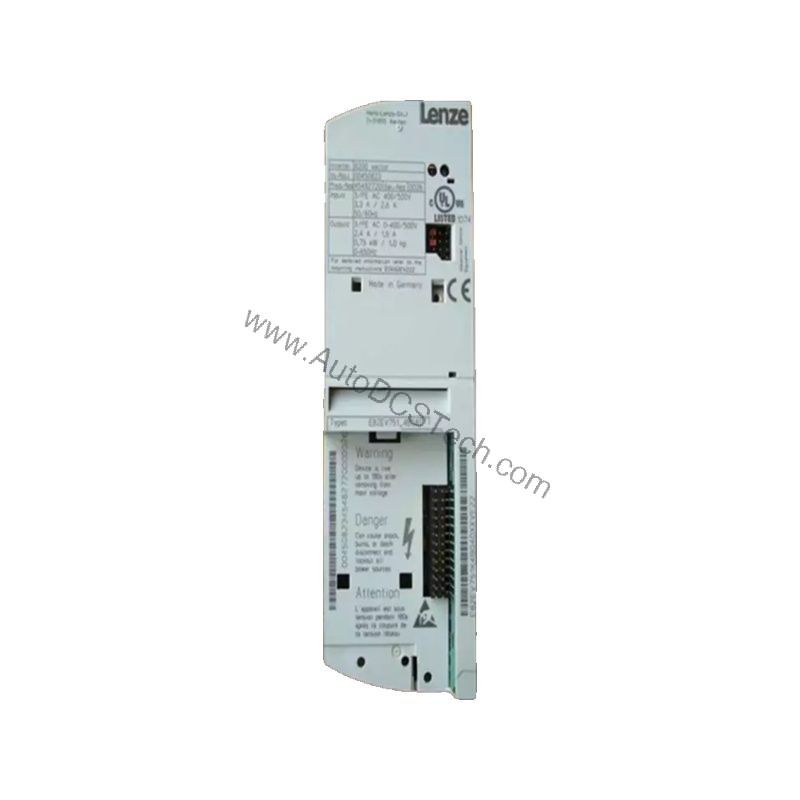

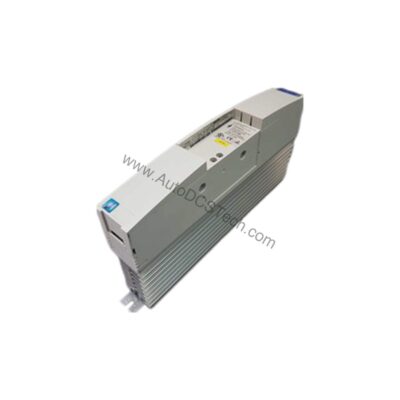

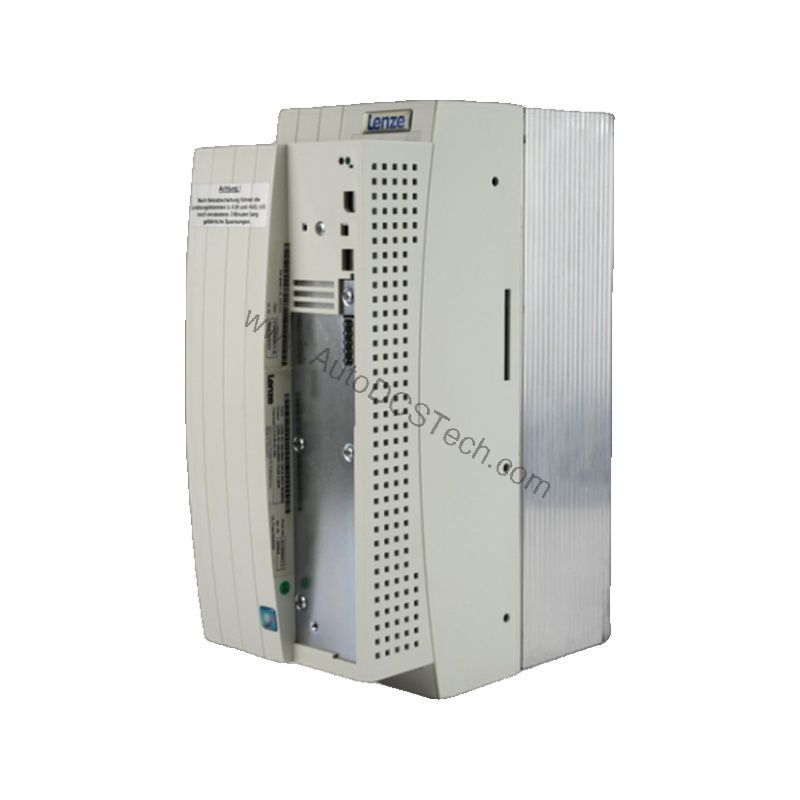

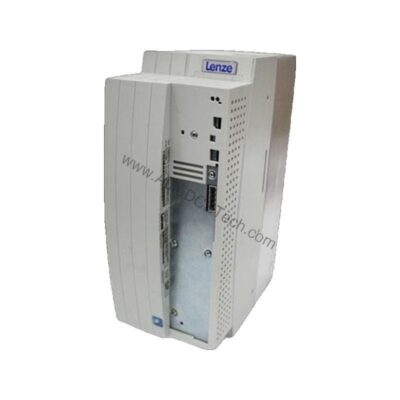

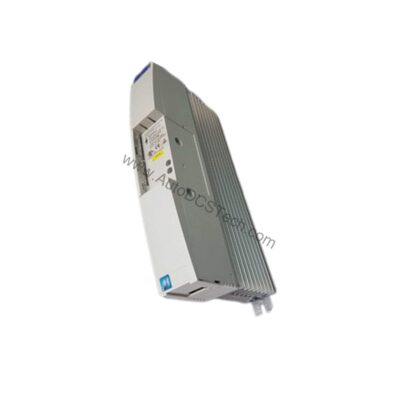

Lenze EMB9352-E 9350 Brake Unit, 9352 Standard Design

Technical Specifications Breakdown

Key parameters for the EMB9352-E are listed below for quick reference:

This module handles a nominal voltage range of 270 to 775V DC, making it versatile for various DC bus architectures. The rated current of 25A and continuous power of 18kW indicate its capability for medium-duty braking tasks. The switching thresholds at 375, 725, and 765V DC allow the unit to engage at the appropriate voltage level, preventing overvoltage conditions.

Industry Applications

Common uses include:

• Conveyor Systems: In material handling, sudden stops can cause product damage or jams. This brake unit provides smooth, controlled stops, improving throughput and reducing wear on mechanical components.
• Hoists and Cranes: Lifting equipment requires precise control during lowering and stopping. The brake unit ensures safe, predictable movements, enhancing operator safety and load handling accuracy.
• Centrifuges and Fans: High-inertia loads can take a long time to coast to a stop. The EMB9352-E dissipates the stored kinetic energy quickly, reducing cycle times and improving process efficiency.

The wide voltage range and multiple switching thresholds make this unit adaptable to different motor and drive configurations, offering flexibility in system design.

Installation & Setup Guidance

Proper installation is essential for safe and reliable operation. Follow these general guidelines:

1. Mounting: Install the unit in a clean, dry, and well-ventilated enclosure. Ensure adequate clearance around the module for heat dissipation. The compact dimensions (W52 x H350 x D186mm) allow for easy integration into existing control panels.
2. Wiring: Connect the DC bus terminals to the corresponding points on your drive system. Use appropriately sized cables capable of handling the rated current of 25A. Ensure all connections are tight and secure.
3. Brake Resistor: The EMB9352-E requires an external brake resistor. Select a resistor with a resistance value equal to or greater than the minimum resistance of 18 Ohm. The resistor's power rating must match the application's braking energy requirements.
4. Configuration: Set the switching threshold according to your system's DC bus voltage. Refer to the drive system documentation for the recommended threshold voltage. The available thresholds are 375, 725, and 765V DC.

Always de-energize the system before performing any wiring or maintenance. Consult the Lenze documentation for detailed installation instructions and safety precautions.

Maintenance & Reliability

Regular maintenance ensures long-term reliability and prevents unexpected downtime. Consider the following:

• Inspection: Periodically inspect the unit for signs of overheating, such as discoloration or a burnt smell. Check all connections for tightness and corrosion.
• Environmental Conditions: The unit's performance is affected by ambient temperature and altitude. For temperatures between 40°C and 50°C, derate the power by 2% per Kelvin. For altitudes above 1000 meters above sea level, derate by 5% per 1000 meters. Ensure adequate cooling and ventilation in high-temperature environments.
• Cleaning: Keep the unit free from dust and debris. Use a dry, low-pressure air stream to clean the heatsink and ventilation openings. Do not use water or solvents.

Following these practices will help maintain the unit's performance and extend its service life.

Why Your Drive System Needs a Reliable Braking Module

Without a proper braking unit, that energy can spike the DC bus voltage, trigger overvoltage faults, and damage sensitive drive components. The Lenze EMB9352-E brake unit, part of the 9350 series, provides a controlled path for this energy, ensuring smooth, safe stops and protecting your equipment. This standard design offers a balance of performance and simplicity for a wide range of industrial applications.

Compatibility & Integration

The EMB9352-E is designed to work with Lenze drive systems that utilize a DC bus voltage within the specified range. It is part of the 9350 series, which includes various brake units for different power levels. When integrating this module, verify that your drive's DC bus voltage matches the nominal voltage range of 270..775V. The switching thresholds (375/725/765V DC) must be compatible with your drive's overvoltage protection settings. For systems with different voltage requirements, consult Lenze or a qualified distributor to ensure proper selection.

Selection Guide & Purchasing Advice

When selecting a brake unit, consider the following factors:

• Braking Power: Calculate the peak and continuous braking power required for your application. The EMB9352-E offers a continuous power of 18kW, which is suitable for many medium-duty applications.
• Resistance Value: Ensure the external resistor's resistance is at least 18 Ohm. A lower resistance will draw more current and may overload the unit.
• Environmental Conditions: Account for temperature and altitude derating to ensure the unit can deliver the required power in your specific environment.

For a reliable supply of genuine Lenze parts, consider AutoDCSTech. They specialize in industrial automation components and can help you verify the EMB9352-E's lifecycle status and availability. Please confirm current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the brake unit is not functioning correctly, consider these common issues:

• Overvoltage Faults: If the drive reports an overvoltage condition, the brake unit may not be engaging. Check the switching threshold setting and ensure the brake resistor is connected and functional.
• No Braking Action: Verify that the DC bus voltage is within the nominal range and that the control signal is present. Inspect the wiring for loose connections or breaks.
• Overheating: If the unit becomes excessively hot, check the ambient temperature and ensure adequate ventilation. Verify that the braking power does not exceed the continuous rating. If the application requires higher power, consider a larger brake unit.

Always refer to the Lenze user manual for detailed troubleshooting procedures. If issues persist, contact a qualified service technician.
