Introduction

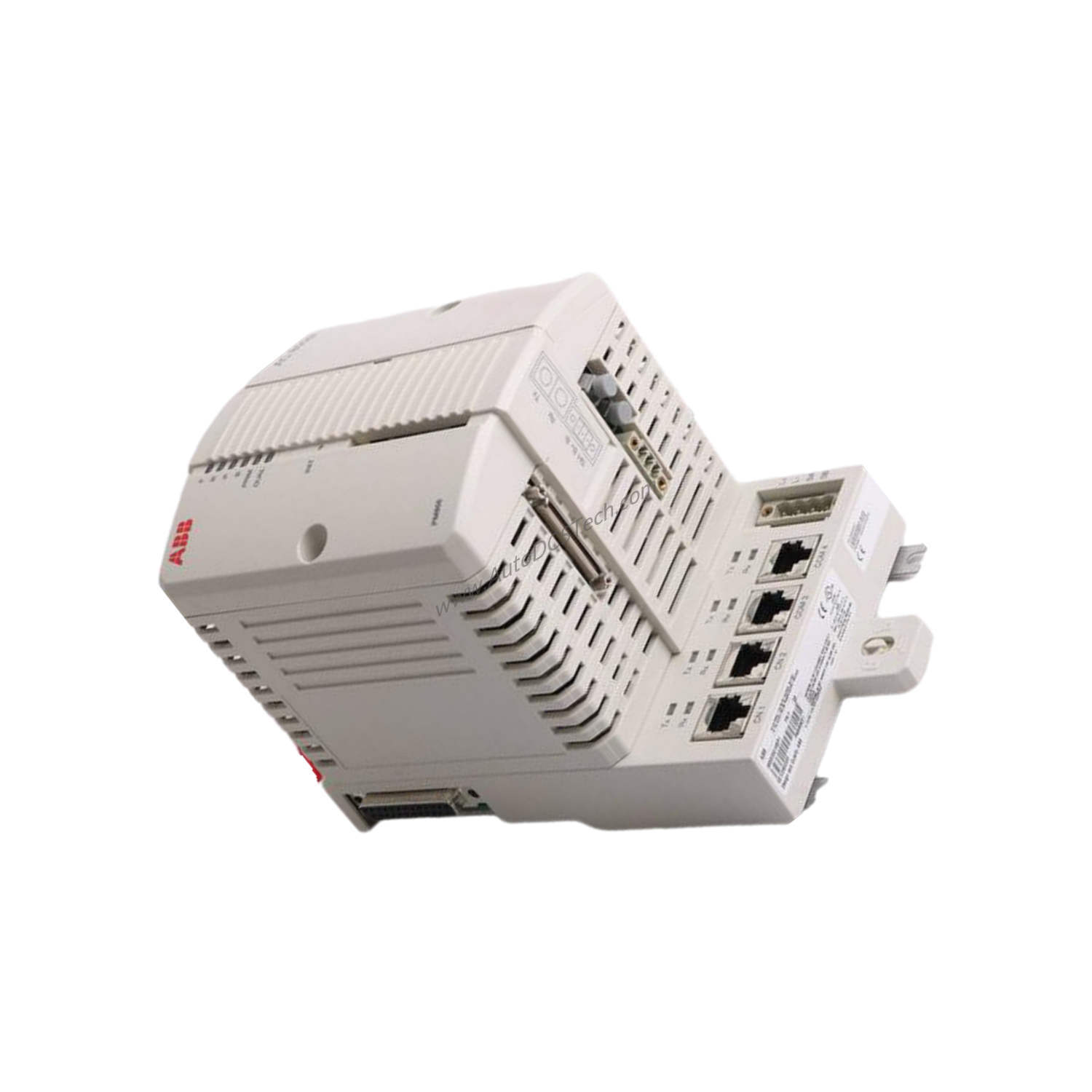

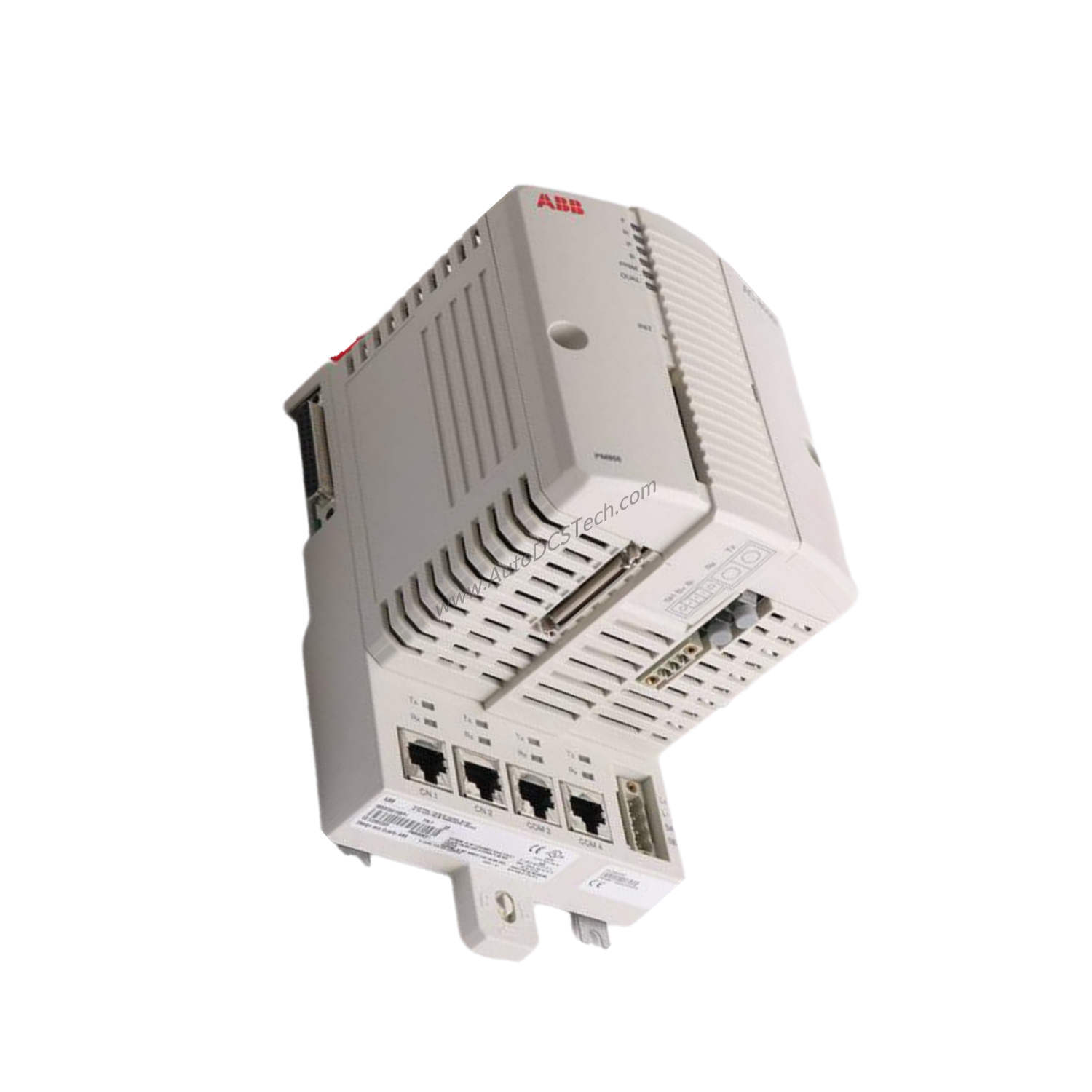

Industrial automation has evolved from simple relay logic to sophisticated distributed control systems. The ABB PM866AK01 MPC866 controller represents this evolution, providing a powerful and reliable CPU solution for modern process control. Designed for demanding environments, this controller integrates a microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and a CompactFlash interface on a single board. Its base plate includes two RJ45 Ethernet ports (CN1, CN2) for Control Network connectivity and two RJ45 serial ports (COM3, COM4) for configuration and communication. With support for CPU redundancy, the PM866AK01 ensures high availability in critical applications.
Technical Specifications Breakdown
The PM866AK01 delivers solid performance with a 133 MHz clock frequency and 64 MB of memory, of which 51.389 MB is available for applications. It processes 1000 boolean operations in 0.09 ms, making it suitable for fast logic execution. The controller supports up to 32 applications per controller and 32 tasks per controller, with cycle times down to 1 ms. Its power supply accepts 24 V DC (19.2-30 V DC), with typical consumption of 210 mA and maximum of 360 mA. Power dissipation is 5.1 W typical and 8.6 W max. The built-in backup battery is a lithium 3.6 V cell. The controller includes two Ethernet channels (IEEE 802.3, 10 Mbit/s, RJ-45) and supports MMS and IAC protocols. It operates in temperatures from +5 to +55 °C and stores from -40 to +70 °C. Protection class is IP20 according to EN 60529.
Industry Applications
The ABB PM866AK01 excels in process industries such as oil and gas, chemical, and power generation. Its CPU redundancy capability (switch over time max 10 ms) minimizes downtime in critical control loops. The controller supports up to 96 I/O modules on Modulebus with a non-redundant CPU, enabling large-scale distributed I/O architectures. In water treatment facilities, the PM866AK01 manages multiple tasks with cycle times down to 1 ms, ensuring precise control of pumps and valves. Its ISA Secure certification adds a layer of cybersecurity for modern industrial networks.
Installation & Setup Guidance
Mount the PM866AK01 on a standard DIN rail using the slide & lock mechanism for simple attachment and detachment. Ensure the base plate (TP830) has a unique Ethernet address label for hardware identification. Connect the Control Network via the two RJ45 Ethernet ports (CN1, CN2) using 10 Mbit/s Ethernet cables. For configuration, use the isolated RS-232C port (COM4) at 9600 baud with an RJ-45 connector. The non-isolated RS-232C port (COM3) supports 75-19200 baud with full RTS-CTS handshaking. Power the controller with 24 V DC (19.2-30 V DC) and verify the redundant power supply status input is connected if required. Use 800xA control builder for programming.
Maintenance & Reliability
Regular inspection of the PM866AK01 includes checking LED indicators for status and verifying the real-time clock stability (100 ppm, approx. 1 h/year). The controller's IP20 protection allows operation without enclosures in clean industrial environments. Monitor the built-in lithium backup battery (3.6 V) and replace it per manufacturer guidelines. The controller's flash memory (4 MB for firmware, plus additional flash for storage) ensures reliable operation without mechanical drives. Environmental conditions should remain within +5 to +55 °C operating temperature and 5 to 95% non-condensing humidity. The controller is G3 corrosion resistant per ISA 71.04, suitable for harsh atmospheres.
Compatibility & Integration
The PM866AK01 integrates seamlessly with ABB's 800xA system and supports CEX-Bus communication modules (up to 12). It connects to S800 I/O via Modulebus, handling up to 96 I/O modules with a non-redundant CPU. The Control Network uses MMS and IAC protocols over 100 Mbit/s switched Ethernet backbone. For fieldbus integration, the controller supports PROFIBUS DP via communication modules. The RS-232C interfaces allow connection to configuration tools and serial devices. The controller also supports clock synchronization (1 ms between AC 800M controllers) using the CNCP protocol. Ensure compatibility with your existing system by verifying the part number 3BSE076939R1.
Selection Guide & Purchasing Advice
Before ordering the ABB PM866AK01, verify your system requirements: power supply (24 V DC), network topology (Ethernet 10 Mbit/s), and I/O count (up to 96 modules). This controller does not support redundancy (model is non-redundant) but is part of a family that does. Confirm the required communication modules (e.g., BC810/BC820 for CEX-Bus) and ensure your 800xA control builder version is compatible. SpareTechPLC stocks the PM866AK01 (article number 3BSE076939R1) and can advise on availability and lifecycle status. Contact SpareTechPLC for current pricing and lead times.
Frequently Asked Questions
Q1: What is the processor type of the ABB PM866AK01?
A1: The PM866AK01 uses an MPC866 processor with a clock frequency of 133 MHz.
Q2: How much memory is available for applications?
A2: The controller has 64 MB total RAM, with 51.389 MB available for applications.
Q3: What is the switchover time in redundant configuration?
A3: The maximum switchover time is 10 ms when used in a redundant configuration.
Q4: What communication ports are available on the base plate?
A4: The base plate includes two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4). COM3 is RS-232C with modem control, and COM4 is isolated RS-232C for configuration.
Q5: What is the operating temperature range?
A5: The PM866AK01 operates from +5 to +55 °C (+41 to +131 °F) and stores from -40 to +70 °C (-40 to +158 °F).
