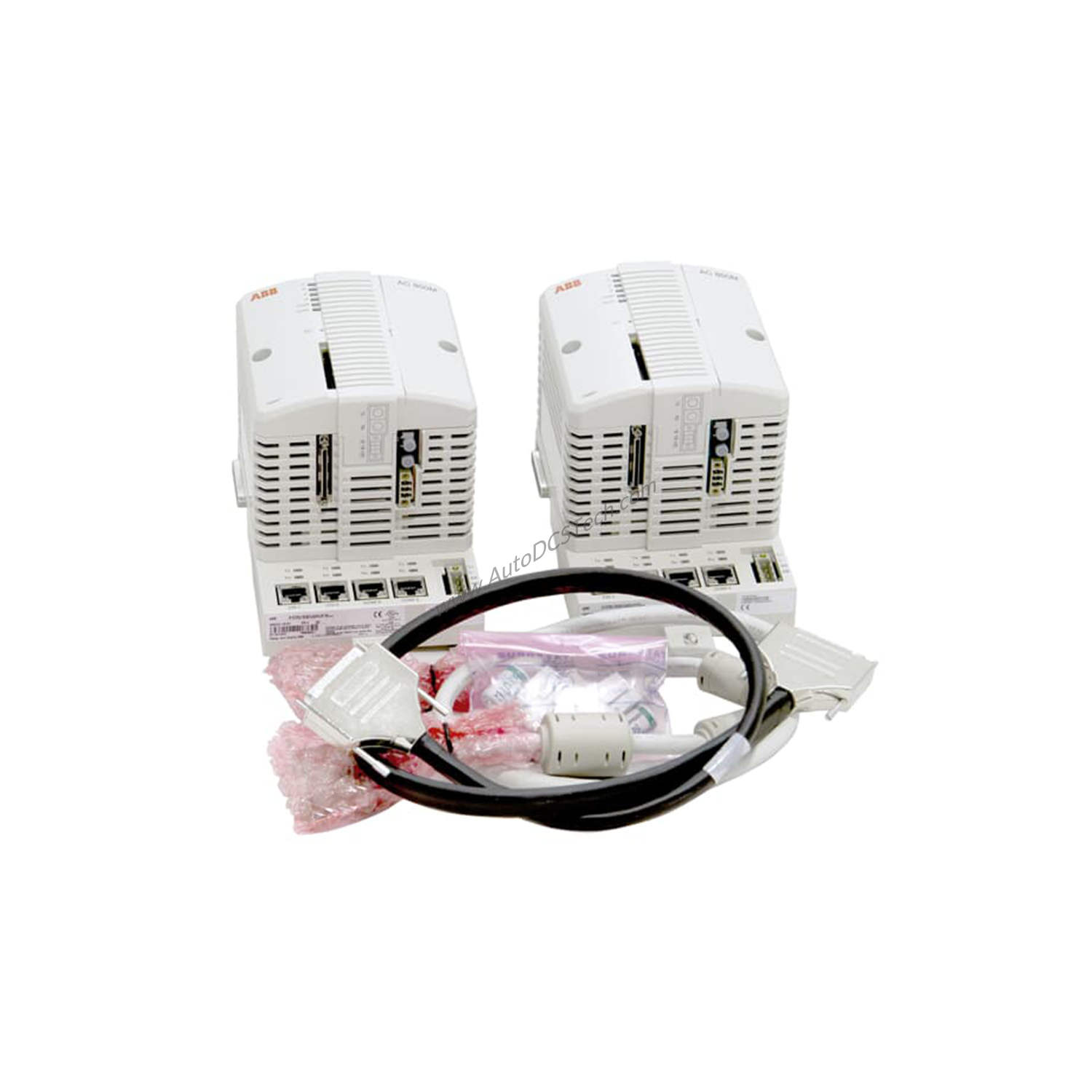

Cost-Effective Control with the ABB PM862K01 MPC866
When downtime costs thousands per minute, the ABB PM862K01 MPC866 controller delivers reliable, high-performance automation. Its 67 MHz clock frequency and 32 MB memory ensure fast logic execution, reducing cycle times and boosting productivity. With a switchover time of max 10 ms in redundant configurations, this CPU minimizes disruption, directly lowering operational losses.
Technical Specifications Breakdown
Processing Power and Memory
- Clock Frequency: 67 MHz
- Performance: 0.18 ms for 1000 boolean operations
- RAM: 32 MB (23.521 MB available for applications)
- Flash Memory: 4 MB for firmware storage
These specs translate to rapid program execution, allowing faster machine cycles and higher throughput. The ample RAM supports complex applications without performance degradation, saving engineering time and reducing hardware costs.
Power Efficiency
- Power Supply: 24 V DC (19.2-30 V DC)
- Power Consumption: 210 / 360 mA typ/max
- Power Dissipation: 5.1 W (8.6 W max)
Low power consumption cuts energy bills and simplifies cooling requirements. The wide input voltage range ensures stable operation even with fluctuating supply, preventing unexpected shutdowns.
Communication Capabilities
- Ethernet Channels: 2 (RJ-45, 10 Mbit/s)
- Control Network Protocol: MMS and IAC
- RS-232C Interfaces: 2 (COM3 general, COM4 isolated for configuration)
Built-in redundant Ethernet ports eliminate the need for external switches in many setups, reducing hardware investment. The isolated serial port protects against ground loops, enhancing system reliability.
Industry Applications
Process Manufacturing
In chemical or pharmaceutical plants, the PM862K01 handles up to 96 I/O modules on Modulebus, managing complex batch processes. Its 32 tasks per controller allow precise scheduling of control loops, optimizing raw material usage and minimizing waste.
Power Generation
For turbine control systems, CPU redundancy with max 10 ms switchover ensures continuous operation during maintenance. The real-time clock stability of 100 ppm (approx. 1 h/year) maintains accurate time stamps for event logging, aiding compliance audits.
Water Treatment
With IP20 protection and wide operating temperature range (+5 to +55 °C), this controller suits harsh environments. The G3 corrosion protection (ISA 71.04) extends lifespan in humid conditions, reducing replacement frequency.
Installation & Setup Guidance
Mount the PM862K01 on a standard DIN rail using the slide & lock mechanism for quick attachment. Connect the two RJ45 Ethernet ports (CN1, CN2) to the Control Network using shielded cables. For configuration, use COM4 (isolated RS-232C at 9600 baud) with a dedicated tool. Ensure the power supply meets 24 V DC (19.2-30 V DC) and observe polarity. The base plate includes a unique Ethernet address label for hardware identification.
Maintenance & Reliability
Inspect the lithium backup battery (3.6 V) annually; replace if voltage drops. Keep the CompactFlash interface clean and free of dust. Operate within 5 to 95% non-condensing humidity to prevent corrosion. The controller's IP20 rating allows use without enclosures in clean industrial environments, reducing maintenance overhead. Periodic verification of the real-time clock accuracy (100 ppm) ensures event timestamps remain reliable.
Compatibility & Integration
The PM862K01 integrates seamlessly with ABB System 800xA (6.0.2 or later) and Compact Control Builder (6.0.0-1 onwards). It supports up to 12 communication modules on the CEX bus and connects to S800 I/O via Modulebus (max 96 I/O modules with single CPU). The controller uses MMS and IAC protocols over Ethernet, and can interface with PROFIBUS DP through optional modules. For redundant setups, use a pair of BC810/BC820 for sectioned CEX-Bus.
Selection Guide & Purchasing Advice
Before ordering, verify your system software version (requires System 800xA 6.0.2+). Confirm the required I/O count and redundancy needs: single PM862 supports up to 96 I/O modules, redundant up to 84. Check the available CEX-bus slots for communication modules. SpareTechPLC stocks the ABB PM862K01 (3BSE076940R1) and can advise on compatibility with your existing setup. Contact us for current lifecycle status and availability.
Frequently Asked Questions
What is the maximum number of I/O modules the PM862K01 can handle?
With a single non-redundant CPU, it supports up to 96 I/O modules on Modulebus. In redundant configuration, the limit is 84 modules.
Can the PM862K01 be used in hazardous locations?
Yes, it has cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X certification for hazardous environments.
How do I connect a configuration tool to the controller?
Use the isolated RS-232C port COM4 (9600 baud, RJ-45, opto isolated) with a suitable cable and configuration software.
What is the switchover time in a redundant setup?
The maximum switchover time is 10 ms, ensuring minimal disruption during CPU failover.
Does the controller support Ethernet/IP?
The built-in Ethernet interfaces use MMS and IAC protocols. For Ethernet/IP, an optional communication module on the CEX bus may be required.
